Upgraded FlawTech Kit Now Includes 24 Radiographs and 25 Total Flaws

Overview

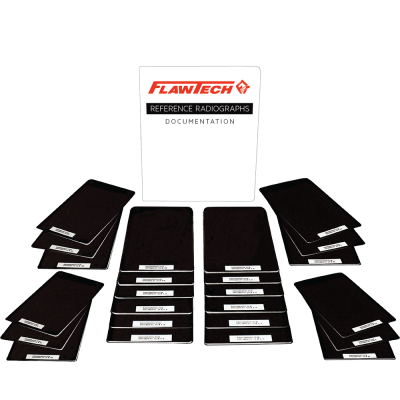

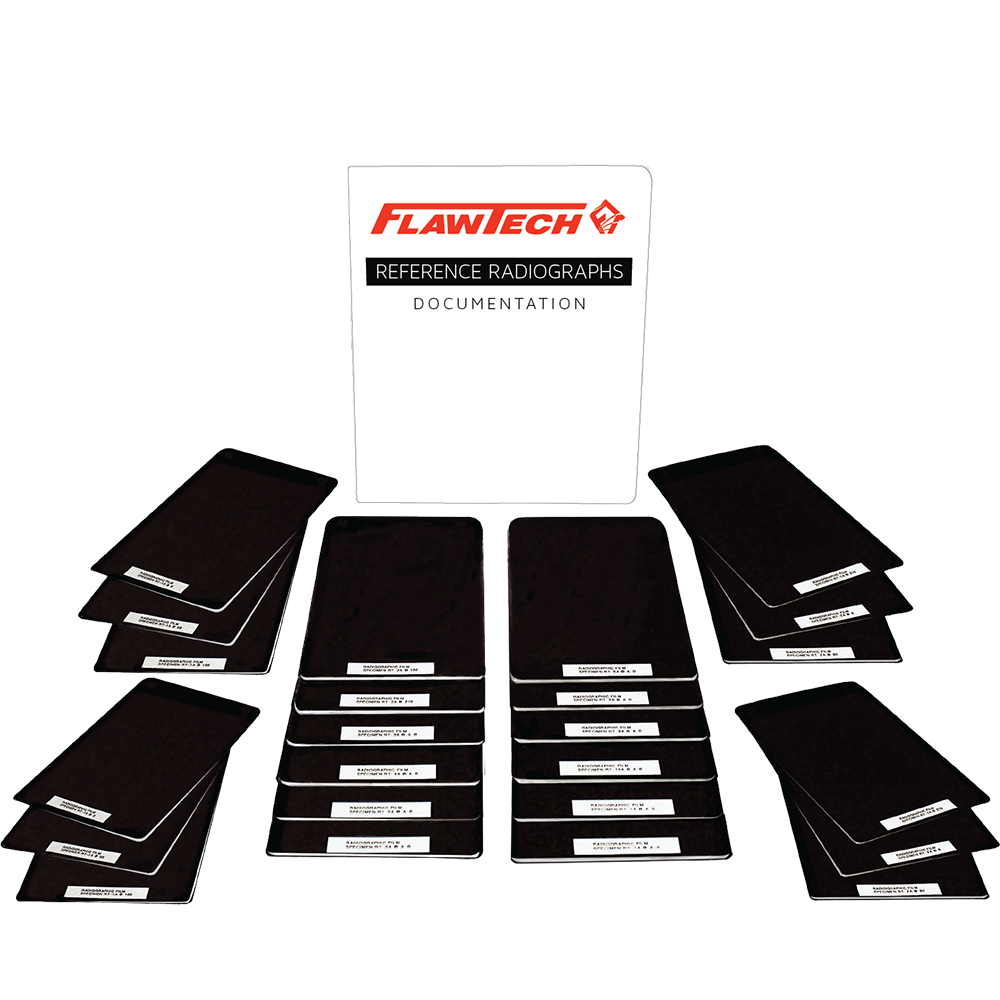

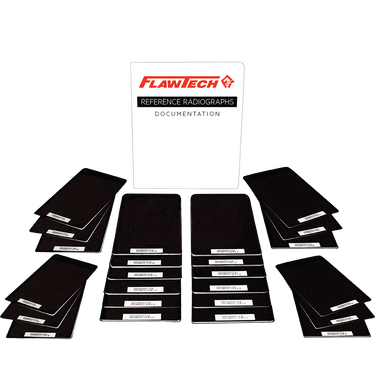

The new, improved FlawTech Standard Reference Radiograph Set contains a total of 24 Radiographs. There are 25 Flaws and ~7 Processing Defects dispersed throughout all 24 Radiographs to further aid flaw detection.

Features

  • Wide array of flaws that include:
    • Root Cracks
    • Centerline Cracks
    • Gas Pore
    • Slag Inclusion
    • Incomplete Root Penetration
    • Concavity
    • Weld Splatter
    • Chipping Hammer Marks
  • Includes Real Flaws and Process Defects

Technical Specifications

Technical Specifications

Reference Radiographs Technical Specifications
Dimensions: 12" x 12" x 4" (30.5 x 30.5 x 10.2cm)
Weight:  ~3lbs (~1.4kg)
Materials: Carbon Steel & Stainless Steel

Kit Includes

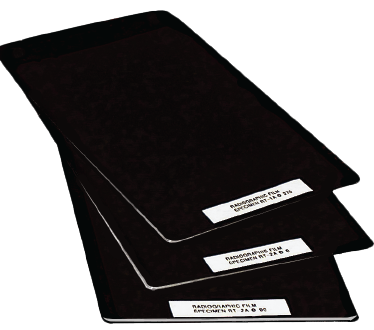

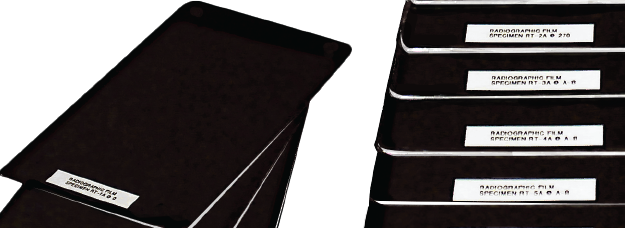

  • 24 Radiographs of (x25) “Real Flaws” plus ~7 Processing Defects
  • Radiographs are of (x10) Carbon Steel and (1) Stainless Steel Flawed Specimens
    • 4 Plates:  0.375”T
    • 3 Plates:  0.625”T
    • 1 Tee:      0.375”
    • 2 Pipe:     4” Sch80 (0.337” wall)
    • 1 Pipe:     4” Sch160 (0.531” wall) SS
  • Document Package:
    • Certificate of Conformance
    • CAD Drawings
    • Test Sheets
    • Radiographs

There is a $5.00 handling fee on FedEx shipments from FlawTech.

Description Part # Saved Price Select Option Add to
FlawTech Reference Radiographs FS-FTK-RR-1 $1,545.00
