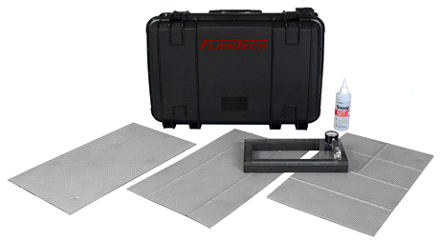

FlawTech Bubble Leak Kit
FlawTech's Vacuum Box Kit is designed for basic Bubble Leak training and testing of technicians.
Specifications:
| | - Set contains one (1) 6" x 12" Vacuum Box with a viewing window of 4" x 10".
- Vacuum Box is designed for flat surfaces.
- Vacuum Box has a 1" thick foam gasket, 30 max (in Hg) vacuum gauge, venturi with muffler and standard 1/4" male quick disconnect air fitting.
- Kit comes with three (3) 12" x 20" x 0.125"T stainless steel plates.
- Each plate contains 4 to 6 flaws for a total of 15 flaws
- One (1) plate contains two (2) 20" welds
- One (1) plate contains three (3) 12" welds
- One (1) plate contains no welds
- Flaw Types:
- Pin Holes, Toe Cracks, HAZ Cracks, Base Metal Cracks & Corrosion w/ Pin Holes.
- Kit includes a bottle of bubble leak solution.
- Please note the Kit does not include air hose or air compressor, however these items can be included as an option.
- FlawTech can manufacture custom vacuum boxes for most any geometry.
- Kit Documentation Includes:
- Certificate of Conformance
- As Built CAD Drawings
- Measuring & Test Equipment Certificates
- Test Sheets (used during technician training and testing)
Kit Includes 1 Carrying Case
|
