High Intensity Large Format Film Viewers with Electronic Masking and Adjustable Spot Viewer Option

Overview

The FV-2014 high intensity LED film viewer combines the latest electronic technology with a reliable LED driver circuit. It can view film with a density of up to 4.0D and can be operated continuously 24 hours a day.

The FV-2014-IRIS is a new high intensity LED industrial Film Viewer that combines the features of the proven FV-2014 14"x17" LED Film Viewer with the new FV-2018-IRIS Ultra High Intensity LED Spot Film Viewer. Just like the FV-2014, the viewer can operate 24-hours continuously and achieve a 4.0D film on the 14"x17" section. It can also achieve a 4.4D on the ultra-high intensity spot with adjustable iris.

FV-2014 Features

  • 13" x 16.1" Window size (fits 14" x 17" Film)
  • Bright enough to view 4.0 Density Film
  • Vertical and horizontal illumination of 14"x17" view can be adjusted with the push of a button. Allows for viewing different size film on one viewer without external masking.
  • Dimmer control: Adjust the intensity from 5% to 100%.
  • Rugged viewer feet that can support the viewer at any angle or wall mount
  • Step pedal operation
  • New "Screen Grab" film holder for your convenience
  • Low heat output
  • Low noise - fan speed varies with temperature
  • Low power consumption
  • Universal Power Supply - use it anywhere

FV-2014

FV-2014-IRIS

FV-2014-IRIS Additional Features:

  • Dual view window: 14"x17" and IRIS Spot Viewer
  • Quickly switch from 14"x17" to spot by pressing the "IRIS" key.
  • Illuminate both spot and 14"x17" window at the same time.
  • Adjustable Iris: 0.2" to 4" (5mm to 100mm)
  • Adjustable Starting Intensity in Standard Mode
  • Adjustable Standby Intensity in Step Pedal Mode
  • Intensity when step pedal is activated can now be adjusted from 0 - 100%.
  • New Transparent Glass added on top of the Iris so a magnifier can rest on it.

FV-2014-IRIS Spot Viewer Features:

Max Luminance: ≥ 280,000 Cd/m2, ≤ 4.4D

Viewer Window: 0.2" to 4.0" (5 - 100 mm)

Uniformity: g = 0.95

Diffusion: σ = 0.95

Step 14"x17" Window Spot Window
Step 1 0 brightness 0 brightness
Step 2 790 cd/m2 1,100 cd/m2
Step 3 2,300 cd/m(default) 3,300 cd/m(default)
Step 4 4,300 cd/m2 5,800 cd/m2
Step 5 6,600 cd/m2 9,500 cd/m2
Step 6 9,500 cd/m2 13,000 cd/m2
Step 7 13,000 cd/m2 18,000 cd/m2
Step 8 15,800 cd/m2 23,000 cd/m2

Chart on the left shows Starting Intensity (minimum intensity).

Starting Intensity can be changed to 8 different intensity settings. Settings are applied to both main window and spot.




Standard wall mounting brackets, rugged adjustable stand & "Screen Grab" film holder

Wall Mount Accessory for

FV-2014-IRIS

Optional articulated Wall Mount fixture that is compatible with the FV-2014-IRIS. All new FV-2014-IRIS models will include mounting holes as part of the standard configuration.

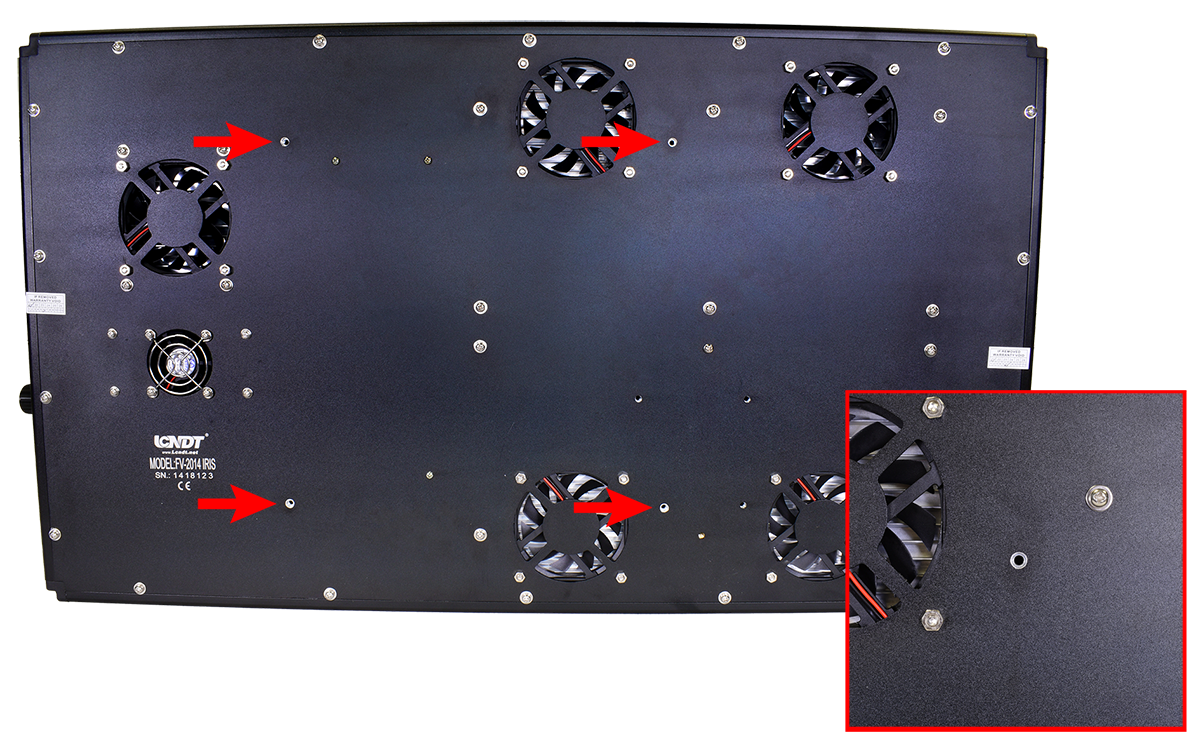

*Wall mount not compatible with all FV-2014-Iris film viewers. Viewers manufactured prior to July 1, 2021, do not have the required mounting holes to attach the wall mount bracket. See below image for the location of the mounting holes.

Purchasing Notice: Current stock does not have required mounting holes for wall mount. The wall-mountable version of the FV-2014-Iris must be special ordered at this time. Current lead time is approximately 4-5 weeks. If required, please specify this option when finalizing your purchase.

Please contact us with any questions or to verify whether your viewer is compatible.

Technical Specifications

FV-2014 & FV-2014-IRIS Specifications

  FV-2014 FV-2014-IRIS
Maximum Luminance approx. ≥ 100,000 Cd/m2, ≤ 4.0D

Main Window: approx. ≥ 100,000 Cd/m2, ≤ 4.0D

Spot Window: ≥ 280,000 Cd/m2, ≤ 4.4D

Uniformity g = 0.95
Dimensions 20.1" x 16.1" x 2.4" (51 x 41 x 6 cm) 28" x 16.1" x 2.1" (71 x 41 x 5.5 cm)
Power 85 - 264 VAC 47 - 63Hz 110 - 220 VAC 50 - 60Hz
Viewer Window Dimensions 13" x 16.1" (335 x 410 mm)

Viewer Window: 13" x 16.1" (335 x 410 mm)

Spot Window: 0.2" to 4.0" (5 - 100 mm)

Diffusion Factor σ = 0.95
Surface Temperature Rise Rise ≤ 68°F (20°C) After 12 hours continuous maximum luminance
Weight 18 lbs. (8.16 kg)

Kit Includes

FV-2014 Instrument Kit

  • FV-2014 Film Viewer
  • Vertical and Horizontal Electronic Masks
  • Foot Switch
  • Power Supply
  • Power Adapter & Line
  • Instruction Manual
  • Guarantee
  • Inspection Report
  • Warranty: 5 years parts, 1 year labor
FV-2014-IRIS Instrument Kit

  • FV-2014-IRIS LED Film Viewer
  • Power Supply with 8 ft. (2.5m) cable
  • Foot Pedal
  • Manual
  • Test Report
  • Warranty: 2 years parts, 1 year labor

The FV-2014 / FV-2014-IRIS Film Viewers Include a 2 Year Parts / 1 Year Labor Warranty

Description Part # Saved Price Select Option Add to
LCNDT FV-2014 14" x 17" Industrial X-Ray Film Viewer with Electronic Masking System RT-LC-FV2014 $3,450.00
LCNDT FV-2014-IRIS High Intensity Viewer, 14"x17" with separate spot RT-LC-FV2014-IRIS $4,520.00
Wall Mount for LCNDT FV-2014-IRIS RT-LC-FV2014-Iris-WM $450.00
