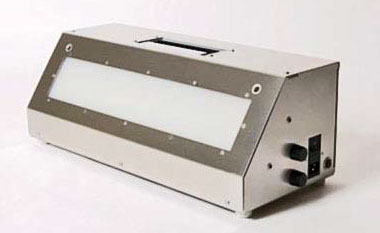

Kowolux X-6 LED Large Film Viewer

Kowolux X-6 LED Large Film Viewer

Kowolux X-6 LED Large Film Viewer

kowolux-x6

Suitable for large format X-ray films with higher density from castings and other complex parts and componets

Features:


  • Housing made of stainless steel in ergonomic design
  • Interchangeable attachment masks for different film sizes
  • Two potentiometers for brightness control - 0.2 ... 100 percent
  • Cooling fan with temperature dependent speed control for low noise level
  • Plug-in foot switch - viewer operable without foot switch
  • Other design features similar to other KOWOLUX X series viewers
  • *Luminance approximately 10 percent higher than specified when delivered
  • **according to DIN EN 25580, ISO 5580 and ASTM E 1390 max. density
  • Life time of LEDs: 40,000 hours
  • Power Supply: 100...240V / 50 - 60 Hz
  • Color temperature: 5,000 K

    Specifications: Kowolux X-6 Kowolux X-6eco
    Viewing Area:
    380 x 270 mm
    15 x 10.6 inches
    380 x 270 mm
    15 x 10.6 inches
    * Luminance: 160,000 cd/m2 100,000 cd/m2
    ** For Film Density: 4.2 D max. 4.0 D max.
    Rated Power: 500W 340W
    Dimensions:
    530 x 330 x 380 mm
    20.9 x 13 x 15 inches
    530 x 330 x 380 mm
    20.9 x 13 x 15 inches
    Weight:
    25 kg.
    61.7 lbs.
    22 kg.
    48.5 lbs.
    Article Number: 13 40140 12 40142

    Scope of Supply

    The X-6 & X-6eco film viewers come complete with:

    • Standard mask
    • Power cord
    • Foot switch
    • Test certificate according to ASTM E 1390, ISO 5580 & DIN EN 25580
    • Certificate of Conformance according to ISO/IEC 17050-1
    Description Part # Saved Price Add to
    Kowolux X6 LED Large Film Viewer (13 40600) RT-KT-X6 $8,465.00 $7,695.00
