KOWOLUX LX 14x17 Film Viewer

KOWOLUX LX 14x17 Film Viewer

For evaluation of large format NDT X-ray films according to ISO 5580, ASTM E1390

Overview

The KOWOLUX LX 14x17 Film Viewers are for X-ray films according to ISO 5580 and ASTM E1390. A durable, economically designed housing made of stainless steel contains the latest series of PowerLEDs providing powerful white light over the entire control range. High luminance helps inspection personnel to find discontinuities easily.

LX 14x17eco & LX 14x17plus

The KOWOLUX LX 14x17 Film Viewer is available in two formats: the 14x17eco and 14x17plus.

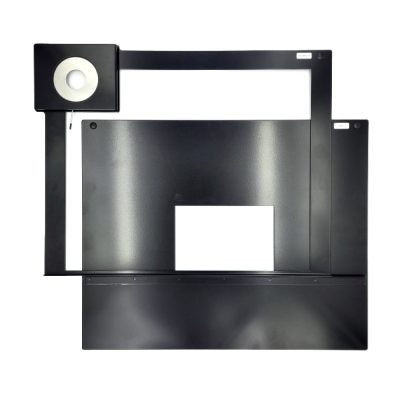

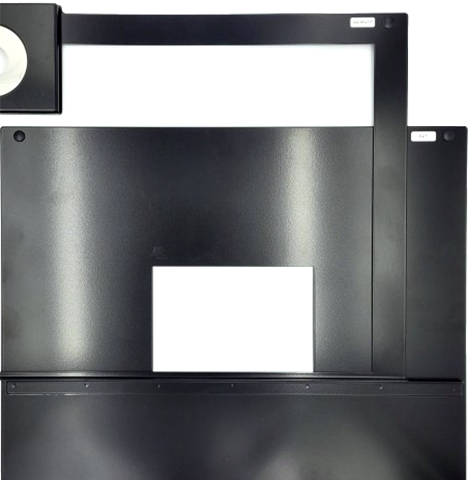

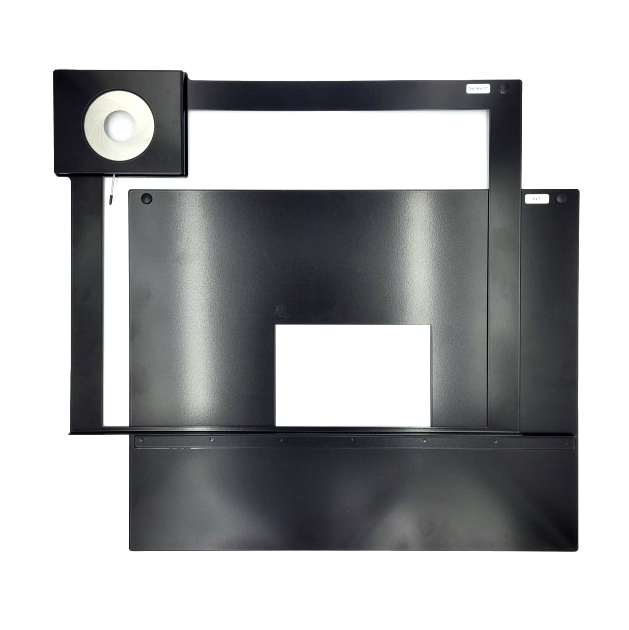

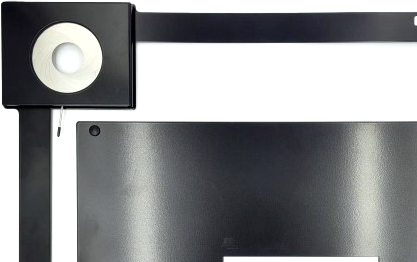

Pictured above: Optional LX14x17 Attachment Mask - Iris Ø 4 ... 75 mm (PN: RT-KT-13-40689)

Full specification differences are below:


KOWOLUX LX 14×17eco
 KOWOLUX LX 14×17plus
Rated power: 200 W 230 W
Viewing area:
14 x 17" – spot 2 x 2" (355 x 430 mm – spot 50 x 50 mm)
Main Window Luminance/ Density:
 70,000 cd/m² / 3.8 D 160,000 cd/m² / 4.2 D

Spot  Luminance/ Density:

 160,000 cd/m² / 4.2 D 320,000 cd/m² / 4.5 D
Dimensions/ Weight:

27.6 x 3.9 x 25.2" / 24.3lbs

700 x 100 x 640 mm / 11.0 kg

27.6 x 5.1 x 25.2" / 33.1lbs

700 x 130 x 640 mm / 15.0 kg

Features

  • 160,000 (eco) to 320,000 (pro) Cd/ m2 for high-density films
  • Housing made of stainless steel in ergonomic design
  • Interchangeable attachment masks for different film size (sold separately)
  • Two potentiometers for brightness control – 0.2 - 100 percent
  • Cooling fan with temperature dependent speed control for low noise level
  • Plug-in foot switch – viewer operable without foot switch

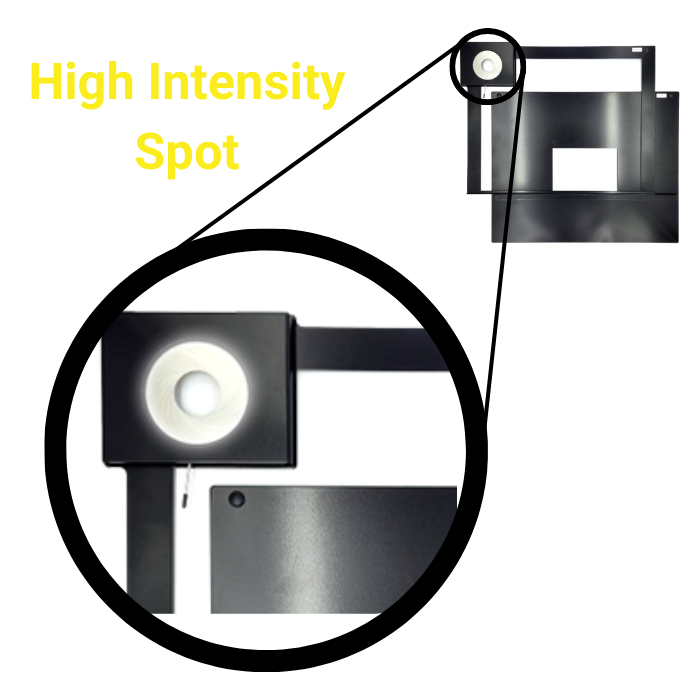

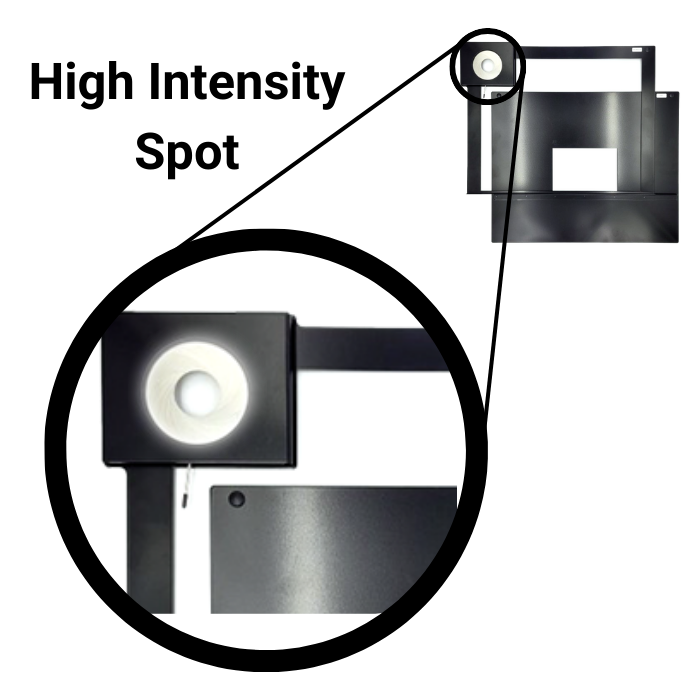

  • Spot light in the left corner for evaluating higher-density films and attachable mask system

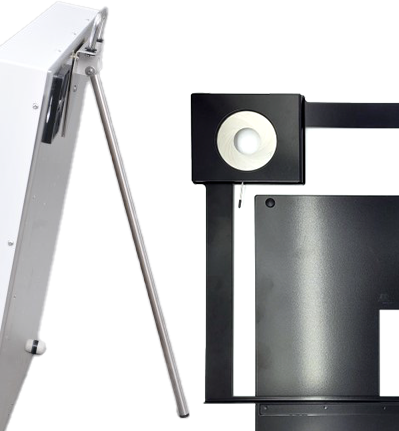

  • Flat body made of high-quality, corrosion-resistant stainless steel. Wall mountable or tabletop viewing with optional stand

Technical Specifications

Technical Specifications


KOWOLUX LX 14x17
 KOWOLUX LX 14x17 plus
Rated power: 200 W 230 W
Viewing area:
14 x 17" – spot 2 x 2" (355 x 430 mm – spot 50 x 50 mm)
Main Window Luminance/ Density: 70,000 cd/m² / 3.8 D 160,000 cd/m² / 4.2 D
Spot   Luminance/ Density:
 160,000 cd/m² / 4.2 D 320,000 cd/m² / 4.5 D
Dimensions/ Weight:

27.6 x 3.9 x 25.2" / 24.3lbs

700 x 100 x 640 mm / 11.0 kg

27.6 x 5.1 x 25.2" / 33.1lbs

700 x 130 x 640 mm / 15.0 kg
Housing material:
 Stainless Steel
Uniformity factor: g > 0.8
Color temperature: 5,000 K
Brightness control: 2 – with and without footswitch
Power supply: 8 - 264 V / 4 - 63 Hz
Screen glass: thermally cured, translucence 92%
Divergence factor: σ' > 0.9
Lifetime of LEDs: > 40,000 h
Control range: < 0.5 … 100%
Compliance: ISO 5580, ASTM E1390

Scope of Supply

  • Kowolux LX Film Viewer
  • Power Supply Cable
  • Foot Switch
  • Wall Mounting Kit
  • 14x17" mask
  • Support Feet
  • Test Certificate according to ASTM E 1390, ISO 5580 & DIN EN 25580
  • Certificate of Conformance according to ISO/IEC 17050-1

Stand & Mask Accessories

  • Selection of masks for the LX14x17 film
    • 14"x17" (13-40681)
    • 7"x17" (13-40682)
    • 8"x10" (13-40683)
    • 5"x7" (13-40684)
    • 12"x15" (13-40685)
    • 10"x12" (13-40686)
    • 7"x10" (13-40687)
    • 4"x15" (13-40688)
    • 14"x17" w/ Iris Ø 4 … 75 mm at spot (13-40689)
