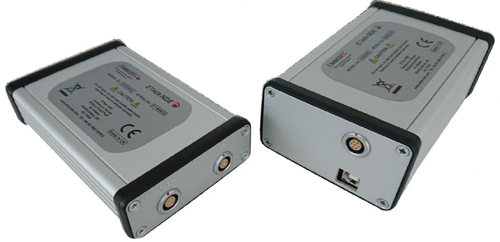

Embedded Eddy Current Solutions

The EmbedEC has been designed with the needs of the engineer in mind featuring analogue outputs, SPI and USB remote control/data streaming for Control System Integration. It’s possible to stream real time data and a DLL is available to permit software integration by the end user.

Applications

  • Surface breaking defects detection
  • Sub-surface defects detection in non-ferrous materials
  • Heat Treatment / Material property verification
  • Sensing application for verifying geometry such as the presence of threads, butt-weld detection, etc...

Features

  • Single Channel
  • Displayless
  • Available as a print cuircuit board or in an enclosure with USB connector and analogue outputs.
  • EmbedEC+ adds 5 configurable Digital Input Output connectors for use with alarms or encoders.
  • Small footprint
  • USB or SPI Control
  • Dual analogue outputs on PC card version
  • Data streaming over SPI/USB
  • Powered by 5V DC or USB for easy integration with industrial control systems
  • DLL available to facilitate software integration

Technical Specifications

EmBedEC Specifications

Probe Connector 1 off 6 Way (50 ohm Bridge or Reflection only)
Frequency Single Frequency 50Hz to 5MHz
Gain Overall 0 to 82dB
Main Gain 0 to 76dB, 0.1dB steps
Input 12dB
Drive 0dB or 6dB (0dB reference 1mW into 50ohm)
Max X/Y Ratio 0dB to 76dB independent
Phase Range 0.0 - 359.9°, 0.1° steps
Filters High Pass DC to 2kHz Low Pass in 1 Hz steps
Low Pass 3Hz to 4kHz in 1Hz steps
Connectivity PC Board Version SPI with PC remote control slave mode Outputs of X and Y range -1 to 1V (Board Version Only)
USB Version Virtual Com Port remote control plus Real Time data streaming
EmBedEC+ 5 Digital Input/Output lines may be configured for up to 2 Encoders, up to 2 Alarm/Out or 12C connection
Verification Level   The system includes, on delivery, a 2 year validity Verification Level 2, detailed function check and calibration as per ISO 15548-1:2013.
Power External 5V DC or over USB 125mA
Physical PC Board Version Weight: 2.5 oz. (75g)
Dimensions: 2.25" x 4.0" (60 x 100mm)
USB Version No. l/O Weight: 10 oz. (275g)
Dimensions: 5" x 3.2" x 1.25" (125 x 80 x 32mm)
USB Version with l/O Embed EC+ Weight: 8 oz. (225g)
Dimensions: 5" x 3.2" x 1.25" (125 x 80 x 32mm)
Operating Temperature -40° to 185°F (-40° to 85°C)
Storage Temperature Storage for up to 12 months - 4° to 95ºF (-20° to 35°C) Nominal 68°F (20°C)
IP Rating None

Standard EmBedEC Kit Includes

  • EmBedEC Single Channel, Single Frequency Unit
  • Lemo 7-Way - Lemo 4-Way, 1.5m Cable (Bridge)
  • Lemo 7-Way - Lemo 4-Way, 1.5m Cable (Reflection)
  • Hard Carrying Case
  • USB Cable - Type B Plug to USB Type A Plug, 1.8m

EmBedEC+ Kit Includes

  • EmBedEC Single Channel, Single Frequency, l/O unit
  • Lemo 7-Way - Lemo 4-Way, 1.5m Cable (Bridge)
  • Lemo 7-Way - Lemo 4-Way, 1.5m Cable (Reflection)
  • Hard Carrying Case
  • Male USB A Male Micro USB B, USB 2.0 Black - 1m
  • Plug 6-Way Lemo FGG.1B.306.CLAD627
  • Cable Sleeve - GMA1B054DN Lemo Black
  • Quick Reference Card

Probe Kits

Weld Probe Kits

KAWEL001 Weld Probe + Accessories Kit Includes

  • PWM100S00 Probe, Weld, Dia 16.00mm (Medium) 100kHz, Straight, Disconnect
  • PUB100K Probe, Unshielded, Broad Band, 100k (35kHz-250kHz), BNC
  • ATBW Accessory. Test Block, Weld Probe, Ferrous (Steel EN1A) + x4 0.5mm Shims, 0.5, 1.0, 2.0mm slots
  • ALL12-L04-015B Accessory, Lead, Lemo 12-Way - Lemo 4-Way, 1.5m (Bridge)
  • ALLCX-B02-015A Accessory, Lead. Lemo 00 to BNC, 1.5m (Vantage)
  • AW003 Accessory, Butterfly PTFE Tape (Pack of 30)
  • AC002 Accessory, Deluxe Probe Case PHDC1



KAWEL002 Advanced Weld Probe + Accessories Kit Include

  • PWS100S000 Probe, Weld, Dia 11.00mm (Small) 100kHz, Straight, Disconnect
  • PWM100S00 Probe, Weld, Dia 16.00mm (Medium) 100kHz, Straight, Disconnect
  • PUB100K Probe, Unshielded, Broad Band, 100k (35kHz-250kHz), BNC
  • ATB016 Accessory, Test Block WeldCheck Demo Crack Specimen -
    • Plate with two cracks, Type A and C - Toe and Cap
    • Plates are 5" x 5", 1/4" thick with false ground crown.
    • Standard crack size 1/4" Long x 0.040" deep.
  • ATBW Accessory. Test Block, Weld Probe, Ferrous (Steel EN1A) + x4 0.5mm Shims, 0.5, 1.0, 2.0mm slots
  • ALL12-L04-015B Accessory, Lead, Lemo 12-Way - Lemo 4-Way, 1.5m (Bridge)
  • ALLCX-B02-015A Accessory, Lead. Lemo 00 to BNC, 1.5m (Vantage)
  • AW003 Accessory, Butterfly PTFE Tape (Pack of 30)
  • AC002 Accessory, Deluxe Probe Case PHDC1
Surface Probe Kit

KASUR001 Surface Inspection Kit Includes

  • PU500PSFE/NFE Probe, Unshielded, 500kHz, Fe/NFe, Plastic Handle, Straight, 100mm Long
  • PS002PS028-114N Probe, Shielded, 2MHz, Plastic Handle, Straight, 28mm Tip Length (Total Length 114mm, 4.5") (Straight Shank)
  • PS500PD064-114N Probe, Shielded, 500kHz, Plastic Handle, Double Crank, 6.4 (0.25") Tip Length (Total Length 114mm, 4.5") (15deg Crank, 90deg tip Shank)
  • PS002PD064-114N Probe, Shielded, 2MHz, Plastic Handle, Double Crank, 6.4 (0.25") Tip Length (Total Length 114mm, 4.5") (15deg Crank, 90deg tip Shank)
  • PK065002NFE Probe, Knife, 65 deg, 2MHz, NFe, Unshielded
  • ALLCX-M02-015A Accessory, Lead, Lemo 00 to Microdot, 1.5m (Vantage/ETi)
  • ATBF Accessory. Test Block, Ferrous (Steel EN1A), 0.2, 0.5, 1.0mm slots
  • ATBA Accessory. Test Block, Aluminum Alloy 7075-T6, 0.2, 0.5, 1.0mm slots
  • AW003 Accessory, Butterfly PTFE Tape (Pack of 30)
  • AC002 Accessory, Deluxe Probe Case PHDC1
Sub Surface Probe Kit

KASUBS001 Sub Surface, Low Frequency Inspection Kit Includes

  • PUS16 Probe, Surface, Straight, Dia 16mm, 300Hz - 100KHz, Plastic, Lemo 4-Way
  • PUR11 Probe, Surface, Right Angled, Dia 11mm, 300Hz - 100KHz, Plastic, Lemo 4-Way
  • ALL12-L04-015R Accessory, Lead, Lemo 12-Way - Lemo 4-Way, 1.5m (Reflection)
  • ATB001 Accessory, Test Block, Aluminum 7075-T6, 1.6mm Thick, x4 Flat Bottom Holes 75%(1.2mm), 50%(0.8mm), 25%(0.4mm), 12.5%(0.2mm), Deep.

Product Literature

Description Part # Saved Price Select Option Add to
ETher EmBedEC Standard Kit Includes: Eddy Current Single Channel/Single Frequency Unit, Lemo 7-Way-Lemo 4-Way, 1.5m cable (Bridge), Lemo 7-Way-Lemo 4-Way, 1.5m cable (Reflection), USB Type B Plug to USB Type A Plug, 1.8m cable & Hard Carrying Case EC-ET-KIEM001 Request Pricing
