Multi-Function Test Block

Multi-Function Test Block

Multi-Function Test Block is designed for demonstrating the capabilities of the Eddy Current method; sorting, cracks detection, and corrosion-thinning.

Overview

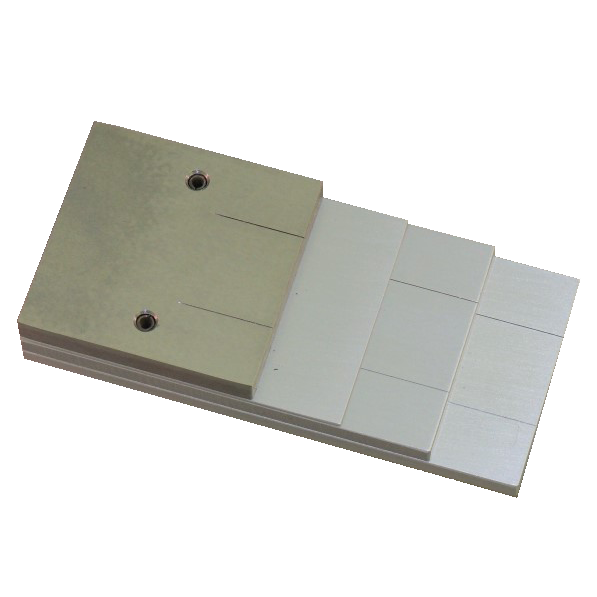

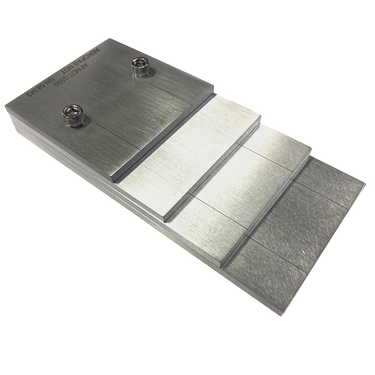

The Eddy Current Multi-Function Test Block is a 4-step test block to demonstrate the capabilities of the Eddy Current method; sorting, cracks detection, corrosion-thinning. It has slots .010” & .020” deep in 6063 and 2024 aluminum and 4130 steel. Corrosion shows 10% and 30% material loss in 2024 aluminum. Overall size: 4.25” x 2.00”.

This part is equivalent to and has replaced Centurion SKU# EC-CNDT-225389.

Plate Specifications

  • Top Plate: 2.0”x 2.00” x .125"
  • Second Plate: 2.0" x 2.75” x .125"
  • Third Plate : - 2.0" x 3.50” x .125"
  • Bottom Plate: 2.0" x 4.50” x .125"
  • Includes Test Report and Certificate of Conformance
Description Part # Saved Price Select Option Add to
NDT Multi-Function Test Block - 6063 Aluminum, 4130 Steel, 2024 Aluminum EC-AF-AFNDT-3590
Request Pricing
