12 Hole Eddy Current Bolt Hole Standard

12 Hole Eddy Current Bolt Hole Standard

12 Hole General Purpose Eddy Current Bolt Hole Standard

ph tool - 12- hole- 15 notch bolt hole standard

Block Sizes: 0.25" thick x 2.5" x 6.0"
Holes: 3/16",7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 5/8" and 3/4" diameter
Surface Notches: Qty 3 @ 0.008", 0.020" and 0.040" deep x 1.0" long
Notch Width (All): 0.004" (± .001)
Hole Notch Configurations:
(-0) 0.030" x 0.030" (45°) corner notch @ 0.004" wide in each hole (Qty 12)
(-1) 0.020" full-bore (thru) notch @ 0.004" wide in each hole - (Qty 12)
(-2) Full-bore (thru) notch @ 0.020" deep x 0.004" wide and (1) 0.030" x 0.030" (45°) corner notch @ 0.004" in each hole, 180° apart (Qty 24)
(-3) Mid-bore notch @ 0.030" deep x 0.004" wide x 0.060" long in each hole - (Qty 12)
For center bore notches please call us for pricing

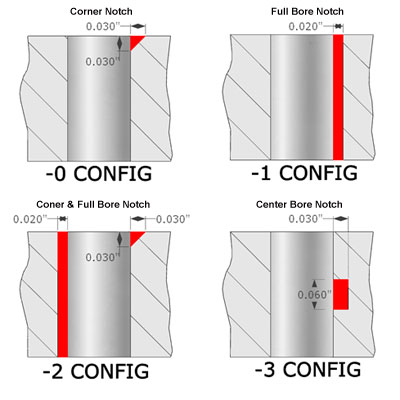

12-15 eddy current standard notch configuration

Marking on the face of block: Hole diameters, part numbers and surface notch depth
Marking on edge of block: Serial number and alloy


Note: Bolt hole standard will be similar, but not identical to the item pictured above

Documentation: All calibration blocks and reference standards come complete with a certification report stating conformance to any applicable specification. Calibrated to standards that are traceable to NIST. A Material Test Report for the specific heat / lot number of raw material used is also included.



Ordering Note: Please specify material, hole notch type and size when requesting a quotation

Description Part # Saved Price Select Option Add to
12 Hole General Purpose Eddy Current Bolt Hole Standard, 7075-T6 Aluminum (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1A - Master
$1,443.00
12 Hole General Purpose Eddy Current Bolt Hole Standard, Type 2024-T3 Aluminum (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1A2024-Master
$1,588.00
12 Hole General Purpose Eddy Current Bolt Hole Standard, Type 4340 Steel, Bare (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1CS-Master
$1,443.00
12 Hole General Purpose Eddy Current Bolt Hole Standard, Type 304 Stainless Steel (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1SS-Master
$2,165.00
12 Hole General Purpose Eddy Current Bolt Hole Standard, 6Al-4V Titanium (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1T-Master
$2,527.00
12 Hole General Purpose Eddy Current Bolt Hole Standard, Type 718 Inconel (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1IN718-Master
$2,527.00
12 Hole General Purpose Eddy Current Bolt Hole Standard, Type 600 Inconel (specify Hole Notch Configuration during checkout)
Model #
EC-PHT-MHS-12-1IN600-Master
$2,527.00
PH Tool Optional Hardwood Case for 12 Hole Eddy Current Bolt Hole Standard EC-PHT-MHS-12-1A-CASE
$100.00
As-built Dimensional Report for 12 Hole General Purpose Eddy Current Bolt Hole Standard EC-PHT-MHS-12-CAL
$162.00
