ETher NDE’s ACFMT instrument, ACE, provides the end-user all the functionality and advantages of Alternating Current Field Measurement (ACFMT) NDT inspection technology in a lightweight, rugged instrument; available with a selection of standard probe designs, developed and manufactured in-house at ETher NDE.
The ACE system includes a wide range of ACFMT probes, both standard and bespoke, designed for smooth repeatable inspections. Each probe is engineered with integrated "Start/Pause," "Stop," and "Change Direction" buttons, making them ideal for one-person operation. Key probe options include:
Whether you need to inspect Ferritic or Austenitic welds, the ACE system supports 5 kHz probes for Ferritic Welds and 50 kHz probes for Austenitic welds, ensuring precise results across a wide range of materials.
| ACE ACFMT Technical Specifications | |
| Probe Connector: | 10-Way LEMO 2B |
| Frequency: | 5kHz (Ferritic Welds) and 50kHz (Austenitic Welds) |
| Display/Screen: | 7”, 800 x 480 pixels, WVGA, 24 bit RGB colour. |
| Removable Storage Data: | 32GB micro SD |
| Outputs: | PC Connectivity USB (Full PC remote control plus Real Time data) |
| Outputs: | VGA 15-Way VGA output |
| Languages: | English |
| Power On Self-Test: | A “self test” on start-up is performed of external ram, accelerometer, Micro SD card, LCD screen buffer. |
| Batteries: | Internal Lithium-Ion Rechargeable, 7.2V nominal @64Ah = 46.08 watt.hr |
| Running Time: | 10 hours plus |
| Charge Time: | 5hrs. (simultaneous charge and operation) |
| External: | 100-240v 50-60Hz 30Watts |
| Connector: | Lemo OS Hermaphroditic keying, half-moon insert (IP68) |
| Weight: | 1.4kg (3.0 lb) |
| Size (w x h x d): | 282 x 171 x 66 mm (11.1 x 6.7 x 0.26 in) |
| Material: | ABS /Rubber Polyurethanes |
| Operating Temp.: | -20 to +600C (-4 to 1400F) |
| Storage Temp.: | Up to 12 months -20 to +350C (-4 to 950F) |
| IP Rating: | Designed to meet the requirements of IP64 |
| Harness Points: | 4 rugged corner harness points |
| Compliance: | ASME, EN61010-1, CE |
ACE’s inspection software has been optimized to work alongside the hardware, making inspections simpler, faster, and more efficient:
Creating inspection reports is simple with ACE. With just a few key presses, you can quickly generate a report from any dataset. The final report includes:
Reports are available in both PDF and DOCX formats and include details on the probe and instrument used, as well as an inspector "sign-off" for verification.
| SKU | Item Description |
| PACF05PTS | Probe, ACE, ACFMT, 5kHz (Ferritic), Pencil, Topside, Straight |
| PACF50PTS | Probe, ACE, ACFMT, 50kHz (Austenitic), Pencil, Topside, Straight |
| PACF05PTI | Probe, ACE, ACFMT, 5kHz (Ferritic), Pencil, Topside, 90 deg Inline |
| PACF50PTI | Probe, ACE, ACFMT, 50kHz (Austenitic), Pencil, Topside, 90 deg Inline |
| PACF05PTT | Probe, ACE, ACFMT, 5kHz (Ferritic), Pencil, Topside, 90 deg Transverse |
| PACF50PTT | Probe, ACE, ACFMT, 50kHz (Austenitic), Pencil, Topside, 90 deg Transverse |
| PACF05WT | Probe, ACE, ACFMT, 5kHz (Ferritic), Weld, Topside |
| PACF50WT | Probe, ACE, ACFMT, 50kHz (Austenitic), Weld, Topside |
| SKU | Item Description |
| ALL10-L10-02-ACF | Accessory, Lead, Lemo 10-Way to Lemo 10-Way, 2m ACE, ACFMT, Top Side |
| ALL10-L10-05-ACF | Accessory, Lead, Lemo 10-Way to Lemo 10-Way, 5m ACE, ACFMT, Top Side (Standard) |
| ALL10-L10-10-ACF | Accessory, Lead, Lemo 10-Way to Lemo 10-Way, 10m ACE, ACFMT, Top Side |
| ALL10-L10-20-ACF | Accessory, Lead, Lemo 10-Way to Lemo 10-Way, 20m ACE, ACFMT, Top Side |
| ATBACFWCS | Accessory, Test Block, ACE, ACFMT, Weld Reference Standard 1 - ASTM E2261-17- c/s, Elliptical Slots, Two elliptical slots placed in the weld toe with dimensions: A = 50mm x 5mm, B = 20mm x 2mm, Carbon Steel |
| ATBACFWSS | Accessory, Test Block, ACE, ACFMT, Weld Reference Standard 1 - ASTM E2261-17- c/s, Elliptical Slots, Two elliptical slots placed in the weld toe with dimensions: A = 50mm x 5mm, B = 20mm x 2mm), Stainless Steel |
| AC022 | Accessory, Instrument Soft Carry Case (ACE, ACFMT) |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|

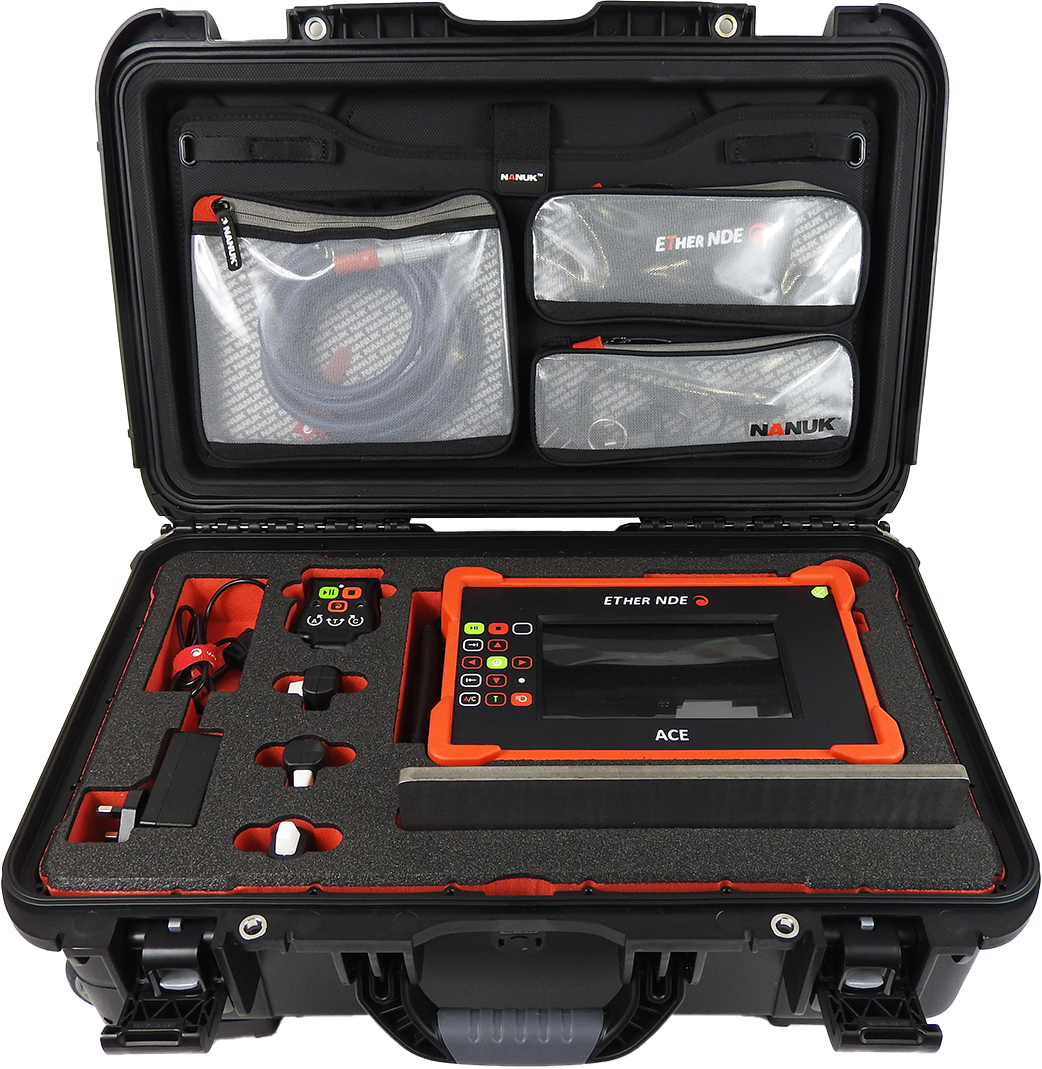

| ACE ACFMT Portable Kit Includes: unit, Op Manual, Software, 2m Lead Top Side Cable, Power Adapter, Strap, 1m A to MIN B USB Cable, Reference Card, Split Rings, Test Block, 5kHz Pencil Probe, 5 kHz Weld Probe, Carry Case | CM-ET-IACF001 |
|
Request Pricing | ||
