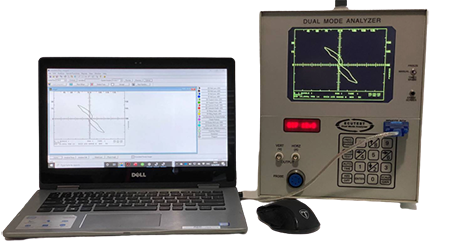

ECUTEC ECUTEST Eddy Current Analyzer

ECUTEC ECUTEST Eddy Current Analyzer

Dual Mode Eddy Current Analyzer for Inspecting Nonferrous Heat Exchanger Tubes

Designed for Ease of Use

Dual mode eddy current analyzer for inspecting nonferrous heat exchanger tubes. Features countless combinations of calibrations. Frequency, phase angle, gain and range are all totally independent. Both modes may be calibrated initially and accessed instantly at any time during the test. ECUTEST contains 139 calibrations already preprogrammed into the unit. These programs are accessed, using a one, two, or three digit code through the front panel keypad. Manual calibration allows programs for any special or unusual test requirement. Preprogramed calibrations are included for most chillers. Hand held terminal allows storage of graphics and text for retrieval with PC. Also allows mode switching, erase, zero balance, and activates printer.

Probes for this system contain two (2) sets of sensing coils (Differential and Absolute/Cross Axis). The coils are encapsulated in a housing for durability and a moisture free environment. Most popular size probes are in stock. Special probes can be assembled with advance notice. Calibration Standards are stocked for the most popular chiller tubes, surface condensers, and process exchangers. Other calibration standards can be fabricated when material is available, such as R.F.T., IRIS, Flux Leakage, N.F.T., Step Blocks, and Crack Simulations.



Features

  • Designed for plug and play/Ease of use
  • Often called the “Eddy Current Chiller Special”
  • USB cable for ECUTEST to PC (incl Windows 10)
  • Large Electroluminescent Screens
  • Units preprogrammed with auto-balance, auto-erase, and auto-centerings with software to interface with PC.
  • Built in report format with tube sheet designing and bar graphs.
  • 139 pre-programed tubes:
    • 0.5” to 1.5” OD, 0.028” to 0.120”WT
    • Copper (with and w/o land, 19, 26 35.5fpi)
    • CuNi, Stainless, Ti, Hastelloy, Adm Brass, CuNi, etc.

Dual Mode Analyzer

  • USB Computer Interface for Automated Data Collection and Analysis
  • Report Format with Tube Sheet
  • Designing
  • Hand Held Terminal
  • Dual Mode
  • Preprogrammed
  • Remote Erase and Switching
  • Signal Freeze
  • Timed Erase
  • Auto Centering
  • Choice of Grid Patterns
  • Auto Balance

Technical Specifications

ECUTEST Specifications

Power
Voltages World wide AC input Capabilities. 100/120/220/230/240 VAC, 50/60 Hz. Meets domestic and foreign safety standards
Current 3.0 Amperes @ 120 volts, 1.5A @ 240 volts
Fuse Universal fuse holder, standard 1 1/4 inch fuse 3 Amp AGC 250V
Power Switch DPDT On/Off
Power Receptacle Universal recessed 3 wire power receptacle. Rating, 10A, 250V AC UL, CE, CSA, VDE approved
Voltage Selector Four (4) positions – 100/120/220/240
Environmental
Temperature Operating 0°C to +55°C; Storage -40°C to +75°C
Humidity Operating 93% RH, 40°C (non-condensing)
Altitude Operating 16,000 Ft. above sea level
Display
Type Bright Display, 560 x 400 pixels. Pixel aspect ratio 1:1. 100 pixels per inch. Frame rate 72.81 Hz
Electromagnetic Compatibility Complies with FCC Docket, Part 15, Subpart J, Class B; and FTZ 1046/84; VDE 0871, level B
Viewing Angle Greater than 160° viewing cone
Display Color Peak wavelength (type) 585 nm, Green/Black
Functions
Functions
  • Differential/Absolute Mode
  • Preprogrammed Calibration Programs: Automatically sets – frequency, gain, phase, scale, for differential and absolute modes.
  • Auto-Center Function selective for each mode.
  • Phase rotation 0° to 360°, manual or auto increment, decrement.
  • Programmable gain: 255 steps in 1 step increments.
  • Programmable screen clear 0 to 16 seconds in 1 second steps.
  • Instantaneous screen clear within 14 thousandth of a second.
  • Screen Freeze, holds last flaw defect for detail signal analysis.
  • Phase angles and grid displayed continuously.
  • 10 bit, simultaneous sampling, ADC insures accurate signal definition.
  • Remote Box Controller. Controls auto balance, screen freeze, differential and absolute mode switching, clears screen.
  • Flex Switch Keyboard. Over 5 million operations, 4-8 oz. typical operating force.
  • Eight Character Alphanumeric Red LED display. Displays Commands and current status.
  • Nine scale positions.
  • Auto-balance differential and absolute, detects defective probes, holds balance indefinitely.
