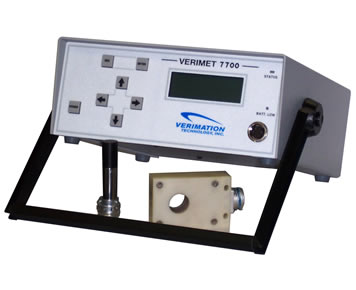

The Verimet N7700 Eddy Current Tester, is a micro-processor-based eddy current instrument for heat verification, alloy sorting, hardness inspection and case depth testing of ferrous metal parts. Versatile and accurate, it offers improved capabilities for a wide range of applications. The instrument is compact, lightweight and battery equipped, so it is very easy to use.

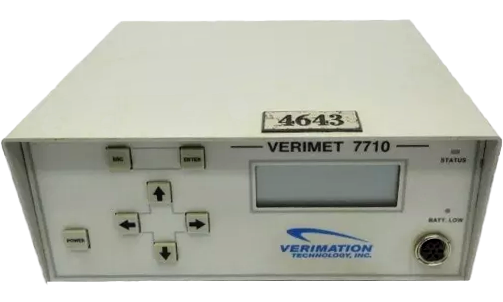

The Verimet N7710 is a similar model for automated testing in a static mode. It includes a special software package and I/O ports, to control machine functions for accepted/ rejected conditions./
The Verimet N7700 is for testing material grade and heat treatment efficacy. Spot probes or an encircling coil may be used, depending on the specific application.
Typical industries of application include the automotive, metallurgical, and defense industries.
| Verimation Verimet N7700 Technical Specifications | |
| Test Principle: | Eddy Current |
| Test Frequencies: | 50Hz, 100Hz, 200Hz, 300Hz, 500Hz, 1kHz, 2kHz, 3kHz, 5kHz and 20kHz |
| Display: | Digital backlit LCD |
| Power: | Rechargeable nickel cadmium batteries with A/C adapter; 110/220 volt A/C, 50/60 Hz |
| Probes / Encircling Coils: | Available in a variety of stock sizes or custom built for special applications |
| Outputs: | RS 232, audible and visual accept/reject indicators |
| Statistics: | 3 Sigma, X-bar and R charting plus downloading to other SPC programs |
| Dimensions: | 8.25" x 3.75" x 9.38" (21cm x 9.5 cm x 23.8cm) |
| Weight: | 6 lbs. (2.72kg) |
When a new probe is purchased for Verimet N7700/ 7710, a cable with the new connector style must also be purchased.
Cable connectors on old style probes are not compatible with new style probes or coil cables. The cable connector on instrument end remains the same

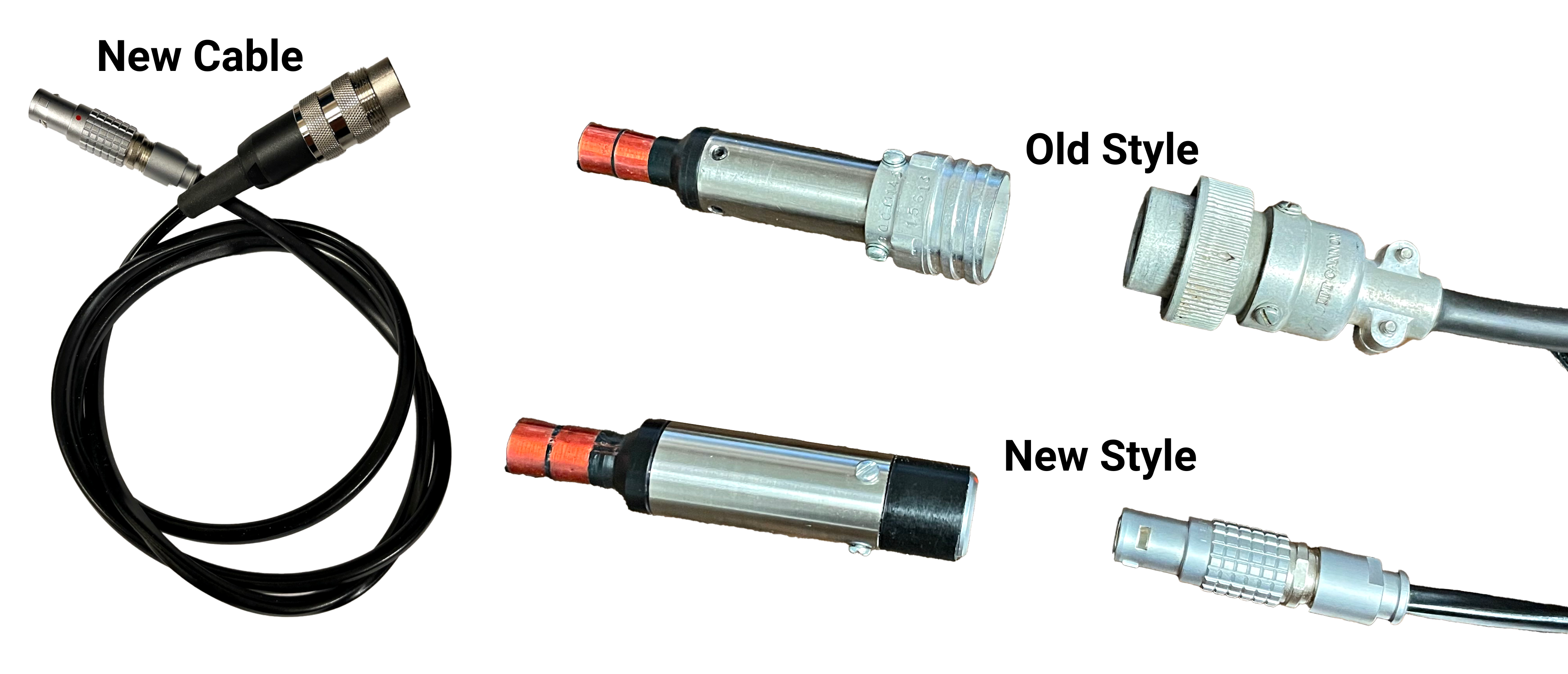

See the image below for an example of new (right bottom) and old (right top) style probe connectors and an example of the cable with the new connector (left).
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| Verimet 7700 | EC-VT-003173 |
|
$7,050.00 | ||
| Verimet 7710 | EC-VT-013536 |
|
$7,425.00 | ||
| 5/8" Hardness and Alloy Probe | EC-VT-001064 |
|
$1,350.00 | ||
| 1/2" Encircling Coil | EC-VT-000864 |
|
$1,500.00 | ||
| 1" Encircling Coil | EC-VT-000866 |
|
$1,500.00 | ||
| 2" Encircling Coil | EC-VT-000868 |
|
$3,150.00 | ||
| I/O Interface Box for 7710 | EC-VT-006953 |
|
$705.00 | ||
