Pipeline Demagnetizing System for Field Applications and Pre-Weld Operations

Overview

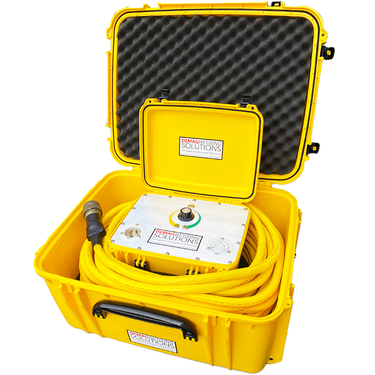

The DSDC-5 Pipeline Demagnetizing System is a highly-portable unit for pre-weld demagnetization passes on pipes.

The DSCDC-5 is ideal for overcoming obstacles associated with residual magnetization including:

  • Trial and error methods that can take hours or days to make the root pass
  • PIGs leaving significant amounts of residual magnetism behind
  • Regulatory requirements increasing the frequency of inspections
  • Burning out welding equipment and/or cables trying to overcome magnetism

Features

  • Operation is simple with the newly designed instrument panel only one switch and one knob
  • The Pipeline Demagnetizing Kit weighs 80 lbs., (~36 kg), 22”X25”X15”. Operates from either 110 volt or 220 volt power supply

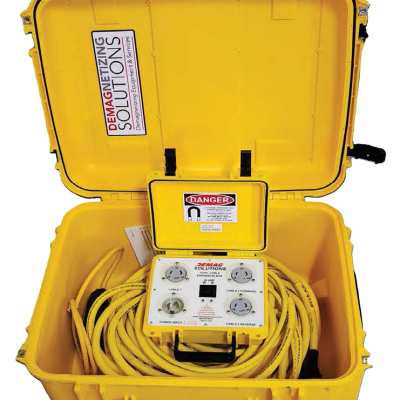

EXP-1 for Highly Magnetized, >32" Diameter Pipes

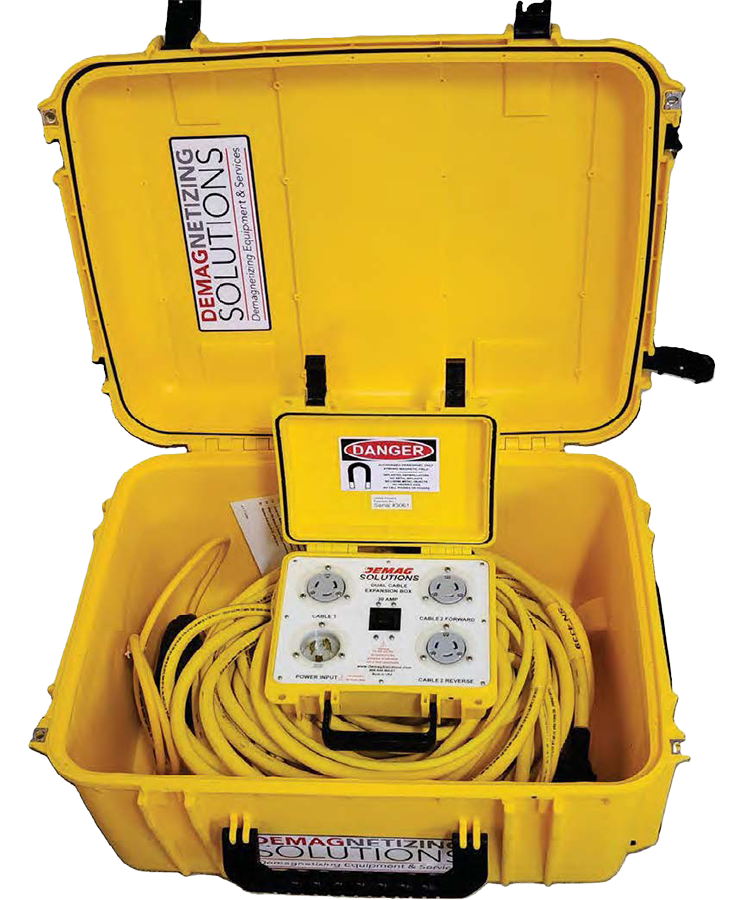

Double the Power & Increase the Duty Cycle with the Expansion Box (EXP-1)for the DSDC-5. The EXP-1 allows a weld pass to be made quickly, efficiently and with full quality on highly magnetized pipes (500G or higher) or those that are 32” and larger in diameter. Expansion kit weighs 67lbs., (~  30 kg), 22”X25”X15”

Application

The DSDC-5 ideal for applications where pipeline demagnetization depends on accessibility, portability of the demag unit, and reliability.

Applications include:

  • PIGs leaving significant amounts of residual magnetism behind
  • Increased need to for field inspections
  • Overcoming weld equipment burn-out due to magnetism

Quick Setup Guide

Technical Specifications

DSDC-5

Power Controller Demagnetizing
Cable		 Gaussmeter In-line GFCI Transit Case
Mode of Operation Cable Length Model Rating Material
Manual DC 0 — 100% 100 feet (30.5 m) Alpha Labs GM1-ST Up to 30 AMPS TTX01 High-Strength Resin
Power Input Characteristics Operation Reset Type Features

• 110V AC — 220V AC

• 30 AMPS Max

• Single Phase – 50/60 HZ

 • Heavy Duty PVC
• Built-in Dust Caps
• Flexible
• UV, Water, Weather
& Oil Resistant		 Handheld with Probe Manual Reset • Retractable Handle
• Built-in Wheels
Operating Temp. Operating Temp. Battery Operating Temp. Dimensions
-10 - +120°F (-23 - 49°C) –10 - 200°F (-23 - 93°C) 9 V Alkaline

-31° - 151°F

(-35 - 66°C)

 • Length - 28" (71.1 cm)
• Width - 22" (55.9 cm)
• Height - 15" (38.1 cm)
Weight:
80 lbs (~36kg)
Power Output
Full Wave DC
EXP-1

Power Controller Demagnetizing
Cable		 Transit Case
Input: Cable Length: Material:
Direct Output of Pipeline Demagnetizer 100 feet (30.5 m) TTX01 High-Strength Resin
Output: Characteristics  Dimensions:

2 Demagnetizing Outputs
1 Reversing Output

 • Heavy Duty PVC
• Built-in Dust Caps
• Flexible
• UV, Water, Weather
& Oil Resistant		 Length: 25" (63.5 cm)
Width: 22" (55.9 cm)
Height: 15" (38.1 cm)
Protection: Operating Temp. Features
Built In Circuit Breaker
Locking Plugs		 –10 - 200°F (-23 - 93°C) Retractable Handle
Built-In Wheels
Total Weight:
67 lbs (~  30 kg)

Kit Includes

  • DSDC-5
    • Demagnetizer Power Controller
    • Demagnetizing Cable
    • Gaussmeter
    • Transit Case
  • EXP-1
    • Expansion Box
    • 100' Demagnetizing Cable
    • Interconnect Cable
    • Transit Case with wheels

Details For Shipping:

Total DSDC-5 Unit Weight: 95 lbs (for Unit and Shipping Case)

Unit Dimensions: 28" x 22" x 15"

Total EXP-1 Unit Weight: 73 lbs (for Unit and Shipping Case)

Unit Dimensions: 25" x 22" x 15"
