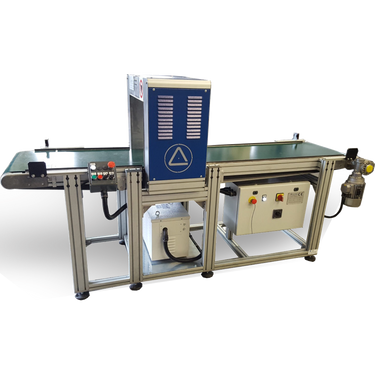

The DeltaFlux DF-2824 50/60 Hz Demagnetizer is a conveyorized demagnetizing base machine. The base model is designed to handle pieces up to 60" x 32 " x 68". The base coil has upgradeable power supply, frequency adjustment (for increased penetration), and increased duty cycle. The base conveyor allows for an upgradeable, motorized trolley, and increased conveyor speed.
| DeltaFlux DF-2824 50/60 Hz AC Demagnetizer Technical Specifications | ||
| Coil | ||
| Base | Upgrade Option | |
| Power: | 8,000 Ampere Turns, 11.2 kA/m (141 Gauss) | 12,000 Ampere Turns. 16.8 KA/m (211 Gauss) |
| Frequency: | 50/60 Hz | Frequency adjustment, 3-50 Hz (increases penetration) |
| Duty Cycle: | Part Dependent | Increase Duty Cycle up to 100% |
| Conveyor | ||
| Base | Upgrade Option | |
| Conveyor Operation: | Manual - Trolley Conveyor | Motorized Trolley Conveyor, 6.5 m/s |
| Conveyor Speed | N/A | ~ 3 - 10 m/s |
| Dimensions: | 60” x 32” x 68” (1,500 x 800 x 1,700 mm) | N/A |
To purchase or inquire about the DF-2824 50/60Hz Demagnetizer, click below
