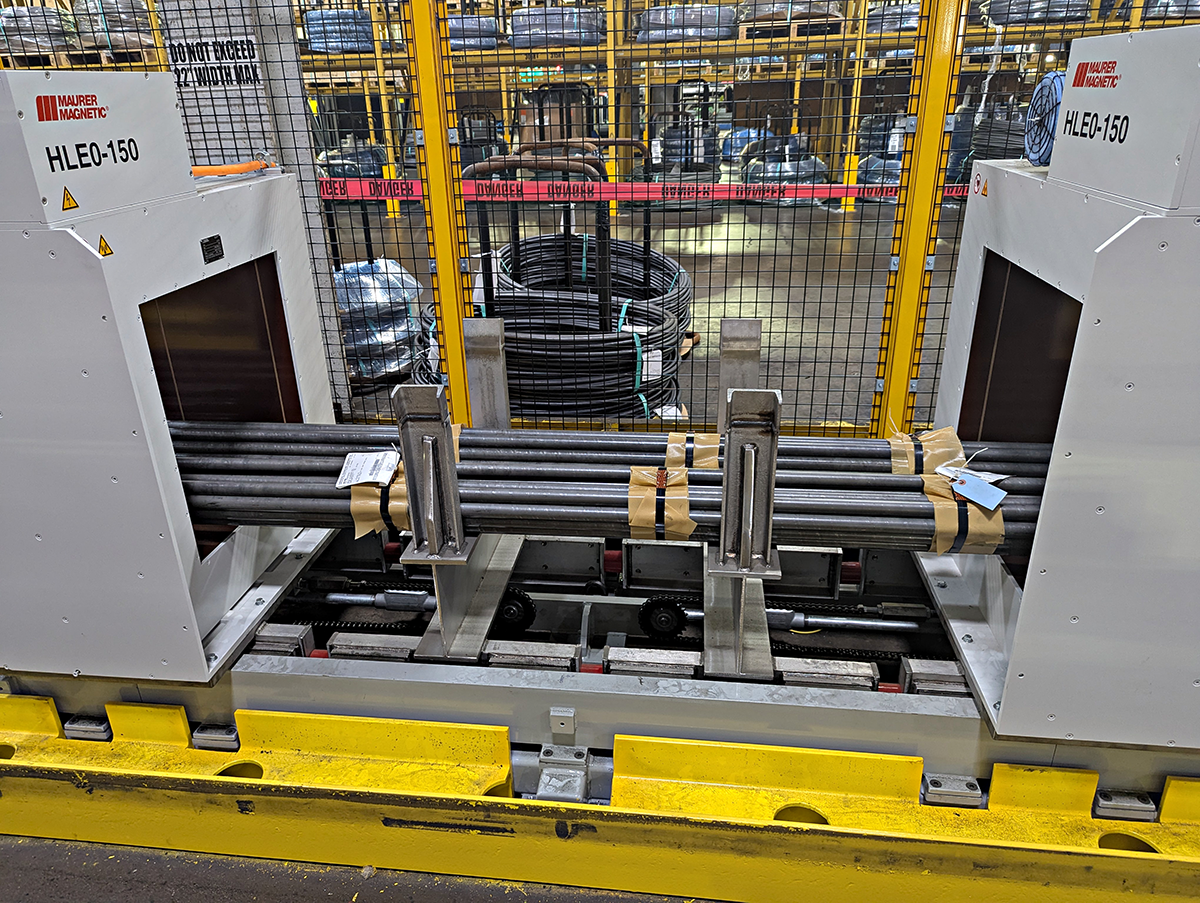

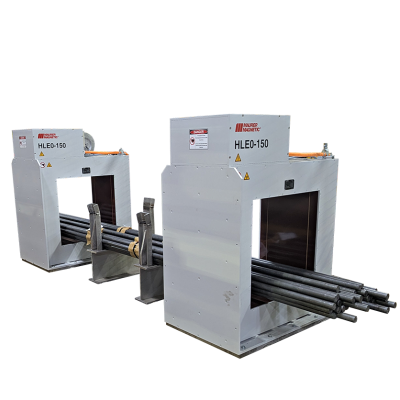

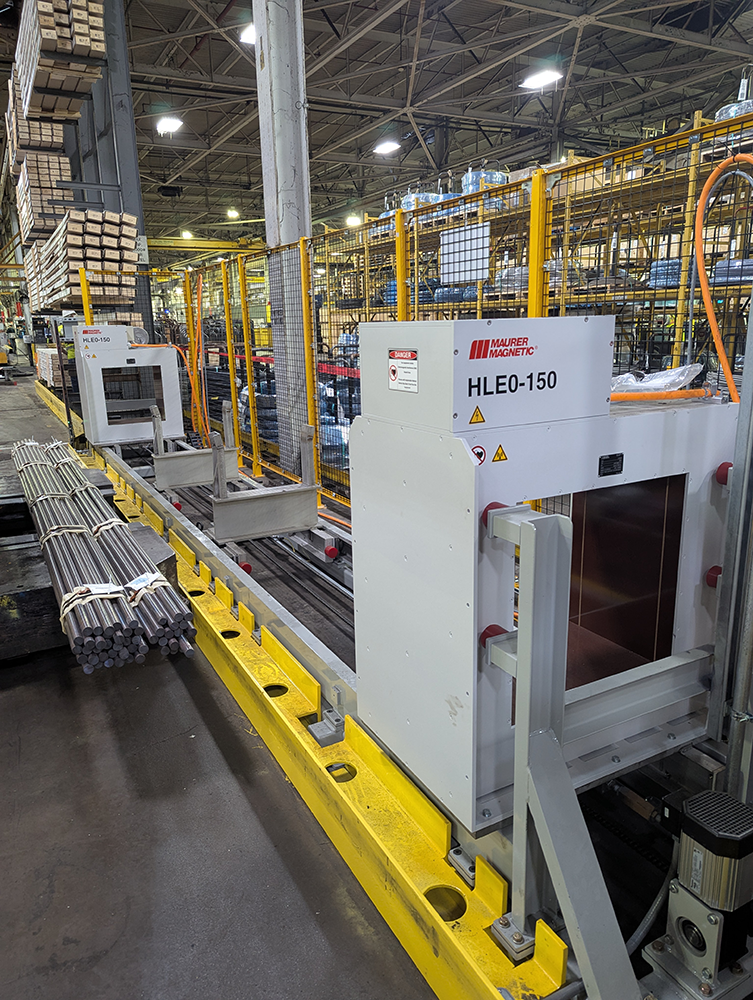

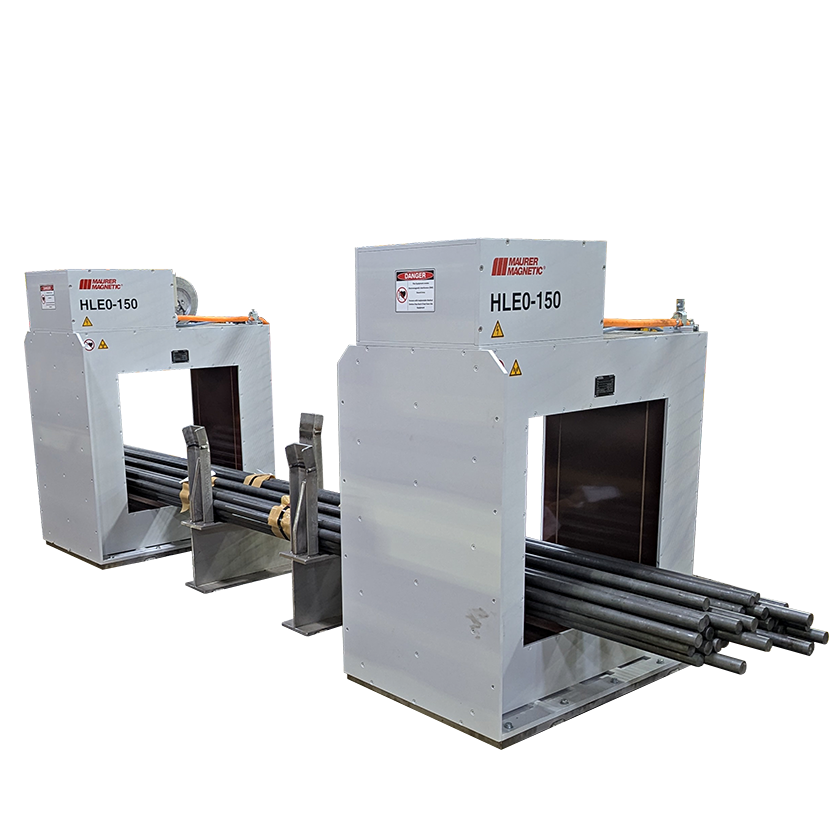

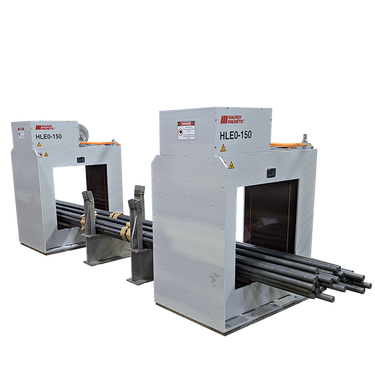

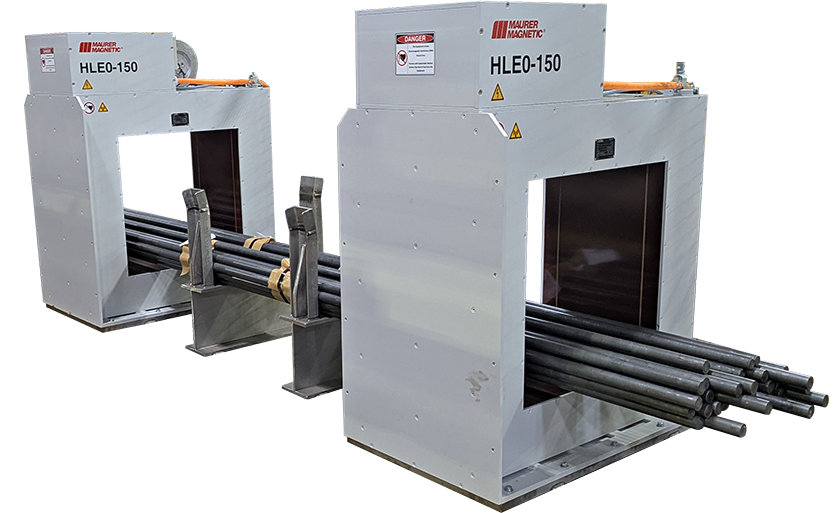

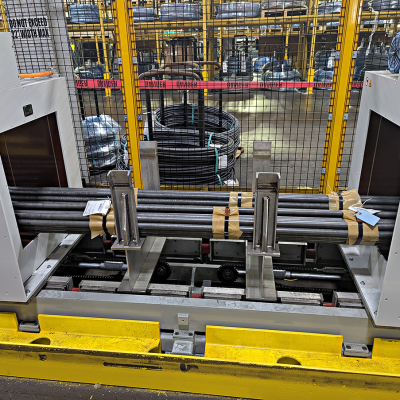

The Mauer PRO Bundle Demagnetizer is for the demagnetization of metal bars in bundles can be carried out both in a continuous process with one coil and in a Helmholtz setup with two coils. This method is optimal for overcoming obstacles associated with bundle demagnetization of multiple metal bars/ rods such as particle adhesion or interfering magnetism.
The Maurer PRO Bundle Demagnetizer is ideal for manufacturers and fabricators whose production processes involve bar stock/ alloy bars. Industries of interest include:
| Technical Specifications - Coils | ||
| Coil Module: | HLE 600 x 600 | HLE 900 x 900 |
| Outer Dimensions: |
38.0" (964mm) Width 47.3" (1201mm) Height 23.6" (600mm) Depth |
47.8" (1214mm) Width 57.0" (1448mm) Height 23.6" (600mm) Depth |
| Active Opening |
23.6" (600mm) Width 23.6" (600mm) Height 17.3" (400mm) Depth |
35.4" (900mm) Width 35.4" (900mm) Height 17.3" (440mm) Depth |
| Degree of Protection IP: | 20 | |
| Max. Field Strength: | Up to 105 kA/m (continuous) Up to 160 kA/m (pulse mode) |
Up to 105 kA/m (continuous) Up to 145 kA/m (pulse mode) |
| Cycle Time: | Designed customer specific | |
| Demagnetization Frequency: | Designed customer specific | |
| Technical Specifications - Power module | ||
| Power Module: | DF 300 | DF 550 |
| Outer Dimensions: |
13.8" (350mm) Width 18.1" (460mm) Height 11.3" (287mm) Depth *With mounting bracket 127 mm / 5.0” wider, 11 mm / 0.4” higher and 95.5 mm / 3.8” deeper. |
17.9" (455mm) Width 27.6" (700mm) Height 13.2" (336mm) Depth *With mounting bracket 22 mm / 0.9” wider, 11 mm / 0.4” higher and 95.5 mm / 3.8” deeper. |
| Power Supply: | 3PE 380…480 +/- 2% VAC 50…60 +/- 2% Hz |
|
| Weight: | 72.8lbs (33kg) | 130lbs (59kg) |
| Peak Current: |
102 A *Effective value lower by a factor of 1.41 |
180 A *Effective value lower by a factor of 1.41 |
| Internal Protection: | 32 A | 63 A |
| Suitable for Automation: | Yes | |
| Additional Performance Elements: |
Chopper resistor, DC link capacitor | |
To inquire or purchase the HLE + Maurer PRO Bundle Demagnetizer, click on the link
