Pipe Seal is made from high quality silicone rubber and is designed to easily fit the circumference of protruding nozzles on insulated tanks, vessels, and heat exchangers. This will form a watertight seal, protecting the insulated equipment from moisture ingress and reducing the risk of Corrosion Under Insulation (CUI).

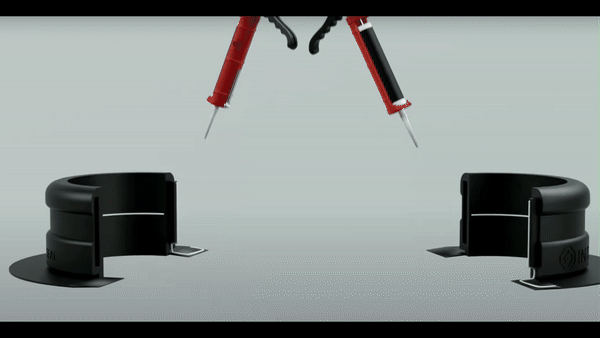

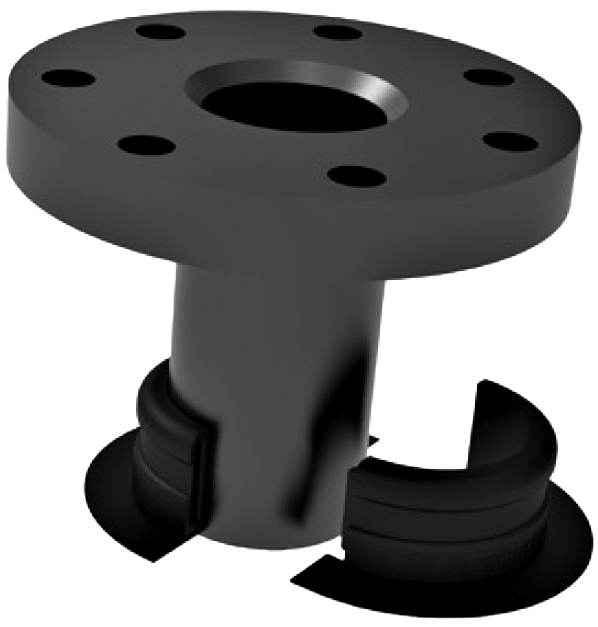

The Pipe Seal is specifically designed to seal nozzle protrusions on insulated equipment. The Pipe Seal consists of a 2-part assembly, with insert grooves for banding for easy installation. The two parts are attached to the nozzle sleeve, which has a space for the metal cladding between the top and base of the Pipe Seal. It is secured into place with banding creating a water-tight seal around the circumference of the nozzle protrusions. The Pipe Seal is designed to be used for new installations as well as maintenance on existing equipment.
| Integrity Pipe Seal Specifications | |
| Material: | ~65 Durometer Silicone |
| Color: | Black |
| UV & Ozone Resistance Rating: | Excellent |
| Tensile Strength: | 9.5 Mpa / 137.86 PSI |
| Elongation: | 430% |
| Shore Hardness: | 65 |
| Temperature Range: | -76°F ~ 450°F ( -60°C ~ 232°C) - Constant Temperature |
Note: There is a $25.00 small order fee for orders valued less than $50.00.
Pricing listed is for Domestic U.S. orders only. Shipping is additional. For exports, contact us for a quote.
