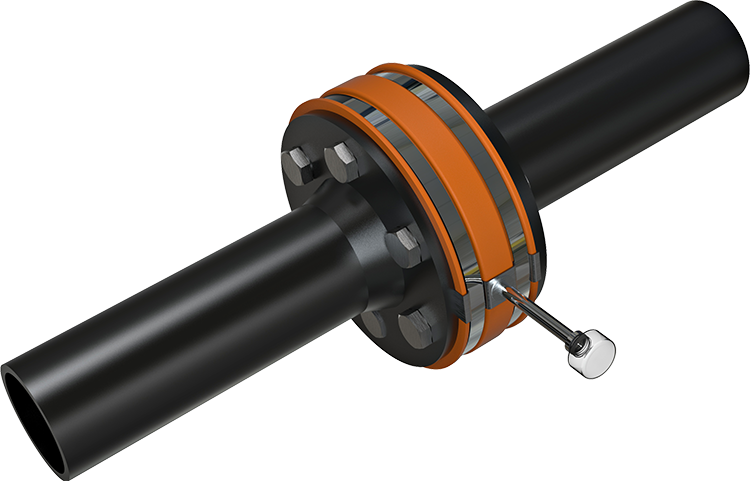

Integrity Products Flange Belts provide a circumferential seal over the adjoining collars of flanges. This offers long term protection from external corrosive elements.The adjoining faces of flanges with gaskets generally form crevices which trap moisture, this allows the development of crevice corrosion and may lead to process leaks.

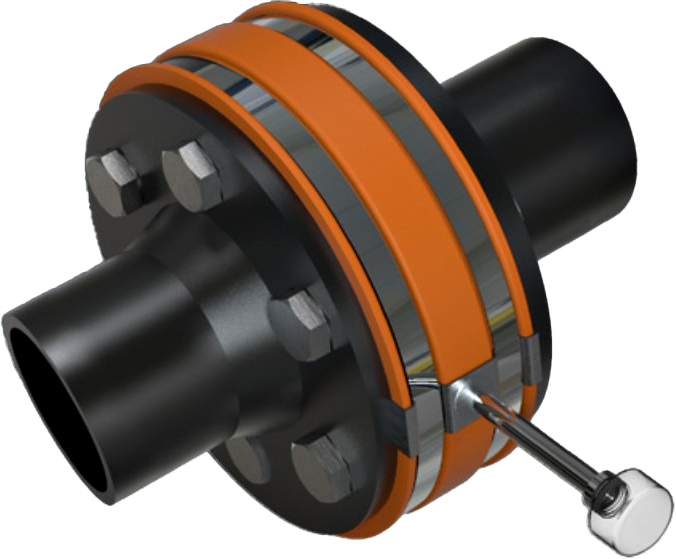

Integrity Products Flange Belt provides a cost-effective and long-lasting protection to the areas of flanges that are vulnerable to weathering and crevice corrosion. Integrity Products Flange Belt fully encompasses the outer diameter of the pipe flange and have an optional collection bottle for leak detection, providing an extra layer of personnel and environmental protection.
| Integrity Products Flange Belt | |

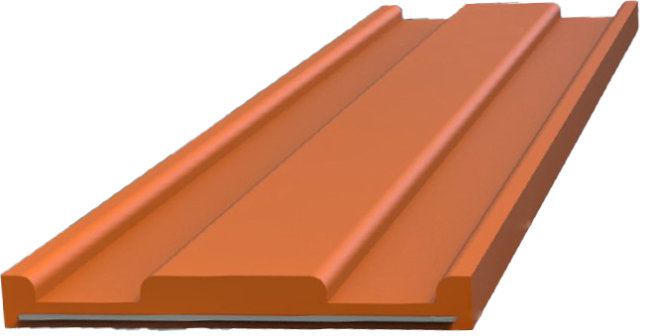

| Belt Material: | 60 Durometer Silicone |
| Insert Wire Material: | 304 Stainless Steel Plate |
| Color: | Orange |
| Hardness: | 55–60A |
| Tensile Strength: | 8 MPa |
| Elongation Strength: | 300 % |
| Working Temperature Tolerance: | −26°C to 240°C (−14.8°F to 464°F) |
| Limit Temperature: | −40°C to 260°C (−40°F to 500°F) |
Refer to the diagram to understand how to implement accessories
Note: There is a $25.00 small order fee for orders valued less than $50.00.
Pricing listed is for Domestic U.S. orders only. Shipping is additional. For exports, contact us for a quote.
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| Integrity Products Flange Belt ANSI 150 ‐ 100 ft Per / Roll | CUI-IP-IFB‐150 |
|
$1,138.00 | ||
| Integrity Products Flange Belt Stainless Steel Joiner | CUI-IP-IFB‐SSJ‐100 |
|
$10.00 | ||
| Integrity Products Flange Belt Stainless Steel Drain Tube 10mm x 100mm | CUI-IP-IFB‐SSDT‐10‐100 |
|
$7.00 | ||
| Integrity Products Flange Belt Collection Bottle | CUI-IP-IFB‐NM‐CB‐100 |
|
$11.00 | ||
