Integrity Products EPDM Integrity Plugz

Integrity Products EPDM Integrity Plugz

Integrity Products EPDM Integrity Plugz

Medium Temperature Integrity Plugz are made from high performing EPDM rubber for extra protection against exposure. Medium Temperature Integrity Plugz comes with a unique edge trim made of a flexible metal ring encased in EPDM that conforms to irregular surfaces and eliminates risks of injury from reaching in exposed sheet metal. Medium Temperature Integrity Plugz includes a lanyard to avoid cover loss. Each Medium Temperature Integrity Plugz kit comes with templates, hardware and installation instructions.

Applications:

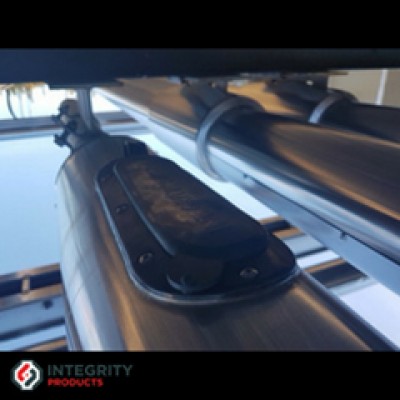

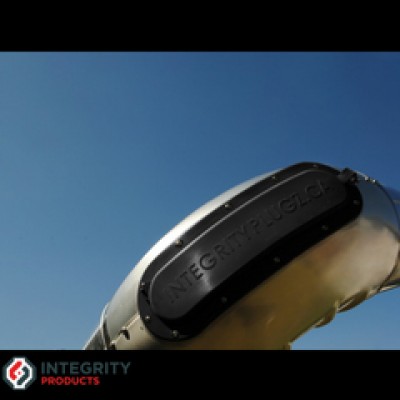

Integrity Plugz are a repeat access inspection port that is designed to provide, easy and safe repeated access for Non-Destructive Testing (NDT) on insulated pipes, vessels, tanks, and equipment. With its patented design features, Integrity Plugz comes with an innovative design that incorporates a flexible metal skeleton embedded in a silicone EPDM edge trim. This allows the Integrity Plug to conform to the curvature of the metal cladding and ensures a watertight installation that works to help mitigate CUI (Corrosion Under Insulation).

Features:

  • Innovative flexible metal design allows the plug to conform to the curvature of the metal cladding.
  • Provides large, safe, repeat access for inspection
  • Highly visible, aesthetically pleasing
  • Forms a watertight seal reducing the risk of CUI
  • Quick and easy install, each plug comes with a cutout, screws and install instructions.
  • Integrity Plugz have a built-in lanyard to avoid cover loss.
  • Integrity Plugz eliminate the sharp edges of the metal cladding by utilizing a safe edge trim design.
  • No fasteners to undo, no metal to cut and inspectors can access pipes using one hand.
  • Made from a high-quality material which provides protection against mechanical damage, high and low temperature, UV and ozone resistance.
  • Integrity Plugz are designed to be reusable and have a 25-year service life.
  • Integrity Plugz have the largest selection of inspection ports available on the market.

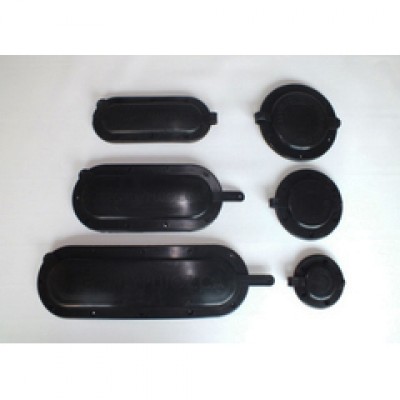

epdm-integrity-plugz-sizes

Specifications:

Materials: 60 Durometer
EPDM Rubber Cover / Cap
60 Durometer
EPDM Base Edge Trim
18 Gauge Black Mild Steel (embedded in EPDM Base Edge Trim)
Color: Black
Chemical Definition: Ethylene Propylene
Diene Monomer
UV Resistance: Excellent
Ozone Resistance: Excellent
Weather Resistance: Excellent
Tensile Strength: 1600 PSI
Elongation: 470%
Temperature Range: -58°F to 300°F (-50°C to 149°C) Constant Temperature
Other Specifications: ASTM D2000 Classification


Note: There is a $25.00 small order fee for orders valued less than $50.00.

Note: There is a $25.00 small order fee for orders valued less than $50.00.

Contact Us for Volume Pricing

Product Literature

Description Part # Saved Price Select Option Add to
Integrity Products EPDM Integrity Plugz - IPZEPDM 2.5" Round (1019E) CUI-IP-IPZEPDM2.5 $10.50
Integrity Products EPDM Integrity Plugz - IPZEPDM 3.75" Round (1005E) CUI-IP-IPZEPDM3.75 $18.15
Integrity Products EPDM Integrity Plugz - IPZEPDM 5" Round (1006E) CUI-IP-IPZEPDM5 $23.65
Integrity Products EPDM Integrity Plugz - IPZEPDM 8" x 2.5" Oval (1020E) CUI-IP-IPZEPDM8X2.5 $34.35
Integrity Products EPDM Integrity Plugz - IPZEPDM 9.5" x 3.5" Oval (1007E) CUI-IP-IPZEPDM9.5 $36.45
Integrity Products EPDM Integrity Plugz - IPZEPDM 13.75" x 3.5" Oval (1008E) CUI-IP-IPZEPDM13.75 $50.95
