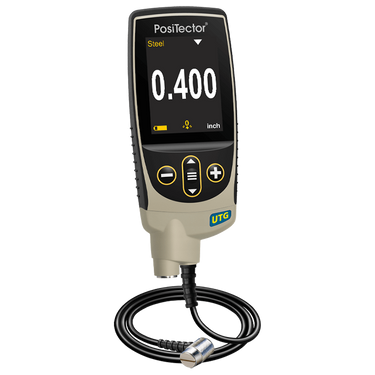

DeFelsko PosiTector UTG Series
Ultrasonic Thickness Gauges

positector utg
positector-utg
positector-utg

Measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited. Multi Echo (UTG-M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

Simple

  • Large, easy-to-read, graphics LCD
  • Pre-programmed velocities - Simply select from a list of common materials or enter your own with ease.
  • Smart Couple™ - Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes.
  • Enhanced one-handed menu navigation
  • Flashing display - Ideal in a noisy environment
  • RESET feature instantly restores factory settings


Accurate

  • Precision ultrasonic transducers provide fast, accurate readings
  • Certificate of Calibration (Long Form) showing traceability to NIST included
  • Conforms to national and internation standard including ASTM E797
  • Built-in temperature compensation ensures measurement accuracy


Versatile

  • High contrast LCD with backlit display
  • Single or two point adjustment
  • Inch/mm switchable
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Extended cables available (up to 20m/60ft.) for underwater or remote measuring
  • Uses alkaline or rechargeable batteries (built-in charger)

Durable

  • Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
  • Impact resistant lens
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gauge body AND probe


Powerful

  • Min Scan Mode - Take continuous readings and record min/max thicknesses - ideal for quick inspection over a large area.
  • Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • Software Updates via web keep your gauge current
  • Screen Capture - Record and save image into USB flash memory for record keeping and review
  • Software Solutions for viewing, analyzing & reporting data
  • Every stored measurement is date and time stamped

probe-interchangeability

Select a Gauge Body
Choose from one of these 3 models:

  • Standard
  • Advanced
  • Probe Only


Select a Model
Standard & Advanced Models:

Corrosion
Probe Type
5 MHz Dual Element
utg-c1
UTG-C1
&
UTG-C3
utg-ca1
UTG-CA1
&
UTG-CA3
utg-cx1
UTG-CX1
&
UTG-CX3
utg-clf1
UTG-CLF1
&
UTG-CLF3
Thru-Paint Capability
No
Measuring Range
0.040" to 5.000"
1.00 to 125.00 mm
Accuracy
± 0.001"
± 0.03 mm

Multiple Echo Precision
Probe Type
5 MHz Contact
utg-m1
UTG-M1
&
UTG-M3
Probe Type
15 MHz Single Element Delay Line
utg-p1
UTG-P1
&
UTG-P3
Thru-Paint Capability
Yes
Thru-Paint Capability
Yes
Single Echo Measuring Range
0.100" to 5.000"
2.50 to 125.00 mm
Steel Measuring Range
0.008" to 0.475"
0.2 to 12.0 mm
Multiple Echo Measuring Range
0.100" to 2.500"
2.50 to 60.00 mm
Plastic Measuring Range
0.005" to 0.175"
0.125 to 4.500 mm
Accuracy
± 0.001"
± 0.03 mm
Accuracy
± 0.001"
± 0.03 mm


Standard Models come with all the features listed plus:

  • Storage of 250 readings per probe - stored readings can be viewed or downloaded


Advanced Models come with all the features listed plus:

  • Storage of 100,000 readings in up to 1,000 batches
  • A-Scan with adjustable Gain and screen capture. NEW! UTG M and UTG P probes include dual cursors to measure the distance between echoes.
  • B-Scan - displays a cross sectional profile of the test material
  • Real-time graphing, picture prompting and batch notes
  • Onscreen Batch Annotation - add notes, change batch names and more with built-in QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs and robotic devices using several industry-standard communication protocols.


Probe Only Models:

Corrosion
Probe Type
5 MHz Dual Element
PRBUTGC
PRBUTGC
PRBUTGCA
PRBUTGCA
PRBUTGCX
PRBUTGCX
PRBUTGCLF
PRBUTGCLF
Thru-Paint Capability
No
Measuring Range
0.040" to 5.000"
1.00 to 125.00 mm
Accuracy
± 0.001"
± 0.03 mm

Multiple Echo Precision
Probe Type
5 MHz Contact
prbutgm
PRBUTGM
Probe Type
15 MHz Single Element Delay Line
prbutgp
PRBUTGP
Thru-Paint Capability
Yes
Thru-Paint Capability
Yes
Single Echo Measuring Range
0.100" to 5.000"
2.50 to 125.00 mm
Steel Measuring Range
0.008" to 0.475"
0.2 to 12.0 mm
Multiple Echo Measuring Range
0.100" to 2.500"
2.50 to 60.00 mm
Plastic Measuring Range
0.005" to 0.175"
0.125 to 4.500 mm
Accuracy
± 0.001"
± 0.03 mm
Accuracy
± 0.001"
± 0.03 mm


Software
PosiSoft Desktop
Powerful desktop software for downloading, viewing, printing and storing measurement data. No internet connection required.

  • Simple intuitive user interface
  • Import readings directly from the gauge via USB or from legacy PosiSoft desktop versions
  • Synchronize measurement data including readings, notes and pictures to and from PosiSoft.net


PosiSoft.net
The intuitive and familiar user interface of PosiSoft Desktop brought to your web browser. Data is securely stored in the cloud.

PosiTector App
An easy-to-use mobile app (iOS/Android) that connects to your PosiTector Advanced, PosiTector Smartlink or PosiTest AT.

PosiSoft USB
A simple gauge interface to retrieve data in a manner similar to a flash drive. No software to install or internet connection required.

posisoft-desktop

PosiSoft Custom PDF Report Generator
Easily create reports from your measurement data in seconds

  • Generate custom, professional PDF reports
  • Include inspection information such as on-site pictures, screen captures, notes and more to communicate important details
  • Create and save multiple custom layouts as templates - insert cover pages, add logos/images, and select "responsive-table">
    • Body & Probe
    • Couplant
    • Protective Rubber Holster and belt clip
    • Wrist strap
    • 3 AAA batteries
    • Instructions
    • Nylon case with shoulder strap
    • Protective lens shield
    • Long Form Certificate of Calibration
    • USB Cable
    • PosiSoft Software
    • 2 year warranty


    Accessories:

    positector-probes
    PosiTector Probes
    PosiTector bodies accept all PosiTector probes easily converting from a coating gauge to a surface profile gauge, dew point meter, soluble salt tester, hardness and ultrasonic thickness gauges.
    certified-test-blocks
    Certified Step Blocks
    Ideal for checking calibration and operation of ultrasonic thickness gauges and are an important component in fulfilling both ISO and in-house quality control requirements.
    ultrasonic-couplant
    Ultrasonic Couplant
    Every PosiTector 200 and PosiTector UTG ships with 1 bottle of Ultrasonic couplant. Additional 4 oz. bottles are available (sold in cases of 12) MSDS.
    Bluetooth-printer
    Bluetooth Printer
    Battery-operated and light weight, the Bluetooth printer prints readings and statistical summaries via Bluetooht from Advanced models.
    protective-lens-shield
    Protective Lens Shield
    Pack of 5 plastic lens shields to protect the PosiTector display from paint overspray. One lens shield included in every PosiTector purchase.
    AC power unit
    AC Power Unit
    Use for continuous operation or battery charging. This kit supplies several alternate power solutions for your battery-operated PosiTector. Operate your gauge without the need for batteries.
Description Part # Saved Price Select Option Add to
DeFelsko PosiTector UTG Corrosion Integral Probe Standard body + probe UT-DF-UTGCA1-G $1,200.00
DeFelsko PosiTector UTG Corrosion Integral Probe Advanced body + probe UT-DF-UTGCA3-G $1,650.00
DeFelsko PosiTector UTG Corrosion Integral Probe probe only UT-DF-PRBUTGCA-C $875.00
DeFelsko PosiTector UTG Corrosion Cabled Standard body + probe UT-DF-UTGC1-G $1,130.00
DeFelsko PosiTector UTG Corrosion Cabled Advanced body + probe UT-DF-UTGC3-G $1,580.00
DeFelsko PosiTector UTG Corrosion Cabled Probe only UT-DF-PRBUTGC-C $805.00
DeFelsko PosiTector UTG Xtreme Corrosion Standard body + probe UT-DF-UTGCX1-G $1,245.00
DeFelsko PosiTector UTG Xtreme Corrosion Advanced body + probe UT-DF-UTGCX3-G $1,695.00
DeFelsko PosiTector UTG Xtreme Corrosion Probe only UT-DF-PRBUTGCX-C $920.00
DeFelsko PosiTector UTG Low Frequency Standard body + probe UT-DF-UTGCLF1-G $1,220.00
DeFelsko PosiTector UTG Low Frequency Advanced body + probe UT-DF-UTGCLF3-G $1,670.00
DeFelsko PosiTector UTG Low Frequency Probe only UT-DF-PRBUTGCLF-C $895.00
DeFelsko PosiTector UTG Multi Echo Standard body + probe UT-DF-UTGM1-G $1,915.00
DeFelsko PosiTector UTG Multi Echo Advanced body + probe UT-DF-UTGM3-G $2,365.00
DeFelsko PosiTector UTG Multi Echo Probe Only UT-DF-PRBUTGM-C $1,590.00
DeFelsko PosiTector UTG Precision Standard body + probe UT-DF-UTGP1-G $1,440.00
DeFelsko PosiTector UTG Precision Advanced body + probe UT-DF-UTGP3-G $1,890.00
DeFelsko PosiTector UTG Precision Probe only UT-DF-PRBUTGP-C $1,115.00
DeFelsko Certified Step Block - Inch UT-DF-STDB1 $425.00
DeFelsko Certified Step Block - Metric UT-DF-STDB1M $475.00
DeFelsko Certified Thin Step Block UT-DF-STDUTGP $435.00
DeFelsko 4 oz Ultrasonic Gel (case of 12) UT-DF-GEL-P $195.00
DeFelsko 4 oz. Ultrasonic Gel (twin pack) UT-DF-GEL-T $47.00
DeFelsko Replacement Transducer (UTG P only) UT-DF-UTGPTRNSDCR $435.00
