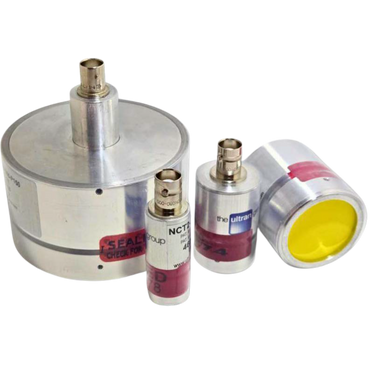

Non-Contact (Air-Coupled) Transducers

Overview

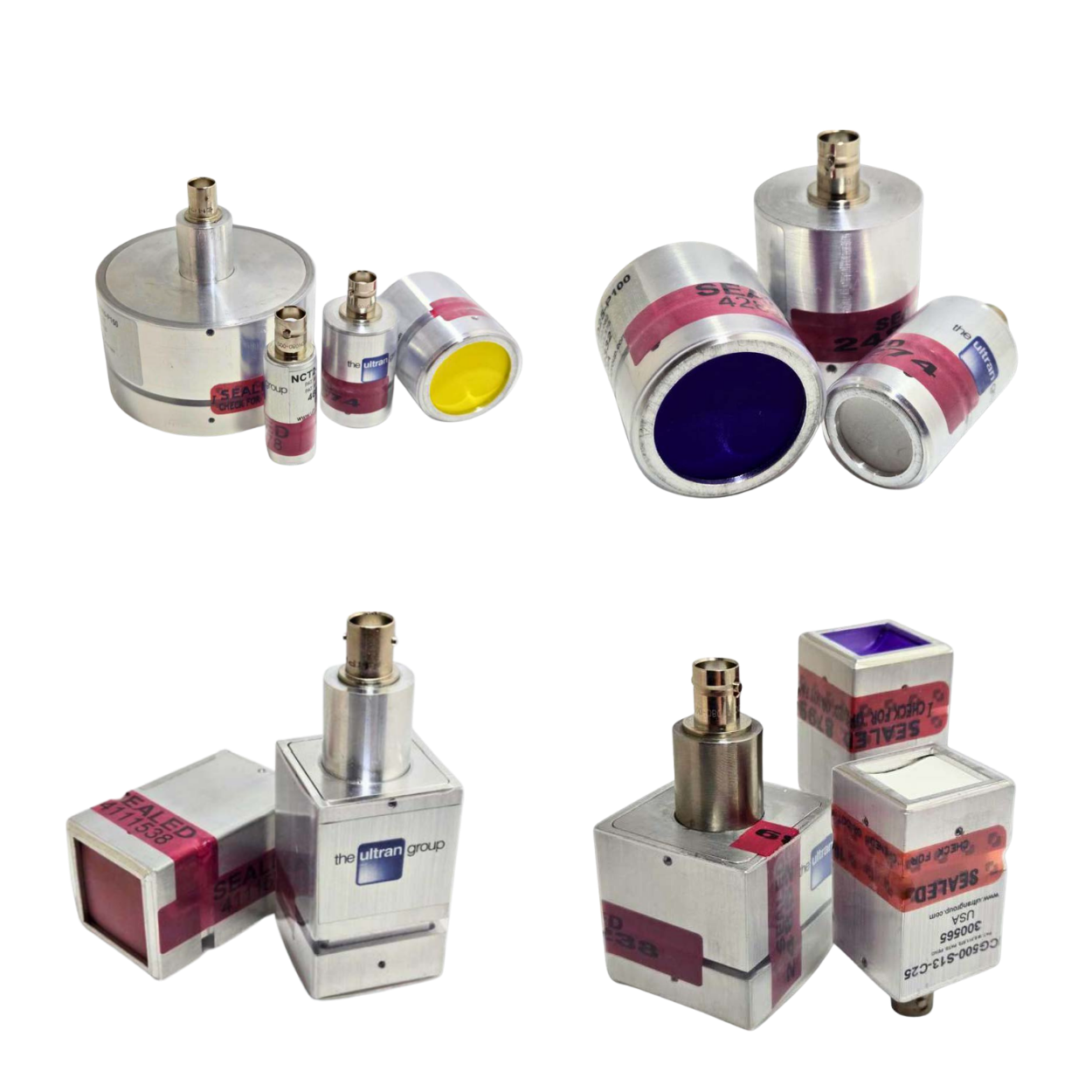

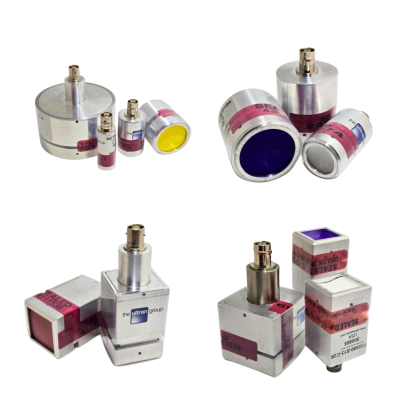

Designed for use in air and other non-corrosive gaseous environments, these probes are characterized by extremely high efficiency in air. They are manufactured with aluminum housings. Non-Contact (Air-Coupled) Transducers are available in four formats: Round, Round-Focused, Square, and Square-Focused designs.

Features

• Wide range of  low-frequency models available from 30 kHz to 5 MHz
• Active surface areas from 7 to 100 mm for both spot inspection and broad coverage
• Aluminum housing with standard BNC connector; custom connectors available on request
• Models at frequencies of 500 kHz and lower include Ultran proprietary gas matrix piezoelectric (GMP™) composite
• Models at 700 kHz and higher built with high performance polymer-based piezocomposite

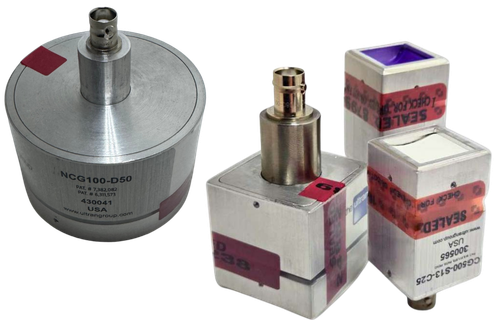

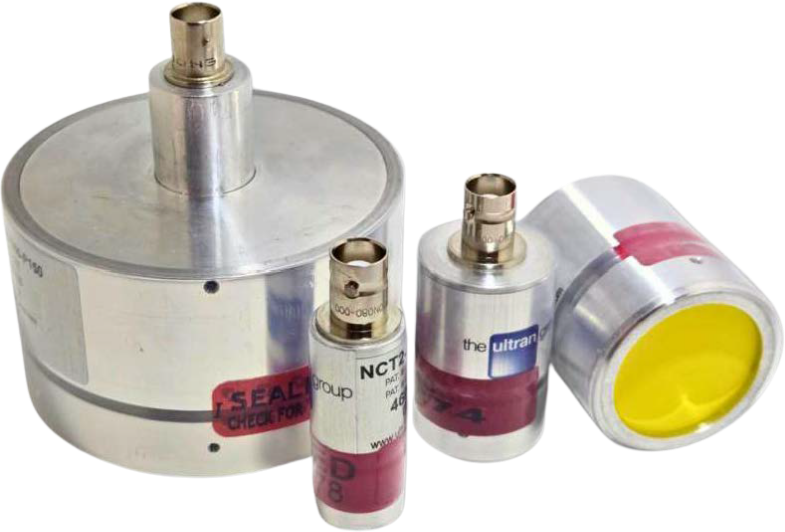

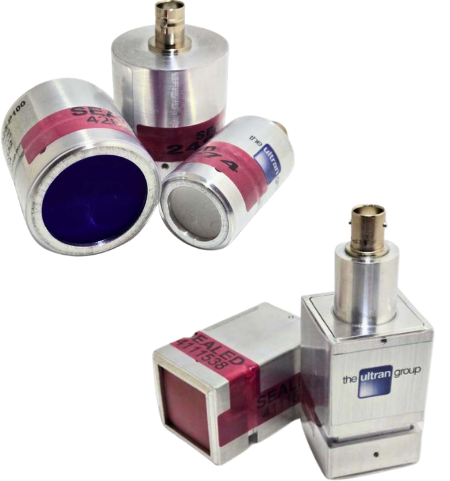

Non-Contact Transducers

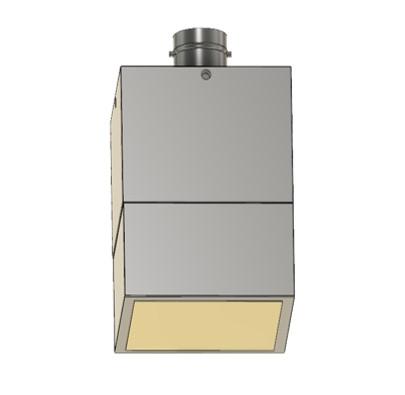

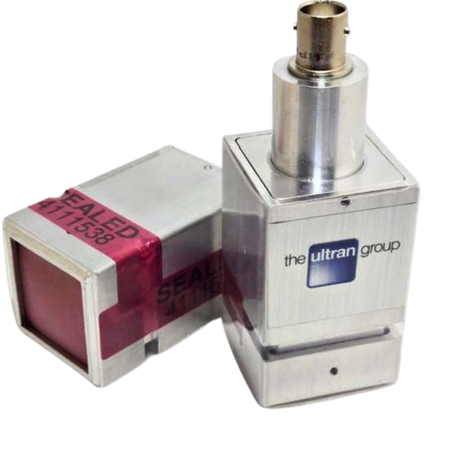

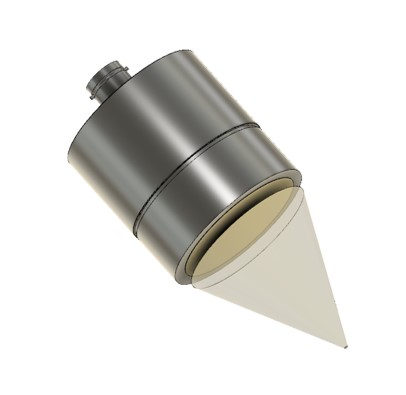

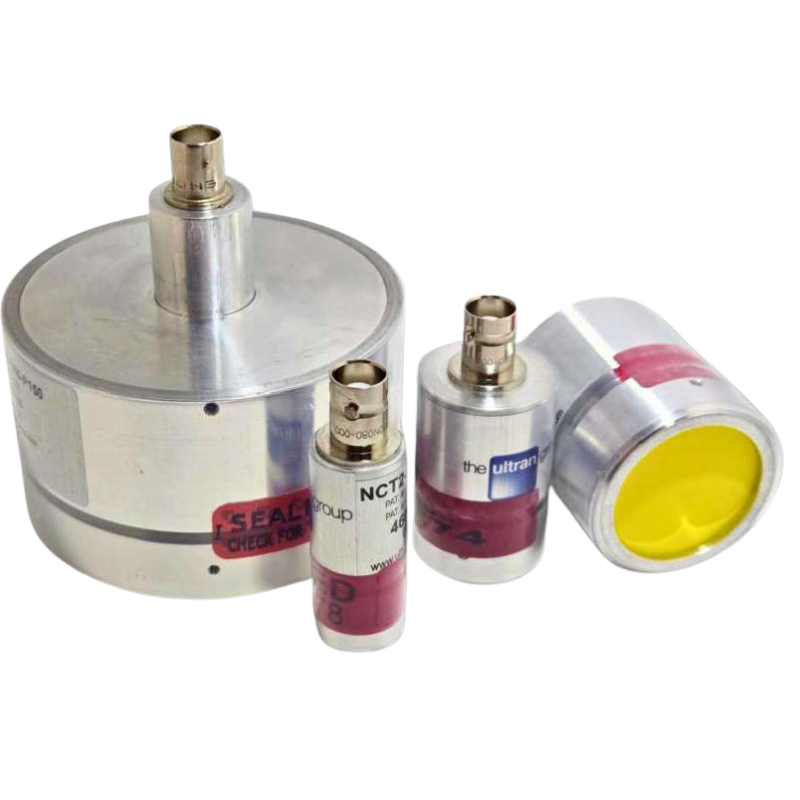

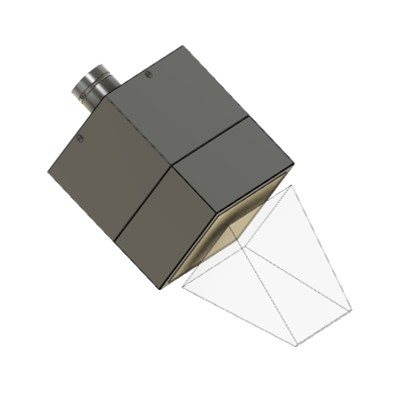

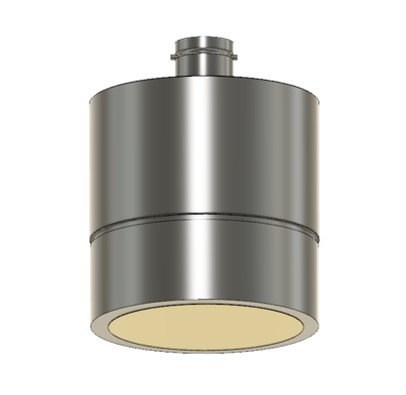

Design:	Round	Round-Focused (Point Focused)	Square	Square-Focused (Line Focused)
Frequency Range:	30kHz to 5MHz	30kHz to 1MHz	30kHz to 5MHz	30kHz to 2MHz
Active Surface Area:	0.28 - 3.94" (7 - 100mm)	1.50 - 2.48" (38 - 63mm)	0.51 x 0.51 - 3.94 x 3.94" (13 x 13 - 100 x 100mm)	0.51 x 0.51 - 1.50 x 1.50" (13 x 13 - 38 x 38mm)
Focal Length:	NA	0.28 - 2.48" (7 to 63mm)	NA	0.75 - 5.91" (19 to 150mm)

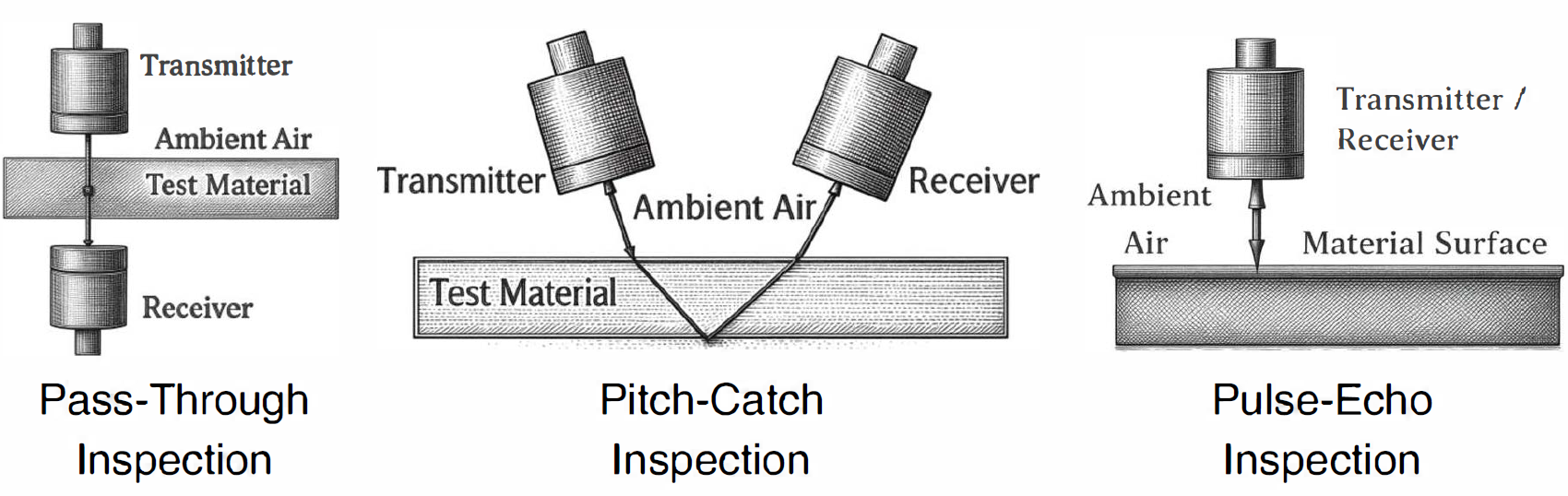

Applications

• Ideal for materials that cannot tolerate water, couplants, or other contaminants
• Well-suited to porous and hygroscopic materials, food, and pharmaceuticals
• Effective on composites, rubbers, plastics, ceramics, powder metals, lumber, honeycomb structures, and synthetic and natural materials
• Applicable to both final products and in-situ inspection
• Capable of defect detection and non-destructive material characterization
