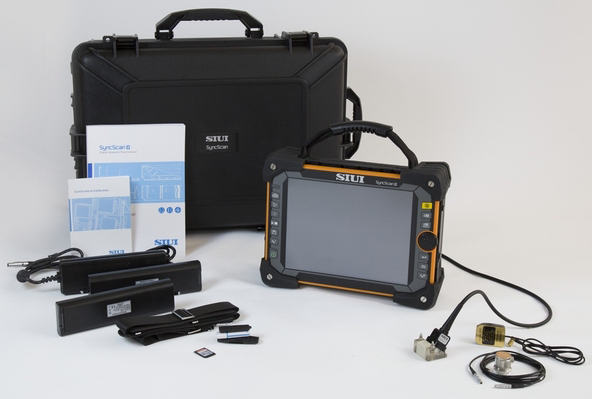

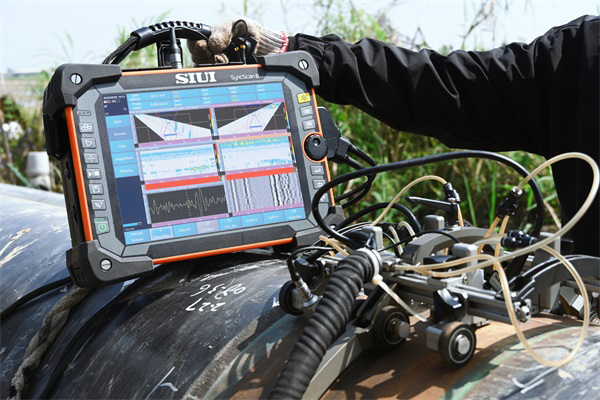

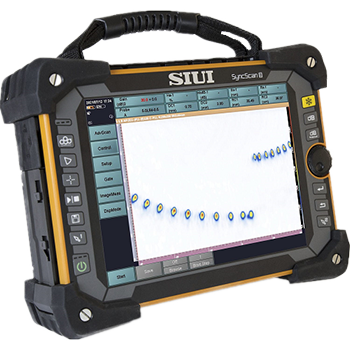

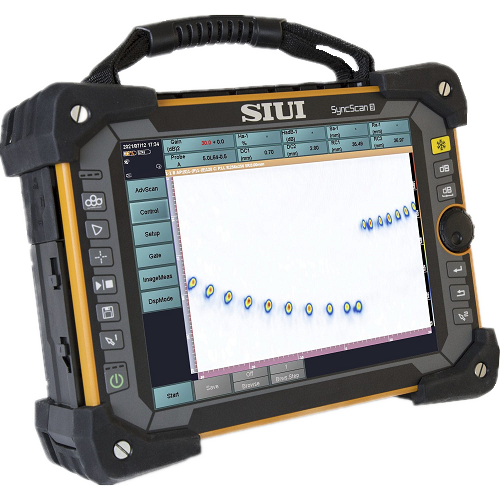

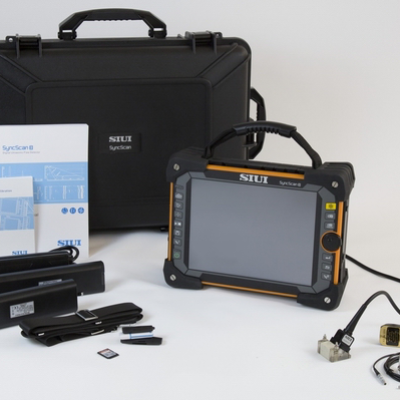

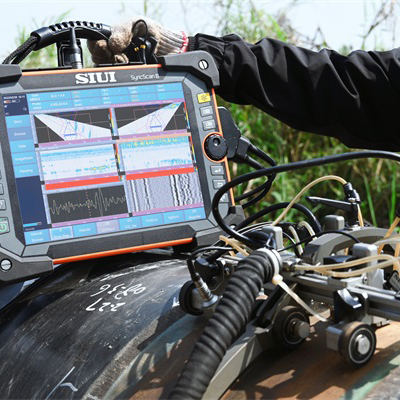

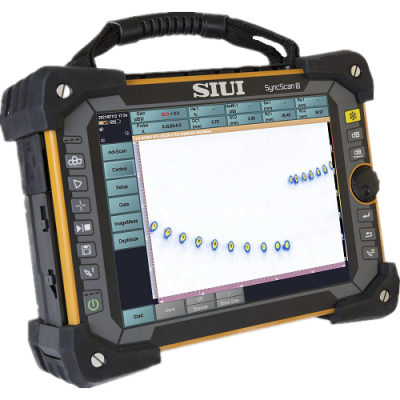

The SyncScan 3 is a 64:128PR Phased Array Ultrasonic Flaw Detector with total focusing method (TFM) and 4 channel TOFD, enabling more possibilities for inspection in oil & gas, transportation, aerospace, shipbuilding and manufacturing industries. Lightweight and portable, only weighing 7.7 kg. including 2 batteries, the SyncScan 3 is suitable for field work. Equipped with a 12.1" bright LCD cloud system for better viewing and user experience with one-touch smart keys for quick access. The SyncScan 3 is fully equipped with useful connectors for different functions including a new SIM Card connector for 4G network making it easy to transfer data in the field, GPS for location and an Encoder port supporting 3-axis coding and 4 channel UT/TOFD processing, as well as, 2 USB 3.0 ports, an Ethernet port and an SD port making it possible to connect to more devices and software. With an upgraded ABS cover, handy switch, 3 integrated fans and a stand with 2 adjustable angles, the SyncScan 3 can be used in all situations.
SyncScan 3 adopts a special algorithm (patent pending) to achieve high-speed imaging of TFM, based on the reduction of data transmission and computing resources. The surround process provides more stable amplitude and reduces noise, which further improves the performance of the TFM. The shape and size of the defects are clearly characterized.
64 channels of Phased Array can provide higher coverage and precision, suitable for complex composite materials, corrosion resistant alloys and austenitic materials.

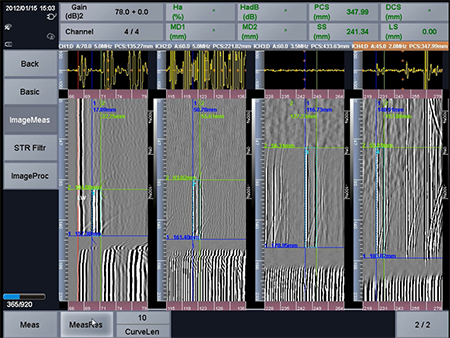

Syncscan 3 is equipped with 4 TOFD channels. With a special PA to TOFD adapter, its PA channel can be converted to a TOFD channel to achieve 5 TOFD inspection channels, suitable for thick welds up to 400mm, with alloy steel and low carbon steel materials.
