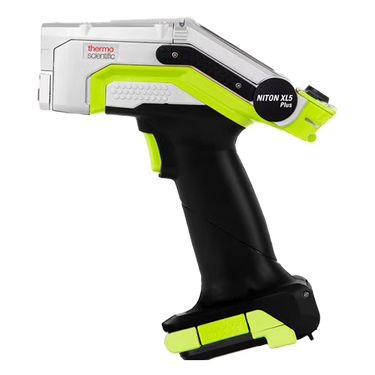

Confidently perform elemental analysis with the Niton XL5 Plus handheld X-ray Fluorescence (XRF) analyzer. It delivers unprecedented performance even for lightweight elements. Identify pure metals and alloys, detect trace elements, or obtain geochemical data. Businesses rely on the Niton XL5 Plus analyzer for more than just low detection limits. It generates fast results and offers great versatility such as the ability to scan a broad range of materials with a single analyzer.
| Niton XL5 Plus | |
| Weight: | 2.8 lbs with battery (1.3 kg) |
| Dimensions: | 9.54 x 8.19 x 2.67 in (24.26 x 20.82 x 6.79 cm) |
| X-Ray Source: | X Ray Tube: Ag anode (6-50kV, 0-500uA, 5W max) Filter: Six (6) position filter wheel for enhanced spectral range coverage Current: Dynamically adjustable current for optimal sensitivity on every analysis |
| Detector: |
High count rate, high resolution, extra large area silicon drift detector (1μm graphene window) Detector ProGuard protection included |
| Spot Size: | Standard: 8mm collimation Optional: 3mm small-spot collimation |
| Analytical Range: | Mg-U (ultra low light element detection), Na (spectrum based detection) |
| Calibration Modes: | General Metals, Precious Metals, Light Metal Quick Sort, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Spectral Fingerprint, TestAll™ |
| Libraries: | Default alloy libraries based on SAE, AISI, ASTM, AA,DIN, GB standards Users may create, clone and edit libraries |
| System Check: | Built-in standardization and health check verifies system integrity and operating conditions |
| IP Rating: | IP54 (splash and dust proof) |
| Operating Environment: | Temperature: 32°F to 122° F (0°C to 50°C) (external fan recommended when ambient temperature is greater than 33°C) Humidity: 10% to 90% relative humidity non-condensing |
| Display: | Tilting, color, resistive touchscreen display |
| Power: | 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply Hot swap functionality keeps analyzer powered during battery replacements |
| Macro Camera: | Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations |
| Micro Camera: | Integrated CCD micro camera for locating and recording measurement positions |
| Global Positioning System: |
Internal GPS and optional external GPS (via Bluetooth) GPS data included with sample information |
| Bluetooth: | Supports print functionality, external GPS connectivity and barcode reader |
| Memory / Data Storage: | 512 MB internal system memory / 16 GB industrial grade storage Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved) |
| Data Entry: | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader |
| Data Transfer: | WiFi, USB-c |
| Operating System: | Linux |
| Support Software: | NitonConnect PC software |
| Security: | Password-protected user security |
| Languages: | English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian |
