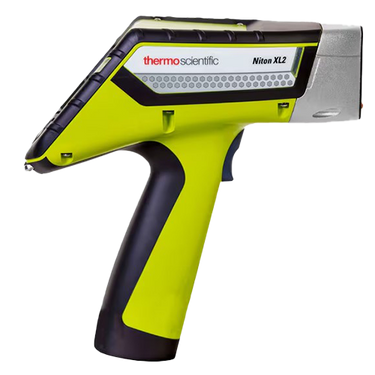

Confidently perform elemental analysis with the Niton XL2 Plus Handheld XRF analyzer. When durability, performance and productivity are top of mind, businesses rely on the Niton XL2 Plus analyzer for fast results and low detection limits. Identify pure metals and alloys, or obtain geochemical data. The Niton XL2 Plus provides operators the ability to scan a broad range of materials in one versatile analyzer.
2W X-Ray Tube
Silicon Drift Detector (SDD) for light element detection (Mg, Al, Si, P, S)
Detector ProGuard Protection
Micro Camera
Hot Swap Battery
Touch Screen and Directional Keys
Password Protected Security
IP54 Certified (Splash/ Dust Proof)
Nose Cone Alignment Guides
| Niton XL2 Plus | |
| Weight: | 3.4 lbs with battery (1.53 kg) |
| Dimensions: | 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm) |
| X-Ray Source: | X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max) Dynamically adjustable current for optimal sensitivity on every analysis |
| Detector: |
Silicon drift detector (SDD) Detector ProGuard protection included |
| Spot Size: | 8 mm collimation |
| Analytical Range: | Mg-U |
| Calibration Modes: | General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products |
| Libraries: | Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries |
| System Check: | Built-in standardization via automatic system check |
| IP Rating: | IP54 (splash and dust proof) |
| Operating Environment: | Temperature: 14°F - 122°F (-10°C to 50°C) Humidity: 0% to 80% relative humidity non-condensing |
| Display: | Fixed angle, color, resistive touchscreen display |
| Power: | 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply Hot swap functionality keeps analyzer powered during battery replacements |
| Camera: | Integrated CCD micro camera for locating and recording measurement positions |
| Global Positioning System: | Optional external GPS (via Bluetooth) |
| Bluetooth: | Supports print functionality, external GPS connectivity and barcode reader |
| Memory/ Data Storage: | 64 MB internal system memory / 128 MB internal user storage Stores approximately 10,000 readings with spectra (fewer if images are saved) |
| Data Entry: | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader |
| Data Transfer: | USB, Bluetooth, and RS-232 serial communication |
| Operating System: | Proprietary |
| Support Software: | Niton Data Transfer (NDT) PC software |
| Security: | Password-protected user security |
| Languages: | English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech |
