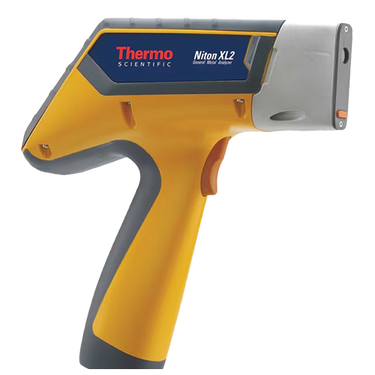

Get immediate, nondestructive elemental analysis of alloy materials from titanium to nickel with the Niton XL2 100G General Metal Analyzer. The XL2 100G analyzer is a practical, cost-effective solution that offers fast analysis for general alloy identification, basic fabrication, and scrap metal sorting. This high value, high performance analyzer features advanced electronics yet it is ruggedly built to withstand the harshest environments, in the field or on the shop floor.
Precise elemental analysis of alloy materials
Very easy to use – even by non-technical personnel
Standard analytical range of more than 25 elements from sulfur to uranium.
Customizable menus with multiple language options and daylight-readable icons
Ergonomically designed
Ruggedly designed for the most challenging industrial environments, and sealed against moisture and dust
| Niton XL2 100G | |
| Weight: | 3.36 lbs (1.53 kg) |
| Dimensions: | 10.25 x 11 x 4 in. (256 x 275 x 100 mm) |
| Tube: | Ag anode 38kV maximum, 80 uA maximum |
| Detector: |
High-performance semiconductor |
| System Electronics: | 400 MHz ARM 11 CPU 300 MHz dedicated DSP 80 MHz ASICS DSP for signal processing 4096 channel MCA 64 MB internal system memory/128 MB internal user storage |
| Display: | Fixed angle, color, touch-screen display |
| Standard Analytical Range: | 25 elements from Ti to Bi |
| Data Storage: | Internal >10,000 readings with spectra |
| Data Transfer: | USB, Bluetooth™, and RS-232 serial communication |
| Security: | Password-protected user security |
| Mode: | Alloy Modes: Metal Alloy |
| Data Entry: | Touch-screen keyboard User-programmable pick lists Optional wireless remote barcode reader |
