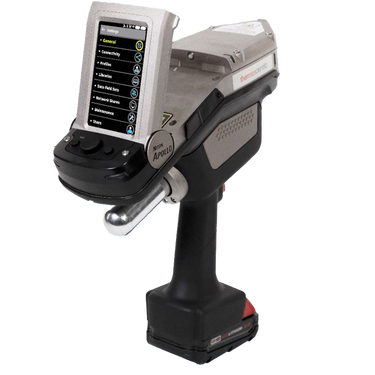

Powered by laser induced breakdown spectroscopy (LIBS), the Apollo analyzer specializes in carbon analysis for metals and alloys. The Apollo analyzer offers unmatched speed, performance and portability. The Apollo transforms traditional optical emission spectrometry into a true portable experience with its dexterity and weight of only 6.4 pounds. Specifically engineered to provide superior analysis and low detection limits, users can view alloy identification and advanced averaging in about 10 seconds. The Apollo software is simplified and intuitive.
Powerful Analysis: • Effective laser and high purity argon purge to generate lab quality results
• Superior analysis and low detection limits, users can view alloy identification and advanced averaging in about 10 seconds
• Ability to measure carbon equivalency and pseudo elements
Expanded Field Use: • Dexterity like never before: experience true portability with the Apollos minimized weight of only 6.4 lbs (2.9kg)
• Argon canisters means no more tanks or hoses when climbing onto pipes or into trenches
• The tapered nose fits easily into challenging structures down to ¼ " piping, ¼ bars, and weld wires
Increased Productivity: • Fast analysis times help increase sample throughput and production
• Equipped with two hot swap Milwaukee™ batteries, operators can quickly replace a depleted battery
• A tilting, color touchscreen and optional directional keys make it easy for users to navigate through menus, sample readings and more
Safety First: • Three (3) robust safety interlocks to help reduce the risk of a laser misfire
• Interlocks have undergone third-party testing and validation
• Interlocks measure chamber pressure, spectral type, and light/ dark conditions
Smart Technology: • Smart, simplified software solution features an application interface that is easy for virtually any user to understand
• Option to customize data fields and user profiles to create a workflow solution designed to meet the needs of your business
• WiFi enabled LIBS analyzer empowers you to remotely transfer and view your sample readings
| Niton Apollo | |
| Weight: | 6.4 lbs with battery (2.9 kg) |
| Dimensions: | 12 x 13 x 4 in (30.48 x 33.02 x 10.16 cm) |
| Laser: | 1064nm laser |
| Safety Features: | Chamber Pressure, Spectral type, and Light/ Dark Sensor Interlocks |
| Modes / analytical range: | Stainless Steel: C, Al, Si, Ti, V, Cr, Mn, Co, Ni, Cu, Nb, Mo, W Low Alloy/Carbon steel: C, Al, Si, Ti, V, Cr, Mn, Ni, Cu, Mo, W |
| Argon Usage: | About 200 shots per cartridge |
| Libraries: | Default alloy libraries based on SAE, AISI, ASTM standards. Users may create, clone and edit libraries |
| IP Rating: | IP54 (splash and dust proof) |
| Operating Environment: | Temperature: 32°F - 104°F (0°C - 40°C) |
| Altitude: | 6,000 ft maximum |
| Display: | Tilting, color, resistive touchscreen display |
| Power: | 24V, 3.75A, 90W power supply |
| Macro camera: | Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations |
| Micro Camera: | Integrated CCD micro camera for locating and recording measurement positions |
| Global Positioning System: | Internal GPS (ability to include coordinates with sample information) |
| Bluetooth: | Bluetooth 4.0 (supports print functionality) |
| Memory / Data Storage: | 512 MB internal system memory / 16 GB industrial grade storage Stores approximately 5,000 readings with spectra (fewer if macro and micro images are saved) |
| Data Entry: | Touchscreen Keyboard. User Customizable Data Entry |
| Data Transfer: | WiFi, USB |
| Operating System: | Linux |
| Support Software: | NitonConnect PC software |
| Security: | Password-Protected User Security |
| Languages: | English |
| Compliance: | CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010 |
