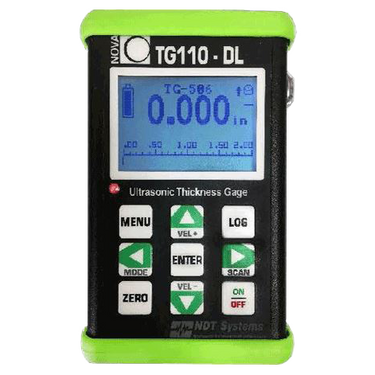

The TG-110 Series are simple, versatile mini ultrasonic thickness gauge packages, comes with a variety of transducers to pick from, which can be used for a variety of measurements. The unit works with dual element transducers, exhibiting excellent corrosion inspection capabilities and can be set up for thickness measurement with a push a few buttons. Conveniently, it can log data by defining a user-definable data matrix. In addition, a purchasable option allows measurement through a coat of paint or similar layer covering the material being inspected. The TG-110 can be used for applications on a large variety of materials such as metals, glass, plastics and many more.
| Transducer |
Transducer Type | Dual |
| Frequency Range | 2.25MHz or 5MHz (included), 10MHz (optional for TG-110) | |
| Cable Length | 6ft. (1.83m) (included) | |
Power Source |
Power Source | AA Alkaline Batteries |
| Battery Life | 150 hrs. | |
| Display | Display Type | Backlit Liquid Crystal |
| Display Size | 128 x 64 pixels, ~2" x 1.25" (50 x 32mm) | |
| Keypad | Construction | Tactile membrane feedback keys |
| Measurements | Thickness Range | 0.022" to 50.00" (0.559 to 1,270.00mm) |
| Units Displayed | in. / mm | |
| Resolution | 0.001" (0.025mm) | |
| Material Velocity Range | 0.0490-0.9999in./μs (1.24-25.40mm/μs) | |
| Acquisition Speed | 4 readings per second | |
| Memory (TG-110) | Data Logger | 50,000 readings, 30 characters |
| Interface (TG-110) | l/O | USB |
| Physical | Weight | 0.8 lbs. (0.36 kg) |
| Dimensions | 3" x 5" x 1.25" (76 x 99 x 32mm) | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) | |
| Case Construction | Aluminum Body, Rubber End Caps | |
| Connector Type | Lemo 01 | |
| Certification | Factory Calibration | |
| Warranty | 1 year |
