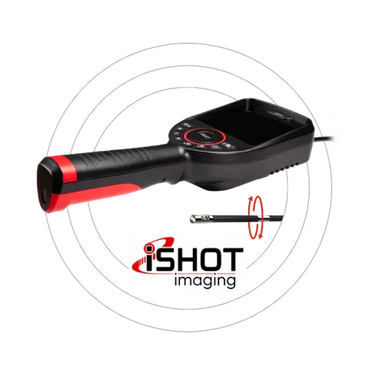

iShot Model E Rotating Video Borescopes

iShot Model E Rotating Video Borescopes

360° rotation for orbital welds and pipe inspection

Overview

Experience the portable video borescope platform engineered for rotational inspections, featuring a true 1:1 aspect ratio and enhanced imaging clarity.

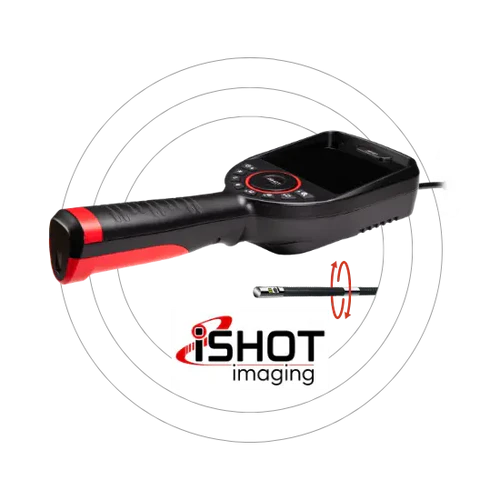

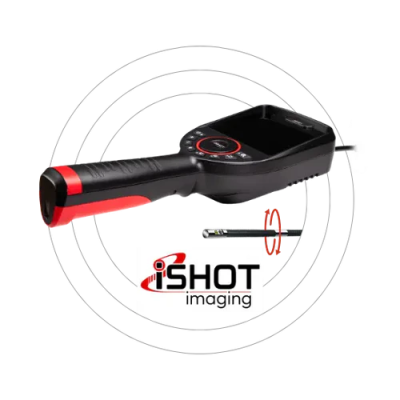

The iShot Imaging Model E Rotating Video Borescope incorporates an integrated slip ring that allows continuous 360-degree probe rotation, making it ideal for orbital weld inspection and other applications requiring controlled rotational viewing, while maintaining effortless operation and efficient visual inspection.



Available Models

  • PROBE ONLY - must choose the base monitor below
  • Enhanced 400 x 400 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Versatile, detachable probe options for quick replacements and less downtime
  • 1-50 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications
  • PROBE ONLY - must choose the base monitor below
  • Enhanced 720 x 720 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Versatile, detachable probe options for quick replacements and less downtime
  • 2-80 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications
  • PROBE ONLY - must choose the base monitor below
  • Enhanced 720 x 720 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Rotating Slip Ring Capabilities
  • Versatile, detachable probe options for quick replacements and less downtime
  • 2-50 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11279
  • 1.5 m (4.92 ft) RV-INT-EM11280
  • 2.0 m (6.56 ft) RV-INT-EM11281
  • 3.0 m (9.84 ft) RV-INT-EM11282
  • 5.0 m (16.4 ft) RV-INT-EM11283
  • 6.0 m (19.7 ft) RV-INT-EM11284
  • 8.0 m (26.2 ft) RV-INT-EM11285

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11305
  • 1.5 m (4.92 ft) RV-INT-EM11306
  • 2.0 m (6.56 ft) RV-INT-EM11307
  • 3.0 m (9.84 ft) RV-INT-EM11308
  • 5.0 m (16.4 ft) RV-INT-EM11309
  • 6.0 m (19.7 ft) RV-INT-EM11310

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11294
  • 1.5 m (4.92 ft) RV-INT-EM11295
  • 2.0 m (6.56 ft) RV-INT-EM11296
  • 3.0 m (9.84 ft) RV-INT-EM11297
  • 5.0 m (16.4 ft) RV-INT-EM11298



  • PROBE ONLY - must choose the base monitor below
  • Enhanced 800 x 800 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Rotating Slip Ring Capabilities
  • Versatile, detachable probe options for quick replacements and less downtime
  • 3-100 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications
  • PROBE ONLY - must choose the base monitor below
  • Enhanced 800 x 800 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Rotating Slip Ring Capabilities
  • Versatile, detachable probe options for quick replacements and less downtime
  • 3-100 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications
  • PROBE ONLY - must choose the base monitor below
  • Enhanced 720 x 720 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Rotating Slip Ring Capabilities
  • Versatile, detachable probe options for quick replacements and less downtime
  • 3-100 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11322
  • 1.5 m (4.92 ft) RV-INT-EM11323
  • 2.0 m (6.56 ft) RV-INT-EM11324
  • 3.0 m (9.84 ft) RV-INT-EM11325
  • 5.0 m (16.4 ft) RV-INT-EM11326
  • 6.0 m (19.7 ft) RV-INT-EM11327
  • 8.0 m (26.2 ft) RV-INT-EM11328
  • 10 m (32.8 ft) RV-INT-EM11329

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11311
  • 1.5 m (4.92 ft) RV-INT-EM11312
  • 2.0 m (6.56 ft) RV-INT-EM11313
  • 3.0 m (9.84 ft) RV-INT-EM11314
  • 5.0 m (16.4 ft) RV-INT-EM11315
  • 6.0 m (19.7 ft) RV-INT-EM11316
  • 8.0 m (26.2 ft) RV-INT-EM11317
  • 10 m (32.8 ft) RV-INT-EM11318

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11330
  • 1.5 m (4.92 ft) RV-INT-EM11331
  • 2.0 m (6.56 ft) RV-INT-EM11332
  • 3.0 m (9.84 ft) RV-INT-EM11333
  • 5.0 m (16.4 ft) RV-INT-EM11334
  • 6.0 m (19.7 ft) RV-INT-EM11335
  • 8.0 m (26.2 ft) RV-INT-EM11336
  • 10 m (32.8 ft) RV-INT-EM11337



  • PROBE ONLY - must choose the base monitor below
  • Enhanced 800 x 800 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Rotating Slip Ring Capabilities
  • Versatile, detachable probe options for quick replacements and less downtime
  • 3-100 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications
  • PROBE ONLY - must choose the base monitor below
  • Enhanced 800 x 800 px CMOS sensor for sharp, detailed images
  • Innovative 1:1 aspect ratio images and screen display for superior visibility
  • Rotating Slip Ring Capabilities
  • Versatile, detachable probe options for quick replacements and less downtime
  • 3-100 mm Depth of Field
  • Robust tungsten-braided shafts
  • Bright 600-nit display for clear visibility in outdoor applications

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11347
  • 1.5 m (4.92 ft) RV-INT-EM11348
  • 2.0 m (6.56 ft) RV-INT-EM11349
  • 3.0 m (9.84 ft) RV-INT-EM11350
  • 5.0 m (16.4 ft) RV-INT-EM11351
  • 6.0 m (19.7 ft) RV-INT-EM11352
  • 8.0 m (26.2 ft) RV-INT-EM11353
  • 10 m (32.8 ft) RV-INT-EM11354

Available Lengths & Sku:

  • 1.0 m (3.28 ft) RV-INT-EM11339
  • 1.5 m (4.92 ft) RV-INT-EM11340
  • 2.0 m (6.56 ft) RV-INT-EM11341
  • 3.0 m (9.84 ft) RV-INT-EM11342
  • 5.0 m (16.4 ft) RV-INT-EM11343
  • 6.0 m (19.7 ft) RV-INT-EM11344
  • 8.0 m (26.2 ft) RV-INT-EM11345
  • 10 m (32.8 ft) RV-INT-EM11346

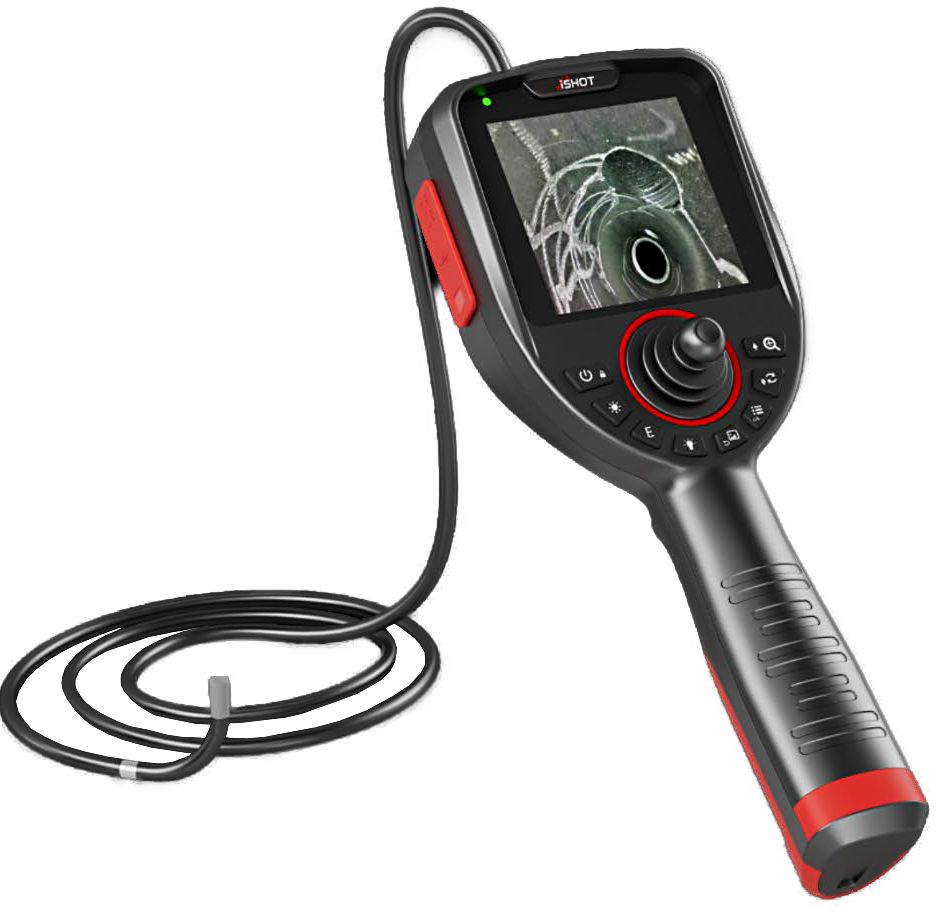

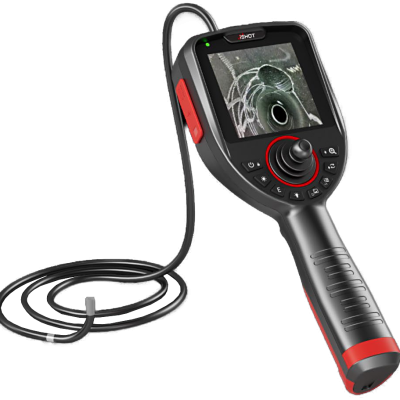

  • 4" handheld industrial video borescope monitor
  • Innovative 1:1 display for superior, natural visibility
  • Supports articulating, non-articulating, and rotating iShot® Model E probes

Sku:

  • RV-INT-EM10418

Technical Specifications

Technical Specifications

iShot Model E Series
System
Display Screen: 4" x 4" (1:1 aspect ratio) ultra-clear display, 600-nit brightness
Control: Direct button control for brightness, sharpness, exposure, zoom, rotation, and picture effects
Functions: Image capture, video recording, live image adjustment, quick probe changing (10 second cycle)
Video Output: USB-C, HDMI
Charging Port: USB-C
Battery Life: 8-9 hours
Combining Form: Monitor + Probe, Detachable (10 second probe release and installation)
Compatibility: Interchangeable with all iShot Model E probe sizes (1.2-6.0 mm), lengths (1.0-10.0 m), and styles
Software
Image Enhancement: Exposure, sharpness, brightness adjustments; negative, color, monochrome, and grid filter effects
Image Control: Digital zoom, image rotation, freeze-frame
Image & Screen Display: 1:1 aspect ratio (no distortion from 4:3 or 16:9 stretching)
Startup Time: 10 seconds to power on and see live image
Probe Specifications
Diameter Range: 0.85 mm to 6.0 mm (varies by probe model)
Length Range: 1.0 m to 15.0 m (varies by probe model)
Direction of View: Direct (0°), Side (90°), or Dual (0° & 90°) (varies by probe model)
Articulation Types: 2-Way Manual, All-Way Manual, or Rotating Slip Ring
Depth of Field: 1-50 mm to 3-100 mm (varies by probe model)
Field of View: 120° to 140° (varies by probe model)
Resolution: 400 x 400 px, 720 x 720 px, or 800 x 800 px
Illumination Type: White Light LEDs
Illumination Output: 2,000 Lux to 70,000 Lux (varies by probe model)
Shaft Material: Tungsten braided mesh

Applications

These rotating borescopes with slip ring capabilities are optimal for circumferential inspections.
Applications and Industries include:

  • Welding Seam Inspections
  • Interior Pipe Walls
  • 360° Side-Wall Documentation
  • Metal Tubing
  • Oil & Gas
  • Aerospace

Kit Includes

 * Included only when the Model E Monitor and Probe are ordered together.

  • Model E Monitor
  • Model E Monitor stand
  • Model E Probe (model of choice)
  • Charger for monitor (USB-C to USB cable with wall adapter)
  • HDMI Mini to HDMI  cable
  • Accessories: Manual and cleaning cloth
  • Carrying Case

*Monitor must be purchased seperately*

Description Part # Saved Price Select Option Add to

2.2 - 2.8mm Model E Rotating Borescopes
iShot Model E Rotating Video Borescope 2.8 mm Dual View - 720 x 720 (choose Cable Length)
Model #
RV-INT-EM11294M
Request Pricing
iShot Model E Rotating Video Borescope 2.8 mm Side View - 720 x 720 (choose Cable Length)
Model #
RV-INT-EM11305M
Request Pricing
iShot Model E Rotating Video Borescope 2.2 mm Side View - 400 x 400 (choose Cable Length)
Model #
RV-INT-EM11279M
Request Pricing

3.9 - 4.5mm Model E Rotating Borescopes
iShot Model E Rotating Video Borescope 4.5 mm Side View - 720 x 720 (choose Cable Length)
Model #
RV-INT-EM11330M
Request Pricing
iShot Model E Rotating Video Borescope 3.9 mm Dual View - 800 x 800 (choose Cable Length)
Model #
RV-INT-EM11311M
Request Pricing
iShot Model E Rotating Video Borescope 3.9 mm Side View - 800 x 800 (choose Cable Length)
Model #
RV-INT-EM11322M
Request Pricing

6.0mm Model E Rotating Borescopes
iShot Model E Rotating Video Borescope 6.0 mm Dual View - 800 x 800 (choose Cable Length)
Model #
RV-INT-EM11339M
Request Pricing
iShot Model E Rotating Video Borescope 6.0 mm Side View - 800 x 800 (choose Cable Length)
Model #
RV-INT-EM11347M
Request Pricing

Model E Video Borescope Monitor
iShot Imaging Model E Video Borescope Monitor RV-INT-EM10418
Request Pricing
