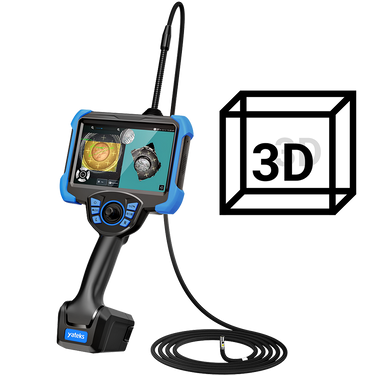

Yateks Realta 3D Measurement Borescopes

Yateks Realta 3D Measurement Borescopes

Industrial Video Measurement Borescope System with Advanced 3D Measurement Technologies and Mapping Software

Overview

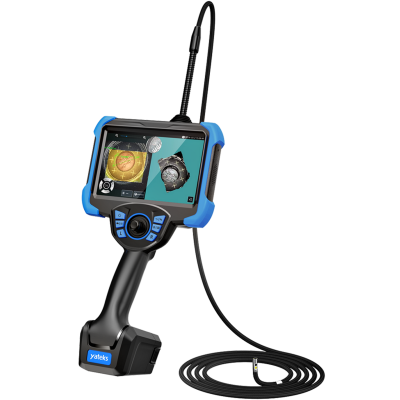

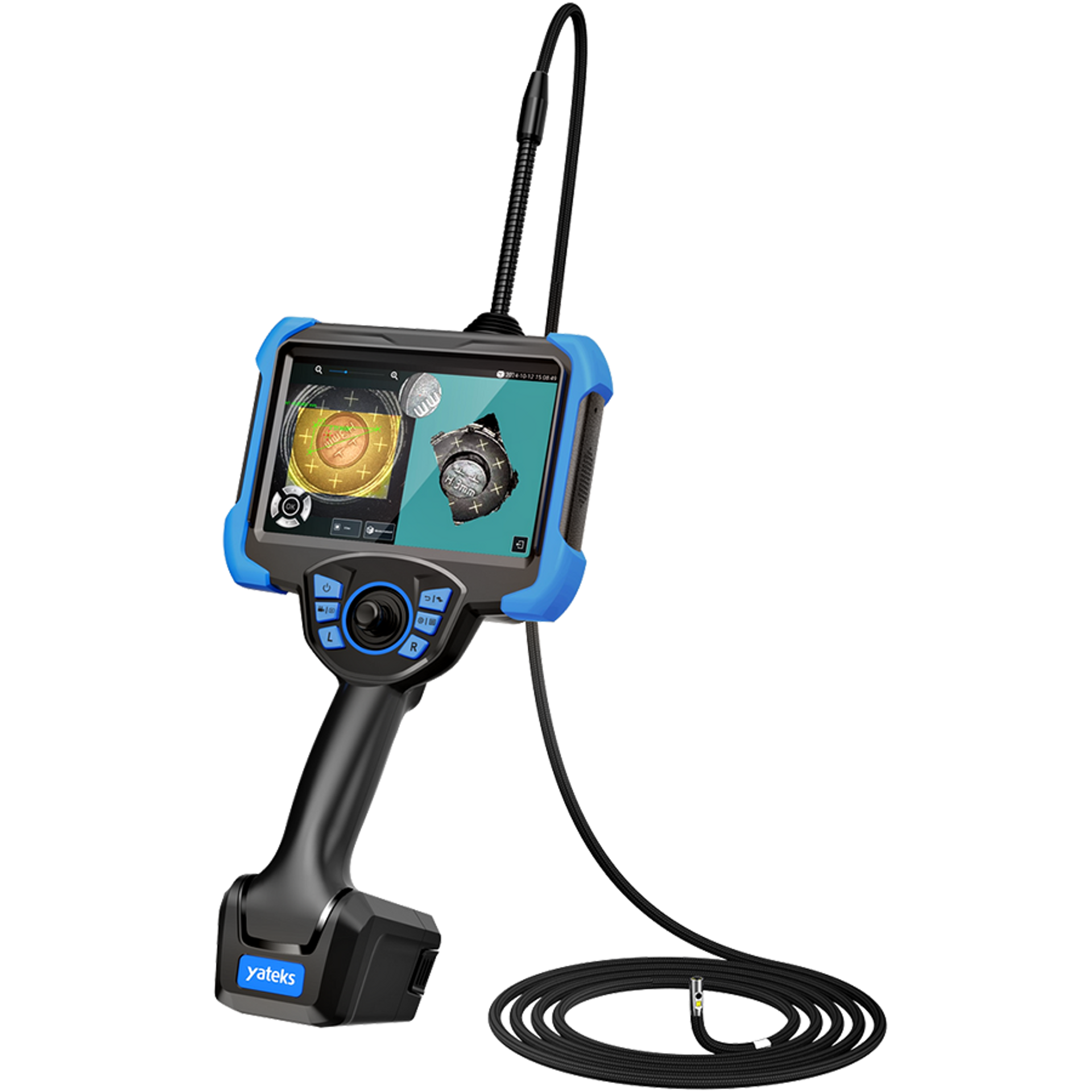

The Yateks Realta 3D Measurement Video Borescope System is a cutting-edge, industrial-grade inspection tool that merges high-definition imaging with precision stereo-based measurement capabilities. At the core of its innovation lies advanced 3D stereo-measurement software, which dynamically generates surface maps with interactive cursor points—empowering operators to rapidly assess lengths, depths, perpendicular distances, multi-segment line lengths, and area dimensions with a margin of error under 5 %.

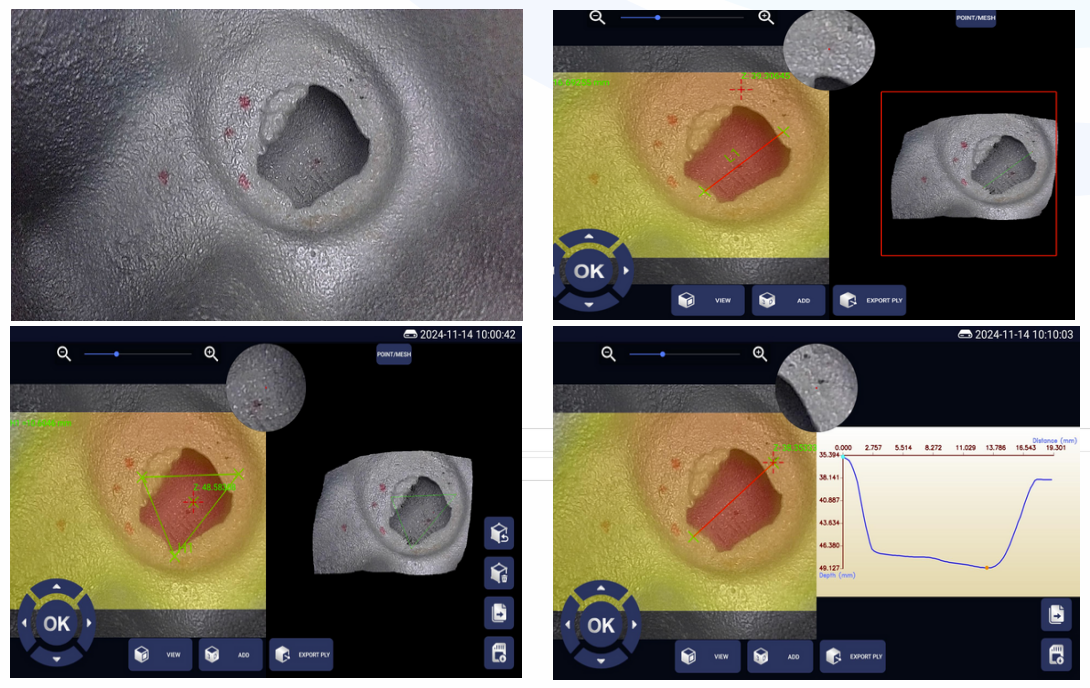

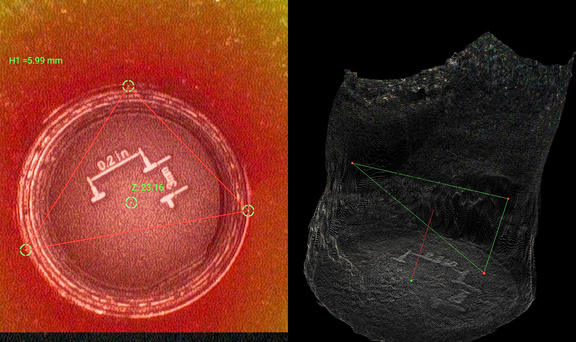

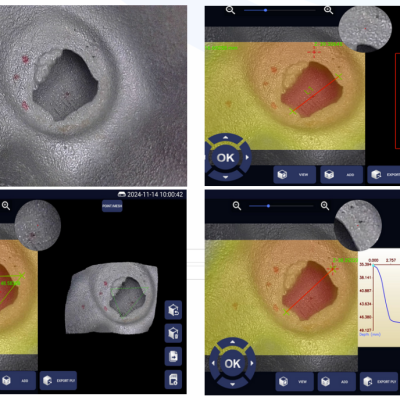

3D Measurement & Mapping

Speed up the inspection process with the Yateks Realta Video Borescope's 3D stereo measurement software, an embedded technology that generates 3D surface maps with cursor points. This allows users to easily measure lengths, and even render the inspection point on the monitor.

Operators can then quickly make measurements of length, perpendicular distance, depth, multiple line segments, and area.

Click here to learn more.

Features

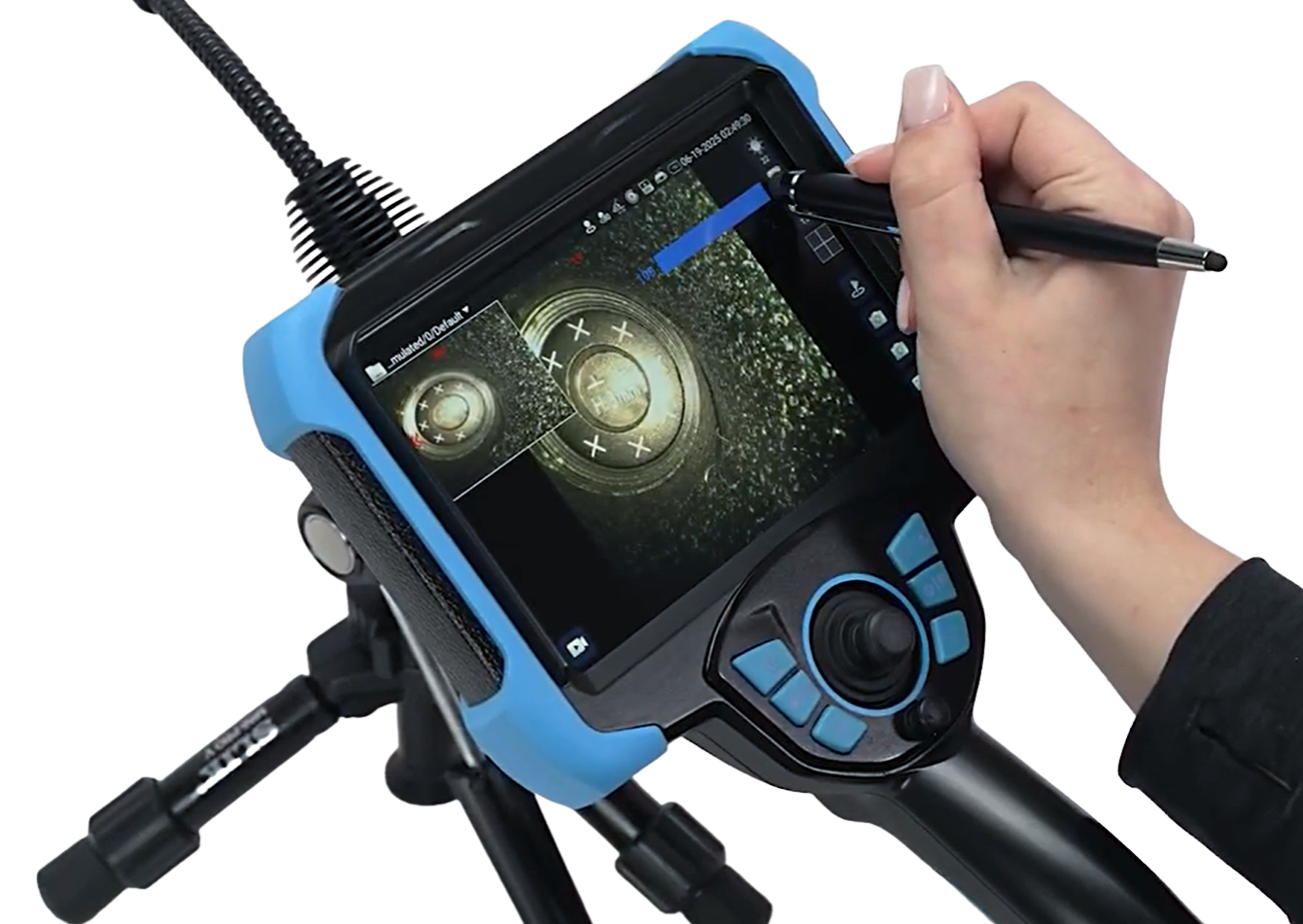

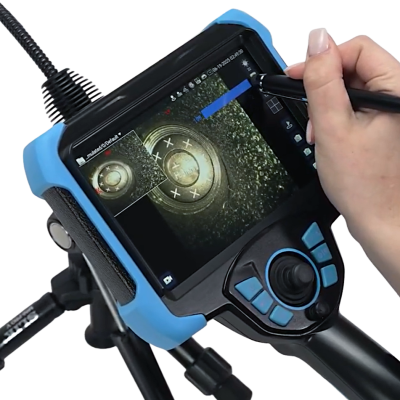

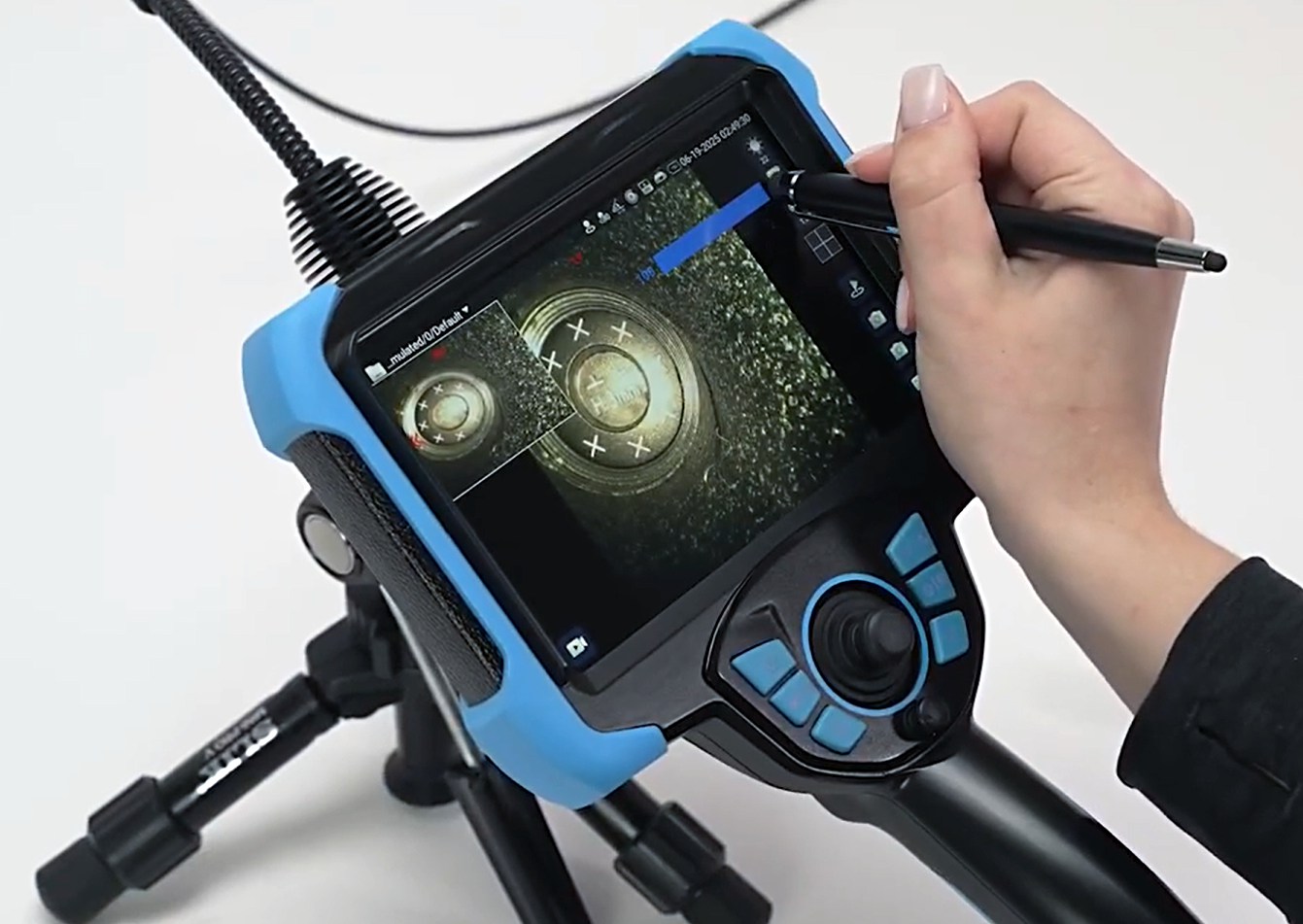

  • 7" Full HD IPS touchscreen monitor
  • All-way articulation with 360° mechanical steering and automatic locking

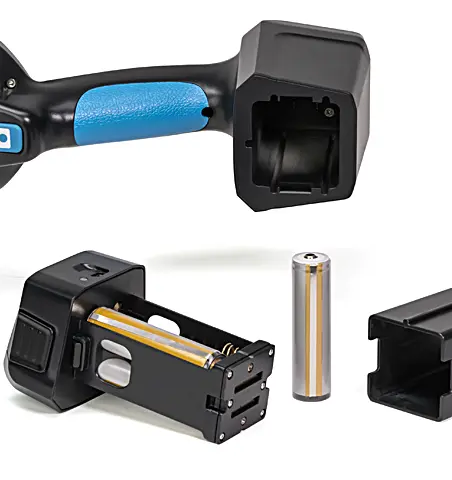

  • Removable lithium-ion battery (up to 4 hours runtime)
  • Modular/ replaceable probe design: only one monitor required for any number of probes
  • Bluetooth + mini HDMI multi-display output
  • 4-layer tungsten alloy & braided steel wire insertion tube
  • IP67-rated waterproof probe
  • Domestic (US) servicing

Available Models

• Advanced 3D Measurement Software
• 4.0 mm Outer Diameter
• Direct View (0°)
• 4-way Articulation
• Illumination: White Fiber Illumination (50,000 lux)
• 3-50mm Depth of Focus
• 720x720 pixels

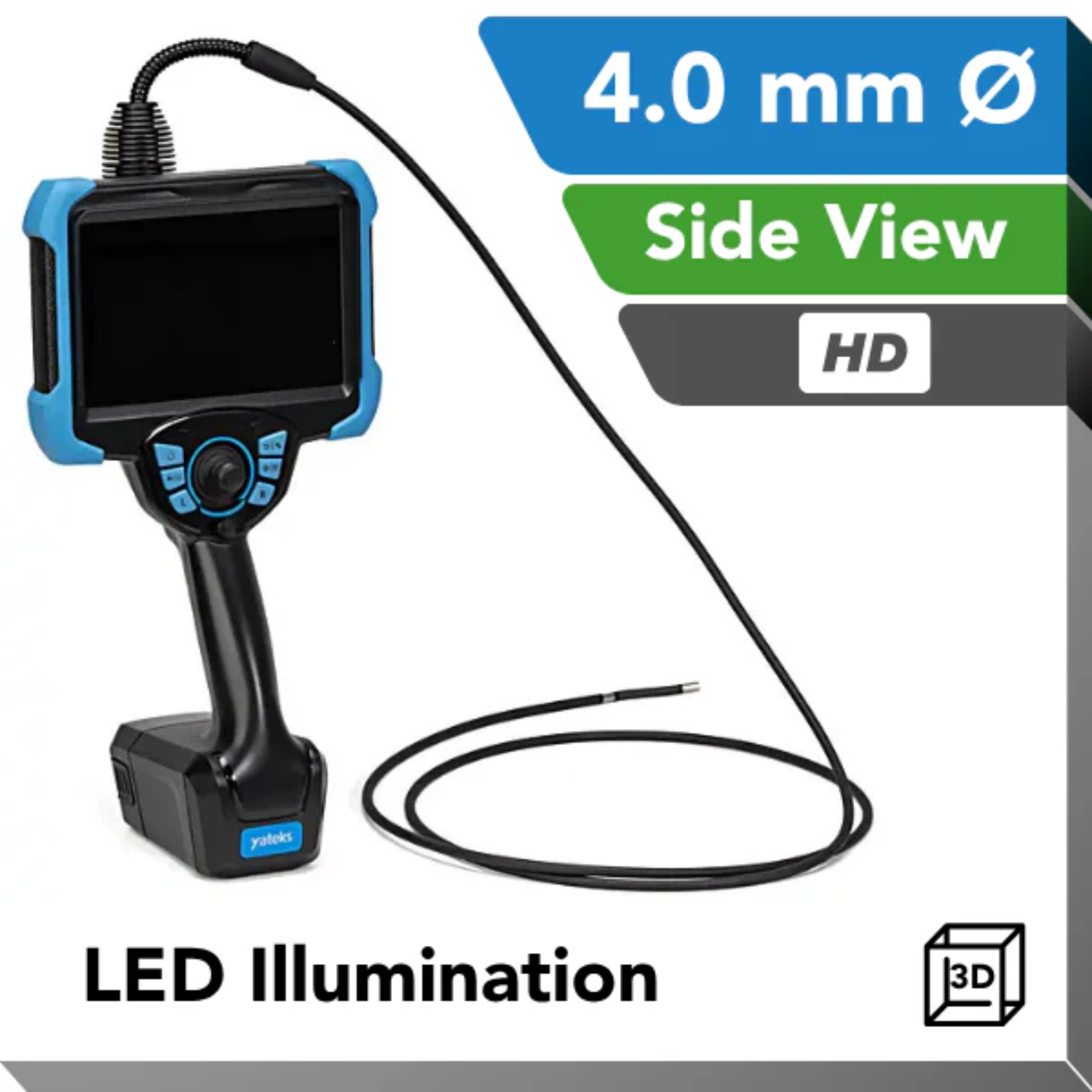

• Advanced 3D Measurement Software
• 4.0 mm Outer Diameter
• Side View (90°)
• 4-way Articulation
• Direct View: White LED Illumination (30,000 lux)
• 8 - 100 mm Depth of Focus

• Advanced 3D Measurement Software
• 4.0 mm Outer Diameter
• Side View (90°)
• 4-way Articulation
• Illumination: White LED Illumination (30,000 lux)
• 4-80 mm Depth of Focus

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10100
  • 1.5m (4.92') RV-INT-EM10101
  • 2.0m (6.56') RV-INT-EM10103
  • 3.0m (9.84') RV-INT-EM11760

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10966
  • 1.5m (4.92') RV-INT-EM10967
  • 2.0m (6.56') RV-INT-EM10968
  • 3.0m (9.84') RV-INT-EM10969

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10105
  • 1.5m (4.92') RV-INT-EM10106
  • 2.0m (6.56') RV-INT-EM10107
  • 3.0m (9.84') RV-INT-EM10965



• Advanced 3D Measurement Software
• 6.0 mm Outer Diameter
• Direct View (0°)
• 4-way Articulation
• Illumination: White Fiber Illumination (100,000 lux)
• 8-150 mm Depth of Focus

• Advanced 3D Measurement Software
• 6.0 mm Outer Diameter
• Direct View (0°)
• 4-way Articulation
• Illumination: White Fiber Illumination (100,000 lux)
• 4 - 80 mm Depth of Focus

• Advanced 3D Measurement Software
• 6.0 mm Outer Diameter
• Side View (90°)
• 4-way Articulation
• Illumination: White LED Illumination (50,000 lux)
• 8-100 mm Depth of Focus

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10973
  • 1.5m (4.92') RV-INT-EM10974
  • 2.0m (6.56') RV-INT-EM10977
  • 3.0m (9.84') RV-INT-EM10978
  • 5.0m (16.40') RV-INT-EM11855

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10033
  • 1.5m (4.92') RV-INT-EM10970
  • 2.0m (6.56') RV-INT-EM10034
  • 3.0m (9.84') RV-INT-EM10035
  • 5.0m (16.40') RV-INT-EM11864

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10980
  • 1.5m (4.92') RV-INT-EM10981
  • 2.0m (6.56') RV-INT-EM10982
  • 3.0m (9.84') RV-INT-EM10983
  • 5.0m (16.40') RV-INT-EM11858



• Advanced 3D Measurement Software
• 6.0 mm Outer Diameter
• Side View (90°)
• 4-way Articulation
• Illumination: White LED Illumination (50,000 lux)
• 4-80 mm Depth of Focus

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10036
  • 1.5m (4.92') RV-INT-EM10979
  • 2.0m (6.56') RV-INT-EM10037
  • 3.0m (9.84') RV-INT-EM10038
  • 5.0m (16.40') RV-INT-EM11857

Applications

The Yateks Realta 3D Measurement Video Borescope is optimal for remote visual inspections requiring precise measurement and surface analysis.

Applications and Industries include:

  • Turbine Blade Inspection
  • Weld Inspection
  • Aerospace Components
  • Engine Blocks & Castings
  • Heat Exchangers & Condensers
  • Power Generation Equipment

Technical Specifications

Technical Specifications

Yateks Realta Technical Specifications
Display Screen: 7" IPS, 1920x1080 (16:9), Industrial HD Touch LCD Screen
Main Function: Photo, video, light source brightness adjustment, screen brightness adjustment, zoom in/out, screen flip, color inversion, screen freeze, color mode adjustment, aspect ratio, grid measurement, automatic white balance, image browsing, lock fine-tuning, menu
Joystick Control: Motor rocker for 360° rotation
Steering Control: Automatic set, direction fine-tuning adjustable
Memory: Built-in 128G + expansion 64G USB flash drive (up to 256G expansion)

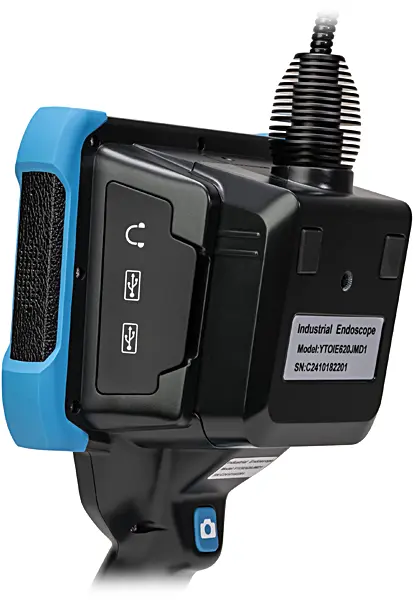

Data I/O Port: Two USB2.0 Host A ports, Type-C port, and headset port
Video Output: Mini HDMI interface, WiFi interface
Battery Type: Removable, independently rechargeable battery pack
Battery Life: ≥ 4h
Operating Mode: Host and probe can be separated; one host can be equipped with more than one probe
Insertion Probe
Material: Steel braided wire, tungsten alloy 4-layer tube
Monitor Working Temperature: 14°F - 122°F (-10°C - 50°C)
Probe Working Temperature: -4°F - 158°F (-20°C - 70°C)
Relative Humidity: Max 90%, no condensation
IP Rating: Monitor IP54 / Probe IP67

Kit Includes

  • Realta Monitor (4 batteries in monitor)
  • Realta Probe  (model of choice)
  • Measurement Calibration Block (2 pcs)
  • Charger for monitor (USB-C to USB-C cable with wall adapter)
  • USB flash drive (64 GB)
  • USB-C to USB cable
  • Mini HDMI cable
  • Insertion Tube Rigidizer (specific to diameter of probe)
  • 4 Spare batteries (Lithium-Ion batteries)
  • 4-Port Lithium-Ion Battery charger
  • Accessories- Manual, cleaning cloth, rubber strap for probe, stylus
  • Carrying Case

Please note: all contents are included when purchased as a 'Kit'; 'Probe-Only' Selections include only the probe

Product Literature

Description Part # Saved Price Select Option Add to

4.0mm Realta Borescopes

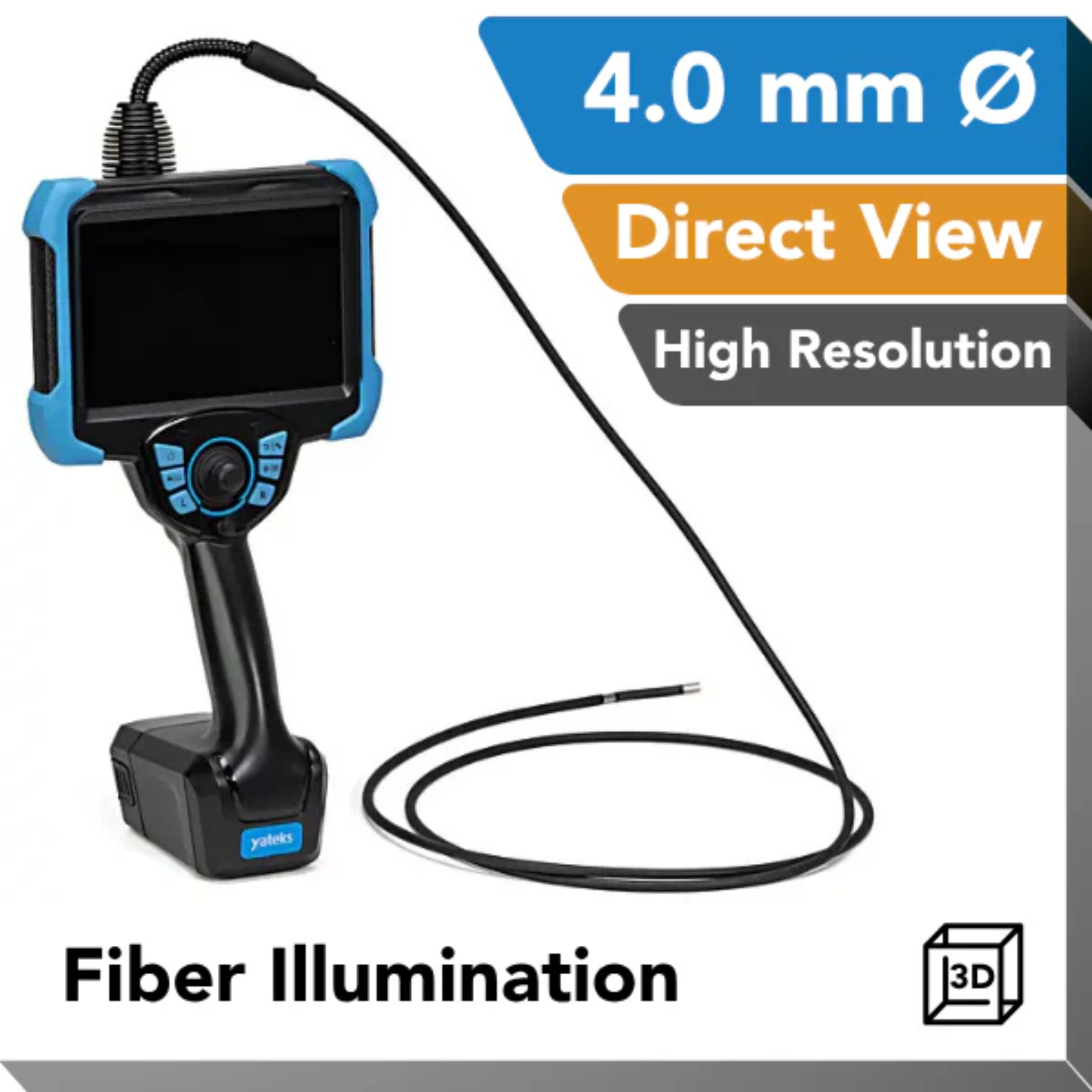

Yateks Realta 3D Measurement Video Borescope - 4.0 mm OD Direct View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10100M
Request Pricing
Yateks Realta 3D Measurement Video Borescope - 4.0 mm OD Side View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10966M
Request Pricing

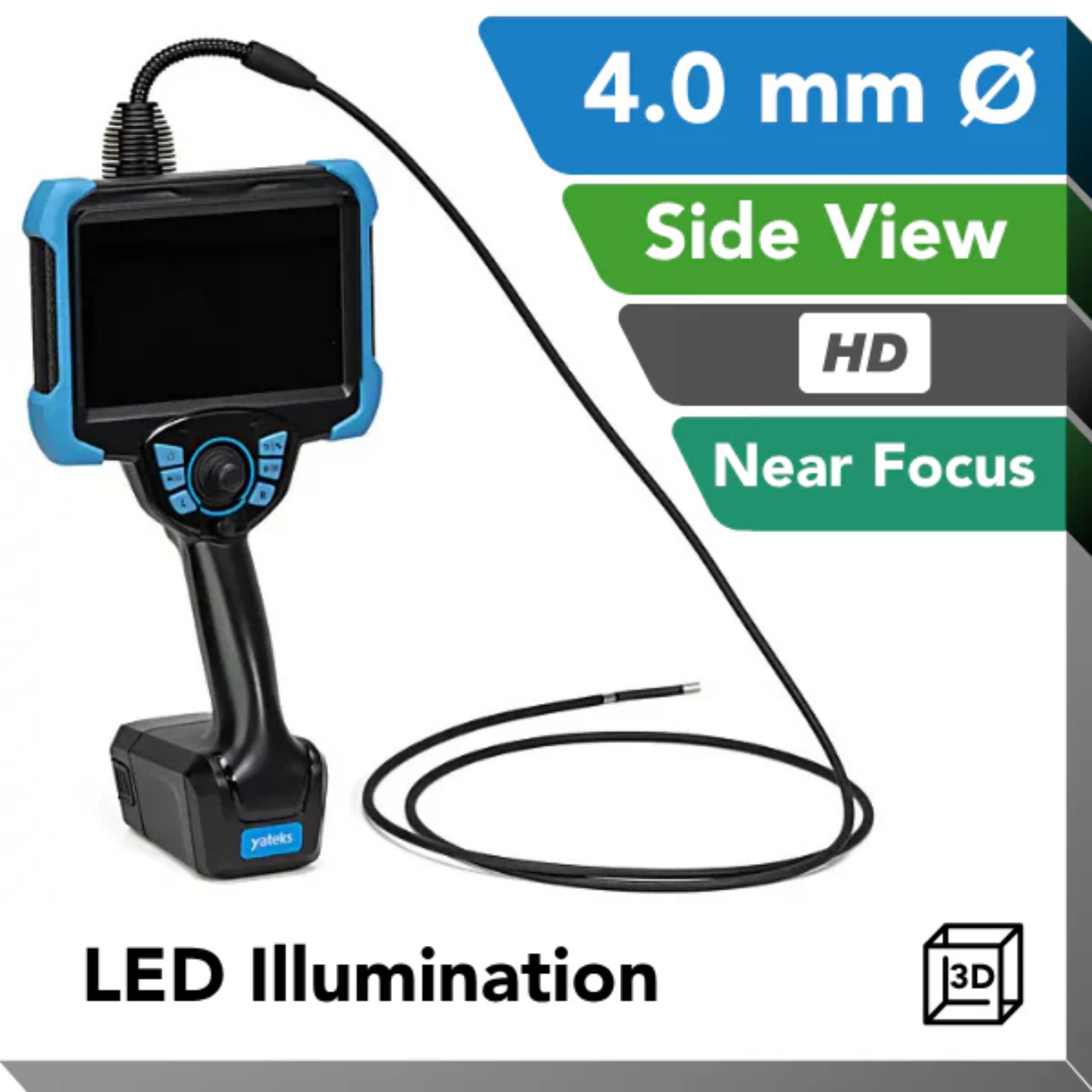

Yateks Realta 3D Measurement Video Borescope - 4.0 mm OD Side View Near Focus - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10105M
Request Pricing

6.0mm Realta Borescopes
Yateks Realta 3D Measurement Video Borescope - 6.0 mm OD Direct View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10973M
Request Pricing
Yateks Realta 3D Measurement Video Borescope - 6.0 mm OD Direct View Near Focus - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10033M
Request Pricing
Yateks Realta 3D Measurement Video Borescope - 6.0 mm OD Side View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10980M
Request Pricing
Yateks Realta 3D Measurement Video Borescope - 6.0 mm OD Side View Near Focus - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM10036M
Request Pricing
