Yateks Realta 2D Borescopes

Yateks Realta 2D Borescopes

Industrial Video Borescope System with Live Video Technologies and Total Modularity

Overview

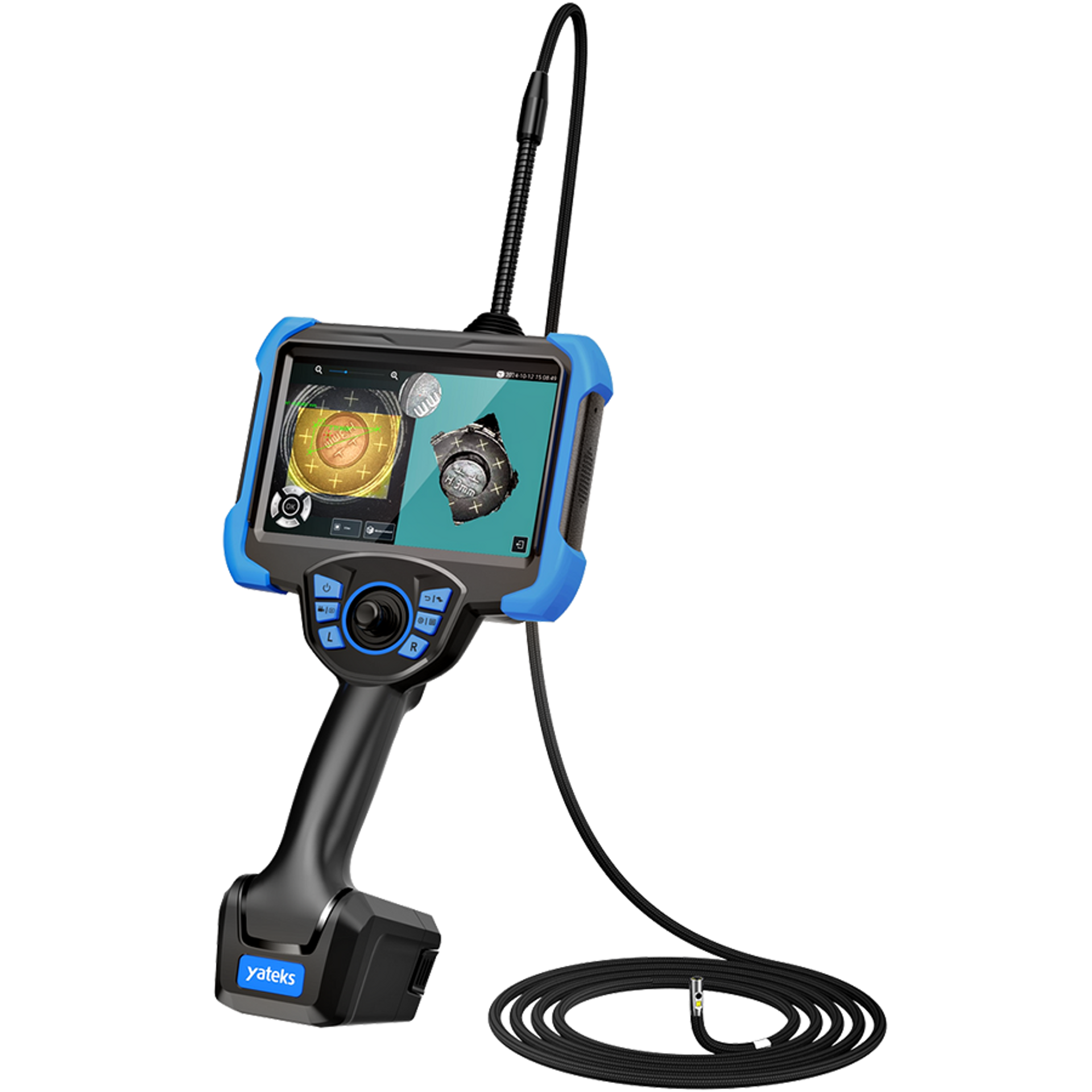

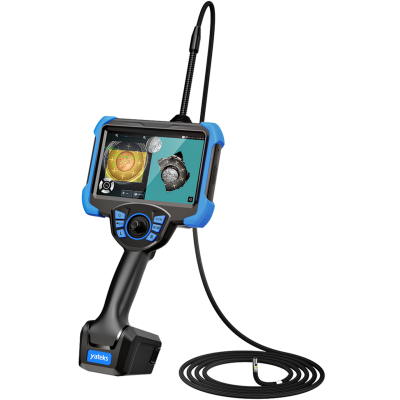

The Yateks Realta 2D Video Borescope System is an industrial video with a 7" Full HD (1920 x 1080 pixel) IPS monitor, all-way probe articulation, large-capacity lithium-ion battery, and replaceable probes. The Yateks Realta Video Borescope is a complete inspection and analytical tool for a variety of industries, including aerospace, power generation, and general manufacturing quality assurance.

Features

  • 7" Full HD IPS touchscreen monitor
  • All-way articulation with 360° mechanical steering and automatic locking
  • Removable lithium-ion battery (up to 4 hours runtime)
  • Modular/ replaceable probe design: only one monitor required for any number of probes
  • Bluetooth + mini HDMI multi-display output
  • 4-layer tungsten alloy & braided steel wire insertion tube
  • IP67-rated waterproof probe
  • Domestic (US) servicing

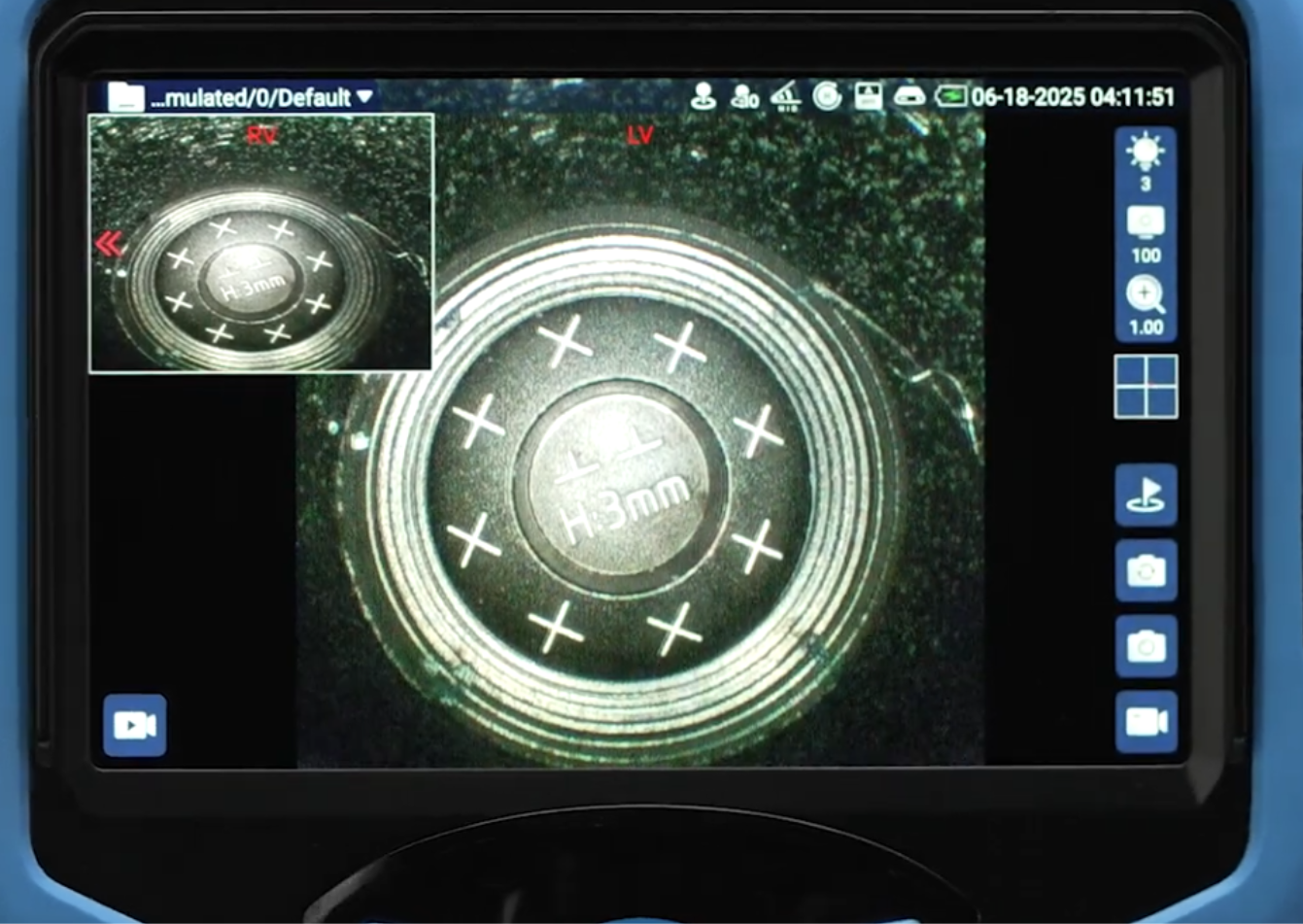

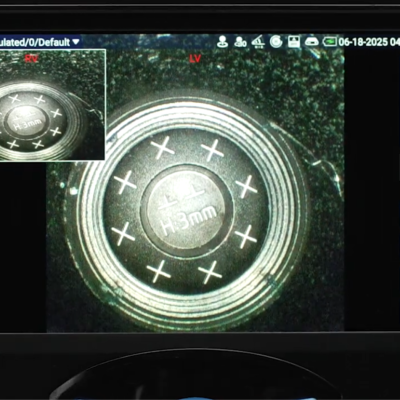

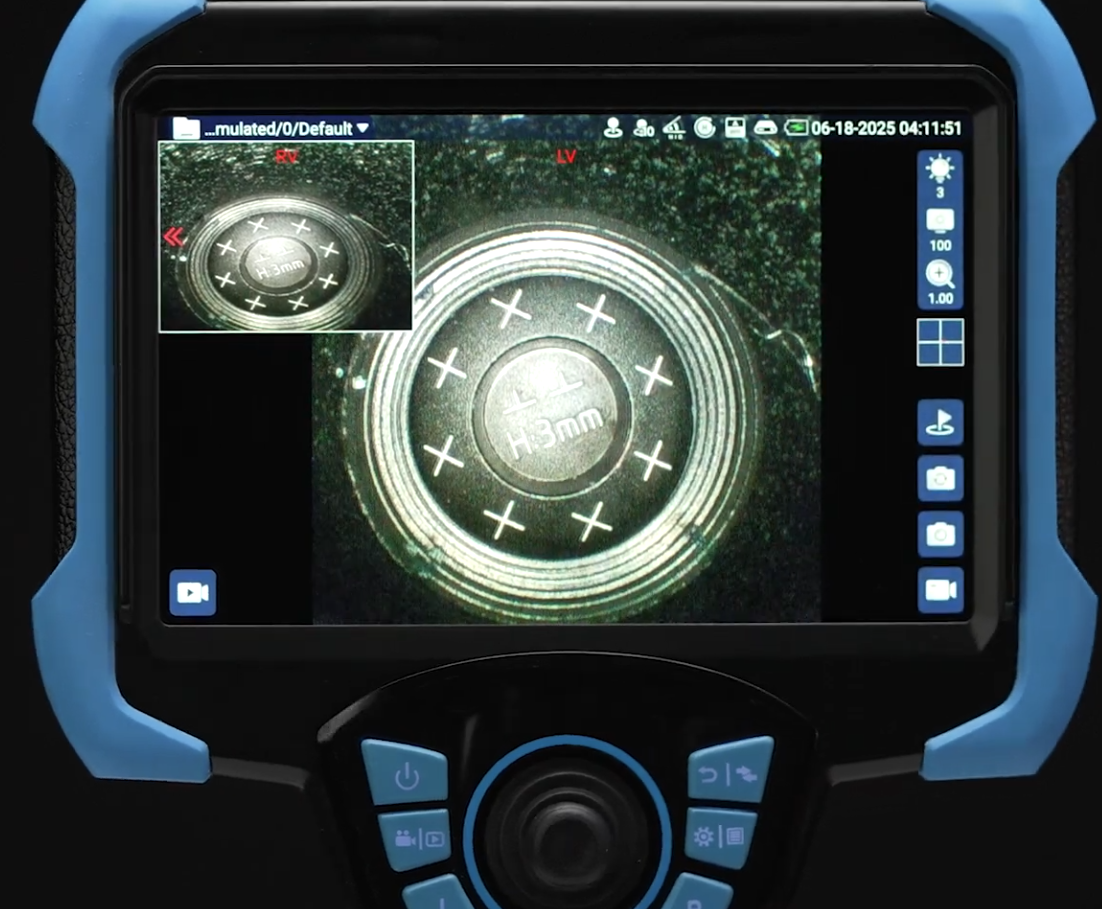

Live Video Feed

The Realta 2D Probes do not feature 3D Measurement capabilities. They are cost efficient, and easy to service. This, combined with the Realta's easy-swap capacity makes the 2D probes ideal for exploratory uses, where once a flaw is found, the probe can be swapped out with a 3D Probe for stereoscopic measurements.

Click here to view 3D Probes.

Available Models

0.85, 1.1, 1.7, and 2.2mm Borescopes

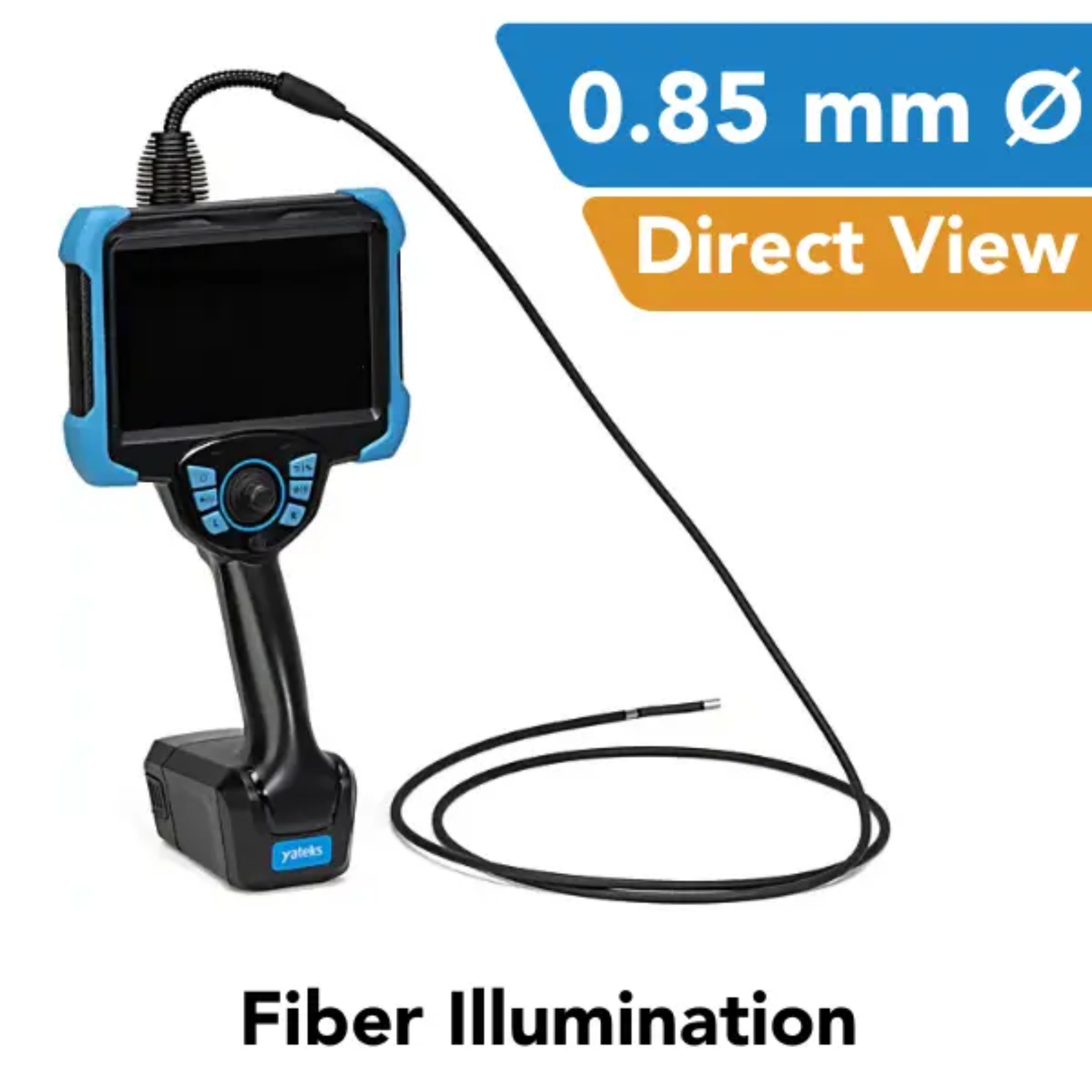

• 0.85 mm Outer Diameter
•Direct View (0° )
• 400 x 400 Resolution
• Illumination: White LED Illumination (3,000 lux)
• 3-20 mm Depth of Field

• 1.1 mm Outer Diameter
• Direct View (0° )
• 400 x 400 pixel Resolution
• Illumination: White LED Illumination (3,000 lux)
• 3-20 mm Depth of Field

• 1.7 mm Outer Diameter
• Direct View (0°)
• 400 x 400 pixel Resolution
• 2-way Articulation
• White LED Illumination (2,000 lux)
• 3-50 mm Depth of Field

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11740

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11741

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11742
  • 1.5m (4.92') RV-INT-EM11743
  • 2.0m (6.56') RV-INT-EM11744

• 2.2 mm Outer Diameter
• Direct View (0°)
• 400 x 400 pixel Resolution
• All-way Articulation
• White LED Illumination (8,000 lux)
• 3-50 mm Depth of Field

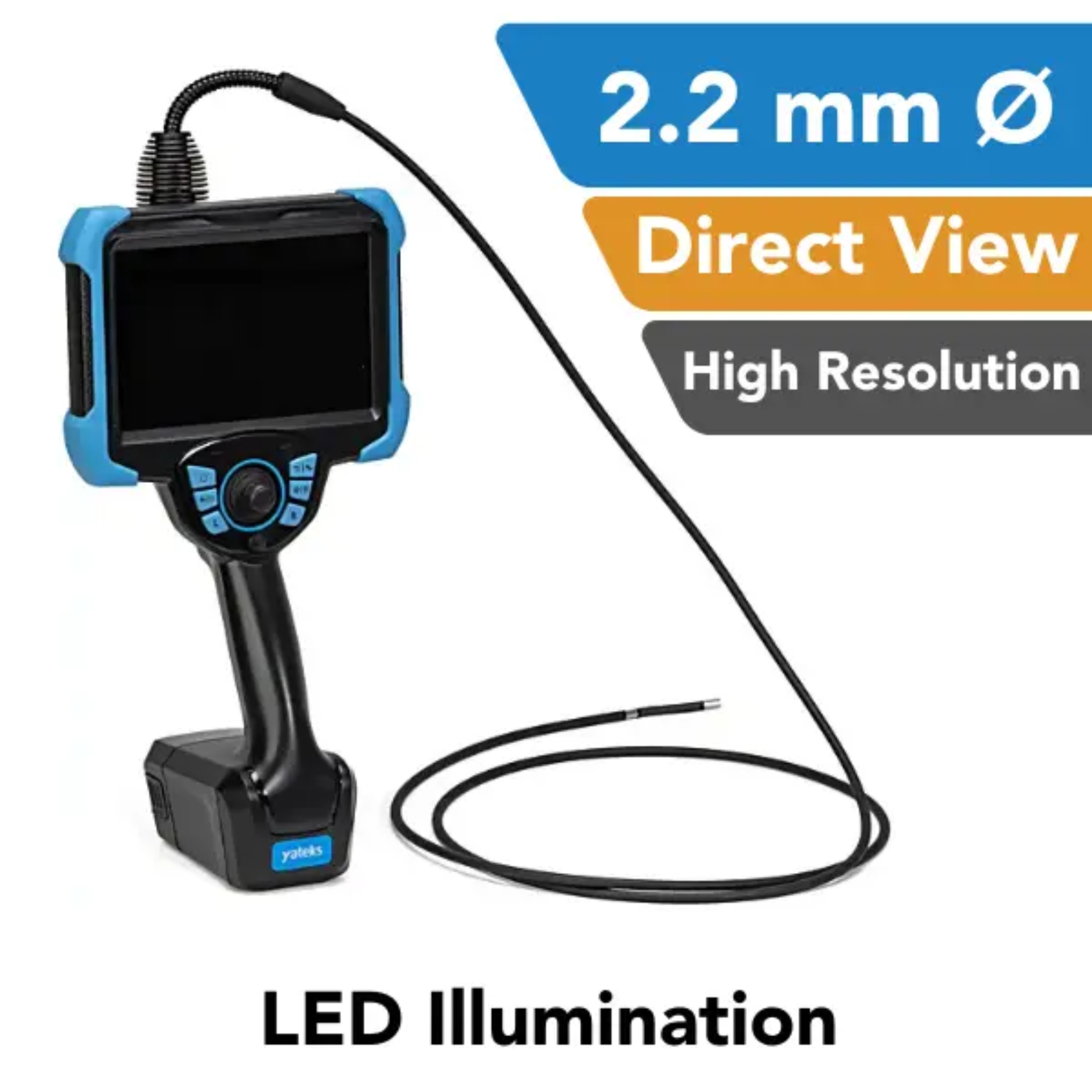

• 2.2 mm Outer Diameter
• Direct View (0°)
• 720 x 720 pixel Resolution
• All-way Articulation
• White LED Illumination (8,000 lux)
• 3-50 mm Depth of Focus

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11745
  • 1.5m (4.92') RV-INT-EM11746
  • 2.0m (6.56') RV-INT-EM11747
  • 3.0m (9.84') RV-INT-EM11748

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11749
  • 1.5m (4.92') RV-INT-EM11750
  • 2.0m (6.56') RV-INT-EM11751
  • 3.0m (9.84') RV-INT-EM11752

2.8 and 4.0mm Realta Borescopes

• 2.8 mm Outer Diameter
• Direct View (0°)
• 720 x 720 pixel Resolution
• All-way Articulation
• White LED Illumination (8,000 lux)
• 3-50 mm Depth of Focus

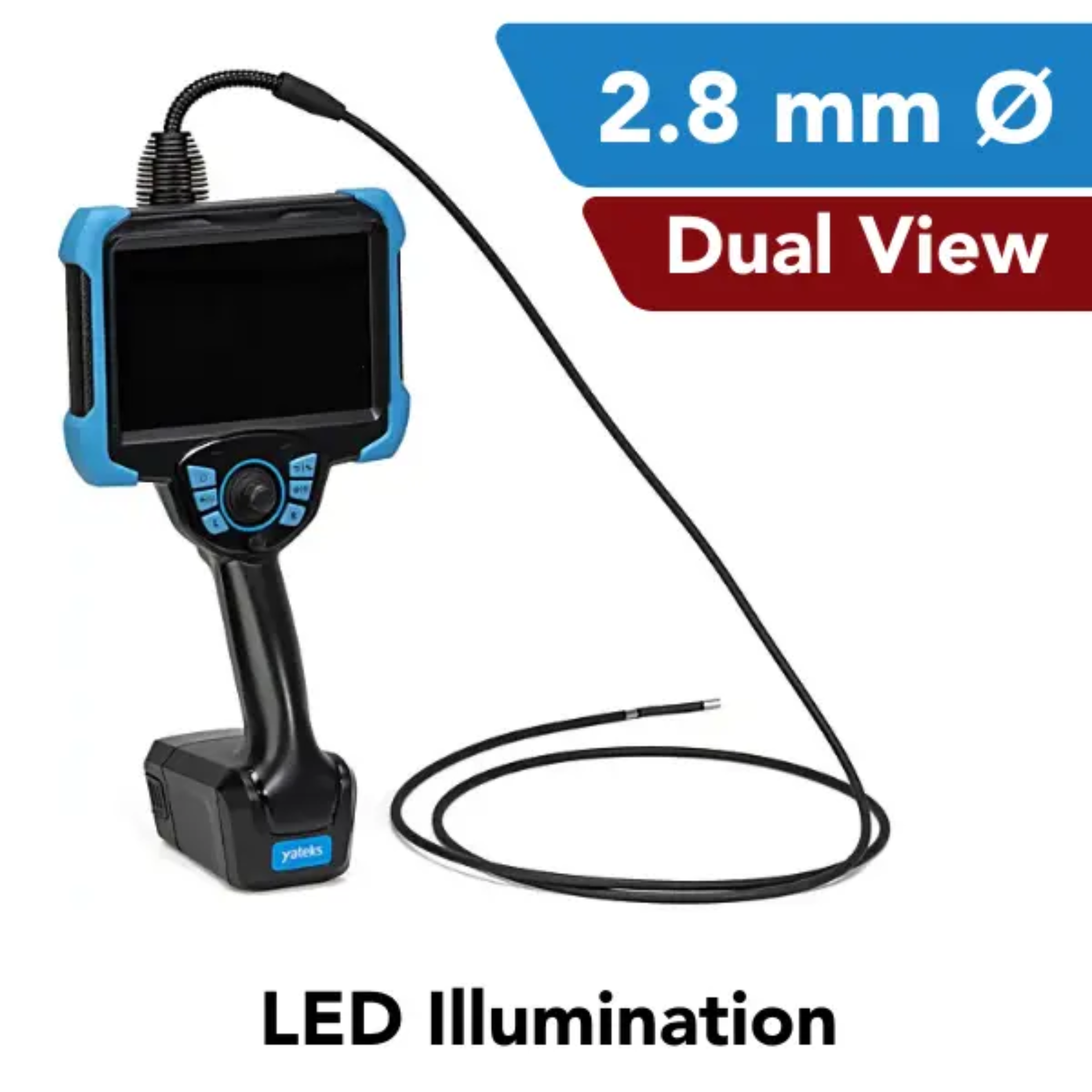

• 2.8 mm Outer Diameter
• Dual View (0° & 90°)
• 400 x 400 pixel Resolution
• All-way Articulation
• White LED Illumination (6,000 lux)
• 3-50 mm Depth of Field

• 4.0 mm Outer Diameter
• Direct View (0°)
• All-way Articulation
• Illumination: White LED Illumination (40,000 lux)
• 5-150 mm Depth of Field

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11754
  • 1.5m (4.92') RV-INT-EM11753
  • 2.0m (6.56') RV-INT-EM11755
  • 3.0m (9.84') RV-INT-EM11859

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11756
  • 1.5m (4.92') RV-INT-EM11757
  • 2.0m (6.56') RV-INT-EM11758
  • 3.0m (9.84') RV-INT-EM11759

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11531
  • 1.5m (4.92') RV-INT-EM11532
  • 2.0m (6.56') RV-INT-EM11533
  • 3.0m (9.84') RV-INT-EM11534

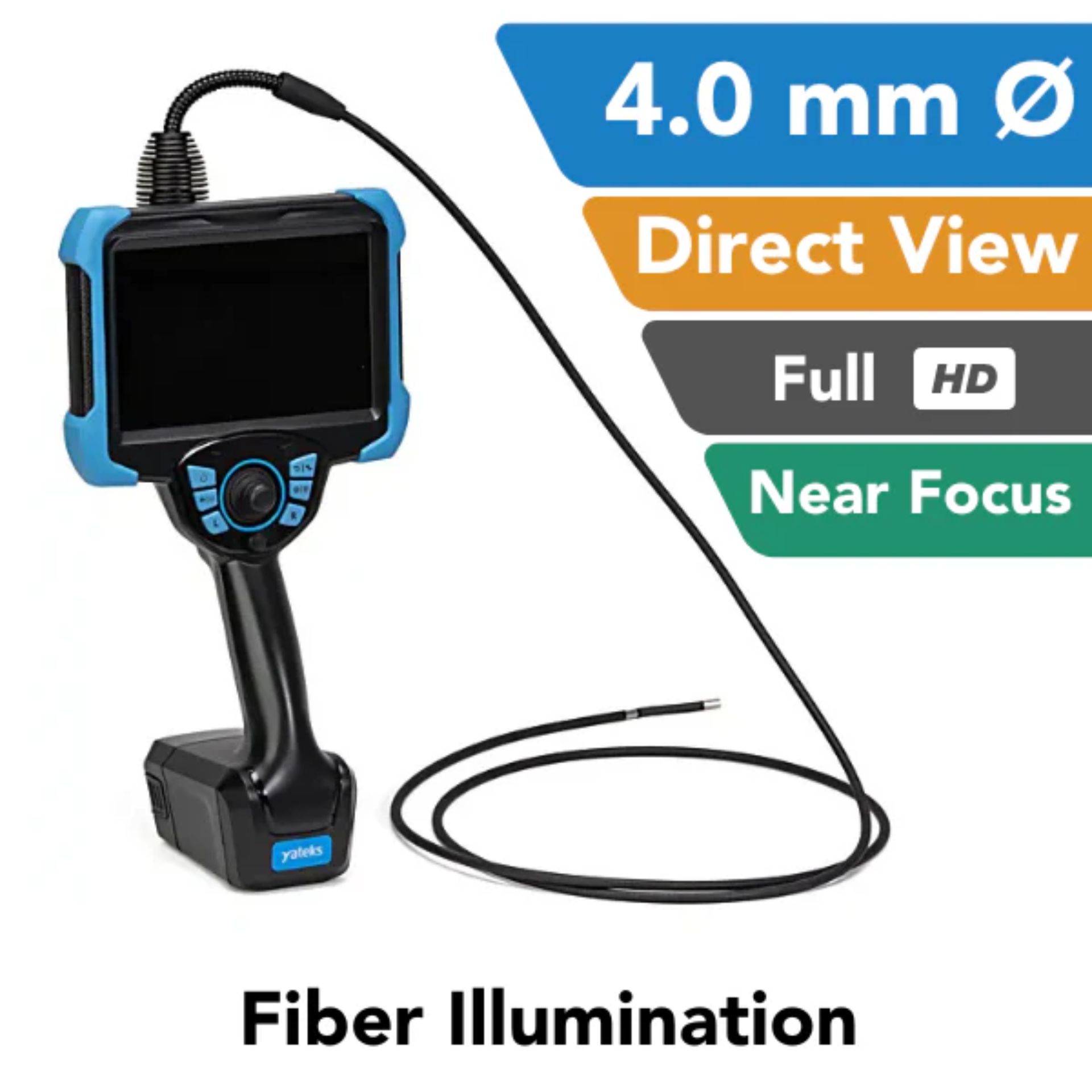

• 4.0 mm Outer Diameter
• Direct View (0°)
• All-way Articulation
• Illumination: White LED Illumination (40,000 lux)
• 3-80 mm Depth of Field

• 4.0 mm Outer Diameter
• Dual View (0° & 90°)
• Up to 1280 x 720 pixel Resolution
• All-way Articulation
• White LED & Fiber Illumination

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11535
  • 1.5m (4.92') RV-INT-EM11536
  • 2.0m (6.56') RV-INT-EM11537
  • 3.0m (9.84') RV-INT-EM11538

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11764
  • 1.5m (4.92') RV-INT-EM11765
  • 2.0m (6.56') RV-INT-EM11766
  • 3.0m (9.84') RV-INT-EM11714
  • 5.0m (16.40') RV-INT-EM11767

6.0 and 8.4mmRealta Borescopes

• 6.0 mm Outer Diameter
• Direct View (0°)
• 1280 x 720 pixel Resolution
• All-way Articulation
• Distal LED Illumination (65,000 lux)
• 8-100 mm Depth of Field

• 6.0 mm Outer Diameter
• Direct View (0°)
• All-way Articulation
• Illumination: White LED Illumination (80,000 lux)
• 5-150 mm Depth of Field

• 6.0 mm Outer Diameter
• Direct View (0°)
• All-way Articulation
• Illumination: White LED Illumination (80,000 lux)
• 3-50 mm Depth of Focus

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11768
  • 1.5m (4.92') RV-INT-EM11769
  • 2.0m (6.56') RV-INT-EM11770
  • 3.0m (9.84') RV-INT-EM11771
  • 5.0m (16.40') RV-INT-EM11772
  • 8.0m (26.25') RV-INT-EM11773
  • 10.0m (32.81') RV-INT-EM11774

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11539
  • 1.5m (4.92') RV-INT-EM11540
  • 2.0m (6.56') RV-INT-EM11541
  • 3.0m (9.84') RV-INT-EM11542

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11543
  • 1.5m (4.92') RV-INT-EM11544
  • 2.0m (6.56') RV-INT-EM11545
  • 3.0m (9.84') RV-INT-EM11546

• 6.0 mm Outer Diameter
• Direct View (0°)
• 1280 x 720 pixel Resolution
• All-way Articulation
• White Fiber Illumination (70,000 lux)
• 50 mm - Infinity Depth of Field

• 6.0 mm Outer Diameter
• Dual View (0° & 90°)
• 1280 x 720 pixel Resolution
• All-way Articulation
• White LED Illumination

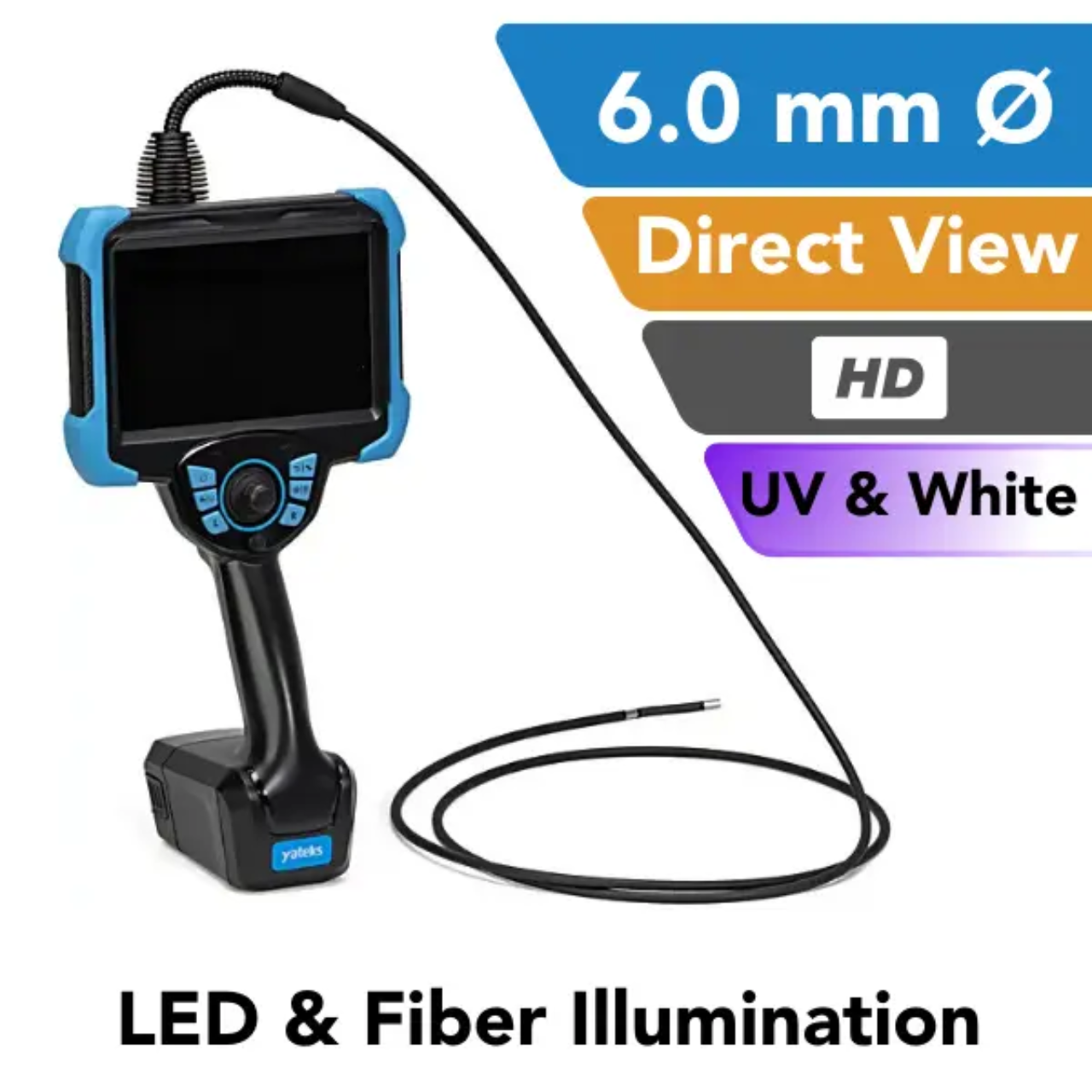

• 6.0 mm Outer Diameter
• Direct View (0°)
• 1280 x 720 pixel Resolution
• All-way Articulation
• Dual Illumination
• 8-100 mm Depth of Field

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11786
  • 1.5m (4.92') RV-INT-EM11787
  • 2.0m (6.56') RV-INT-EM11788
  • 3.0m (9.84') RV-INT-EM11789

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11779
  • 1.5m (4.92') RV-INT-EM11780
  • 2.0m (6.56') RV-INT-EM11781
  • 3.0m (9.84') RV-INT-EM11782
  • 5.0m (16.40') RV-INT-EM11783
  • 8.0m (26.25') RV-INT-EM11784
  • 10.0m (32.81') RV-INT-EM11785

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11860
  • 1.5m (4.92') RV-INT-EM11861
  • 2.0m (6.56') RV-INT-EM11862
  • 3.0m (9.84') RV-INT-EM11863

• 8.4 mm Outer Diameter
• Dual View (0° & 90°)
• All-way Articulation
• Illumination: White LED Illumination (30,000 lux)
• 8-100 mm Depth of Focus

Available Lengths & Sku:

  • 3.0m (9.84') RV-INT-EM11547
  • 5.0m (16.40') RV-INT-EM11548
  • 8.0m (26.25') RV-INT-EM11549
  • 10.0m (32.81') RV-INT-EM11530
  • 15.0m (49.2') RV-INT-EM11529

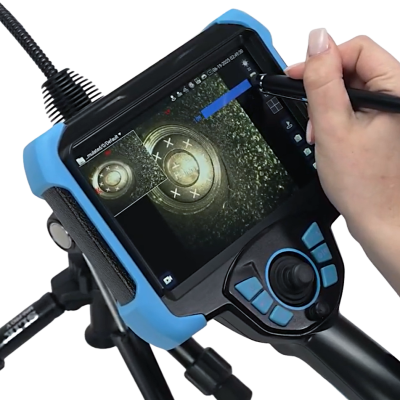

Applications

The Yateks Realta 3D Measurement Video Borescope is optimal for remote visual inspections requiring precise measurement and surface analysis.

Applications and Industries include:

  • Turbine Blade Inspection
  • Weld Inspection
  • Aerospace Components
  • Engine Blocks & Castings
  • Heat Exchangers & Condensers
  • Power Generation Equipment

Technical Specifications

Technical Specifications

Yateks Realta Technical Specifications
Display Screen: 7" IPS, 1920x1080 (16:9), Industrial HD Touch LCD Screen
Main Function: Photo, video, light source brightness adjustment, screen brightness adjustment, zoom in/out, screen flip, color inversion, screen freeze, color mode adjustment, aspect ratio, grid measurement, automatic white balance, image browsing, lock fine-tuning, menu
Joystick Control: Motor rocker for 360° rotation
Steering Control: Automatic set, direction fine-tuning adjustable
Memory: Built-in 128G + expansion 64G USB flash drive (up to 256G expansion)
Data I/O Port: Two USB2.0 Host A ports, Type-C port, and headset port
Video Output: Mini HDMI interface, WiFi interface
Battery Type: Removable, independently rechargeable battery pack
Battery Life: ≥ 4h
Operating Mode: Host and probe can be separated; one host can be equipped with more than one probe
Insertion Probe
Material: Steel braided wire, tungsten alloy 4-layer tube
Monitor Working Temperature: 14°F - 122°F (-10°C - 50°C)
Probe Working Temperature: -4°F - 158°F (-20°C - 70°C)
Relative Humidity: Max 90%, no condensation
IP Rating: Monitor IP54 / Probe IP67



Kit Includes

  • Realta Monitor (4 batteries in monitor)
  • Realta Probe  (model of choice)
  • Measurement Calibration Block (2 pcs)
  • Charger for monitor (USB-C to USB-C cable with wall adapter)
  • USB flash drive (64 GB)
  • USB-C to USB cable
  • Mini HDMI cable
  • Insertion Tube Rigidizer (specific to diameter of probe)
  • 4 Spare batteries (Lithium-Ion batteries)
  • 4-Port Lithium-Ion Battery charger
  • Accessories- Manual, cleaning cloth, rubber strap for probe, stylus
  • Carrying Case

Please note: all contents are included when purchased as a 'Kit'; 'Probe-Only' Selections include only the probe

Product Literature

Description Part # Saved Price Select Option Add to

0.85, 1.1, 1.7, and 2.2mm Realta Borescopes
Yateks Realta Handheld Video Borescope - 0.85 mm OD Direct View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11740M
Request Pricing

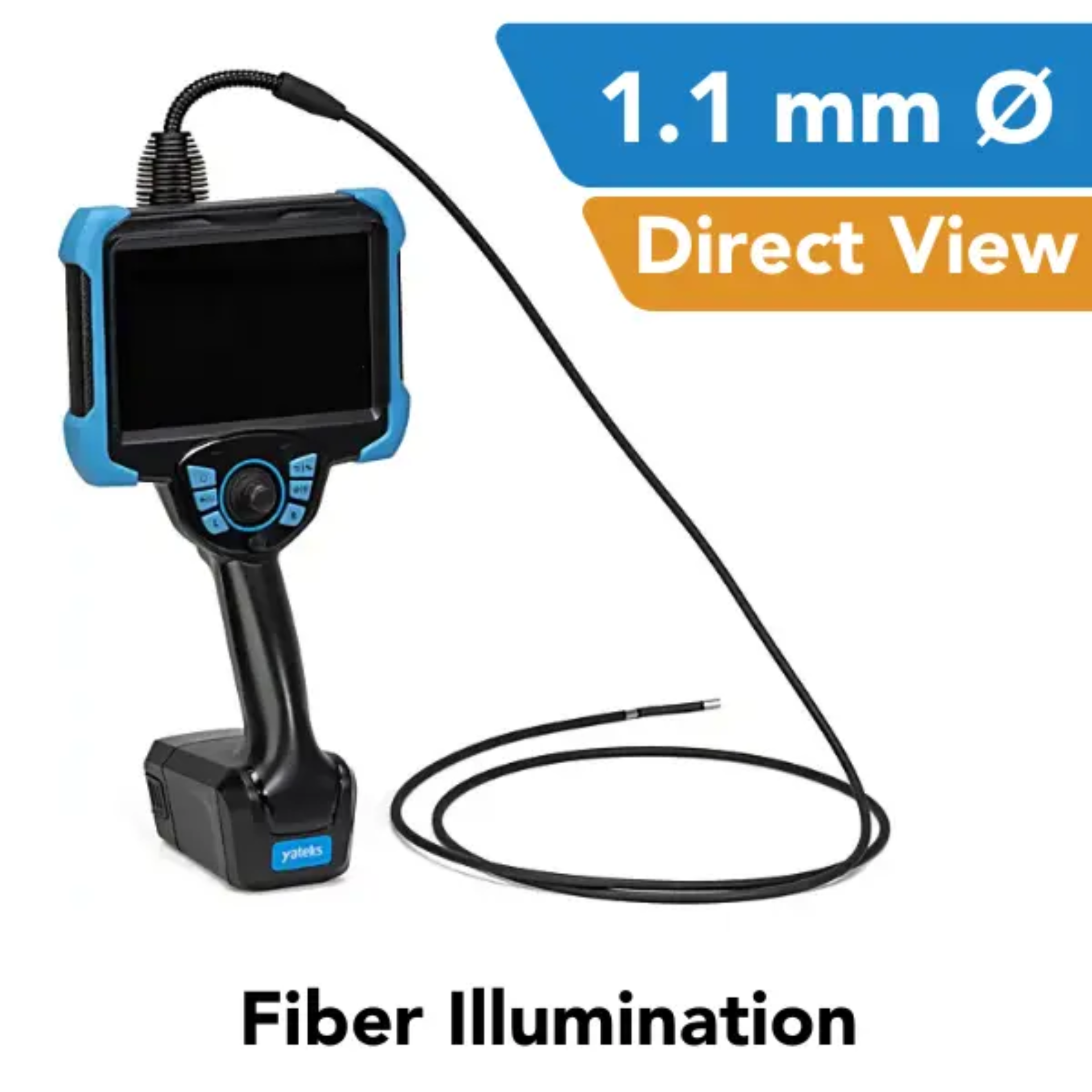

Yateks Realta Handheld Video Borescope - 1.1 mm OD Direct View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11741M
Request Pricing
Yateks Realta Handheld Video Borescope - 1.7 mm OD Direct View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11742M
Request Pricing
Yateks Realta Handheld Video Borescope - 2.2 mm OD Direct View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11745M
Request Pricing
Yateks Realta Handheld Video Borescope - 2.2 mm OD Direct View High Resolution - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11749M
Request Pricing

2.8 and 4.0mm Realta Borescopes
Yateks Realta Handheld Video Borescope - 2.8 mm OD Direct View High Resolution - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11753M
Request Pricing
Yateks Realta Handheld Video Borescope - 2.8 mm OD Dual View - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11756M
Request Pricing
Yateks Realta Handheld Video Borescope - 4.0 mm OD Direct View Full HD Fiber Illumination - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11531M
Request Pricing
Yateks Realta Handheld Video Borescope - 4.0 mm OD Direct View Full HD Near Focus - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11535M
Request Pricing
Yateks Realta Handheld Video Borescope - 4.0 mm OD Dual View High Definition - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11764M
Request Pricing

6.0 and 8.4mmRealta Borescopes

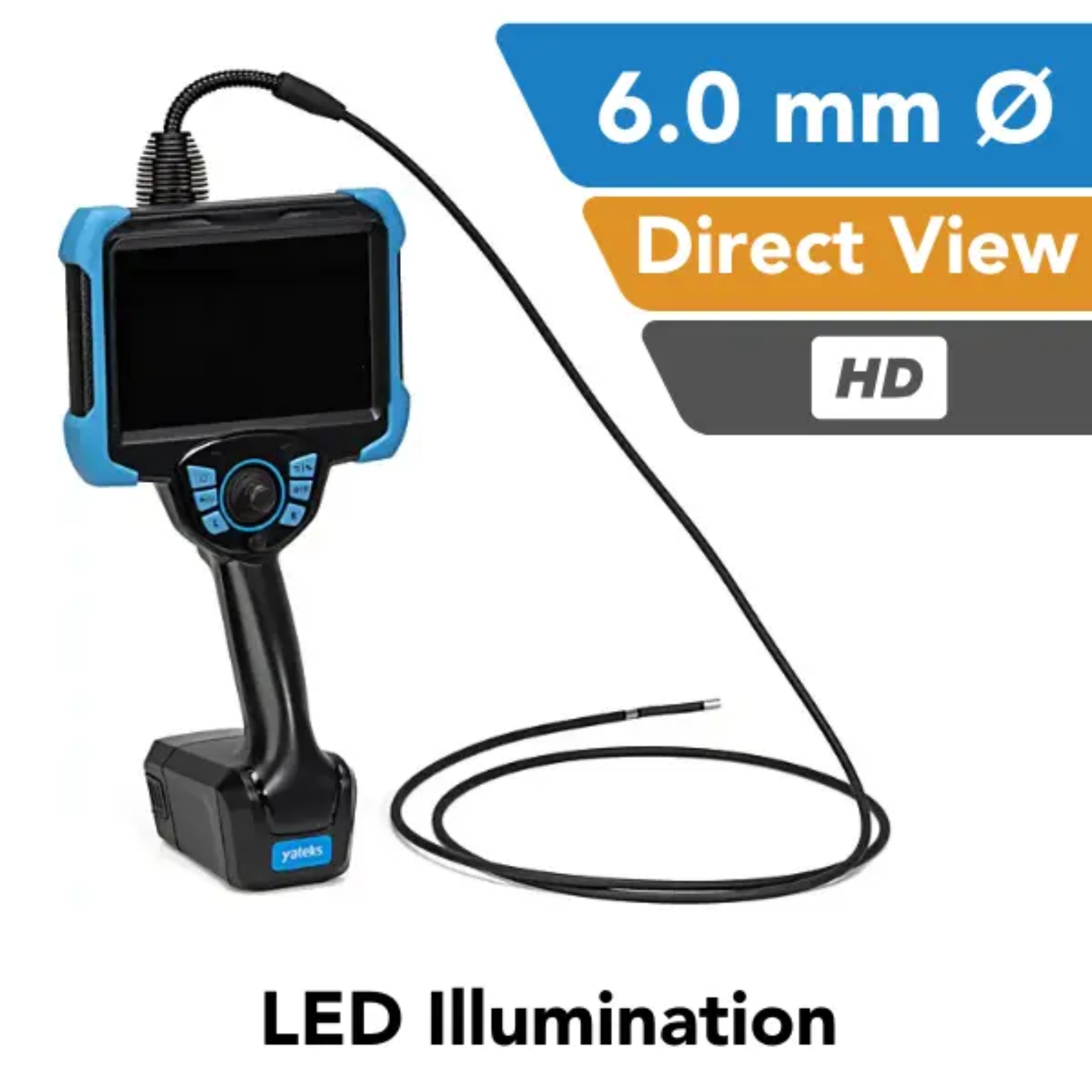

Yateks Realta Handheld Video Borescope - 6.0 mm OD Direct View High Definition LED Illumination - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11768M
Request Pricing

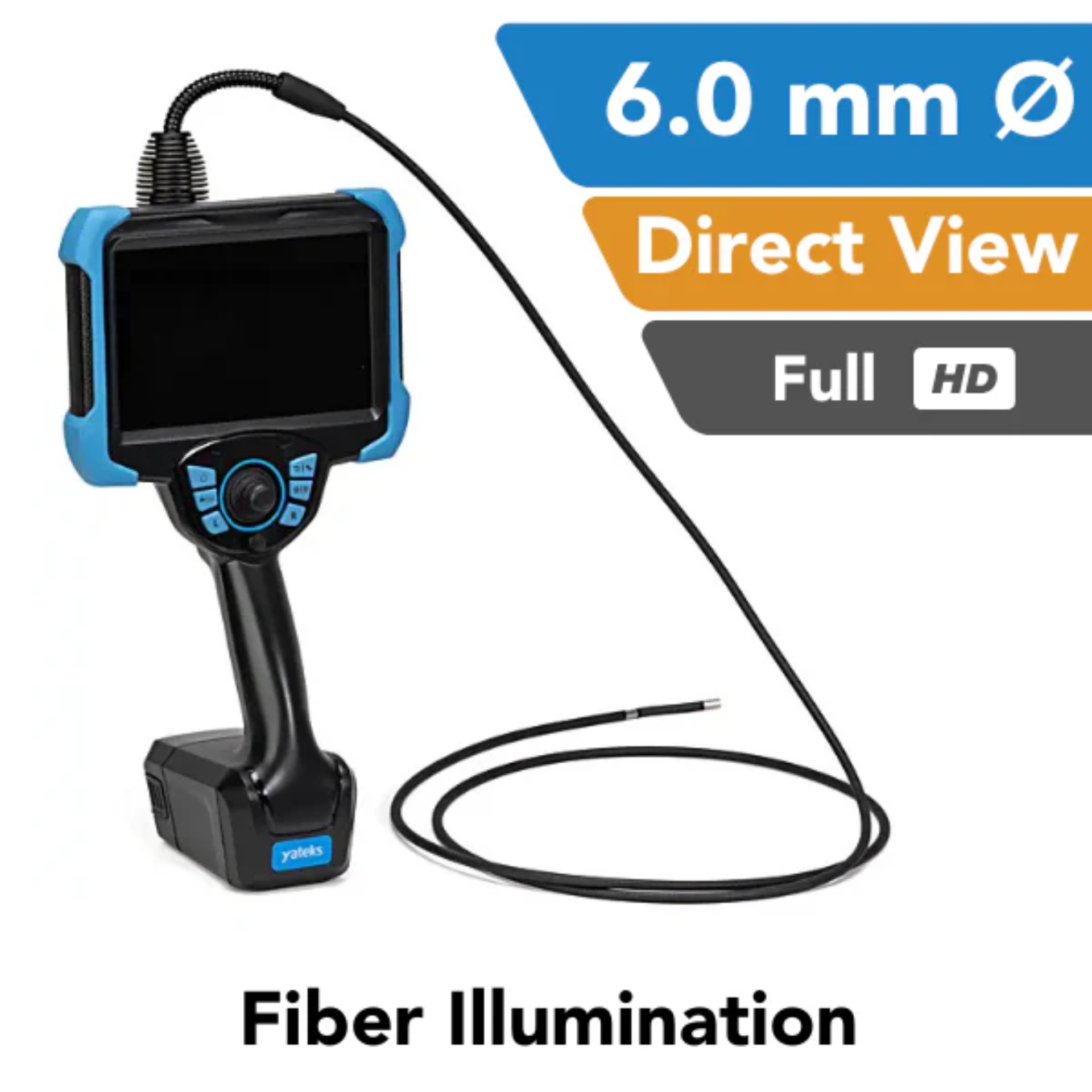

Yateks Realta Handheld Video Borescope - 6.0 mm OD Direct View Full HD Fiber Illumination - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11539M
Request Pricing
Yateks Realta Handheld Video Borescope - 6.0 mm OD Direct View Near Focus - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11543M
Request Pricing
Yateks Realta Handheld Video Borescope - 6.0 mm OD Direct View HD Far Focus Fiber Illumination - (Choose Cable Length, Kit or Probe Only)
Model #
RV-INT-EM11786M
Request Pricing

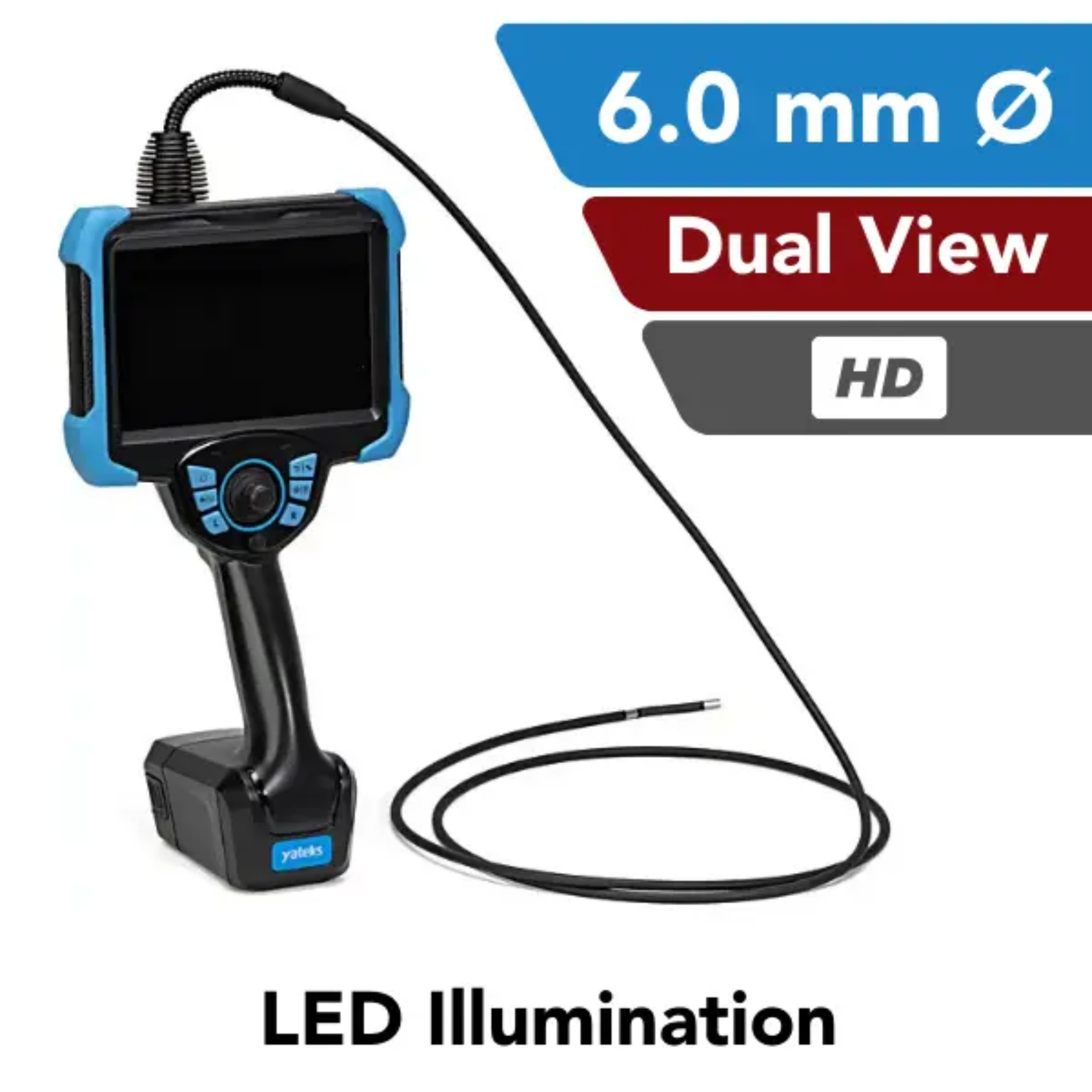

Yateks Realta Handheld Video Borescope - 6.0 mm OD Dual View High Definition - (Choose Cable Length, Kit or Probe Only)
