Yateks Realta 3D Video Borescope System

Yateks Realta 3D Video Borescope System

Overview

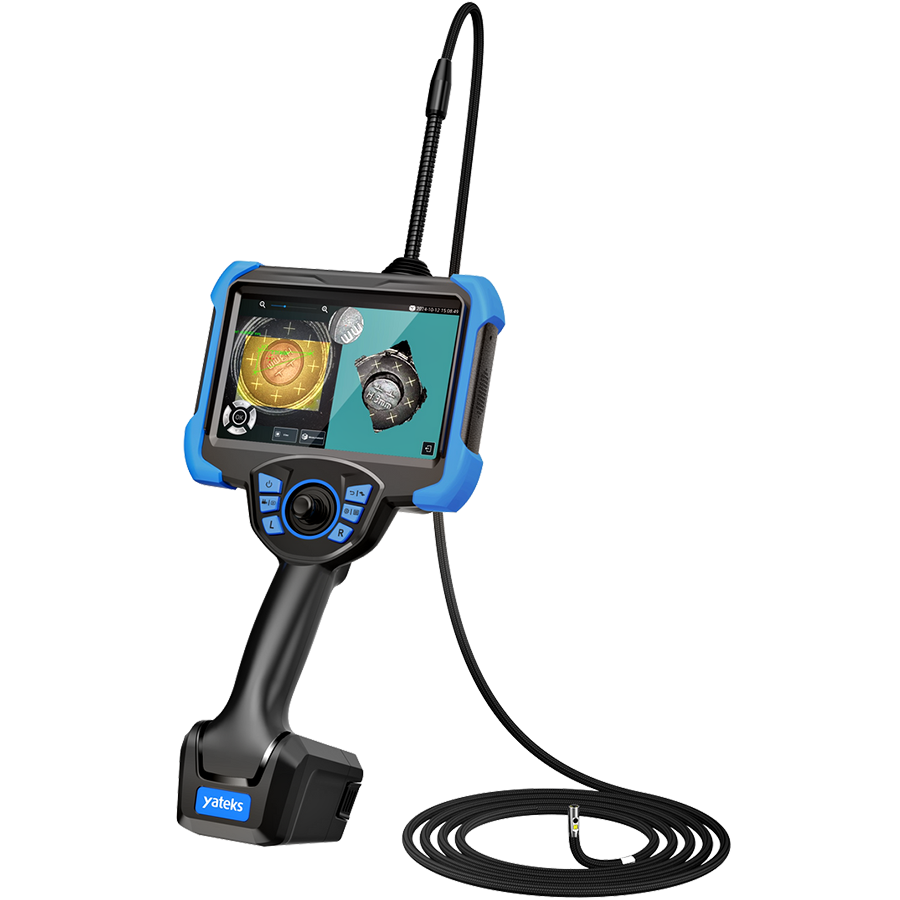

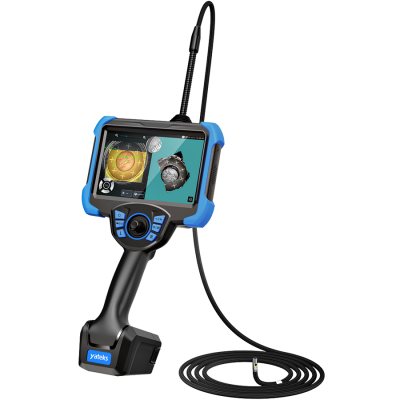

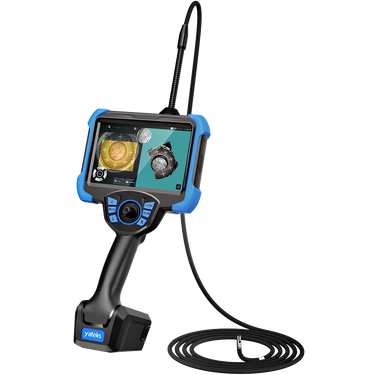

The Yateks Realta 3D Measurement Video Borescope System is an industrial video borescope system with advanced, 3D measuring and mapping software features. Along with a 7" high-definition (1920 x 1080 pixel) IPS LCD monitor, 4-way probe articulation, large-capacity lithium-ion battery, and replaceable insertion tubes, the Yateks Realta Video Borescope makes a complete inspection and analytical tool for a variety of industries including aerospace, power generation, and general manufacturing quality assurance.

Its touch screen user interface is efficient and easy to operate. Using general-purpose computing graphics processor technology, the speed of image and video processing algorithm is lightning-fast making the on-screen image clearer and smoother than previous Yateks models. With its 3D measurement function, the Realta can generate a 3D point cloud map that reproduces the appearance of the measured object. Users can zoom and rotate the mapping to make precise and accurate point selections in real time avoiding inaccurate measurement results caused by user error.



Features

  • Modular design, easy to carry, to repair and to replace
  • Advanced 3D Measurement Software
  • Interchangeable video probes (4.0mm and 6.0mm)
  • 4-way Articulation Joystick Controls
  • Automatic locking and precise positioning flexible articulation - mechanical 360° steering function, one-way bending can be up to 220°
  • Direct View: White LED Illumination (100,000 lux)
  • Side View: White LED Illumination (60,000 lux)
  • 8 - 150mm Depth of Focus
  • HD Resolution 1920 x 1080 pixels
  • Multi-display function and image can be simultaneously displayed on a smartphone or TV (wireless or hard-wired).
  • Probe - IP67 Rating
  • Rechargeable Lithium-Ion Battery - 4 hrs. of continuous run time
  • Anti-fall, anti-collision bag - Angle protection

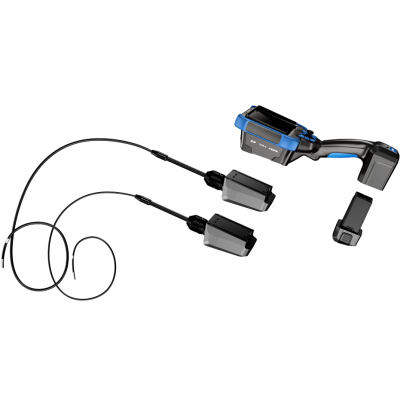

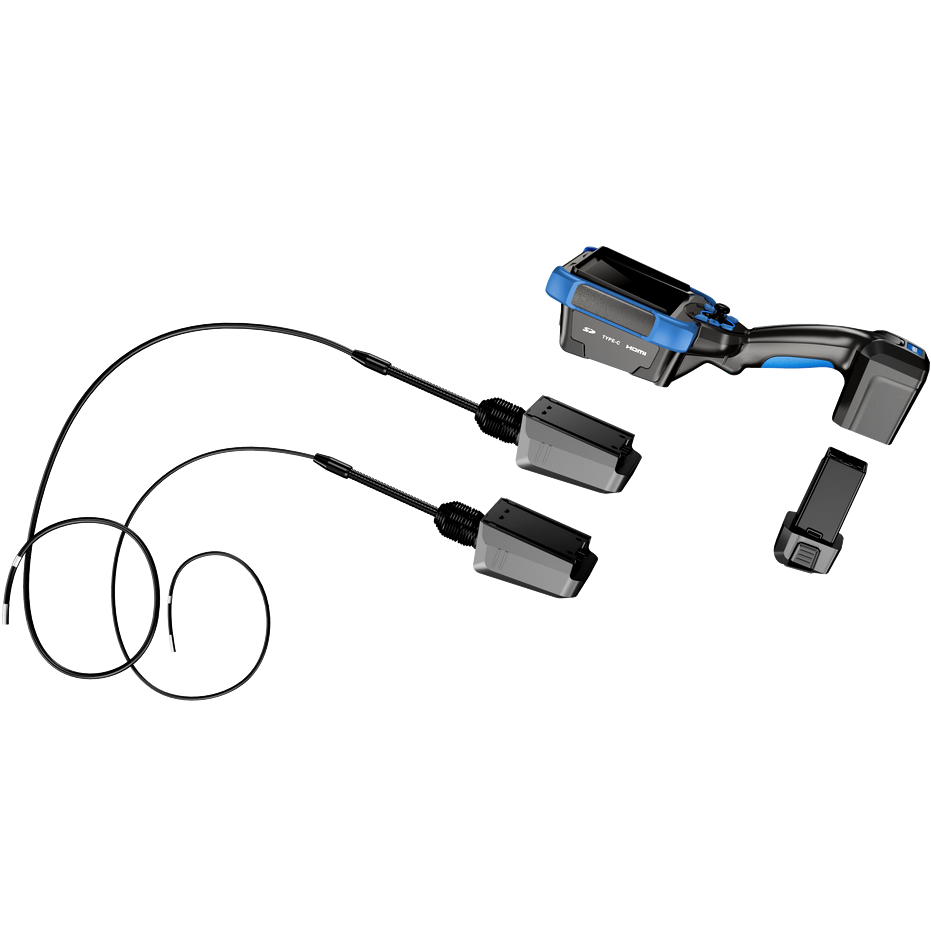

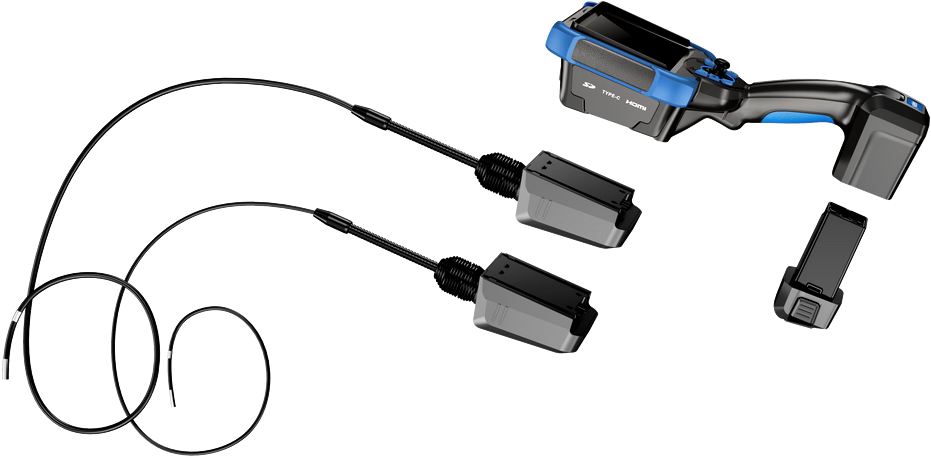

Modular Design

  • Replaceable insertion tube (4.0mm and 6.0mm)
  • 7" Industrial HD Touch LCD screen
  • Large capacity lithium battery, easy to replace quickly
  • USB, Type C Port
  • Equipped with suspendable straps for easy operation

Depth Measurement

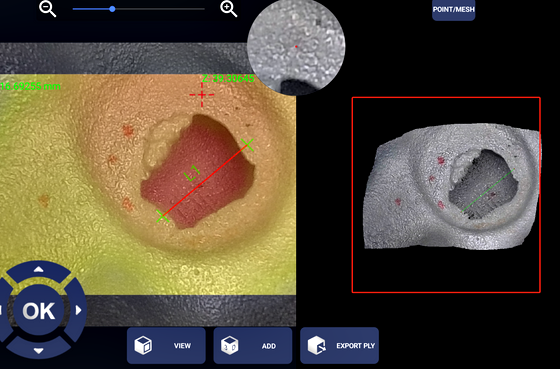

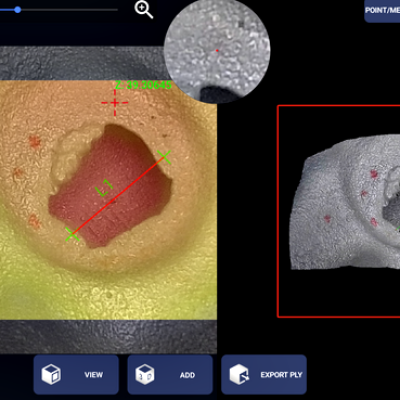

3D Measurement & Mapping Software

Speed up the inspection process with the Yateks Realta Video Borescope's 3D stereo measurement software. The embedded technology generates a 3D surface map with cursor points across the inspected part or surface image. Operators can then quickly make measurements of length, perpendicular distance, depth, multiple line segments, and area.

4-way Articulation Joystick Controls

The Realta 3D has outstanding 4-way mechanical articulation of the probe tip. This allows the probe to look back on itself with up to 220° of one-way bending. Additionally, the articulation mechanism provides 360° of mechanical steering and automatic locking for precise probe positioning.

Durable & Replaceable Video Probes

The Realta 3D Measurement Video Borescope uses a 4-layer insertion tube from durable tungsten alloy and braided steel wire. The probe is waterproof, and IP67-rated, for the harshest and most rugged inspection conditions. Probes come in either a direct or side view configuration (0° or 90° direction of view). The insertion probe is modular and can be replaced if damage occurs. Keeping multiple insertion probes on hand in the rare case of damage keeps inspection operations running smoothly.

Probe length sizes include: 3.28 ft. (1.0 m), 6.56 ft. (2.0 m) & 9.84 ft. (3.0 m)

Technical Specifications

System Specifications

System
Dimensions 16.14" x 9.05" x 5.63" (410 x 230 x 143 mm)
Weight < 6.6 lbs. (< 3 kg)
Display Screen 7" IPS Industrial HD Touch LCD screen with 1920 x 1080 resolution (16:9 aspect ratio)
Joystick & Steering Control Mechanical rocker, 360-degree rotation, articulation lock, automatic set, adjustable direction fine-tuning
Main Functions Photo, video, light source brightness adjustment, screen brightness adjustment, zoom in/out, screen flip, color inversion, screen freeze, color mode adjustment, aspect ratio toggle, grid measurement, automatic white balance, image browsing, lock fine-tuning, menu.
Memory Storage Built-in 128 GB internal hard drive + 64 GB USB flash drives (can use up to 256 GB)

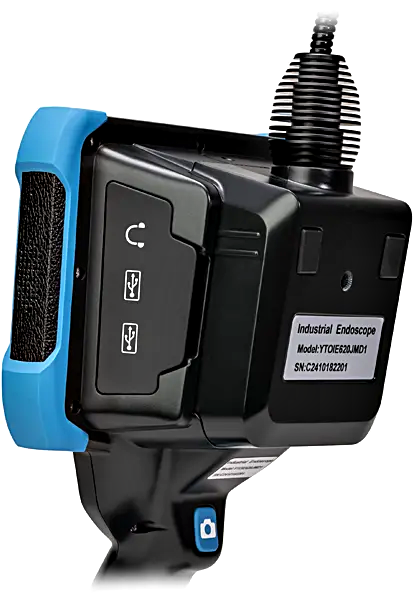

Data l/O Port 2 x USB 2.0 A ports, RJ45 ethernet port, USB-C port and audio out port
Video Output Mini HDMI interface, WiFi Interface
Battery Removable independently rechargeable lithium-ion battery pack
Battery Runtime 4 hrs. continuous
Operating Mode The host and the operating handle can be separated, and more than one host is equipped with more than one handle.
Software
Operating System Multitask intelligent OS, menu-driven, key operation
UI Touch screen operation menu
File Management Image/video playback, deletion, formatting and renaming
Languages English, Simplified Chinese, French, Spanish, Russian, Japanese, Korean, Traditional Chinese, German, Portuguese
Image Control Zoom and playback, Screen Freeze, Image Flip
Negative Film Function Dynamic Negative
Digital Zoom Continuous (10 steps)
Picture/Video Format JPG, PNG / AVI, MP4 (with date/time stamp)
Color Settings  Near, medium, far, custom color modes
 White Balance Automatic white balance, manual white balance
3D Measurement Principle of measurement Binocular vision measurements
Point to Point The distance between two points
Point to Line The vertical distance between a point and custom line
Point to Area Depth / height of direct intersection between a point and a customized plane
Area / Line Measurement of circumference and area of multiple points
Measuring Error <5%
Text Annotation It is the function of adding text annotation, which can be annotated at any time according to the detection situation, so as to facilitate the generation of later reports.
Software Upgrade Upgrade using the USB flash drive upgrade package
Insertion Tube Parameter
Diameter 4mm, 6mm
Length 1-3 m
Material Tungsten Alloy steel wire braided 4 layer tube
Camera Articulation 360° electric arbitrary direction
Operating Environment
Working Temperature 14° to 122°F (-10° to 50°C)
Probe Working Temperature -4° to 158°F (-20° to 70°C)
Relative Humidity Up to 90%, no condensation
Waterproof Unit IP54 / Probe IP67

Purchasing Details

Model # Diameter Length Direction of View
Complete Kits
EM10100 4mm 1m Direct View
EM10101 4mm 1.5m Direct View
EM10103 4mm 2m Direct View
EM10033 6mm 1m Direct View
EM10034 6mm 2m Direct View
EM10035 6mm 3m Direct View
EM10036 6mm 1m Side View
EM10037 6mm 2m Side View
EM10038 6mm 3m Side View
Probe Only
EM10100-00IT 4mm 1m Direct View
EM10101-00IT 4mm 1.5m Direct View
EM10103-00IT 4mm 2m Direct View
EM10033-00IT 6mm 1m Direct View
EM10034-00IT 6mm 2m Direct View
EM10035-00IT 6mm 3m Direct View
EM10036-90IT 6mm 1m Side View
EM10037-90IT 6mm 2m Side View
EM10038-90IT 6mm 3m Side View
