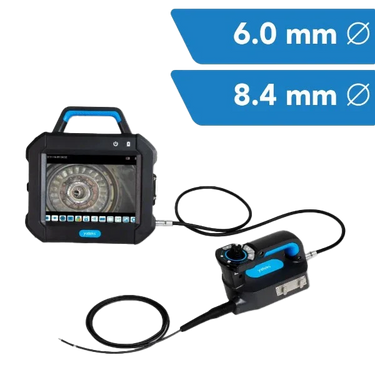

6.0 and 8.4mm Yateks P+ Borescopes

6.0 and 8.4mm Yateks P+ Borescopes

Overview

The 6.0 and 8.4mm Yateks P+ Borescopes are for use in the power generation, tubing fabrication, and oil industries. The modularity of the P+ series, combined with the array of available diameter configurations make borescope inspections easy and repeatable.

 Available Models

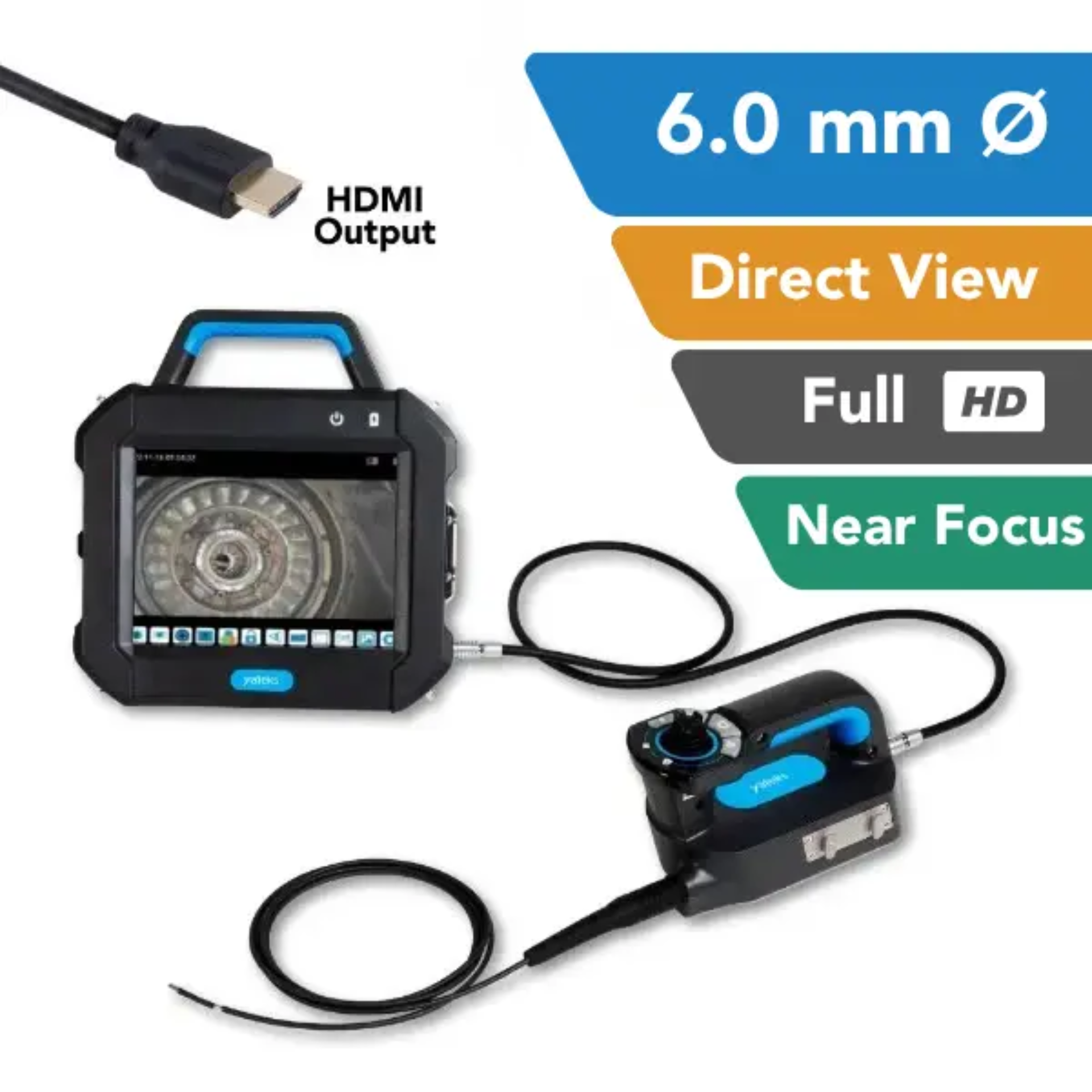

• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White Fiber Illumination (80,000 lux)
• 10-200mm Depth of Focus
• Full HD Resolution 1920 x 1080 pixels
• 8" Touch Screen

 • 6.0 mm Outer Diameter
• Dual View (0° & 90° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 8-150mm Depth of Focus*
• 8" Touch Screen
• 1280 x 720 pixel HD Resolution (1 - 5 m lengths)
• 720 x 576 pixel Resolution (8 & 10 m lengths)

• 6.0 mm Outer Diameter
• Interchangeable Direct/Side View Tips
• All Direction Motorized Articulation
• LED Illumination (15,000 lux)
• 7-80mm Depth of Focus
• Resolution 640 x 480 pixels
• 8" Touch Screen
• EM18492 Direct View Tip Included**

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19153
  • 1.5m (4.92') RV-INT-EM19261
  • 2.0m (6.56') RV-INT-EM19262
  • 3.0m (9.84') RV-INT-EM19263

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM18990
  • 1.5m (4.92') RV-INT-EM18991
  • 2.0m (6.56') RV-INT-EM18992
  • 3.0m (9.84') RV-INT-EM18817
  • 5.0m (16.4') RV-INT-EM18123
  • 8.0m (26.2') RV-INT-EM16713
  • 10m (32.8') RV-INT-EM16714

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19266
  • 1.5m (4.92') RV-INT-EM19270
  • 2.0m (6.56') RV-INT-EM19271
  • 3.0m (9.84') RV-INT-EM19272

Interchangeable Lens options:

  • Side View
  • Direct View



• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• Neoprene Sheathing
• White LED Illumination
• 8-100mm Depth of Focus
• HD Resolution 1280 x 720 pixels
• 8" Touch Screen

 • 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White Fiber Illumination (100,000 lux)
• 8-100mm Depth of Focus
• HD Resolution 1280 x 720 pixels
• 8" Touch Screen

• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• UV LED Illumination
• 3-50mm Depth of Focus
• Resolution 720 x 720 pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19098
  • 1.5m (4.92') RV-INT-EM19099
  • 2.0m (6.56') RV-INT-EM19100
  • 3.0m (9.84') RV-INT-EM16777
  • 5.0m (16.4') RV-INT-EM16708

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19105
  • 1.5m (4.92') RV-INT-EM19106
  • 2.0m (6.56') RV-INT-EM19142
  • 3.0m (9.84') RV-INT-EM19146

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM14741
  • 1.5m (4.92') RV-INT-EM14742
  • 2.0m (6.56') RV-INT-EM14743



• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• Neoprene Sheathing
• UV LED Illumination
• 3-50mm Depth of Focus
• Resolution 624 x 624 (1:1) or 624 x 500 (5:4) pixels
• 8" Touch Screen

 • 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• All-way Articulation
• Neoprene Sheathing
• White Fiber Illumination and UV LED
• 8-100 mm Depth of Focus
• Resolution 1280 x 720 pixels
• 8" Touch Screen

• 6.0 mm Outer Diameter
• Side View (90° direction of view)
• All-way Articulation
• Neoprene Sheathing
• White Light Fiber and UV LED Illumination
• 8-100 mm Depth of Focus
• Resolution 1280 x 720 pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19094
  • 1.5m (4.92') RV-INT-EM19095
  • 2.0m (6.56') RV-INT-EM19096
  • 3.0m (9.84') RV-INT-EM19097

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10855
  • 2.0m (6.56') RV-INT-EM10856
  • 3.0m (9.84') RV-INT-EM10857

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10858
  • 1.5m (4.92') RV-INT-EM10859
  • 2.0m (6.56') RV-INT-EM10860

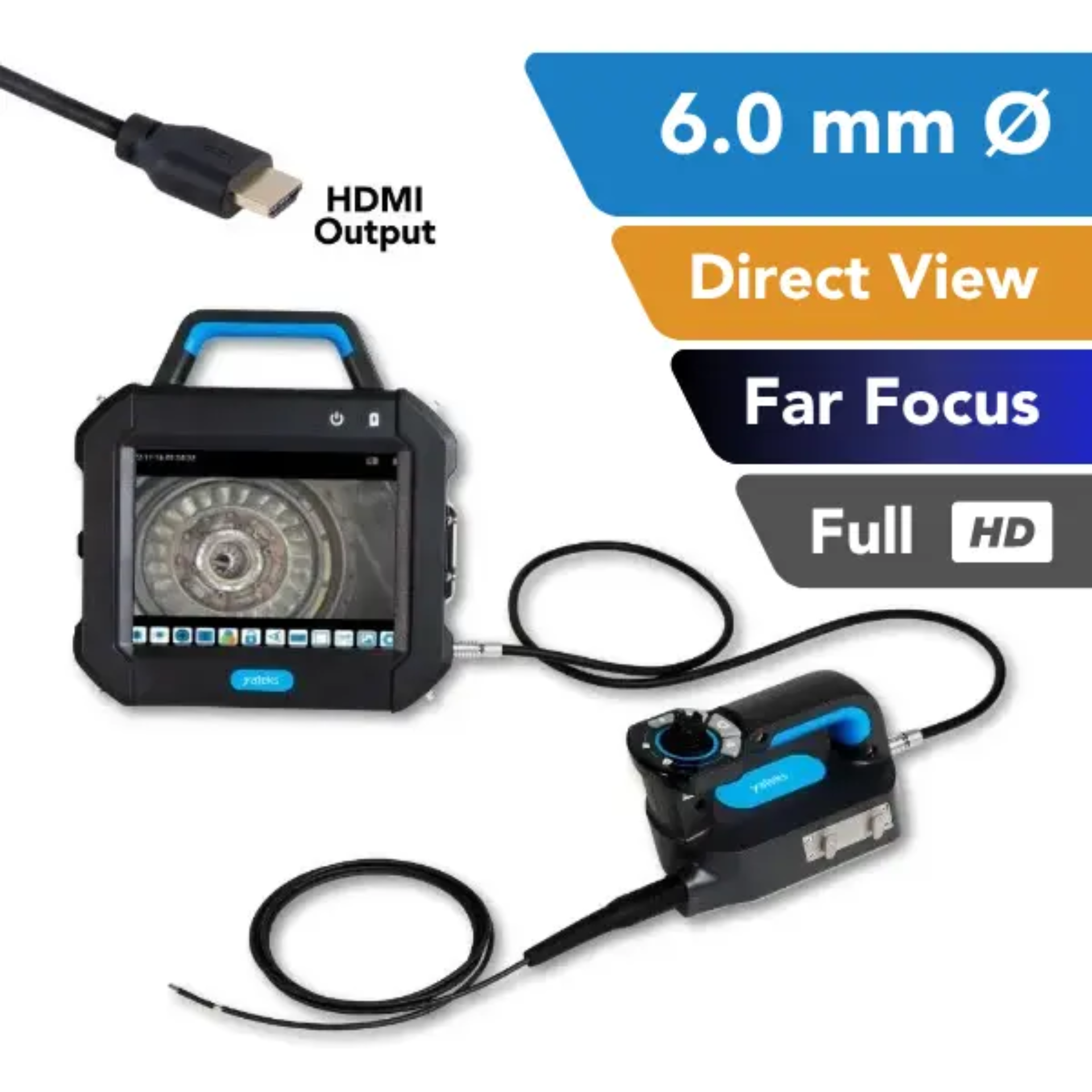

• 6.0 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White Fiber Illumination (100,000 lux)
• 50 - ∞ Depth of Focus (Far Focus Range)
• HD Resolution 1280 x 720 pixels
• 8" Touch Screen

 • 8.4 mm Outer Diameter
• Dual View (0° & 90° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 8-100mm (direct), 5-50mm (side) Depth of Focus
• Up to HD 1280 x 720 pixels HD Resolution
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19273
  • 1.5m (4.92') RV-INT-EM19275
  • 2.0m (6.56') RV-INT-EM19276
  • 3.0m (9.84') RV-INT-EM19277

Available Lengths & Sku:

  • 3.0m (9.84') RV-INT-EM16662
  • 5.0m (16.4') RV-INT-EM16663
  • 8.0M (26.2') RV-INT-EM16664

For a full list of UV Videoscopes, click here

Applications

The 6.0mm and 8.4mm diameter borescopes are for a variety of applications and industries. They include:

  • Power Generation
  • Tubing Fabrication
  • Oil & Gas
  • Orbital Welds (Dual View)
  • Aviation & Aerospace
  • Construction Engineering
  • Automotive Manufacturing & Maintenance

Technical Specifications

Technical Specifications

Yateks P+ Series
System
Dimensions/ Weight: 9.68 x 12.63 X 4.84" (246 x 321 x 123 mm) / 5.07 lbs (2.3 kg)
Display Screen: 8" (203.2mm) ( IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio))
Control Lever:
 Electric rocker, 360-degree rotation, articulation lock, automatic set
Functions: Image capture, video recording, playback, articulation, illumination control
Storage: 32 GB high-speed SD card (Up to 128 GB)
I/O Port: SD card, HDMI port (1024 x 768), charge and mini USB
Battery/ Standby Time: Four rechargeable 18650 lithium-ion batteries
Brightness Control: 5 level adjustment
Combining Form: Monitor + Probe + Cable, Detachable
Compatibility: Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement
Software
Operation System: Real-time multifunctional operating system
User Interface: Touchscreen operation menu
File Management: Auto or manual file folder creation, rename files
Image Control: Digital zoom, image and video playback, freeze-frame, flip image, mirror image
Image Format/ Video Format: JPEG, AVI
Language: English / Chinese / Korean / German / Russian / Japanese
Measurement: Reference Grid/ Reference Measurement Function
Color Settings:  4 modes for different applications
White Balance:  Automatic, manual white balance
Exposure Mode:  Automatic, manual
Upgrade:  Via SD card service pack
Operating Environment
Monitor Working Temperature:  14~122°F (-10～50°C)
Video Probe Working Temperature: -4~158°F (-20～70°C)
Waterproof:  Probe IP67
Relative Humidity: Highest 90%, no condensation

Kit Includes

  • P+ Series 8” HD touchscreen monitor
  • Motorized P+ Series Probe (Variant Specific)
  • Probe Cable
  • Four 18650 Lithium Batteries (replaceable)
  • SD Card Service Pack
  • Trolley Box for Easy Transport and Storage
  • USB-C Cable
  • HDMI Cable

Product Literature

Description Part # Saved Price Select Option Add to
Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct Full HD View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19153-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 6.0 mm OD Dual View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM18990-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct View - Interchangeable Tips (choose Length; Kit or Probe Only)
Model #
RV-INT-EM18990-M-1
Request Pricing
Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19098-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct View - High Illumination (choose Length; Kit or Probe Only)
Model #
RV-INT-RV-INT-EM19105-M
Request Pricing
Yateks P+ UV Series Video Borescope 6.0 mm OD Direct View High Resolution (choose Length; Kit or Probe Only)
Model #
RV-INT-EM14741-M
Request Pricing
Yateks P+ UV Series Industrial Video Borescope 6.0 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19094-M
Request Pricing
Yateks P+ Series UV / White Light Industrial HD Video Borescope 6.0 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10855-M
Request Pricing
Yateks P+ Series UV / White Light Industrial HD Video Borescope 6.0 mm OD Side View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10858-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 6.0 mm OD Direct View - Far Focus Range (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19273-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 8.4 mm OD Dual View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM16662-M
Request Pricing
