Overview

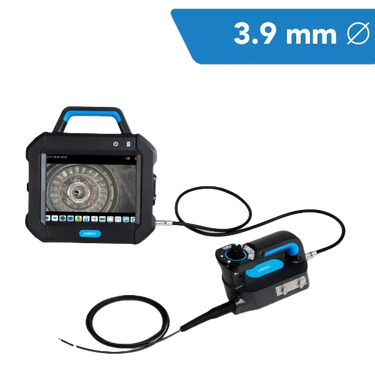

The 3.9mm Yateks P+ Borescopes are for use in the aerospace, aviation, and power generation industries. The modularity of the P+ series, combined with the array of 3.9mm configurations make borescope inspections easy and repeatable.

Available Models

• 3.9 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White Fiber Illumination (10,000 lux)
• 10-150mm Depth of Focus
• Full HD Resolution 1920 x 1080 pixels
• 8" Touch Screen

• 3.9 mm Outer Diameter
• Side View (90° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 5-80mm Depth of Focus
• HD Resolution
• 8" Touch Screen

• 3.9 mm Outer Diameter
• Dual View (0° & 90° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 8-100mm (Direct), 5-50mm (Side) Depth of Focus
• 1280 x 720 pixels (Direct & Side) Resolution
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10271
  • 1.5m (4.92') RV-INT-EM10272
  • 2.0m (6.56') RV-INT-EM10273
  • 3.0m (9.84') RV-INT-EM10274

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19069
  • 1.5m (4.92') RV-INT-EM19070
  • 2.0m (6.56') RV-INT-EM19077
  • 3.0m (9.84') RV-INT-EM19078

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM16752
  • 1.5m (4.92') RV-INT-EM16753
  • 2.0m (6.56') RV-INT-EM16754
  • 3.0m (9.84') RV-INT-EM16755



• 3.9 mm Outer Diameter
• Dual View (0° & 90° direction of view)
• All Direction Motorized Articulation
• White Fiber Illumination (100,000 lux)
• 5-100mm Direct, 3-50mm Side Depth of Focus
• 1000 x 1000 pixels Direct, 400 x 400 Side Resolution
• 8" Touch Screen

 • 3.9 mm Outer Diameter
• Direct View (0° direction of view)
• All-way Articulation
• Neoprene Sheathing
• UV LED Illumination
• 3-50mm Depth of Focus
• Resolution 720 x 720 pixels
• 8" Touch Screen

• 3.9 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• Neoprene Sheathing
• UV LED Illumination
• 3-50mm Depth of Focus
• Resolution 624 x 624 (1:1) or 624 x 500 (5:4) pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19079
  • 2.0m (6.56') RV-INT-EM19081
  • 3.0m (9.84') RV-INT-EM19082
  • 5.0m (16.4') RV-INT-EM19083

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10268
  • 1.5m (4.92') RV-INT-EM10269
  • 2.0m (6.56') RV-INT-EM10270

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19031
  • 1.5m (4.92') RV-INT-EM19036
  • 2.0m (6.56') RV-INT-EM19049
  • 3.0m (9.84') RV-INT-EM19050

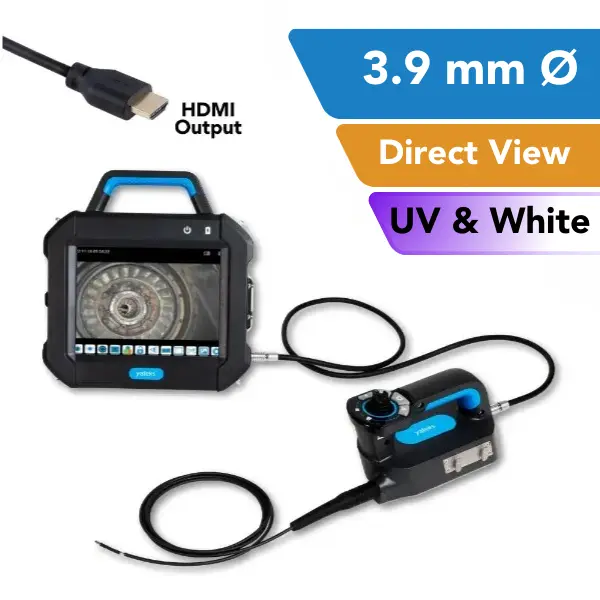

• 3.9 mm Outer Diameter
• Direct View (0° direction of view)
• All-way Articulation
• Neoprene Sheathing
• White Light Fiber and UV LED Illumination
• 3-30 mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

• 3.9 mm Outer Diameter
• Side View (90° direction of view)
• All-way Articulation
• Neoprene Sheathing
• White Light Fiber and UV LED Illumination
• 3-30 mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

 • 3.9 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 8-100mm Depth of Focus
• HD Resolution
• 8" Touch Screen
• Temperature Sensor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11273
  • 1.5m (4.92') RV-INT-EM11274
  • 2.0m (6.56') RV-INT-EM11275
  • 3.0m (9.84') RV-INT-EM11278

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10853
  • 2.0m (6.56') RV-INT-EM10854

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19084
  • 1.5m (4.92') RV-INT-EM19085
  • 2.0m (6.56') RV-INT-EM19091
  • 3.0m (9.84') RV-INT-EM19093

For a full list of UV Videoscopes, click here

Applications

The 3.9mm diameter borescopes are for a variety of applications and industries. They include:

  • Automotive Manufacturing & Maintenance
  • Aerospace (aero-welds, rocket propulsion systems)
  • Oil & Gas
  • Orbital Welds (Dual View)

Technical Specifications

Technical Specifications

Yateks P+ Series
System
Dimensions/ Weight: 9.68 x 12.63 X 4.84" (246 x 321 x 123 mm) / 5.07 lbs (2.3 kg)
Display Screen: 8" (203.2mm) ( IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio))
Control Lever:
 Electric rocker, 360-degree rotation, articulation lock, automatic set
Functions: Image capture, video recording, playback, articulation, illumination control
Storage: 32 GB high-speed SD card (Up to 128 GB)
I/O Port: SD card, HDMI port (1024 x 768), charge and mini USB
Battery/ Standby Time: Four rechargeable 18650 lithium-ion batteries
Brightness Control: 5 level adjustment
Combining Form: Monitor + Probe + Cable, Detachable
Compatibility: Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement
Software
Operation System: Real-time multifunctional operating system
User Interface: Touchscreen operation menu
File Management: Auto or manual file folder creation, rename files
Image Control: Digital zoom, image and video playback, freeze-frame, flip image, mirror image
Image Format/ Video Format: JPEG, AVI
Language: English / Chinese / Korean / German / Russian / Japanese
Measurement: Reference Grid/ Reference Measurement Function
Color Settings:  4 modes for different applications
White Balance:  Automatic, manual white balance
Exposure Mode:  Automatic, manual
Upgrade:  Via SD card service pack
Operating Environment
Monitor Working Temperature:  14~122°F (-10～50°C)
Video Probe Working Temperature: -4~158°F (-20～70°C)
Waterproof:  Probe IP67
Relative Humidity: Highest 90%, no condensation

Kit Includes

  • P+ Series 8” HD touchscreen monitor
  • Motorized P+ Series Probe (Variant Specific)
  • Probe Cable
  • Four 18650 Lithium Batteries (replaceable)
  • SD Card Service Pack
  • Trolley Box for Easy Transport and Storage
  • USB-C Cable
  • HDMI Cable

Product Literature

Description Part # Saved Price Select Option Add to
Yateks P+ Series Industrial Video Borescope 3.9 mm OD Direct View Full HD (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10271-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 3.9 mm OD Side HD View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19069-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 3.9 mm OD Dual HD View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM16752-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 3.9 mm OD Dual View - High Illumination (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19079-M
Request Pricing
Yateks P+ UV Series Industrial Video Borescope 3.9 mm OD Direct View High Resolution (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10268-M
Request Pricing
Yateks P+ UV Series Industrial Video Borescope 3.9 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19031-M
Request Pricing
Yateks P+ Series UV / White Light Industrial Video Borescope 3.9 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM11273-M
Request Pricing
Yateks P+ Series UV / White Light Industrial Video Borescope 3.9 mm OD Side View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10853-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 3.9 mm OD Direct View - Temperature Sensor (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19084-M
Request Pricing
