2.8mm Yateks P+ Borescopes

2.8mm Yateks P+ Borescopes

Overview

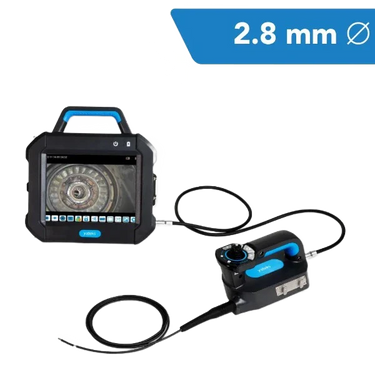

The 2.8mm Yateks P+ Borescopes are for inspections in the aerospace, automotive, and power generation industries. The modularity of the P+ series, combined with the array of 2.8mm configurations make borescope inspections easy and repeatable.



Available Models

• 2.8 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 3-50mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

• 2.8 mm Outer Diameter
• Direct View (0° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 3-50mm Depth of Focus
• High Resolution 720 x 720 pixels
• 8" Touch Screen

• 2.8 mm Outer Diameter
• Side View (90° direction of view)
• All Direction Motorized Articulation
• White LED Illumination
• 3-50mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM31568
  • 1.5m (4.92') RV-INT-EM31569
  • 2.0m (6.56') RV-INT-EM31570
  • 3.0m (9.84') RV-INT-EM31571

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM16890
  • 1.5m (4.92') RV-INT-EM16891
  • 2.0m (6.56') RV-INT-EM16892

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19008
  • 1.5m (4.92') RV-INT-EM19009
  • 2.0m (6.56') RV-INT-EM19010
  • 3.0m (9.84') RV-INT-EM19011



• 2.8 mm Outer Diameter
• Dual VIew (0° & 90° direction of view)
• All Direction Motorized Articulation
• Neoprene Sheathing
• White LED Illumination
• 3-50mm Depth of Focus
• Resolution 400 x 400 pixels (both sensors)
• 8" Touch Screen

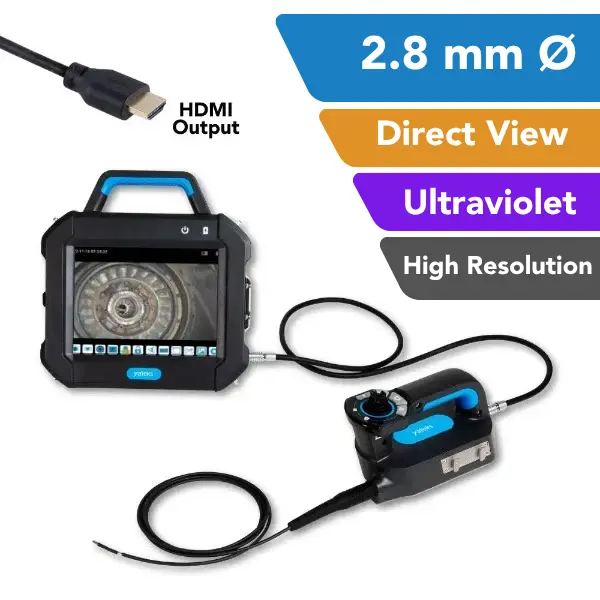

• 2.8 mm Outer Diameter
• Direct View (0° direction of view)
• 4-way Articulation
• Neoprene Sheathing
• UV LED Illumination
• 3-50mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

• 2.8 mm Outer Diameter
• Side View (90° direction of view)
• All-way Articulation
• Neoprene Sheathing
• UV and White Light Fiber Illumination
• 3-30 mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19003
  • 1.5m (4.92') RV-INT-EM19004
  • 2.0m (6.56') RV-INT-EM19005

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM19022
  • 1.5m (4.92') RV-INT-EM19023
  • 2.0m (6.56') RV-INT-EM19024

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10851
  • 2.0m (6.56') RV-INT-EM10852

For a full list of UV Videoscopes, click here

Applications

The 2.8mm diameter borescopes are for a variety of applications and industries. They include:

  • Automotive Manufacturing & Maintenance
  • Aerospace (aero-welds, rocket propulsion systems)
  • Oil & Gas
  • Orbital Welds (Dual View)

Technical Specifications

Technical Specifications

Yateks P+ Series
System
Dimensions/ Weight: 9.68 x 12.63 X 4.84" (246 x 321 x 123 mm) / 5.07 lbs (2.3 kg)
Display Screen: 8" (203.2mm) ( IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio))
Control Lever:
 Electric rocker, 360-degree rotation, articulation lock, automatic set
Functions: Image capture, video recording, playback, articulation, illumination control
Storage: 32 GB high-speed SD card (Up to 128 GB)
I/O Port: SD card, HDMI port (1024 x 768), charge and mini USB
Battery/ Standby Time: Four rechargeable 18650 lithium-ion batteries
Brightness Control: 5 level adjustment
Combining Form: Monitor + Probe + Cable, Detachable
Compatibility: Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement
Software
Operation System: Real-time multifunctional operating system
User Interface: Touchscreen operation menu
File Management: Auto or manual file folder creation, rename files
Image Control: Digital zoom, image and video playback, freeze-frame, flip image, mirror image
Image Format/ Video Format: JPEG, AVI
Language: English / Chinese / Korean / German / Russian / Japanese
Measurement: Reference Grid/ Reference Measurement Function
Color Settings:  4 modes for different applications
White Balance:  Automatic, manual white balance
Exposure Mode:  Automatic, manual
Upgrade:  Via SD card service pack
Operating Environment
Monitor Working Temperature:  14~122°F (-10～50°C)
Video Probe Working Temperature: -4~158°F (-20～70°C)
Waterproof:  Probe IP67
Relative Humidity: Highest 90%, no condensation

Kit Includes

  • P+ Series 8” HD touchscreen monitor
  • Motorized P+ Series Probe (Variant Specific)
  • Probe Cable
  • Four 18650 Lithium Batteries (replaceable)
  • SD Card Service Pack
  • Trolley Box for Easy Transport and Storage
  • USB-C Cable
  • HDMI Cable

Product Literature

Description Part # Saved Price Select Option Add to
Yateks P+ Series Industrial Video Borescope 2.8 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM31568-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 2.8 mm OD Direct View High Resolution (choose Length; Kit or Probe Only)
Model #
RV-INT-EM16890-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 2.8 mm OD Side View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19008-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 2.8 mm OD Dual View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19003-M
Request Pricing
Yateks P+ UV Series Industrial Video Borescope 2.8 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM19022-M
Request Pricing
Yateks P+ Series UV / White Light Industrial Video Borescope 2.8 mm OD Side View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10851-M
Request Pricing
