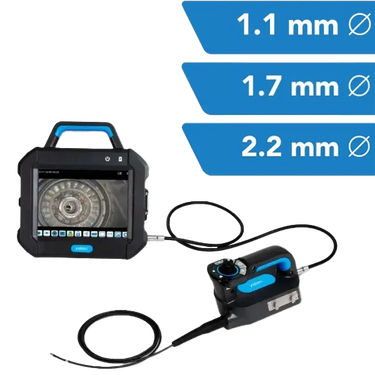

1.1, 1.7, and 2.2mm Yateks P+ Borescopes

1.1, 1.7, and 2.2mm Yateks P+ Borescopes

Overview

The smallest diameter Yateks P+ Series Borescopes are for applications where borescope diameter is the priority. 1.1 & 1.7mm diameter probes are optimal for the inspection of castings while the 2.2mm models are for aerospace and automotive industries. Combine the small probes with the modularity of the P+ series with the specific feature of each probe to make any small-bore inspection is easy and repeatable.




Available Models

• 1.1 mm Outer Diameter
• Direct View (0° direction of view)
• Neoprene Sheathing
• White Fiberoptic Illumination
• 3-20mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

• 1.1 mm Outer Diameter
• Ergonomic "wand" configuration for precision inspection control
• Standard working length 150 mm
• Direct View (0° direction of view)
• White Fiberoptic Illumination
• 3-20mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

• 1.7 mm Outer Diameter
• Direct View (0° direction of view)
• 2-Way Motorized Articulation
• White LED Illumination
• 3-20mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 0.5m (1.64') RV-INT-EM18975
  • 1.0m (3.28') RV-INT-EM18976
  • 1.5m (4.92') RV-INT-EM18977

Available Lengths & Sku:

  • 150mm (0.49') Standard
  • *Custom Lengths available

End Configurations:

  • Semi-Rigid RV-INT-EM12340
  • Flexible RV-INT-EM12341

 Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM18978
  • 1.5m (4.92') RV-INT-EM18979
  • 2.0m (6.56') RV-INT-EM18985



• 2.2 mm Outer Diameter
• Direct View (0° direction of view)
• 2-way or 4-Way Articulation
• White LED Illumination
• 3-50mm Depth of Focus
• High resolution 720 x 720 pixels
• 8" Touch Screen

• 2.2 mm Outer Diameter
• Direct View (0° direction of view)
• 2-way Articulation
• White LED Illumination
• 3-50mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

• 2.2 mm Outer Diameter
• Side View (90° direction of view)
• 2-way Articulation
• White LED Illumination
• 1-20mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10218
  • 1.5m (4.92') RV-INT-EM10219
  • 2.0m (6.56') RV-INT-EM10220
  • 3.0m (9.84') RV-INT-EM10221

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM14213
  • 1.5m (4.92') RV-INT-EM14217
  • 2.0m (6.56') RV-INT-EM14218
  • 3.0m (9.84') RV-INT-EM14219

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM18999
  • 1.5m (4.92') RV-INT-EM19000
  • 2.0m (6.56') RV-INT-EM19001
  • 3.0m (9.84') RV-INT-EM19002

Applications

These small diameter borescopes are optimal for a variety of applications where borescope diameter is the priority.

Applications and Industries include:

  • Casting Inspections
  • Aerospace (aero-welds, rocket propulsion systems)
  • Oil & Gas
  • Tubing
  • Automotive

Technical Specifications

Technical Specifications

Yateks P+ Series
System
Dimensions/ Weight: 9.68 x 12.63 X 4.84" (246 x 321 x 123 mm) / 5.07 lbs (2.3 kg)
Display Screen: 8" (203.2mm) ( IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio))
Control Lever:
 Electric rocker, 360-degree rotation, articulation lock, automatic set
Functions: Image capture, video recording, playback, articulation, illumination control
Storage: 32 GB high-speed SD card (Up to 128 GB)
I/O Port: SD card, HDMI port (1024 x 768), charge and mini USB
Battery/ Standby Time: Four rechargeable 18650 lithium-ion batteries
Brightness Control: 5 level adjustment
Combining Form: Monitor + Probe + Cable, Detachable
Compatibility: Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement
Software
Operation System: Real-time multifunctional operating system
User Interface: Touchscreen operation menu
File Management: Auto or manual file folder creation, rename files
Image Control: Digital zoom, image and video playback, freeze-frame, flip image, mirror image
Image Format/ Video Format: JPEG, AVI
Language: English / Chinese / Korean / German / Russian / Japanese
Measurement: Reference Grid/ Reference Measurement Function
Color Settings:  4 modes for different applications
White Balance:  Automatic, manual white balance
Exposure Mode:  Automatic, manual
Upgrade:  Via SD card service pack
Operating Environment
Monitor Working Temperature:  14~122°F (-10～50°C)
Video Probe Working Temperature: -4~158°F (-20～70°C)
Waterproof:  Probe IP67
Relative Humidity: Highest 90%, no condensation

Kit Includes

  • P+ Series 8” HD touchscreen monitor
  • Motorized P+ Series Probe (Variant Specific)
  • Probe Cable
  • Four 18650 Lithium Batteries (replaceable)
  • SD Card Service Pack
  • Trolley Box for Easy Transport and Storage
  • USB-C Cable
  • HDMI Cable

Product Literature

Description Part # Saved Price Select Option Add to
Yateks P+ Series Industrial Video Borescope 1.1 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM18975-M
Request Pricing
Yateks P+ Series ErgoWand™ Industrial Video Borescope 1.1 mm OD Direct View (choose Working End; Kit or Probe Only)
Model #
RV-INT-EM12340-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 1.7 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM18978-M-OLD
Request Pricing
Yateks P+ Series Industrial Video Borescope 2.2 mm OD Direct View High Resolution (choose Length; Kit or Probe Only)
Model #
RV-INT-EM10218-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 2.2 mm OD Direct View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM14213-M
Request Pricing
Yateks P+ Series Industrial Video Borescope 2.2 mm OD Side View (choose Length; Kit or Probe Only)
Model #
RV-INT-EM18999-M
Request Pricing
