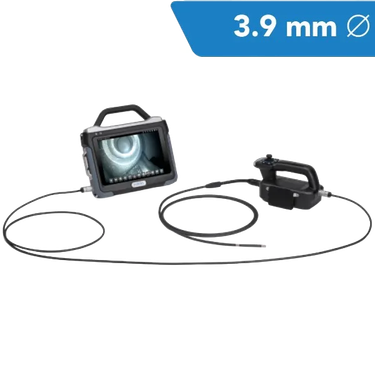

3.9mm Borescopes

3.9mm Borescopes

Overview

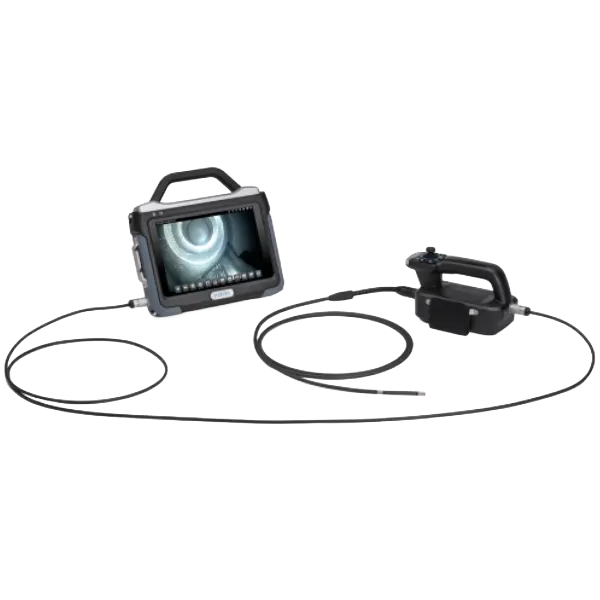

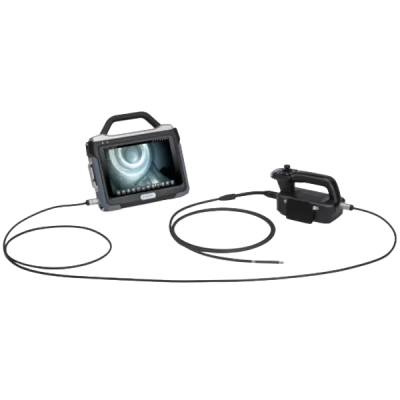

The 3.9mm Yateks Inspexa Borescopes are for inspections in the aerospace, power generation, and general manufacturing industries. Built on the proven P+ platform with an 8" Full HD touchscreen, the 3.9mm direct and dual view configurations with all-way articulation make borescope inspections easy and repeatable.


Available Models

• 3.9 mm Outer Diameter
• Direct View (0° Direction of View)
• 1280 x 720 Pixel Resolution
• All-Direction Motorized Articulation
• Full HD 8" Touch Screen (1920 x 1200)
• White Fiber Illumination — up to 50,000 Lux (varies by length)
• 8–150 mm Depth of Field (Far Focus Range)
• Backward Compatible with Yateks P+ Series Probes

• 3.9 mm Outer Diameter
• Dual View (0°/90° Direction of View)
• Resolution: 1280 x 720 (Forward) / 720 x 720 (Side)
• All-Direction Motorized Articulation
• Full HD 8" Touch Screen (1920 x 1200)
• Illumination: Fiber, up to 50,000 Lux (Forward) / Distal LED, 13,000 Lux (Side)
• Depth of Field: 8–150 mm (Forward) / 3–50 mm (Side)
• Backward Compatible with Yateks P+ Series Probes

• 3.9 mm Outer Diameter
• Direct View (0° Direction of View)
• 1920 x 1080 Pixel Resolution
• All-Direction Motorized Articulation
• Full HD 8" Touch Screen (1920 x 1200)
• White Fiber Illumination — 40,000 Lux
• 3–50 mm Depth of Field
• Backward Compatible with Yateks P+ Series Probes

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM12651
  • 1.5m (4.92') RV-INT-EM12652
  • 2.0m (6.56') RV-INT-EM12653
  • 3.0m (9.84') RV-INT-EM12654
  • 5.0m (16.4') RV-INT-EM12655
  • 6.0m (19.7') RV-INT-EM12656

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM12646
  • 1.5m (4.92') RV-INT-EM12647
  • 2.0m (6.56') RV-INT-EM12648
  • 3.0m (9.84') RV-INT-EM12649
  • 5.0m (16.4') RV-INT-EM12650

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM12657
  • 1.5m (4.92') RV-INT-EM12658
  • 2.0m (6.56') RV-INT-EM12659
  • 3.0m (9.84') RV-INT-EM12660

Applications

The 3.9mm diameter borescopes are for a variety of applications and industries. They include:

  • Automotive Manufacturing & Maintenance
  • Aerospace (aero-welds, rocket propulsion systems)
  • Oil & Gas
  • Orbital Welds (Dual View)

Technical Specifications

Technical Specifications

Technical Specifications

System Specifications
Dimensions / Weight 13.11 x 9.04 x 4.59" (333 x 229.5 x 116.5 mm) / 5.07 lbs (2.3 kg)

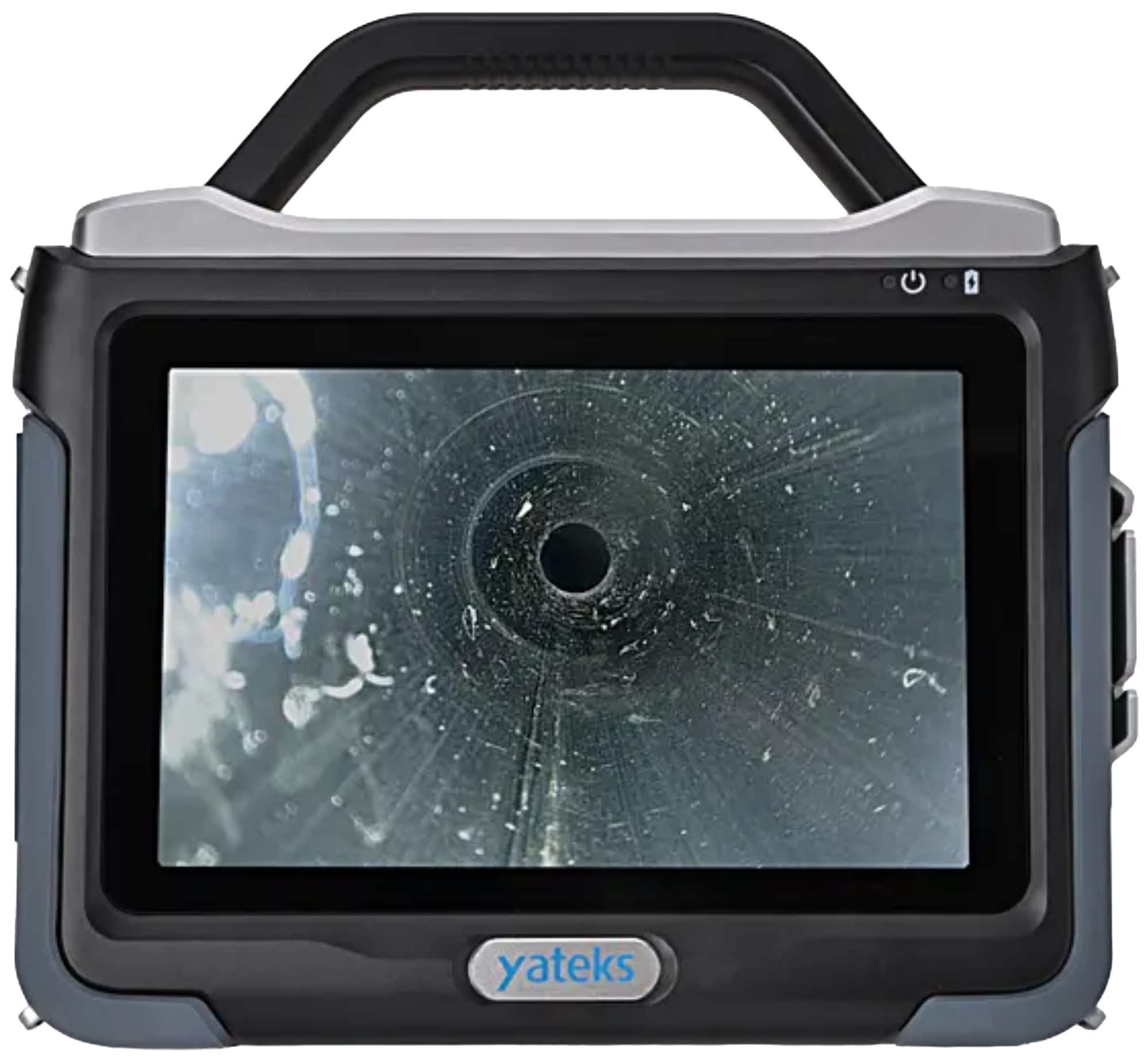

Display Screen 8" (203.2 mm) IPS industrial HD touch LCD screen with 1920 x 1200 resolution

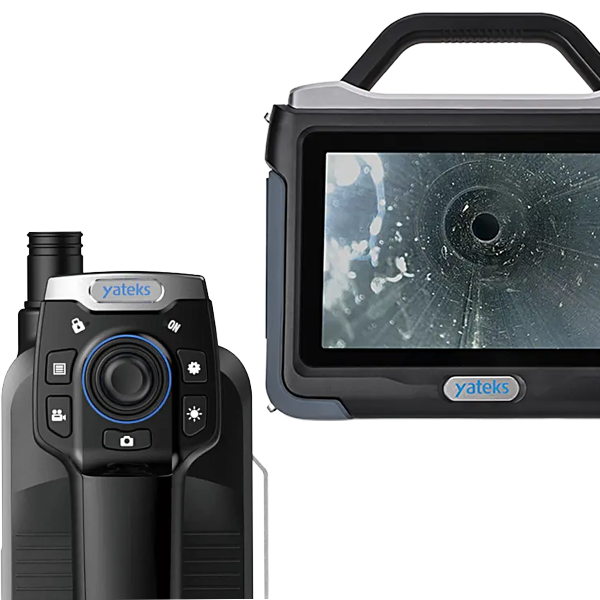

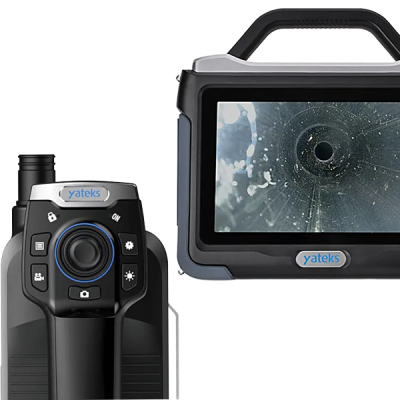

Control Lever Electric joystick, 360-degree rotation, articulation lock, all-around camera guidance
Functions Image capture, video recording, playback, articulation, illumination control, screen brightness adjustment, zoom in/out, screen flip, screen invert, screen freeze, color mode adjustment, display ratio, grid measurement, automatic white balance (AWB), image/video browse, lock fine-tune, menu, support. Point-to-point, point-to-line, point-to-surface, etc. measurements.
Storage Built-in 128 GB + extended 64 GB USB flash drive (up to 256 GB)
I/O Ports Mini HDMI, USB-A port, USB-C interface, headset interface
Battery Four rechargeable 18650 lithium-ion batteries
Brightness Control 10-level adjustment
Full System Includes Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter
Compatibility Interchangeable with all Inspexa series probe sizes, lengths, and styles; backward compatible with all Yateks P+ Series probes
Software Specifications
Operating System Real-time multifunctional operating system
User Interface Touchscreen operation menu
File Management Picture / video playback, deletion, formatting, naming, and annotation
Image Control Digital zoom, image and video playback, freeze-frame, flip image, mirror image
Image / Video Format BMP / JPG / PNG; AVI / MP4
Language English / Spanish / Portuguese / French / German / Chinese (simplified and traditional) / Korean / Russian / Japanese
Color Settings 4 modes for different applications
White Balance Automatic, manual
Exposure Mode Automatic, manual
Firmware Update Upgraded via interface
Operating Environment
Monitor Working Temperature 14 to 122°F (-10 to 50°C)
Probe Working Temperature -4 to 140°F (-20 to 60°C)
Relative Humidity Up to 90%, non-condensing
IP Rating Monitor IP54 / Probe IP67

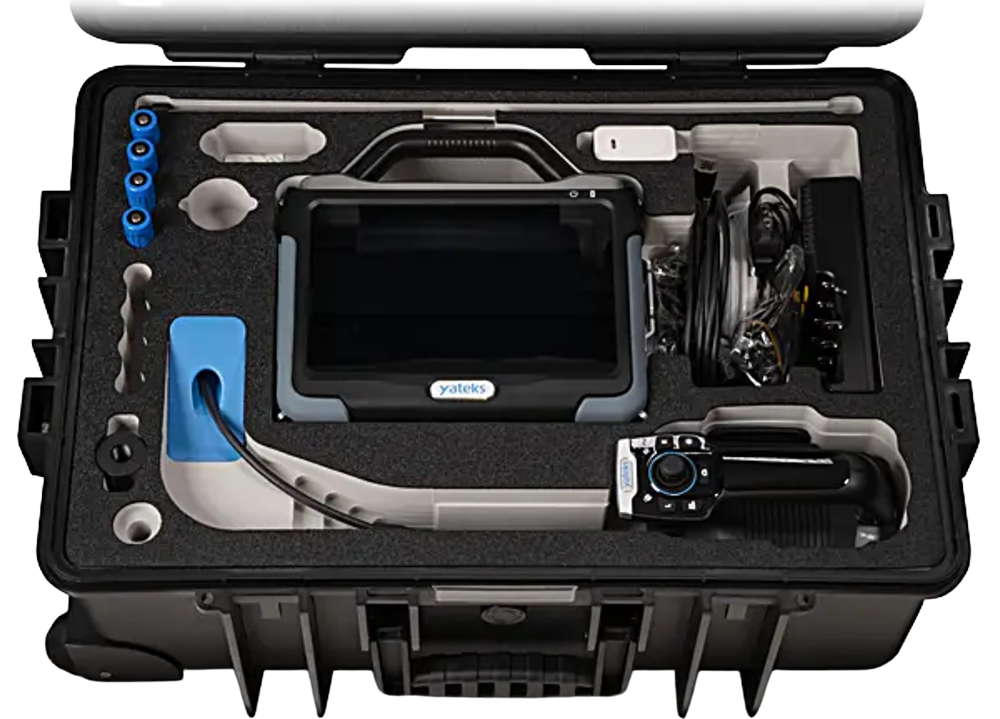

Kit Includes

Yateks Inspexa Series Video Borescope Kits include:

  • Inspexa Monitor (4 batteries in monitor)
  • Inspexa Probe (model of choice)
  • Charger for monitor (USB-C to USB-C cable with wall adapter)
  • Short Inspexa Probe to Monitor cable
  • Long Inspexa Probe to Monitor cable
  • 32 GB SD card
  • USB to SD card reader
  • USB-C to USB cable
  • HDMI to HDMI cable
  • 4 Spare batteries (Lithium-Ion batteries)
  • 4-Port Lithium-Ion Battery charger
  • Accessories: Manual, cleaning cloth, cable management strap, strap for hands-free monitor operation
  • Robust Carrying Case

Product Literature

Description Part # Saved Price Select Option Add to
Yateks Inspexa Industrial Video Borescope 3.9 mm OD Direct View (1280 x 720) - (choose Length; Kit or Probe Only)
Model #
RV-INT-EM12651M
Request Pricing
Yateks Inspexa Industrial Video Borescope 3.9 mm OD Dual View (1280 x 720) - (choose Length; Kit or Probe Only)
Model #
RV-INT-EM12646M
Request Pricing
Yateks Inspexa Industrial Video Borescope 3.9 mm OD Direct View (1920 x 1080) - (choose Length; Kit or Probe Only)
Model #
RV-INT-EM12657M
Request Pricing
