Yateks G Series Portable Video Borescopes

Yateks G Series Portable Video Borescopes

Portable RVI Borescopes with Interchangeable Probes

Overview

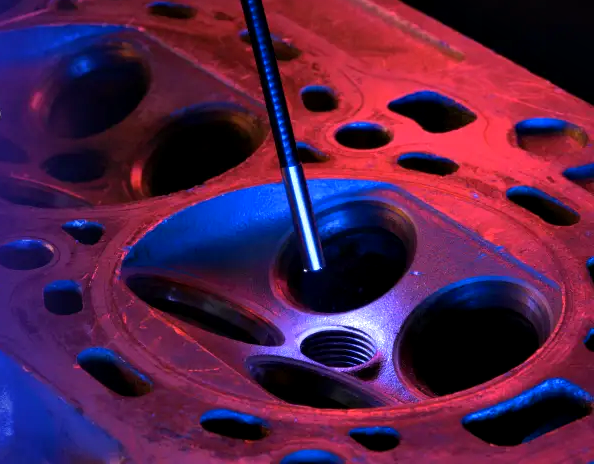

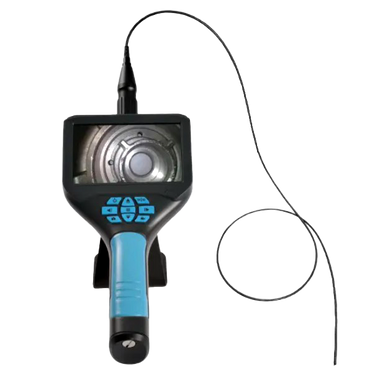

Yateks G Series Portable Video Borescopes are high-quality, portable video borescope systems used in remote visual inspections (RVI) for aircraft, automotive, and diesel engine inspection. Lightweight and nimble, the G Series makes component and system inspections easy and efficient.

Special options include side DOV probes with slip rings for unrestricted 360-degree probe rotation. This rotation capability is not found in most borescopes and is ideal for orbital weld inspections of the inner diameters of tubes and pipes.

Features

  • Interchangeable Probes and 5" Touchscreen
    • Removable video probes with robust HDMI connectors to easily swap out for different applications
  • High light compensation (HLC) inhibits light reflections to improve picture
  • Optional slip ring feature enables unrestricted 360-degree probe rotation for orbital weld inspections of the inner diameters of tubes and pipes
  • Optimized software interface and operation modes

Applications

Yateks G Series Portable Video Borescopes are high-quality, portable video borescope systems used in remote visual inspections (RVI) for:

  • Aircraft
  • Automotive
  • Diesel Engine Inspection

The G Series unrestricted 360-degree probe rotation, made possible through slip rings, is available for select models. This is optimal for orbital weld inspections of the inner diameter of tubes and pipes.

G Series Models

G Series 1.2mm⌀ Model

G Series 1.2mm⌀ Model

Outer Diameter: 1.2 mm
Direction of View: Direct View
Articulation: N/A
Illumination: 1,500 lx
Resolution: 400 x 400 pixels (160,000 total)
Depth of Focus: 3 - 50 mm
Field of View (FOV): 120°
Length / Type & Sku: 1.0m - (RV-INT-EM10248)
G Series 2.0mm⌀ & 2.8mm⌀ Models

G Series 2.0mm⌀ & 2.8mm⌀ Models

Outer Diameter 2.0 mm 2.8 mm
Direction of View
Direct View
Direct View
Illumination 3,000 lx 5,000 lx White LED Illumination
Resolution 400 x 400 pixels (160,000 total) 400 x 400 pixels (160,000 total)
Depth of Focus 3 - 50 mm 5 - 50 mm
Field of View 90° 120°
Length & Sku

1.0m - (RV-INT-EM10249)

2.0m - (RV-INT-EM10250)

3.0m - (RV-INT-EM10251)

1.0m - (RV-INT-EM10252)

2.0m - (RV-INT-EM10253)

3.0m - (RV-INT-EM10254)
G Series 3.0mm⌀ Models

G Series 3.0mm⌀ Models

Outer Diameter 3.0 mm 3.0 mm
Direction of View
Side View - 90° w/ Slip Ring for 360° Rotation
Side View - 90°
Illumination 5,000 lx White LED Illumination 5,000 lx White LED Illumination
Resolution 400 x 400 pixels (160,000 total) 400 x 400 pixels (160,000 total)
Depth of Focus 3 - 50 mm 3 - 50 mm
Field of View 120° 120°
Length & Sku

1.0m - (RV-INT-EM10327)

2.0m - (RV-INT-EM10328)

3.0m - (RV-INT-EM10329)

1.0m - (RV-INT-EM10255)

2.0m - (RV-INT-EM10256)

3.0m - (RV-INT-EM10257)
G Series 4.0mm⌀ & 4.5mm⌀ Models

G Series 4.0mm⌀ & 4.5mm⌀ Models

Outer Diameter 4.0 mm 4.5 mm 4.5 mm
Direction of View
Direct View (0°)
Side View (90°) w/ Slip Ring
for 360° Rotation
Side View (90°)
Illumination 8,000 lx White LED Illumination 8,000 lx White LED Illumination 8,000 lx White LED Illumination
Resolution 1280 x 720 pixels (1 MP) - HD
(921,600 total)		 1280 x 720 pixels (1 MP) - HD
(921,600 total)		 1280 x 720 pixels (1 MP) - HD
(921,600 total)
Depth of Focus 10 - 100 mm 3 - 50 mm 3 - 50 mm
Field of View 90° 90° 90°
Length & Sku

1.0m - (RV-INT-EM10258)

2.0m - (RV-INT-EM10259)

3.0m - (RV-INT-EM10260)

1.0m - (RV-INT-EM10330)

2.0m - (RV-INT-EM10331)

3.0m - (RV-INT-EM10332)

5.0m - (RV-INT-EM10590)

7.0m - (RV-INT-EM10591)

1.0m - (RV-INT-EM10261)

2.0m - (RV-INT-EM10262)

3.0m - (RV-INT-EM10263)
G Series 6.0mm⌀ Models

G Series 6.0mm⌀

Outer Diameter 6.0 mm
Direction of View
Dual View (90°)
Direct View (90°)
Side View (110°)
Illumination 5,500 lx (forward) and 6,000 lx (side) White LED Illumination 20,000 lx White LED 8,000 lx White LED Illumination
Resolution 625 x 720 pixels
(450,000 total)		 1280 x 720 pixels (1 MP) - HD
(921,600 total)		 625 x 720 pixels
(450,000 total)
Depth of Focus 10 - 100mm (forward) and 5-50mm (side) 10 - 100mm 7 - 80mm
Field of View 90° 90° 110°
Length & Sku

3.0m - (RV-INT-EM10320)

5.0m - (RV-INT-EM10321)

8.0m - (RV-INT-EM10322)

10.0m - (RV-INT-EM10323)

15.0m - (RV-INT-EM10324)

1.0m - (RV-INT-EM10264)

2.0m - (RV-INT-EM10265)

3.0m - (RV-INT-EM10266)

5.0m - (RV-INT-EM10325)

8.0m - (RV-INT-EM10326)

Technical Specifications

Technical Specifications

Yateks G Series Portable Video Borescopes Technical Specifications
Display: 5″ (12.7cm)IPS Full Viewing Angle LCD with touch screen
Screen resolution: 800(RGB)*480800(RGB)*480
High light compensation (HLC): 2 levels of glare suppression (see reflective surfaces)
Back light compensation(BLC): 2 levels of low light compensation
Image Sharpness Adjustment: 6 levels of image sharpness adjustment
Image exposure modes: Center exposure, spot exposure
Image Mirror & Flip Sections: 180° Mirror and Flip
Zoom: 4x digital zoom
Image Freeze: Available
Image Effects: Normal, B/W, Negative
White Balance: Auto White Balance, Manual White Balance
Language: Chinese, English, Spanish, French, German, Russian, Japanese, Korean
Take a photo: Photo save JPEG file, resolution: 1280×720 / 1920*1080
Video: Video save MP4 file, resolution: 1280×720 / 1920*1080
USB port: micro USB 2.0, charging interface DC 5V; can be connected to a computer to copy files
Data I/O port: HDMI
Internal storage: TF card (support up to 32GB )
Battery: Two 18650 lithium batteries(replaceable and chargeable)
Standby time: ≥6 h
Monitor working temperature: -10～50°
Probe working temperature: -20～60°
Relative humidity: 90%
Waterproof grade: Probe IP67

Kit Includes

  • G Series 5” HD touchscreen borescope monitor with controls
  • G Series Probe (Variant Specific) with Probe Cable (choose cable length)
  • Charger
  • Trolley Box for Easy Transport and Storage
  • Removeable Stand (for propping up monitor while using probe)
  • HDMI Cable
    • ***All probes are interchangeable with the borescope monitor and can be bought separately

Yateks products are fully supported in the USA by trained and experienced remote viewing engineers

Description Part # Saved Price Select Option Add to

1.2mm Borescopes
Yateks G Series Industrial Video Borescope - 1.2mm OD Direct View
Model #
RV-INT-EM10248M
Request Pricing

2.0 & 2.8mm Borescopes
Yateks G Series Industrial Video Borescope - 2.0mm OD Direct View
Model #
RV-INT-EM10249M
Request Pricing
Yateks G Series Industrial Video Borescope - 2.8mm OD Direct View
Model #
RV-INT-EM10252M
Request Pricing

3.0mm Borescopes
Yateks G Series Industrial Video Borescope - 3.0mm OD Side View with Slip Ring for 360° rotation
Model #
RV-INT-EM10327M
Request Pricing

4.0 & 4.5mm Borescopes
Yateks G Series Industrial Video Borescope - 4.0mm OD Side View - High Definition
Model #
RV-INT-EM10258M
Request Pricing
Yateks G Series Industrial Video Borescope - 4.5mm OD Side View with Slip Ring for 360° rotation- High Definition
Model #
RV-INT-EM10330M
Request Pricing
Yateks G Series Industrial Video Borescope - 4.5mm OD Side View - High Definition
Model #
RV-INT-EM10261M
Request Pricing

6.0mm Borescopes
Yateks G Series Industrial Video Borescope - 6.0mm OD Dual View
Model #
RV-INT-EM10320M
Request Pricing
Yateks G Series Industrial Video Borescope - 6.0mm OD Direct View - High Definition
Model #
RV-INT-EM10264M
Request Pricing
Yateks G Series Industrial Video Borescope - 6.0mm OD Side View
Model #
RV-INT-EM10325M
Request Pricing

Borescope Monitor Only
Yateks G Series Video Borescope Monitor - Compatible with all OD Yateks G Series video borescope probes RV-INT-EM10245
Request Pricing
