6.0, 6.2, 6.4, and 8.4mm iShot VX Borescopes

6.0, 6.2, 6.4, and 8.4mm iShot VX Borescopes

Overview

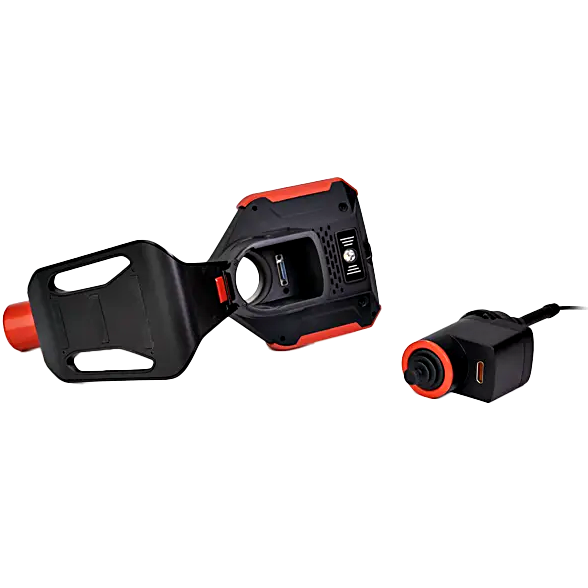

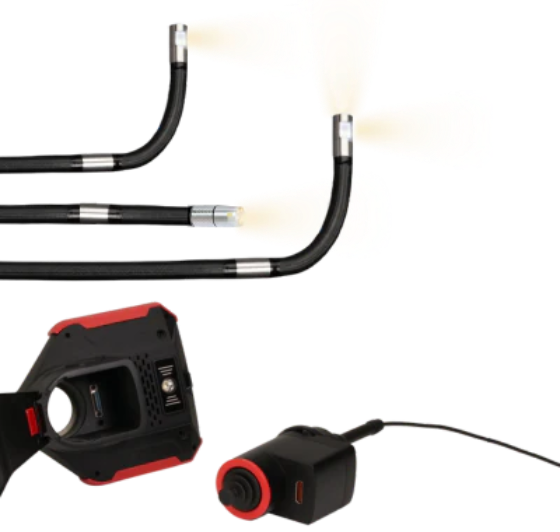

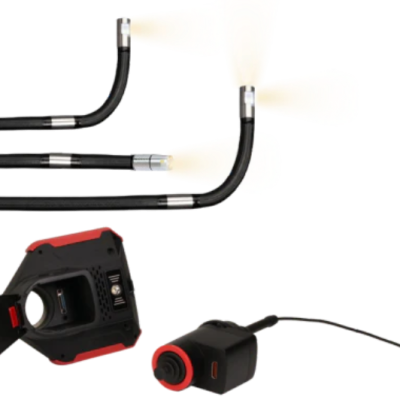

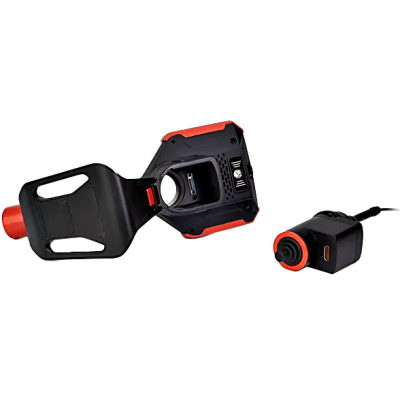

The 6.0, 6.2, 6.4, and 8.4mm iShot VX Borescopes feature Direct, Dual, and Side View options that are ideal for small diameter inspections. The direct (0°) view, non-articulating, and 2 and 4-way articulation options make this class of probes optimal for locating defects as the operator maneuvers into a part. All probes are interchangeable with the iShot VX Industrial Borescope handheld monitor.



 Available Models

• Handheld Ind. Borescope Monitor
• Full HD 5" Display
• LED Flashlight on back of Monitor
• Magnetic Base Stand
• Compatible with iShot Model VX Probes

Sku:

  • RV-INT-EM10671****Purchased separately from borescopes



• 6.0 mm Outer Diameter
• Direct View (0°)
• Fiber Illumination
• 4-Way Articulation
• Full HD
• Compatible with iShot Model VX Monitor

 • 6.0 mm Outer Diameter
• Side View (90°)
• LED Illumination
• 4-Way Articulation
• Full HD Resolution
• Compatible with iShot Model VX Monitor

• 6.2 mm Outer Diameter
• Direct View (0°)
• LED Illumination
• 4-Way Articulation
• Full HD Resolution
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11259S
  • 2.0m (6.56') RV-INT-EM11255S
  • 3.0m (9.84') RV-INT-EM11256S
  • 3.5m (11.5') RV-INT-EM11257S
  • 5.0m (16.4') RV-INT-EM11261S

Available Lengths & Sku:

  • 2.0m (6.56') RV-INT-EM11367S
  • 3.5m (9.84') RV-INT-EM11368S
  • 4.5m (14.8') RV-INT-EM11369S
  • 6.0m (19.7') RV-INT-EM11370S

Available Lengths & Sku:

  • 2.0m (6.56') RV-INT-EM11258S
  • 3.5m (11.5') RV-INT-EM11260S
  • 6.0m (19.7') RV-INT-EM11262S
  • 10m (32.8')  RV-INT-EM11262S



• 6.4 mm Outer Diameter
• Dual View (Side 90° & Direct 0°)
• LED Illumination
• 4-Way Articulation
• Full HD Resolution Options
• Compatible with iShot Model VX Monitor

 • 8.4 mm Outer Diameter
• Direct View (0°)
• LED Illumination
• 4-Way Articulation
• Full HD Resolution Options
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.5m (4.92') RV-INT-EM11360S
  • 2.0m (6.56') RV-INT-EM11270S
  • 2.0m (6.56') RV-INT-EM11252S
  • 3.5m (11.5') RV-INT-EM11271S
  • 5.0m (16.4') RV-INT-EM11361S
  • 6.5m (21.3') RV-INT-EM11272S

Available Lengths & Sku:

  • 2.0m (3.28') RV-INT-EM11363S
  • 3.5m (4.92') RV-INT-EM11364S
  • 6.0m (6.56') RV-INT-EM11365S
  • 10m  (9.84') RV-INT-EM11365S
  • 11m  (36.1') RV-INT-EM11365S

Applications

The iShot VX Industrial Borescope is ideal for examining internal cavities of components and systems. High Definition probe options makes it ideal for

  • Detecting foreign object debris (FOD)
  • Internal welds
  • Blockages
  • Part defects

Technical Specifications

iShot Model VX Industrial Borescope - 6.0 mm Direct View Fiber 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 6.0 mm Direct View Fiber 4-Way Articulation Technical Specifications
Diameter: 6.0 mm
Articulation: 4-Way
Articulation Range:

170° ± 10° (1.0 - 2.0 m)

150° ± 10° (3.0 -3.5 m)

70° ± 10° (5.0 m)
Direction of View: Direct View (Direct 0°)
Resolution: 1920 x 1080 pixels
Depth of Field: 5 mm~ infinity
Angle of View: >120°
Illumination Type: White Fiber
Illumination: 40,000 Lux
Ingress Rating: IP67
Application: The 6.0 mm size and liquid lens focus is an excellent, versatile option for component inspections that demand the highest image quality.
iShot Model VX Industrial Borescope - 6.0 mm Side View LED 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 6.0 mm Side View LED 4-Way Articulation Technical Specifications
Diameter: 6.0 mm
Articulation: 4-Way
Articulation Range:

150° ± 10° (2.0 m)

130° ± 10° (3.5 m)

120° ± 10° (4.5 m)

90° ± 10° (6.0 m)
Direction of View: Side View ( 90°)
Resolution: 1920 x 1080 pixels
Depth of Field:

Forward: 5 mm~50 mm

Side: 5 mm~50 mm
Angle of View: >80°
Illumination Type: White LEDs
Illumination: 40,000 Lux
Ingress Rating: IP67
Application: The 6.0 mm size and side view is an excellent, versatile option for component inspections that demand the highest image quality.
iShot Model VX Industrial Borescope - 6.2 mm Direct View LED 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 6.2 mm Direct View LED 4-Way Articulation Technical Specifications
Diameter: 6.2 mm
Articulation: 4-Way
Articulation Range:

150° ± 10° (2.0 m)

130° ± 10°  (3.5 m)

90° ± 10°  (6.0 m -10 m)
Direction of View: Direct View (0°)
Resolution: 1920 x 1080 pixels
Depth of Field: 10 mm~100 mm
Angle of View: >120°
Illumination Type: White LEDs
Illumination: 60,000 Lux
Ingress Rating: IP67
Application: The 6.2 mm size and 60,000 Lux illumination is an excellent, versatile option for component inspections that demand the highest image quality.
iShot Model VX Industrial Borescope - 6.4 mm Dual View LED 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 6.4 mm Dual View LED 4-Way Articulation Technical Specifications
Diameter: 6.4 mm
Articulation: 4-Way
Articulation Range:

150° ± 10° (1.5 m)

130° ± 10° (2.0 - 3.5 m)

70° ± 10° (5 - 6.5 m)
Direction of View: Dual View (Direct 0° & Side 90°)
Resolution:

1920 x 1080 pixel (1.5 - 5.0 m)

1280 x 720 (6.5 m)
Depth of Field:

Forward: 8 mm~80 mm

Side: 5 mm~25 mm
Angle of View:

>90° (1.5 - 5.0 m)

>120° (6.5 m)
Illumination Type: White LEDs
Illumination:

Forward: 40,000 Lux

Side: 20,000 Lux
Ingress Rating: IP67
Application: The dual 0° and 90° direction-of-views and the 6.4 mm diameter size make these probes a versatile options for component inspections that demand the highest image quality.
iShot Model VX Industrial Borescope - 8.4 mm Direct View LED 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 8.4 mm Direct View LED 4-Way Articulation Technical Specifications
Diameter: 8.4 mm
Articulation: 4-Way
Articulation Range:

160° ± 10° (2.0 m)

150° ± 10° (3.5 m)

120° ± 10° (6.0 m)

90° ± 10° (10 - 11m)
Direction of View: Direct View (0°)
Resolution:

1920 x 1080 pixel (2.0 - 10 m)

1280 x 720 pixel (11 m)
Depth of Field:

10 mm~100 mm (2.0 - 10 m)

25 mm~ infinity (11 m)
Angle of View: >120°
Illumination Type: White LEDs
Illumination: 70,000 Lux
Ingress Rating: IP67
Application: The 8.4 mm size and 70,000 Lux illumination is an excellent, versatile option for component inspections that demand the highest image quality.

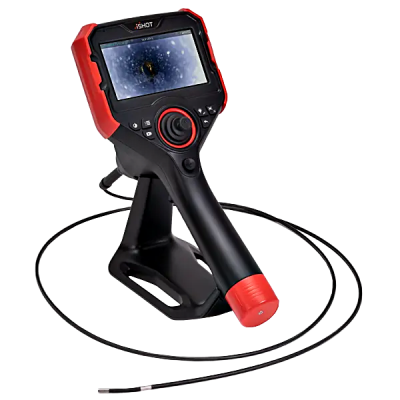

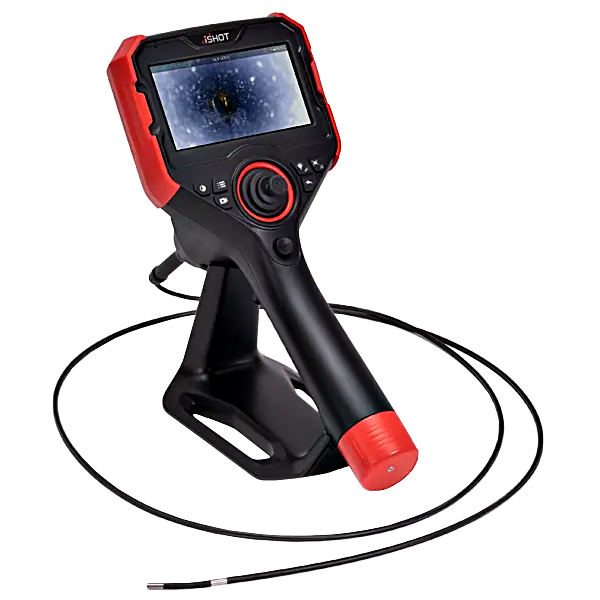

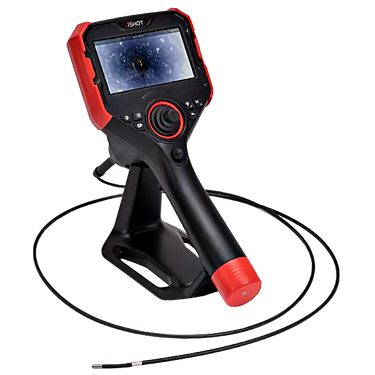

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes
Dimensions: 13.0 x 3.5 x 6.0 inches (330 x 90 x 150 mm)
Weight:  2.1 lbs (0.93kg)
Display: 5-inch 1920 x 1080 pixel, touchscreen display
Joystick Control: Compatible Motor Driven/ Manual
Menu Operation: Buttons + Touch Screen
Output Interface: SD/HDMI/ TYPE-C (charge) /mini USB /3.5mm
headphone jack
Compatibility: Compatible with all iShot Model VX probes (non-articulating, motorized or manual articulating, and FOSAR probes)
Software Settings: Time/ Language/ Energy Saving/ Sound/
Magnification/ SD Card Update, etc.
Features: White Balance/ Contrast/ Saturation/ Exposure/
Selected/ Gain/ Scale/ Watermark/Temperature
Display/ Split view/ Contrast Measurement
Temperature Sensor: High-temperature alarm
Working Temperature: -4°~ 122°F (-20°~50°C)

Note: Monitor and Probes are purchased separately.

Description Part # Saved Price Select Option Add to
iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes RV-INT-EM10671
Request Pricing
iShot Model VX Industrial Borescope - 6.0 mm Direct View Fiber 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-RV-INT-EM11259S-M
Request Pricing
iShot Model VX Industrial Borescope - 6.0 mm Side View LED 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-RV-INT-EM11367SM
Request Pricing
iShot Model VX Industrial Borescope - 6.2 mm Direct View LED 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-RV-INT-EM11367SM-1
Request Pricing
iShot Model VX Industrial Borescope - 6.4 mm Dual View LED 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-RV-INT-EM11367SM-1-1
Request Pricing
iShot Model VX Industrial Borescope - 8.4 mm Direct View LED 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-EM11363SM
Request Pricing
