3.9mm iShot VX Borescopes

3.9mm iShot VX Borescopes

Overview

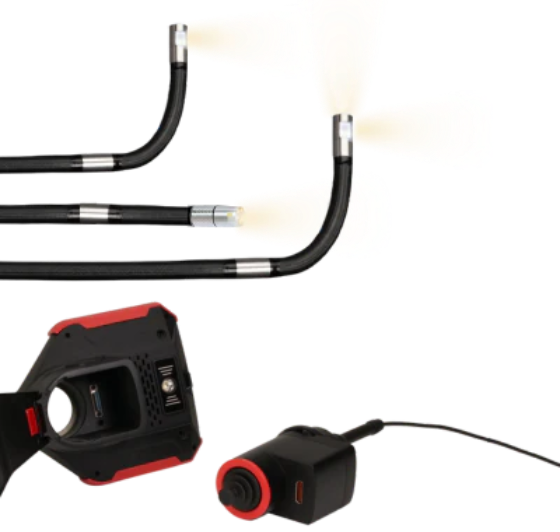

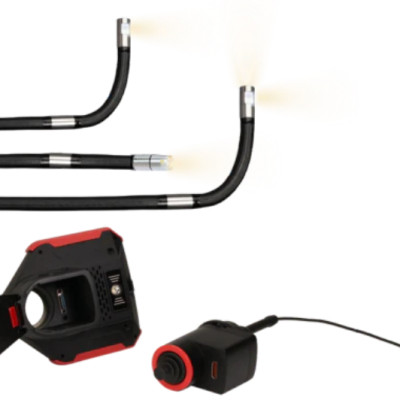

The 3.9mm iShot VX Borescopes feature Direct, Dual, and Side View options that are ideal for small diameter inspections. The direct (0°) view, non-articulating, and 2 and 4-way articulation options make this class of probes optimal for locating defects as the operator maneuvers into a part. All probes are interchangeable with the iShot VX Industrial Borescope handheld monitor.



Available Models

• Handheld Ind. Borescope Monitor
• Full HD 5" Display
• LED Flashlight on back of Monitor
• Magnetic Base Stand
• Compatible with iShot Model VX Probes

Sku:

  • RV-INT-EM10671****Purchased separately from borescopes



• 3.9 mm Outer Diameter
• Direct View (0°)
• 4-Way Motorized and Manual Articulation
• White Fiber Illumination
• HD Resolution
• Compatible with iShot Model VX Monitor

• 3.9 mm Outer Diameter
• Side View (90°)
• 4-Way Motorized and Manual Articulation
• White LED Illumination
• HD Resolution
• Compatible with iShot Model VX Monitor

• 3.9 mm Outer Diameter
• Dual View ( 0° & 90°)
• 4-Way Motorized and Manual Articulation
• White LED Illumination
• HD Resolution
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11385S
  • 2.0m (6.56') RV-INT-EM11251S
  • 3.0m (9.84') RV-INT-EM11254S

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11616S
  • 1.5m (4.92') RV-INT-EM11377S
  • 2.0m (6.56') RV-INT-EM11379S
  • 3.0m (9.84') RV-INT-EM11379S
  • 5.0m (16.4') RV-INT-EM11383S
  • 6.5m (21.3') RV-INT-EM11384S

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11371S
  • 1.5m (4.92') RV-INT-EM11372S
  • 2.0m (6.56') RV-INT-EM11267S
  • 3.0m (9.84') RV-INT-EM11374S

Applications

The iShot VX Industrial Borescope is ideal for examining internal cavities of components and systems. High Definition probe options makes it ideal for

  • Detecting foreign object debris (FOD)
  • Internal welds
  • Blockages
  • Part defects

Technical Specifications

iShot Model VX Industrial Borescope - 3.9 mm Direct View Fiber 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 3.9 mm Direct View Fiber 4-Way Articulation Technical Specifications
Diameter: 3.9 mm
Articulation: 4-Way
Articulation Range:

140° ± 10° (1.0 m - 2.0 m)

110° ± 10° (3.0 m)

Direction of View: Direct View (Direct 0°)
Resolution: 700 x 700 pixels
Depth of Field: 15 mm~ infinity
Angle of View: >90°
Illumination Type: White Fiber
Illumination: 60,000 Lux
Ingress Rating: IP67
Application: The 3.9 mm size, IP67 rating, and bright 60,000 lux white light illumination make this video borescope an excellent HD option for challenging component inspections that demand the highest image quality.
iShot Model VX Industrial Borescope - 3.9 mm Side View LED 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 3.9 mm Side View LED 4-Way Articulation Technical Specifications
Diameter: 3.9 mm
Articulation: 4-Way
Articulation Range:

170° ± 10° (1.0 m)

140° ± 10° (2.0 m)

110° ± 10° (3.0 m - 6.5 m)

Direction of View: Side View (90°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~25 mm
Angle of View: >120°
Illumination Type: White LEDs
Illumination: 18,000 Lux
Ingress Rating: IP67
Application: The 3.9 mm size, IP67 rating, and bright 18,000 lux white light illumination make this video borescope an excellent HD option for challenging component inspections that demand the highest image quality.
iShot Model VX Industrial Borescope - 3.9 mm Dual View LED 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 3.9 mm Dual View LED 4-Way Articulation Technical Specifications
Diameter: 3.9 mm
Articulation: 4-Way
Articulation Range:

170° ± 10° (1.0 m)

140° ± 10° (2.0 m)

110° ± 10° (3.0 - 6.0 m)

Direction of View: Dual View (Direct 0° & Side 90°)
Resolution: 700 x 700 pixels
Depth of Field:

Forward: 8 mm~80 mm

Side: 5 mm~25 mm

Angle of View: >120°
Illumination Type: White LEDs
Illumination: 18,000 Lux
Ingress Rating: IP67
Application: The dual view makes this system optimal for locating defects inside parts as you maneuver into a part while also inspecting interior side walls. With 4-way articulation ensures scope ensures maximum visual inspection coverage.

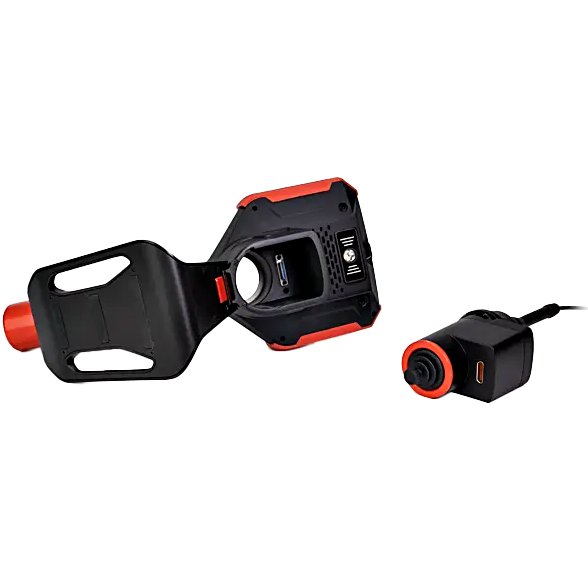

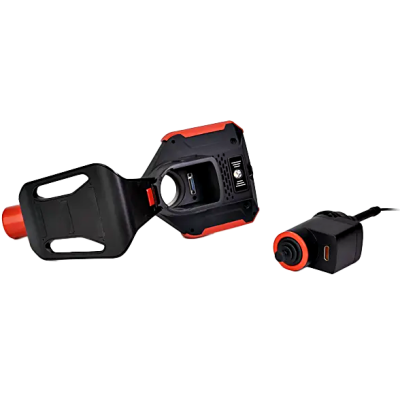

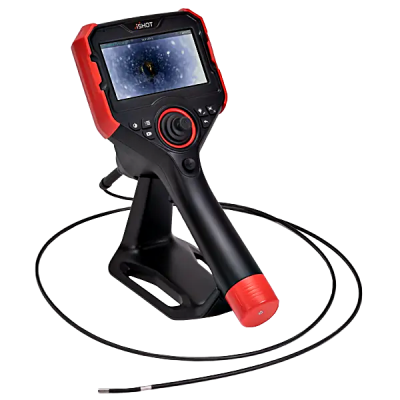

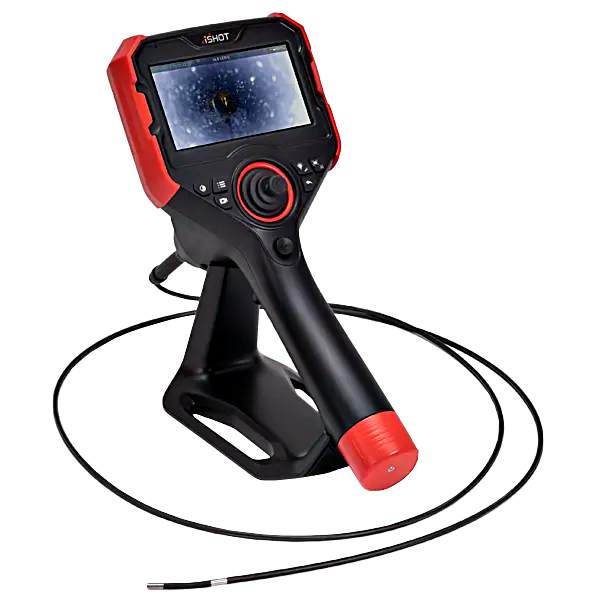

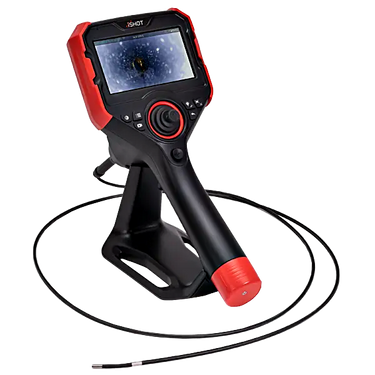

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes
Dimensions: 13.0 x 3.5 x 6.0 inches (330 x 90 x 150 mm)
Weight:  2.1 lbs (0.93kg)
Display: 5-inch 1920 x 1080 pixel, touchscreen display
Joystick Control: Compatible Motor Driven/ Manual
Menu Operation: Buttons + Touch Screen
Output Interface: SD/HDMI/ TYPE-C (charge) /mini USB /3.5mm
headphone jack
Compatibility: Compatible with all iShot Model VX probes (non-articulating, motorized or manual articulating, and FOSAR probes)
Software Settings: Time/ Language/ Energy Saving/ Sound/
Magnification/ SD Card Update, etc.
Features: White Balance/ Contrast/ Saturation/ Exposure/
Selected/ Gain/ Scale/ Watermark/Temperature
Display/ Split view/ Contrast Measurement
Temperature Sensor: High-temperature alarm
Working Temperature: -4°~ 122°F (-20°~50°C)

Note: Monitor and Probes are purchased separately.

Description Part # Saved Price Select Option Add to
iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes RV-INT-EM10671 Request Pricing
iShot Model VX Industrial Borescope - 3.9 mm Direct View Fiber 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-EM11385S-M Request Pricing
iShot Model VX Industrial Borescope - 3.9 mm Side View LED 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-EM11616S-M Request Pricing
iShot Model VX Industrial Borescope- 3.9 mmDual View LED 4-Way (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-EM11371S-M Request Pricing
