Overview

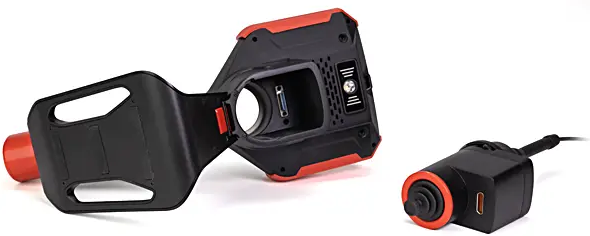

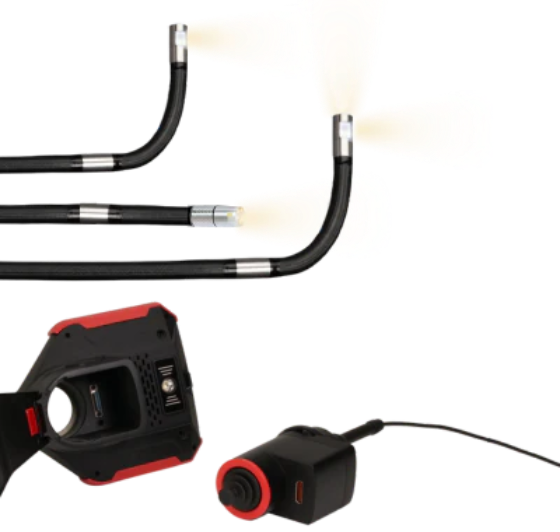

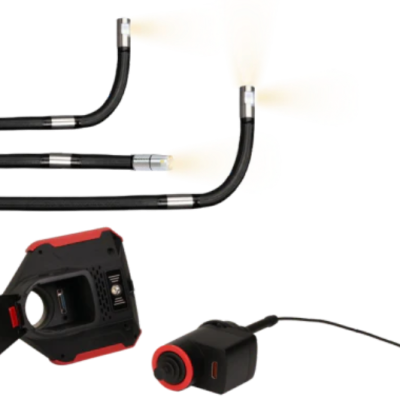

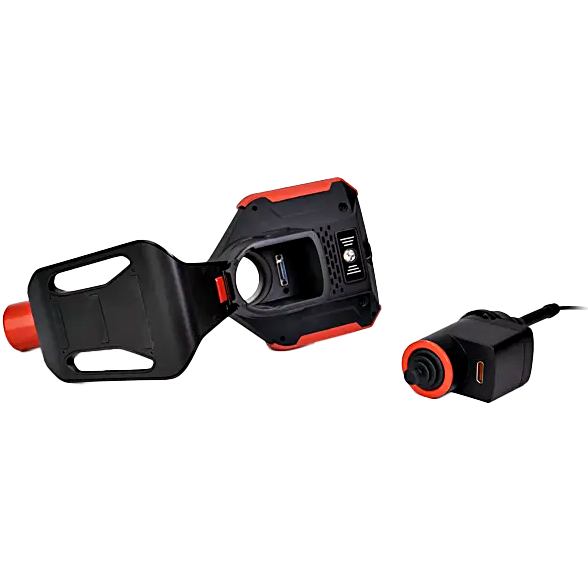

The 2.0, 2.4, and 2.8mm iShot VX Borescopes features Direct, Dual, and Side View Fiber Probes that are ideal for small diameter inspections. The 2 and 4-way articulation options ensure you will find a scope that fits your exact needs. There are more probe-specific features in this class that ensure you will find the exact probe for the job. All probes are interchangeable with the iShot VX Industrial Borescope handheld monitor.



 Available Models

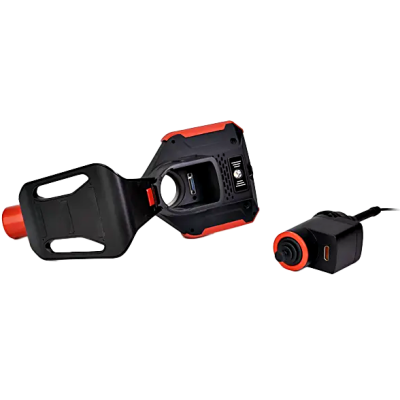

• Handheld Ind. Borescope Monitor
• Full HD 5" Display
• LED Flashlight on back of Monitor
• Magnetic Base Stand
• Compatible with iShot Model VX Probes

Sku:

  • RV-INT-EM10671****Purchased separately from borescopes



• 2.0 mm Outer Diameter
• Direct View (0°)
• 2-Way Motorized or Manual Articulation
• White LED Illumination
• Compatible with iShot Model VX Monitor

• 2.0 mm Outer Diameter
• Side View (90°)
• 2-Way Motorized or Manual Articulation
• White LED Illumination
• Compatible with iShot Model VX Monitor

• 2.4 mm Outer Diameter
• Direct View (0°)
• 2-Way Motorized and Manual Articulation
• White Fiber Illumination
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11600S
  • 1.5m (4.92') RV-INT-EM11601S
  • 2.0m (6.56') RV-INT-EM11602S
  • 3.0m (9.84') RV-INT-EM11603S

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11604S
  • 1.5m (4.92') RV-INT-EM11605S
  • 2.0m (6.56') RV-INT-EM11606S
  • 3.0m (9.84') RV-INT-EM11607S

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11611S
  • 1.5m (4.92') RV-INT-EM11612S
  • 2.0m (6.56') RV-INT-EM11613S
  • 3.0m (9.84') RV-INT-EM11614S



• 2.8 mm Outer Diameter
• Direct View (0°)
• 4-Way Motorized and Manual Articulation
• White Fiber Illumination
• Compatible with iShot Model VX Monitor

• 2.8 mm Outer Diameter
• Side View (90°)
• 4-Way Motorized and Manual Articulation
• White LED Illumination
• Compatible with iShot Model VX Monitor

• 3.9 mm Outer Diameter
• Dual View (0° & 90°)
• 4-Way Motorized and Manual Articulation
• White LED Illumination
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11615S
  • 1.5m (4.92') RV-INT-EM11250S
  • 2.0m (6.56') RV-INT-EM11252S
  • 3.0m (9.84') RV-INT-EM11253S

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11392S
  • 1.5m (4.92') RV-INT-EM11393S
  • 2.0m (6.56') RV-INT-EM11394S
  • 3.0m (9.84') RV-INT-EM11395S

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11386S
  • 1.5m (4.92') RV-INT-EM11265S
  • 2.0m (6.56') RV-INT-EM11266S
  • 3.0m (9.84') RV-INT-EM11387S

Applications

The iShot VX Industrial Borescope is ideal for examining internal cavities of components and systems. High Definition probe options makes it ideal for

  • Detecting foreign object debris (FOD)
  • Internal welds
  • Blockages
  • Part defects

Technical Specifications

iShot Model VX Industrial Borescope - 2.0 mm Direct View LED Illumination 2-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 2.0 mm Direct View LED Illumination 2-Way Articulation Technical Specifications
Diameter: 2.0 mm
Articulation: 2-Way
Articulation Range:

170° ± 10° (1, 1.5, & 2 m)

110° ± 10° (3 m)

Direction of View: Direct View (Direct 0°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~50 mm
Angle of View: >120°
Illumination Type: White LEDs
Illumination: 3,000 Lux
Ingress Rating: IP64
Application: The direct (0°) direction of view and 2-way articulation makes this probe optimal for locating defects inside parts as the operator maneuvers into a part.
iShot Model VX Industrial Borescope - 2.0 mm Side View LED Illumination 2-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 2.0 mm Side View LED Illumination 2-Way Articulation Technical Specifications
Diameter: 2.0 mm
Articulation: 2-Way
Articulation Range:

170° ± 10° (1, 1.5, & 2 m)

110° ± 10° (3 m)

Direction of View: Side View ( Side 90°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~50 mm
Angle of View: >90°
Illumination Type: White LEDs
Illumination: 3,000 Lux
Ingress Rating: IP64
Application: The 90° direction of view makes this system optimal for locating defects on interior walls of pipes or looking at interior orbital welds.
iShot Model VX Industrial Borescope - 2.4 mm Direct View Fiber Illumination 2-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 2.4 mm Direct View Fiber Illumination 2-Way Articulation Technical Specifications
Diameter: 2.4 mm
Articulation: 2-Way
Articulation Range:

170° ± 10° (1, & 1.5 m )

150°±10° (2 m)

130°±10° (3 m)

Direction of View: Direct View (Direct 0°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~50 mm
Angle of View: >120°
Illumination Type: White Fiber Illumination
Illumination: 20,000 Lux
Ingress Rating: IP64
Application: The 0° direction of view makes this system optimal for locating defects inside parts as you maneuver into a part.
iShot Model VX Industrial Borescope - 2.8 mm Direct View Fiber 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 2.8 mm Direct View Fiber 4-Way Articulation Technical Specifications
Diameter: 2.8 mm
Articulation: 4-Way
Articulation Range:

170° ± 10° (1.0 - 2.0 m)

150° ± 10° (3.0 m)

Direction of View: Direct View (0°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~50 mm
Angle of View: >120°
Illumination Type: White Fiber Illumination
Illumination: 20,000 Lux
Ingress Rating: IP64
Application: The 0° direction of view makes this system optimal for locating defects inside parts as you maneuver into a part. The 4-way articulation ensures maximum visual coverage when inspecting system components.
iShot Model VX Industrial Borescope - 2.8 mm Side View LED Illumination 4-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 2.8 mm Side View LED Illumination 4-Way Articulation Technical Specifications
Diameter: 2.8 mm
Articulation: 4-Way
Articulation Range:

170° ± 10° (1.0 - 2.0 m)

150° ± 10° (3.0 m)

Direction of View: Direct View (0°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~50 mm
Angle of View: >120°
Illumination Type: White LEDs
Illumination: 5,000 Lux
Ingress Rating: IP64
Application: The 90° direction of view makes this system optimal for locating defects on interior walls of components. The 4-way articulation ensures maximum visual coverage when inspecting system components.
iShot Model VX Industrial Borescope - 2.8 mm Dual View LED 4-Way Technical Specifications

iShot Model VX Industrial Borescope - 2.8 mm Dual View LED 4-Way Technical Specifications
Diameter: 2.8 mm
Articulation: 4-Way
Articulation Range:

170° ± 10° (1.0 - 2.0 m)

150° ± 10° (3.0 m)

Direction of View: Dual View (Direct 0° & Side 90°)
Resolution: 700 x 700 pixels
Depth of Field:

Forward: 5 mm~50 mm

Side: 5 mm~50 mm

Angle of View: >120°
Illumination Type: White LEDs
Illumination:

Forward: 6,000 Lux

Side: 3,000 Lux

Ingress Rating: IP64
Application: The dual view makes this system optimal for locating defects inside parts as you maneuver into a part while also inspecting interior side walls. With 4-way articulation this scope ensures maximum visual inspection coverage.

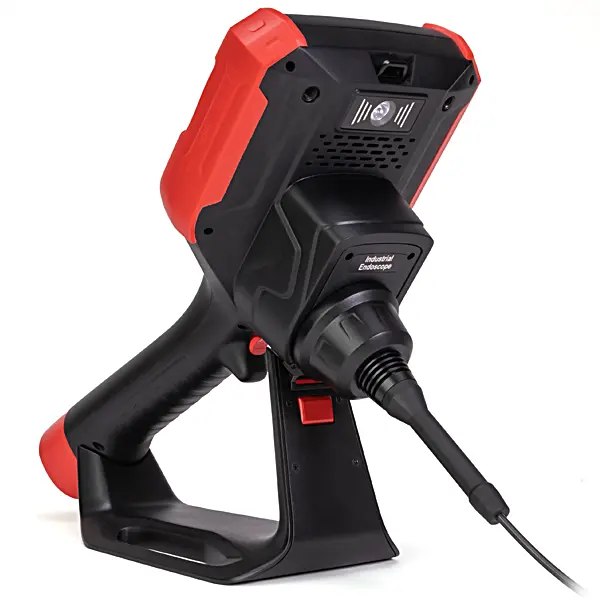

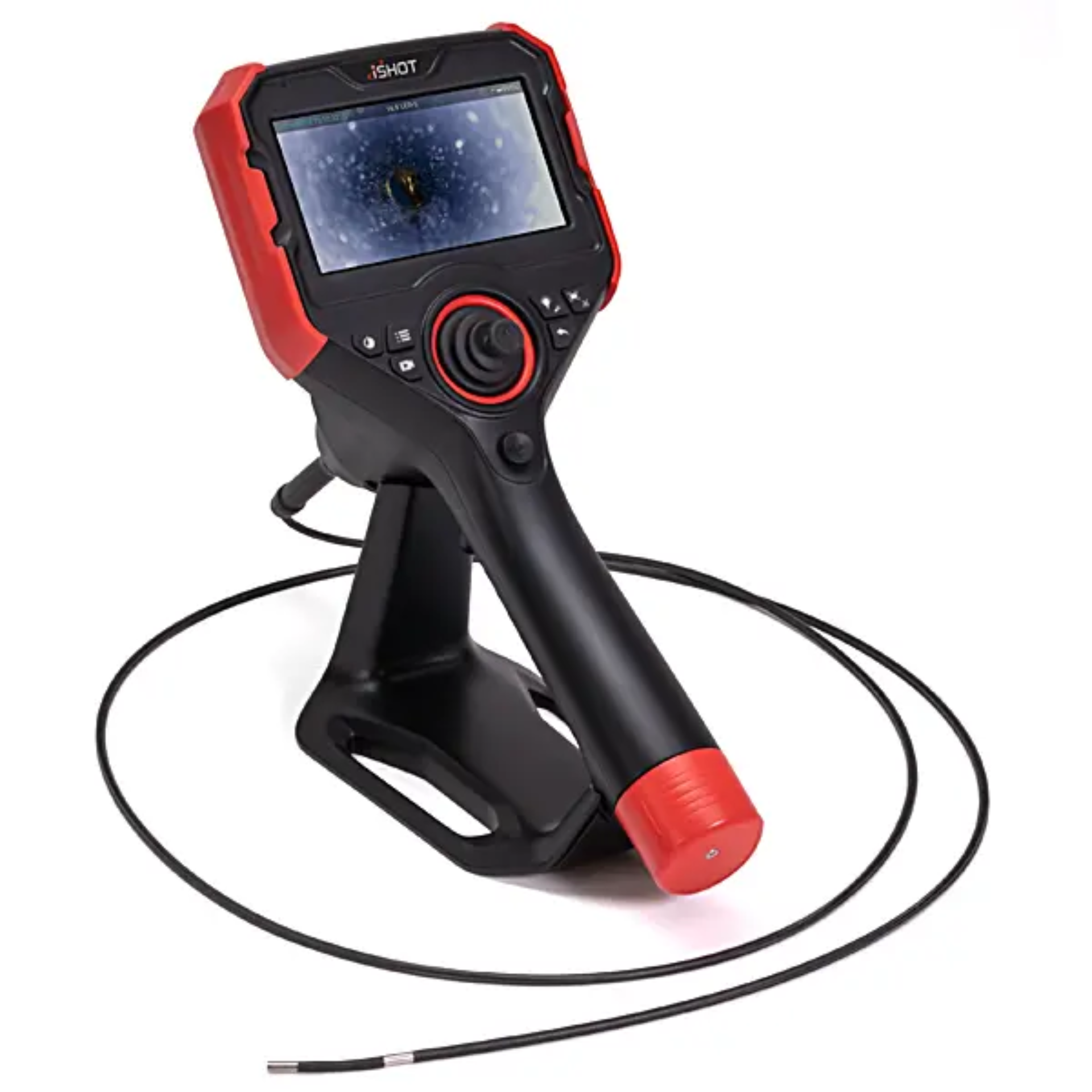

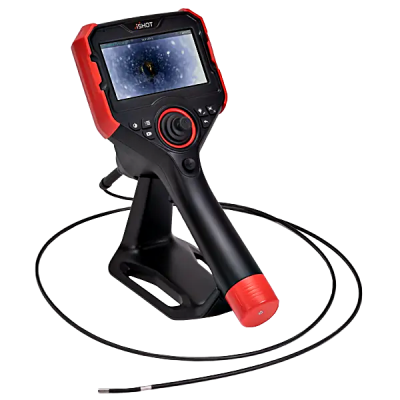

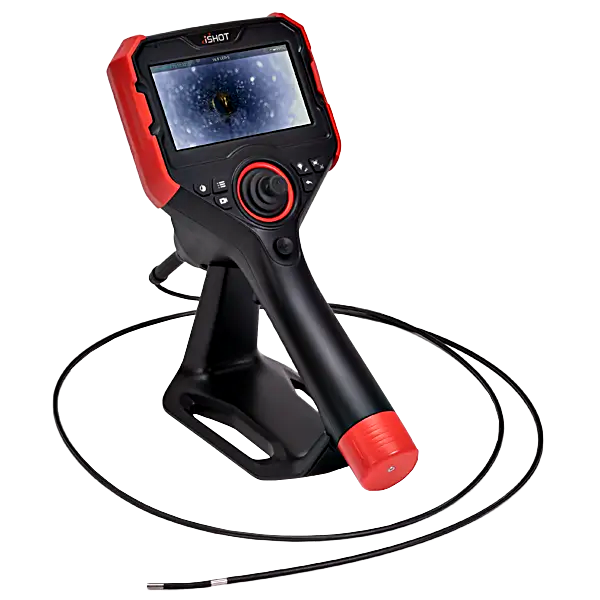

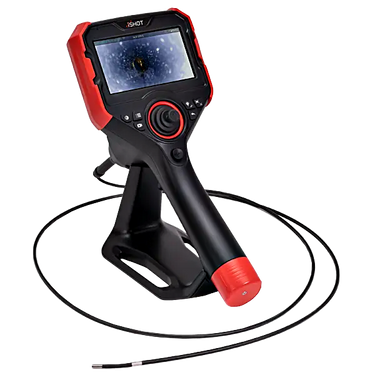

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes
Dimensions: 13.0 x 3.5 x 6.0 inches (330 x 90 x 150 mm)
Weight:  2.1 lbs (0.93kg)
Display: 5-inch 1920 x 1080 pixel, touchscreen display
Joystick Control: Compatible Motor Driven/ Manual
Menu Operation: Buttons + Touch Screen
Output Interface: SD/HDMI/ TYPE-C (charge) /mini USB /3.5mm
headphone jack
Compatibility: Compatible with all iShot Model VX probes (non-articulating, motorized or manual articulating, and FOSAR probes)
Software Settings: Time/ Language/ Energy Saving/ Sound/
Magnification/ SD Card Update, etc.
Features: White Balance/ Contrast/ Saturation/ Exposure/
Selected/ Gain/ Scale/ Watermark/Temperature
Display/ Split view/ Contrast Measurement
Temperature Sensor: High-temperature alarm
Working Temperature: -4°~ 122°F (-20°~50°C)

Note: Monitor and Probes are purchased separately.
