0.85, 1.0, 1.6, and 1.8mm iShot VX Borescopes

0.85, 1.0, 1.6, and 1.8mm iShot VX Borescopes

Overview

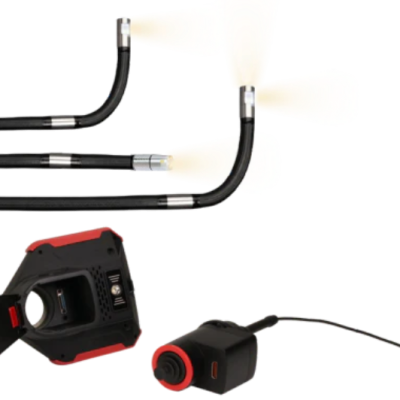

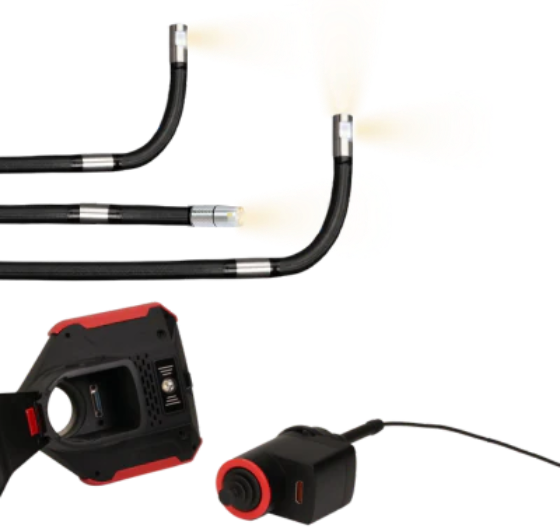

The 0.85, 1.0, 1.6, and 1.8mm iShot VX Borescopes are Direct View Fiber Probes that are ideal for small diameter inspections. Non-articulating and 2-way articulation options make this class of probes optimal for locating defects as the operator maneuvers into a part. All probes are interchangeable with the iShot VX Industrial Borescope handheld monitor.

 Available Models

• Handheld Ind. Borescope Monitor
• Full HD 5" Display
• LED Flashlight on back of Monitor
• Magnetic Base Stand
• Compatible with iShot Model VX Probes

Sku:

  • RV-INT-EM10671****Purchased separately from borescopes



• 0.85 mm Outer Diameter
• Direct View (0°)
• White Fiber Illumination
• Compatible with iShot Model VX Monitor

 • 1.0 mm Outer Diameter
• Direct View (0°)
• White Fiber Illumination
• Compatible with iShot Model VX Monitor

• 1.6 mm Outer Diameter
• Direct View (0°)
• White Fiber Illumination
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM10465N

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11396N
  • 1.5m (4.92') RV-INT-EM11397N
  • 2.0m (6.56') RV-INT-EM11399N

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11608N
  • 1.5m (4.92') RV-INT-EM11609N
  • 2.0m (6.56') RV-INT-EM11610N



• 1.8 mm Outer Diameter
• Direct View (0°)
• 2-Way Motorized or Manual Articulation
• White LED Illumination
• Compatible with iShot Model VX Monitor

Available Lengths & Sku:

  • 1.0m (3.28') RV-INT-EM11527S
  • 1.5m (4.92') RV-INT-EM11528S
  • 2.0m (6.56') RV-INT-EM11617S

Applications

The iShot VX Industrial Borescope is ideal for examining internal cavities of components and systems. High Definition probe options makes it ideal for

  • Detecting foreign object debris (FOD)
  • Internal welds
  • Blockages
  • Part defects

Technical Specifications

iShot Model VX Industrial Borescope - 0.85 mm Direct View Fiber Illumination Probe

iShot Model VX Industrial Borescope - 0.85 mm Direct View Fiber Illumination Probe Technical Specifications
Diameter: 0.85 mm
Articulation: None
Direction of View: Direct View (Direct 0° )
Resolution: 400 x 400 pixels
Depth of Field: 0.5 mm~3 mm
Angle of View: >120°
Illumination Type: White Fiber
Illumination: 3,000 Lux
Ingress Rating: IP64
Application: The direct (0°) direction of view makes this probe optimal for locating defects inside parts as the operator maneuvers into a part.
iShot Model VX Industrial Borescope - 1.0 mm Direct View Fiber Illumination Probe Technical Specifications

iShot Model VX Industrial Borescope - 1.0 mm Direct View Fiber Illumination Probe Technical Specifications
Diameter: 1.0 mm
Articulation: None
Direction of View: Direct View (Direct 0° )
Resolution: 400 x 400 pixels
Depth of Field: 3 mm~30 mm
Angle of View: >120°
Illumination Type: White Fiber
Illumination: 15,000 Lux
Ingress Rating: IP64
Application: The direct (0°) direction of view makes this probe optimal for locating defects inside parts as the operator maneuvers into a part.
iShot Model VX Industrial Borescope - 1.6 mm Direct View Fiber Illumination Technical Specifications

iShot Model VX Industrial Borescope - 1.6 mm Direct View Fiber Illumination Technical Specifications
Diameter: 1.6 mm
Articulation: None
Direction of View: Direct View (Direct 0°)
Resolution: 400 x 400 pixels
Depth of Field: 3 mm~30 mm
Angle of View: >120°
Illumination Type: White Fiber
Illumination: 15,000 Lux
Ingress Rating: IP64
Application: The direct (0°) direction of view makes this probe optimal for locating defects inside parts as the operator maneuvers into a part.
iShot Model VX Industrial Borescope - 1.8 mm Direct View LED Illumination 2-Way Articulation Technical Specifications

iShot Model VX Industrial Borescope - 1.8 mm Direct View LED Illumination 2-Way Articulation Technical Specifications
Diameter: 1.8 mm
Articulation: 2-Way
Articulation Range: 170° ± 10° (1, 1.5, & 2 m)
Direction of View: Direct View (Direct 0°)
Resolution: 700 x 700 pixels
Depth of Field: 5 mm~50 mm
Angle of View: >120°
Illumination Type: White LEDs
Illumination: 3,000 Lux
Ingress Rating: IP64
Application: The direct (0°) direction of view and 2-way articulation makes this probe optimal for locating defects inside parts as the operator maneuvers into a part.

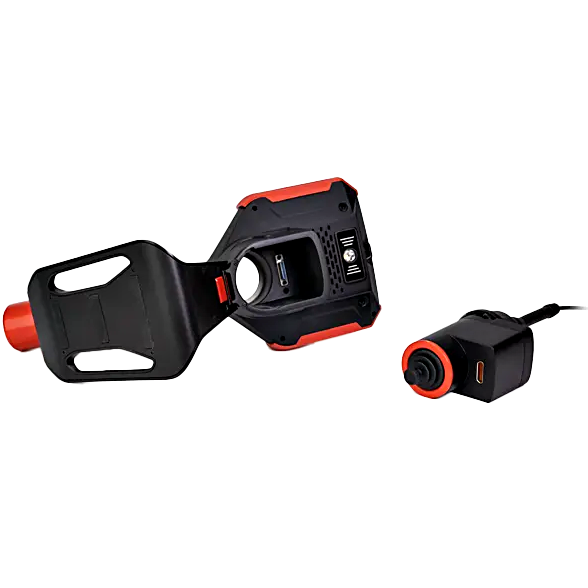

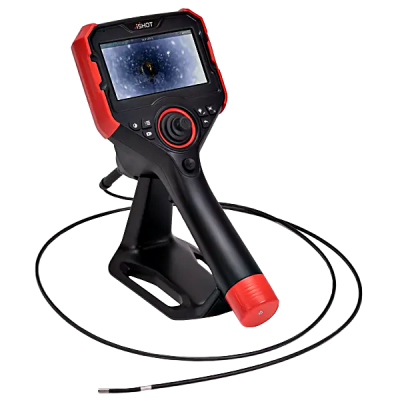

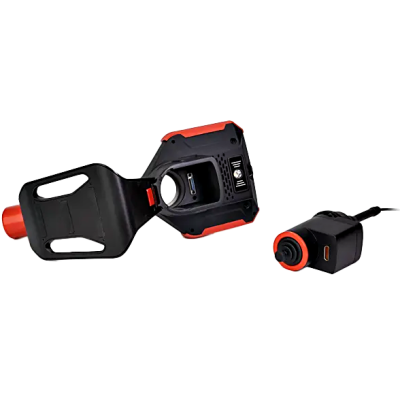

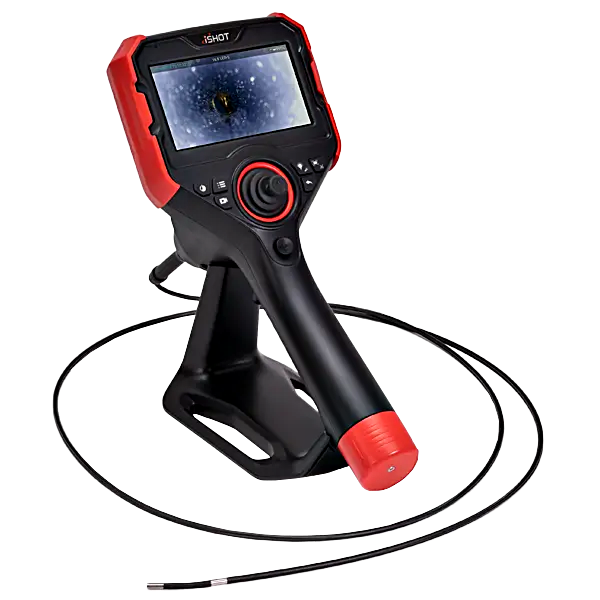

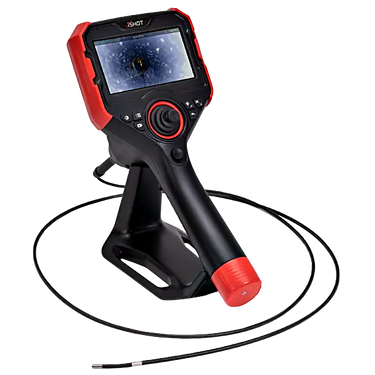

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes

iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes
Dimensions: 13.0 x 3.5 x 6.0 inches (330 x 90 x 150 mm)
Weight:  2.1 lbs (0.93kg)
Display: 5-inch 1920 x 1080 pixel, touchscreen display
Joystick Control: Compatible Motor Driven/ Manual
Menu Operation: Buttons + Touch Screen
Output Interface: SD/HDMI/ TYPE-C (charge) /mini USB /3.5mm
headphone jack
Compatibility: Compatible with all iShot Model VX probes (non-articulating, motorized or manual articulating, and FOSAR probes)
Software Settings: Time/ Language/ Energy Saving/ Sound/
Magnification/ SD Card Update, etc.
Features: White Balance/ Contrast/ Saturation/ Exposure/
Selected/ Gain/ Scale/ Watermark/Temperature
Display/ Split view/ Contrast Measurement
Temperature Sensor: High-temperature alarm
Working Temperature: -4°~ 122°F (-20°~50°C)

Note: Monitor and Probes are purchased separately.

Description Part # Saved Price Select Option Add to
iShot Model VX Industrial Borescope Handheld Monitor - Compatible with all iShot VX Borescopes RV-INT-EM10671
Request Pricing
iShot Model VX Industrial Borescope - 0.85 mm Direct View Fiber Illumination Probe - 1.0m (3.28') RV-INT-EM10465N
Request Pricing
iShot Model VX Industrial Borescope - 1.0 mm Direct View Fiber Illumination Probe (choose Length)
Model #
RV-INT-EM11396N-M
Request Pricing
iShot Model VX Industrial Borescope - 1.6 mm Direct View Fiber Illumination (choose Length)
Model #
RV-INT-EM11608N-M
Request Pricing
iShot Model VX Industrial Borescope - 1.8 mm Direct View LED Illumination 2-Way Articulation (choose Length, Motorized or Manual Articulation)
Model #
RV-INT-EM11527S-M
Request Pricing
