| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| Wohler VE 500 HD Borescope | RV-WO-11390 |
|
Request Pricing | ||

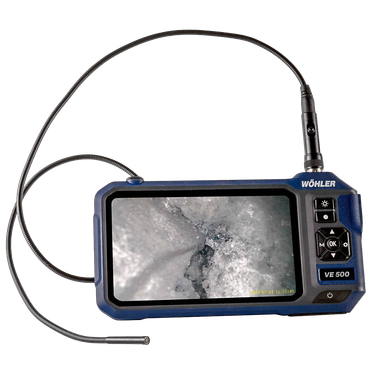

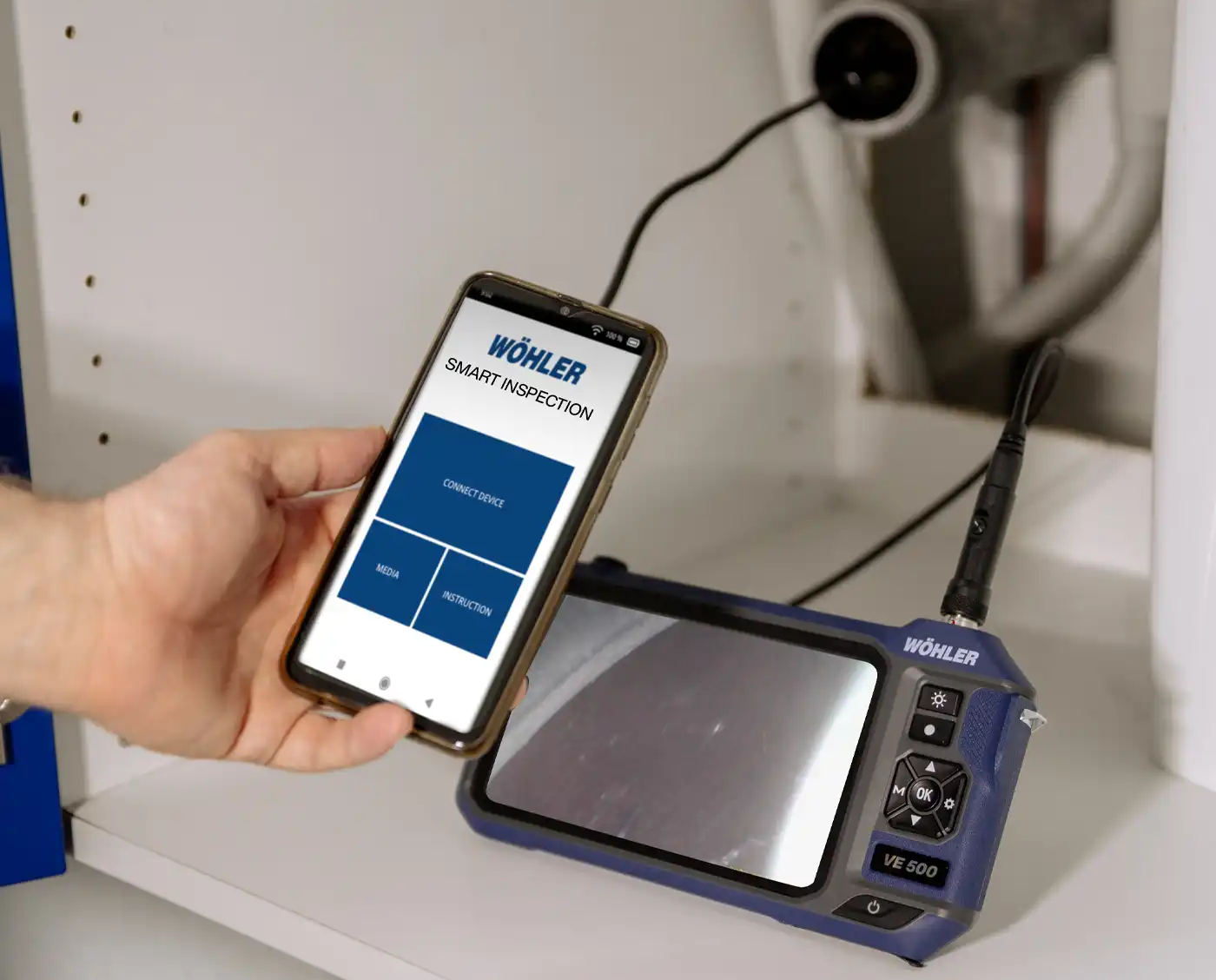

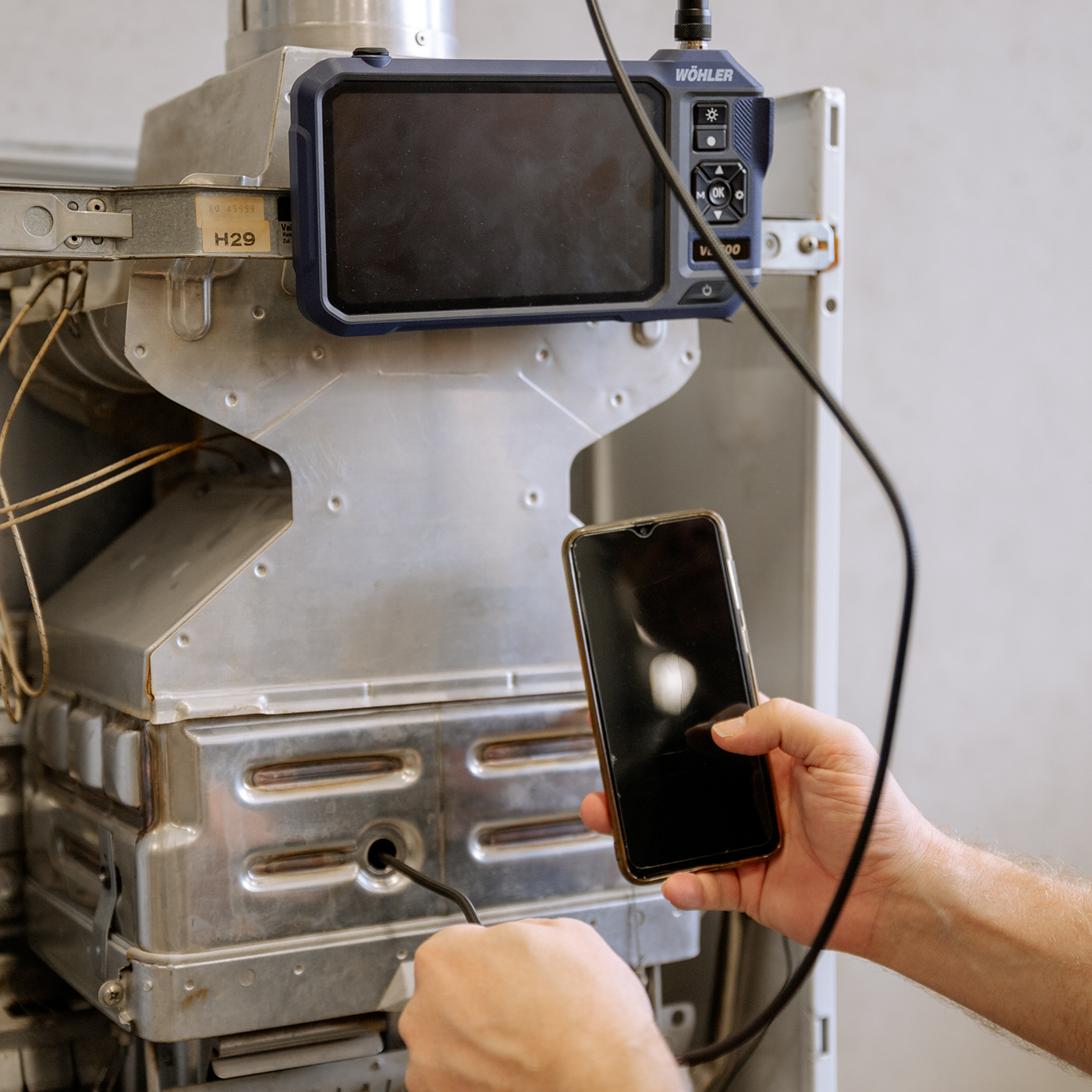

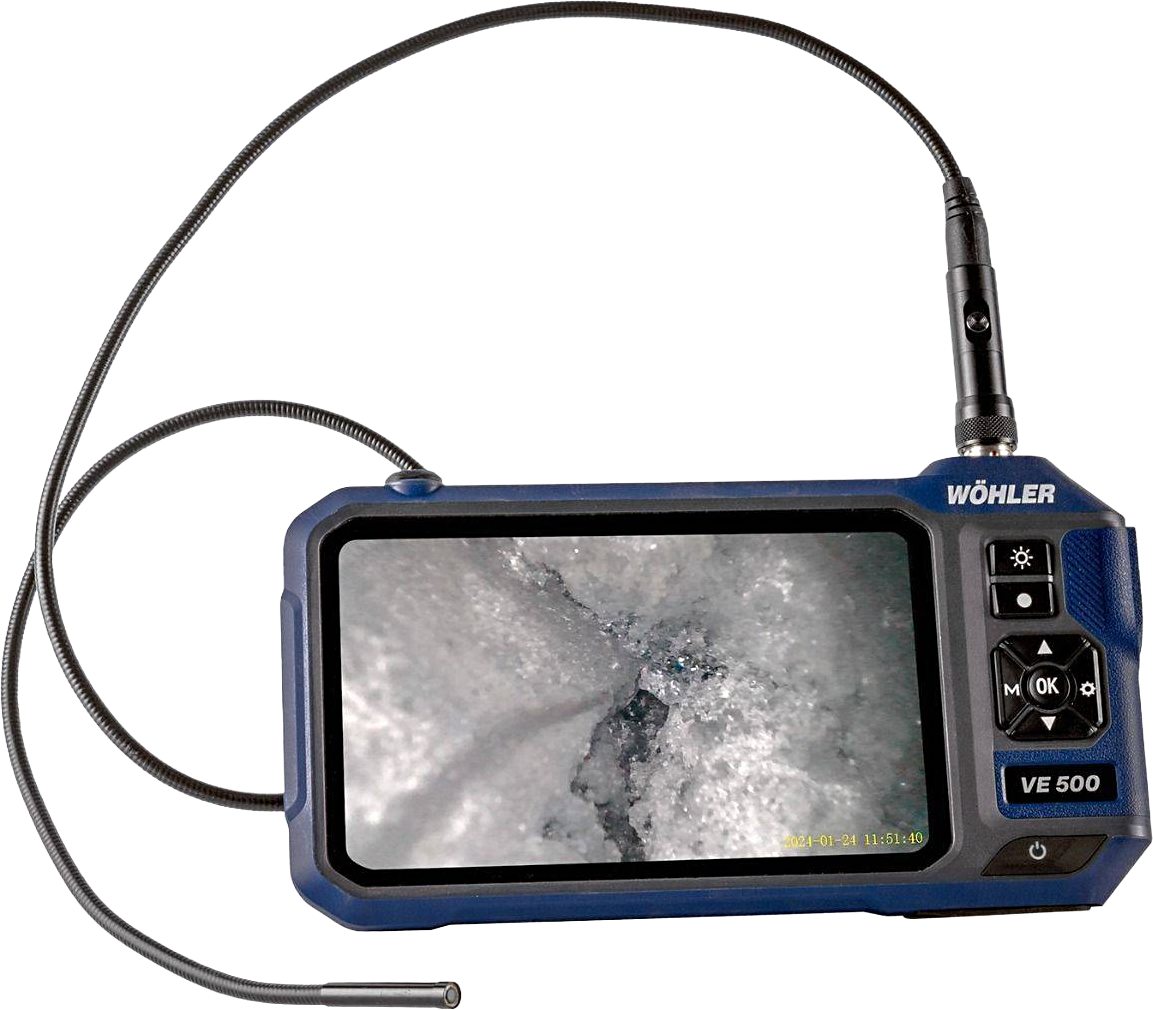

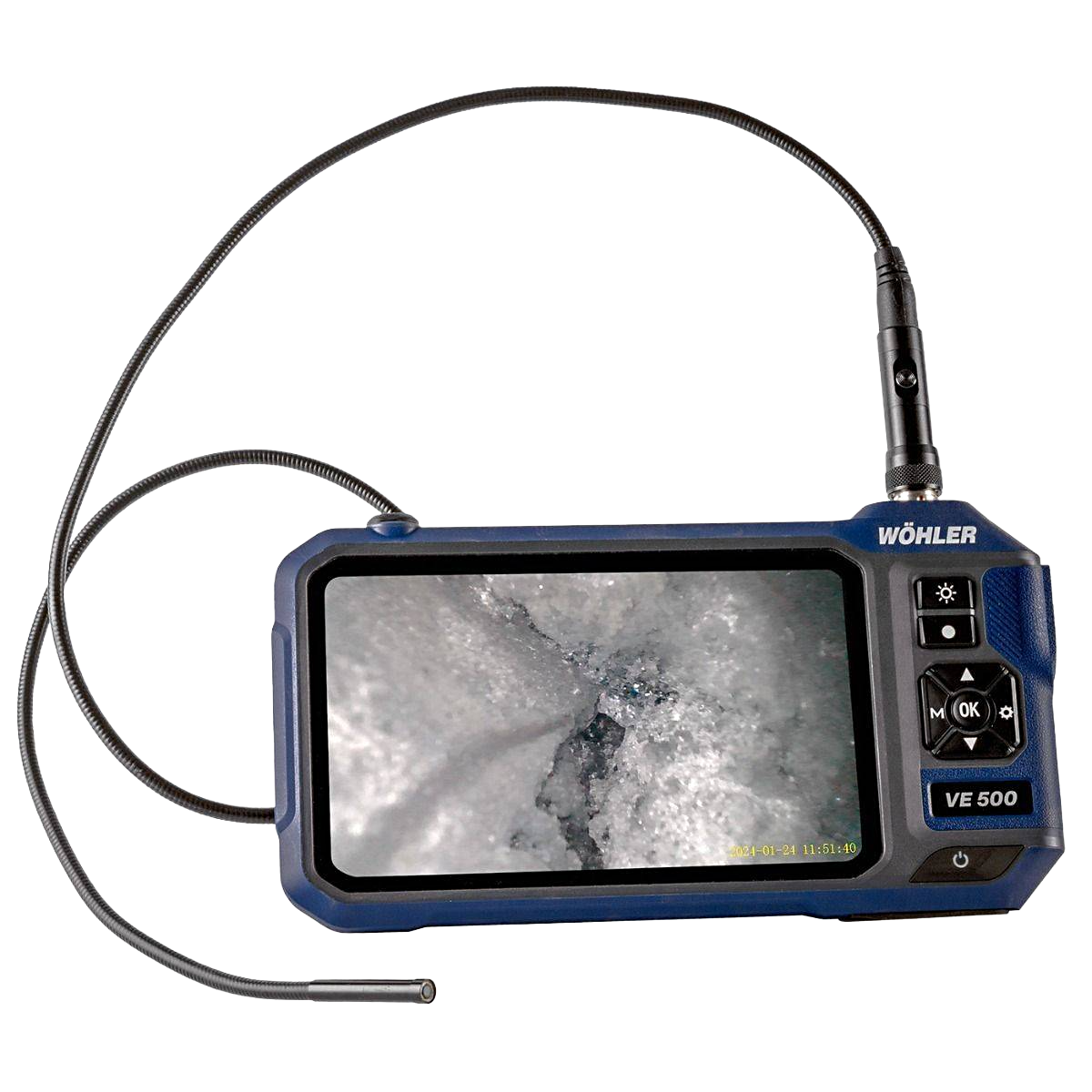

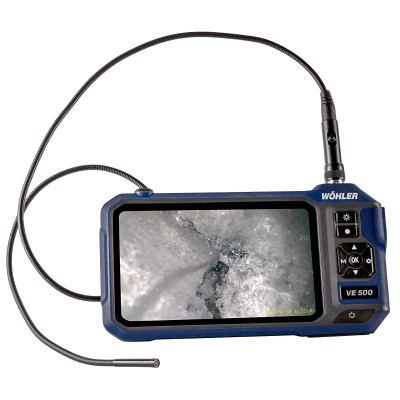

The Wohler VE 500 HD Video Endoscope is a compact, portable inspection tool for hard-to-reach cavities and confined spaces, capable of seeing through openings as small as Ø 0.24" (6 mm). A large 7" HD IPS color monitor delivers crystal-clear imaging with 180° image rotation and a split-screen mode that displays two or three probe cameras simultaneously. An integrated stand, magnetic mounting thread, and additional 6-LED work lamp keep operators' hands free during inspection. Wi-Fi connectivity to the Wohler Smart Inspection App (iOS / Android) turns any smartphone or tablet into a secondary display and streamlines inspection reporting. All Wohler VE endoscope probes are cross-compatible, and a wide range of interchangeable probes — from a Ø 0.15" miniature probe up to a 33'-long combination probe — adapts the VE 500 to virtually any inspection scenario.
| HD | ● | |
| Wi-Fi Capable | ● | |
| Free Wohler Inspection App | ● | |
| Image Rotation | ● | |
| Additional LED Lamp on the Endoscope to Illuminate the Inspection Area | ● | |

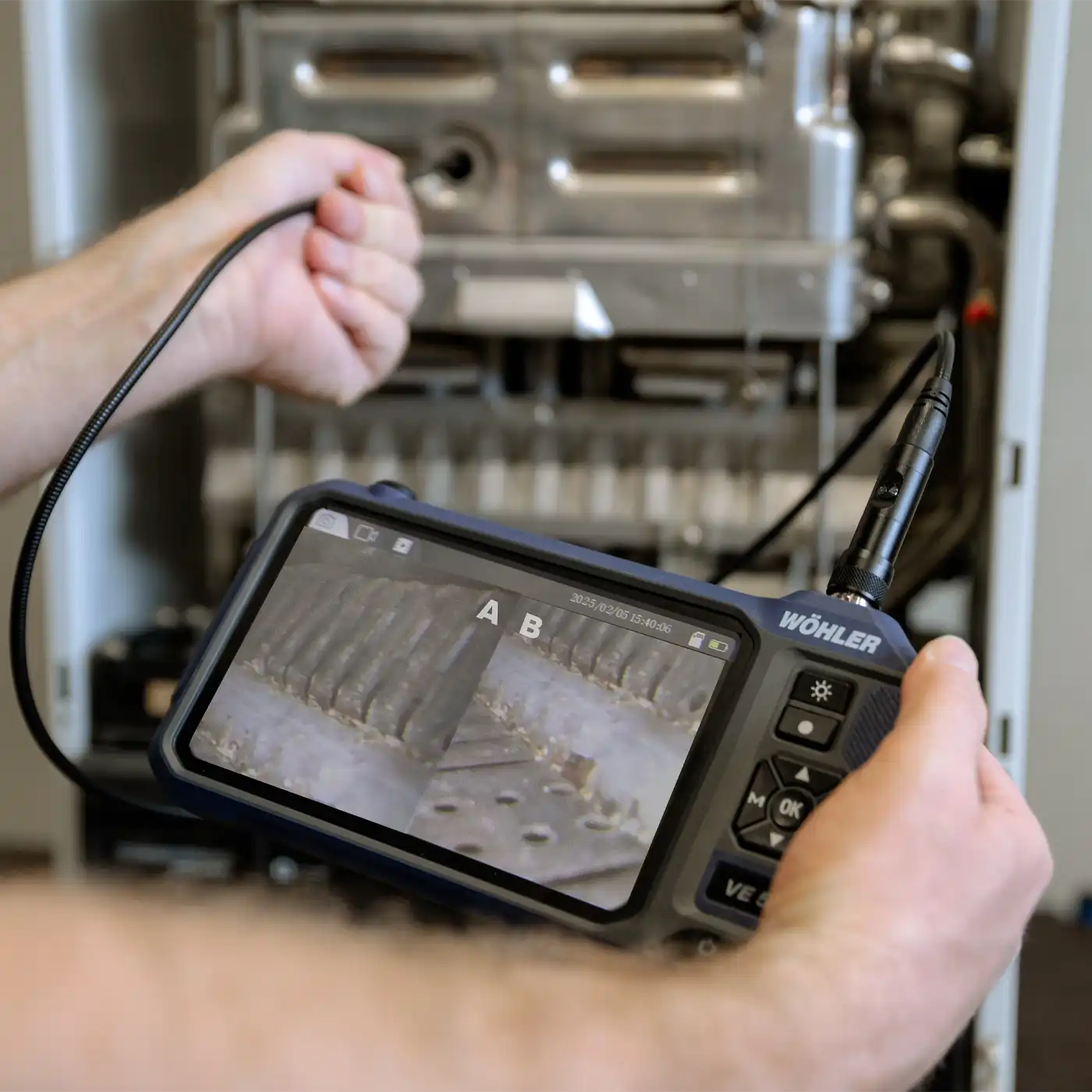

| Split Screen Mode | ● | |
| Storage of Image and Video Files on the Internal Micro SD Memory Card | ● | |
| Micro SD Memory Card 32 GB | ● | |
| Integrated Stand | ● |
| Wohler VE 500 HD Video Endoscope — Technical Specifications | |
| Item Number: | 11390 (base kit with 2-camera probe Ø 0.21" / 3' / 90°) |
| Display: | 7" HD IPS color monitor; 1280 x 720 px |
| Image Rotation: | 180° |
| Split Screen: | Available when connected to a combination probe with 2 or 3 cameras |
| Video Resolution: | Up to 1920 x 1080 px |
| Probe Field of View: | 78° |
| Illumination: | Adjustable LEDs on probe; additional 6-LED work lamp on unit (available even when camera is off) |
| IP Protection (Probe Camera & Cable): | IP67 — temporary immersion up to 30 min |
| Connections: | USB-C port; Micro SD card slot; HDMI (up to HDMI 1.3) |
| Wireless: | Wi-Fi live streaming to Wohler Smart Inspection App (iOS / Android) |
| Battery: | 3.7 V, 6.0 Ah Li-Ion; ~4 hours operating time; ~3.5 hours loading time |
| Operating Temperature: | 32° to 113°F (0 to 45°C) |
| Probe Compatibility: | All Wohler VE endoscope probes; diameters from Ø 0.15" to Ø 0.98"; lengths from 3' to 33' |
| Accessory | Description | Item No. |
| HD-Video-Endoscope-Probe Ø 0.15" / 3' | Miniature probe for the smallest openings and tightest inspection spaces | 6929 |
| HD-Video-Endoscope-Probe 0.1" / 10' | Extended-length miniature probe for deep-reach inspection | 6911 |
| HD-Video-Endoscope-Probe, swiveling Ø 0.24" / 5' | Articulating probe with 180° swivel head for side-view inspection | 11321 |
| HD-Video-Endoscope-Probe 0° / 90° Ø 0.22" / 3' | Dual-view probe with switchable 0° forward and 90° side view | 11415 |
| HD-Video-Endoscope-Probe (2 Cameras) Ø 0.33" / 10' | 2-camera combination probe with 90° view for Wohler VE 500 | 11416 |
| HD-Video-Endoscope-Probe (3 Cameras) Ø 0.31" / 33' | 3-camera combination probe with 180° view; extended 33' length | 11417 |
| HD-Video-Endoscope-Probe (3 Cameras) Ø 0.98" / 33' | Large-diameter 3-camera probe with 180° view; 33' length for pipe inspection | 11418 |
| HD-Video-Endoscope-Probe (3 Cameras) Ø 0.98" / 16' with Roller Guide | Large-diameter 3-camera probe with 180° view and integrated roller guide | 11419 |
| Video-Endoscope-Connection-Cable, 5' | Extends the connection between the Wohler VE video endoscope and the probes | 6931 |
| Magnetic Holder with Ball Head Adaptor | Secures the Wohler VE 500 to magnetic surfaces for hands-free work | 11463 |
| Display Film | Protective film for the HD monitor | 11446 |
| Protection Bag | Compact protective bag for the video endoscope | 6914 |
| Large Protective Bag, Video Endoscopes | Full-size protective carrying bag for the endoscope and multiple probes | 10185 |
