HD Borescope with Intelligent Image Processing System and 360° Articulation Control

Overview

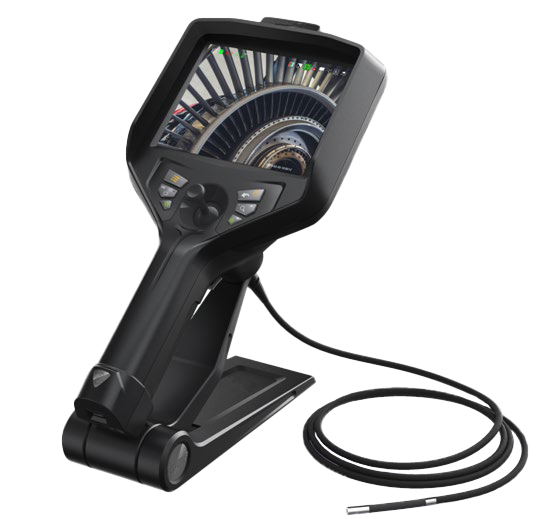

The VH-510 Series HD Videoscopes can meet all kinds of complicated inspection needs. With an intelligent image processing system, 360° joystick-controlled flexible articulation, modular hardware design and more, the VH-510 Series provides a high-quality inspection solution that is both dynamic and affordable.

Features At-A-Glance:

  • Modular Design – video probe and handle are interchangeable
  • Flexible Articulation Control - 360° joystick-controlled articulation, precise probe locking technology, >100° bending angle
  • Intelligent Software - white balance, exposure control, 8x zoom and more
  • Length & Diameter - lengths up to 10m / 6mm diameter (contact us for customized solutions)






Modular Design

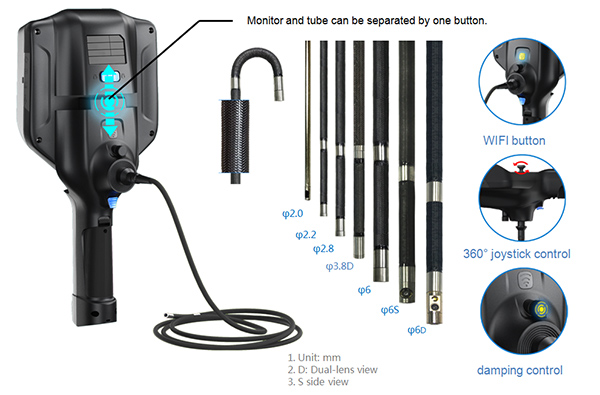

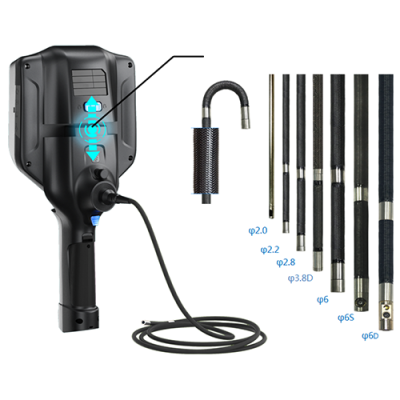

The VH-510 Series HD Videoscopes adopt a modular design - the monitor and probe can be separated with the press of one button. The monitor is compatible with different diameter tubes from 2.0 - 6.0mm (0.078" - 0.24") including direct view, side view and dual direct view lens tubes.

Flexible Articulation Control

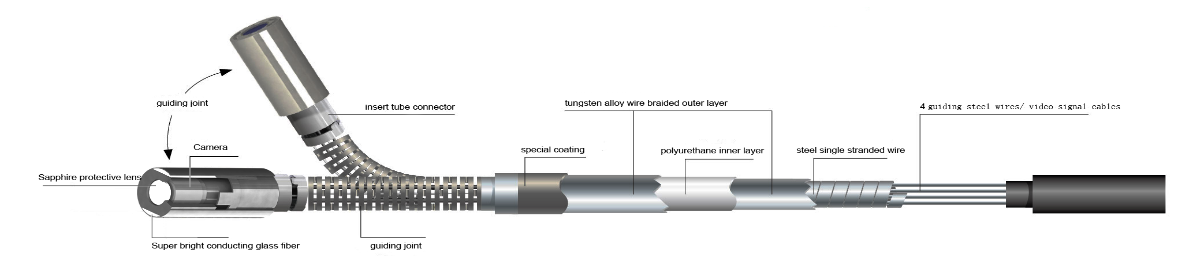

The 360° joystick-controlled articulation, damping type positioning design, and precise probe locking technology make detection with the VH-510 Series more accurate and efficient. Independently developed long-distance transmission technology ensures a bending angle of >100° and effective tube length of 32' (10 meters).

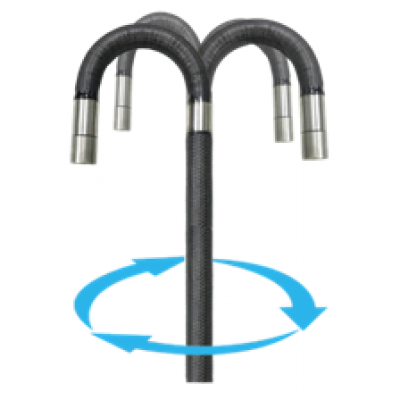

360 Precision Articulation
360° Precision Articulation
Maximum Bending Angle 190
Maximum Bending Angle 190°



Software Features

With the intelligent image processing system, the user can control image rotation, white balance, exposure control, negative film, 8x zoom in/out, and comparative measurement.

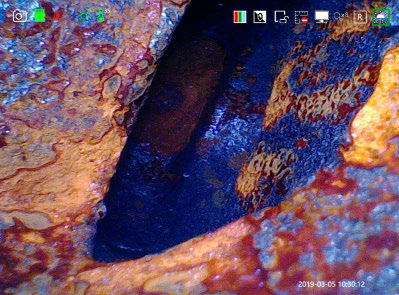

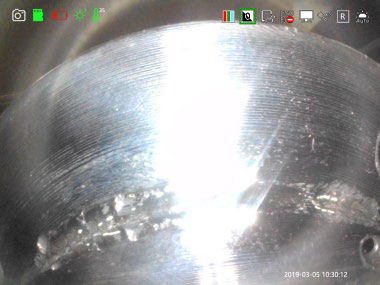

Exposure Suppression: the polished object is inspected clearly

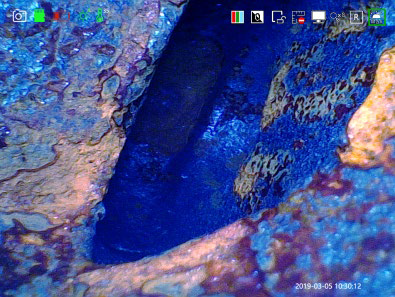

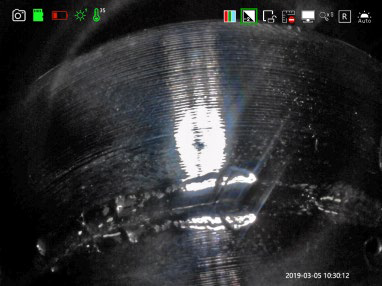

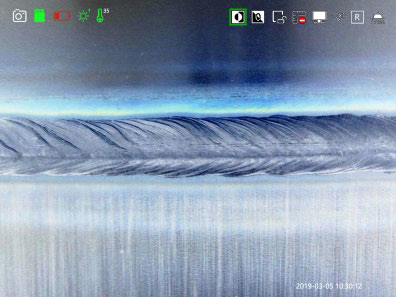

Negative Film Mode: enhance the ability to compare and analyze internal defects



White Balance: auto white balance with strong color reduction

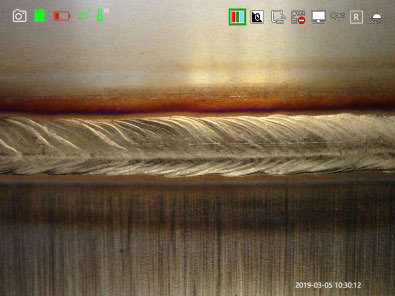

Exposure Compensation: certain details can be seen more clearly



Zoom 1X
Manual control white balance according to inspection needs

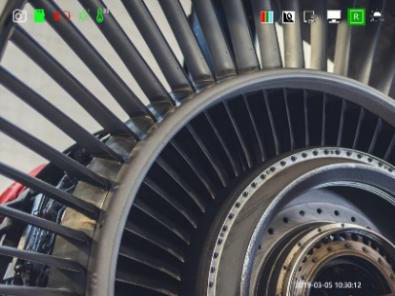

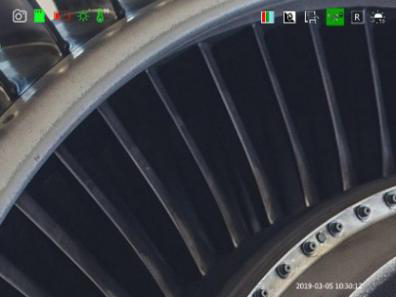

Normal Mode: HD image effect



Zoom 8X

Other Features

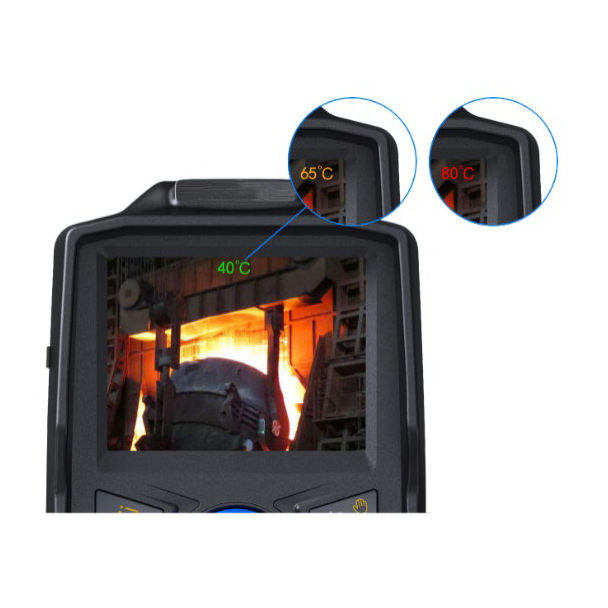

High temperature alarm function: Orange alarm when the temperature is above 149° F (65 ℃), Red alarm and shutdown when the temperature is more than 176° F (80 ℃)

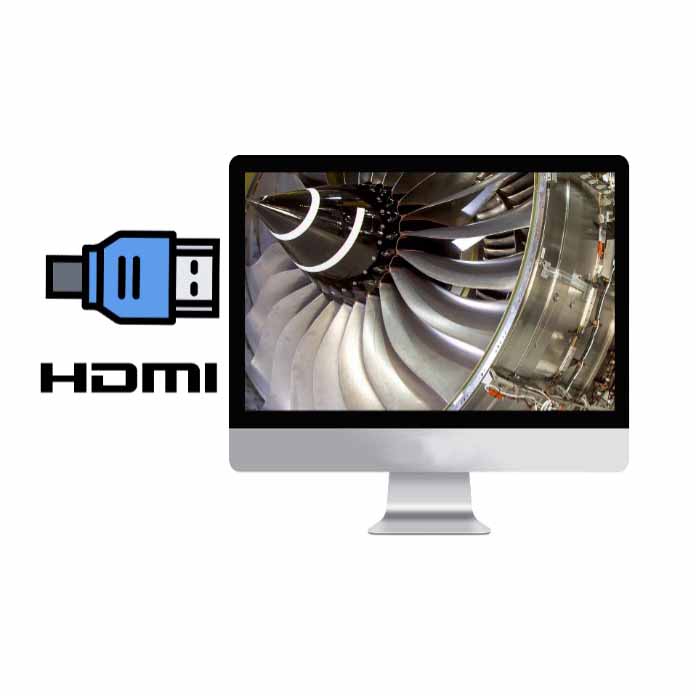

The image can be output to HD display by HDMI

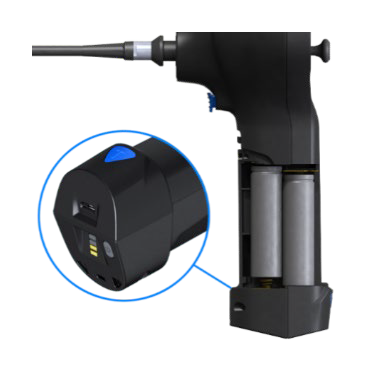

Original dual battery design, 8 hours working time, real-time battery indication



Display resolution 680x480 or 1280x960, high light, wide color gamut, all-sight viewing angle ensures clear image, excellent color reproduction. ratio > 95%.

Technical Specifications

Tube System

VH-510 Series HD Intelligent Videoscopes
Probe Diameter (mm) 2.2 2.8 3.8 6
Camera Pixels 400x400px 640x480px 1280x720px
Display Resolution 640x480px 1280x960px
DOF 3-50mm / 5-80mm (0.12"-2" / 0.20"-3.15") 10-100mm (.39"-3.93")
FOV 90° / 120°
Viewing Direction 0° front view / 90° sideview / front view & sideview dual lens
Light Source Front ceramic light / Rear-mounted optic fiber cold
Illuminance Maximum: 100,000+Lx & 0~9 levels adjustable light
Tube Length 1.0m (3'3")
(Customized Size)
1.0m (3'3")
(Customized Size)
1.0m (3'3")
(Customized Size)
1.0m (3'3")
(Customized Size)
Protecting Device of Durability 42mm (1.65") buffer protection device between tube and handle
Articulation 2-Direction / 360° joystick-control articulation
Bending Angle Maximum: 190°
Probe Positioning Damping positioning & articulation lock device
Wi-Fi Transmission Image transmission to Mobile phone, computer by Wi-Fi (optional)
Display Monitoring System

VH-510 Series HD Intelligent Videoscopes
Display 5.1" color IPS display, all sight viewing angle, sunshade design
Display Resolution 640x480px or 1280x960px
Zoom In / Out 8X
Languages English, French, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
White Balance Suppression 5 levels adjustable
White Balance Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images
Image Effect Negative film / black & white / standard
Temperature Indication High temperature alarm (optional)
IP Level Probe / Tube: IP67
Software Function Playback, image parameters adjust and rotate
Structure Hand-held integrated design
Image / Video Format JPEG / MOV
Comparative Measurement Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
Data Port HDMI video output, Micro USB port with water & dust proof device
Working Time >8 hrs.
Battery Capacity 3.7V, 3200mAh x 2
Power Charge DC5V, 1A
Weight 1.76 lbs. (0.8kg)
Compatibility Interchangeable monitor and tube with different diameters

Model Listing Table

VH-510 Available Models

VH-510 Series Models
Intelligent Videoscope Code # LCD Display Size Lens Diameter Tube Length Pixel Depth of Field Direction Illumination
6mm Intelligent Videoscope VH510-60-150 5.1" 6mm 1.5M 1280x720 10-100mm 360 articulation White LED Lightsource
VH510-60-200 2.0M
VH510-60-300 3.0M
VH510-60-500 5.0M
VH510-60-600 6.0M
VH510-60-1000 10M 640x480
6mm Intelligent Videoscope with 90 Side View VH510-60-150S 5.1" 6mm 1.5M 1280x720 10-100mm Side View White LED Lightsource
VH510-60-200S 2.0M
6mm Intelligent Videoscope with dual-view lens VH510-60-150D 5.1" 6mm 1.5M 1280x720 10-100mm 360 articulation / Side View White LED Lightsource
VH510-60-200D 2.0M
3.9mm Intelligent Videoscope VH510-39-100 5.1" 3.9mm 1.0M 1280x720 10-100mm 360 articulation White LED Lightsource
VH510-39-150 1.5M
3.9mm Intelligent Videoscope with 90 Side View VH510-39-100S 5.1" 3.9mm 1.0M 1280x720 10-100mm 360 articulation White LED Lightsource
VH510-39-150S 1.5M
3.9mm Intelligent Videoscope with dual-view lens VH510-39-100D 5.1" 3.9mm 1.0M 1280x720 10-100mm 360 articulation White LED Lightsource
VH510-39-150D 1.5M
2.8mm Intelligent Videoscope VH510-28-100 5.1" 2.8mm 1.0M 640x480 5-80mm 360 articulation White LED Lightsource
VH510-28-150 1.5M
2.8mm Intelligent Videoscope with 90 Side View VH510-28-100S 5.1" 2.8mm 1.0M 640x480 5-80mm 360 articulation White LED Lightsource
VH510-28-150S 1.5M
2.2mm Intelligent Videoscope VH510-22-100 5.1" 2.2mm 1.0M 400x400 5-80mm Two Directions White LED Lightsource
VH510-22-150 1.5M
VH510-22-200 2.0M
8mm Intelligent Videoscope VH510-80-1000 5.1" 8mm 10M 1280x720 10-101mm 360 articulation White LED Lightsource


Quality Assurance

All products comply with RoHS, CE and ISO standard and have passed testing for temperature, waterproof, drop, vibration and pressure. We devote ourselves to providing high-quality professional inspection instruments to every customer.

VH-510 Series Instrument Kit

VH-510 Series Kit Includes



VH-510 Kit Includes

HD Videoscopes (select model)

2X Batteries

Card Reader

32Gb TF Card

Charger

USB Cable

User Manual

Case
