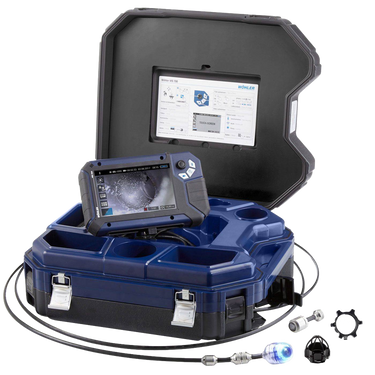

Wohler VIS 700 Inspection Camera Series
Model #
|
RV-WO-VIS-700M |
|
Request Pricing | ||
|
|
|
|
|
|
|
|
The Wöhler VIS 700 series delivers razor-sharp HD imaging for visual inspection of waste water lines, flue gas systems, ventilation ducts, chimneys, and NDT applications. Each model features a motorized focus, a 7" HD touchscreen monitor, integrated transmitter for wireless camera-head locating (with the optional Wöhler L 200 locator), self-leveling imaging, and live video transmission to a smartphone or tablet via Wi-Fi. Three configurations are available, ranging from a cable-based chimney camera to a dual-head pushrod system with both 1.5" pan/tilt and 1" miniature camera heads.
|

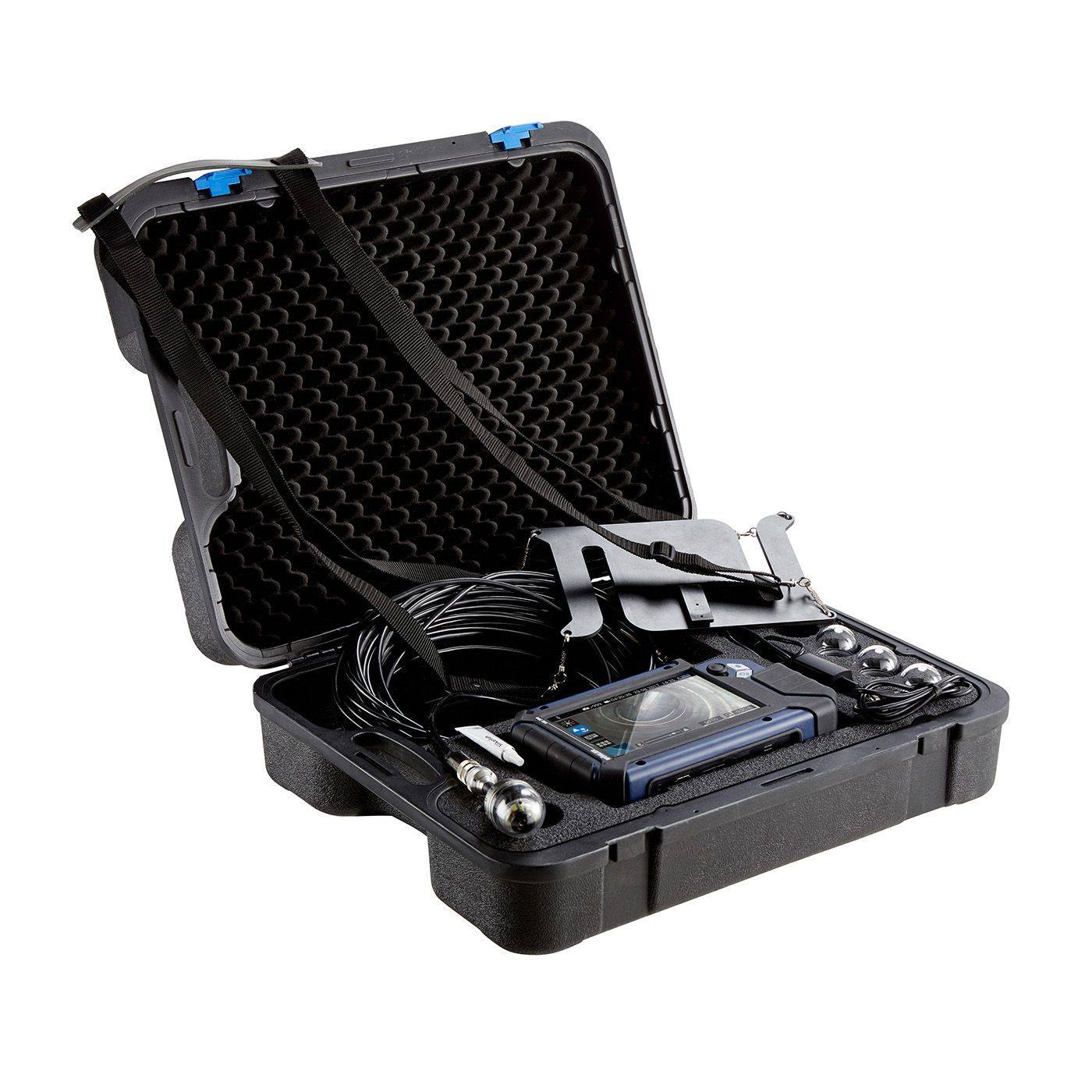

VIS 700 HD |

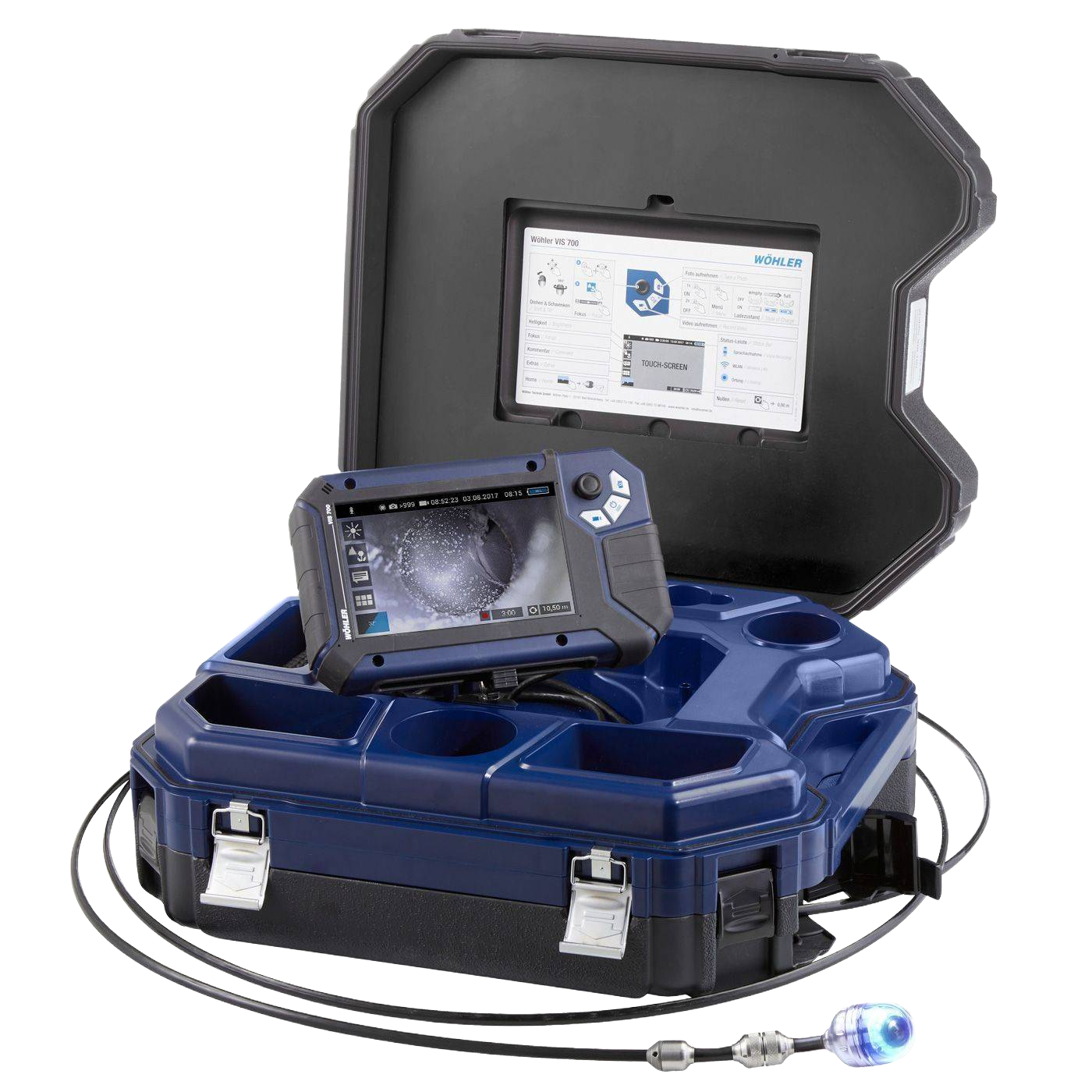

VIS 700 HD (Pushrod) |

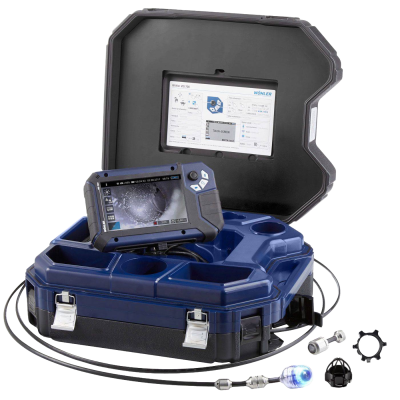

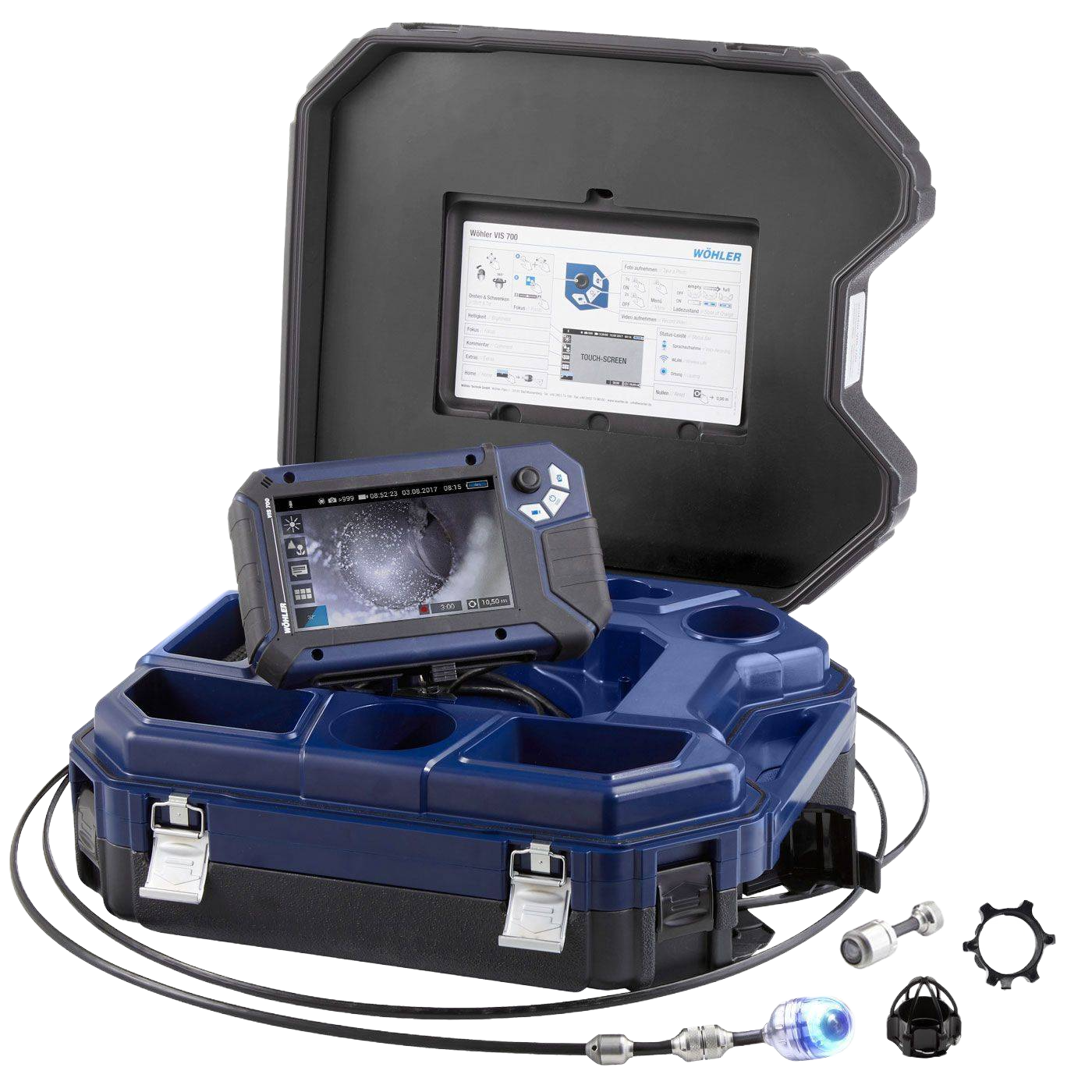

VIS 700 PLUS HD (Dual-Head Pushrod) |
|
 |
 |
 |
|
| Part Number: | 7459 | 7082 | 7498 |
| Property | Cable camera | Camera case | Camera case |
| Camera Head | Ø 1.5" | Ø 1.5" | Ø 1" & Ø 1.5" |
| Main Application | Waste water ducts / air ducts / exhaust systems | Waste water ducts / air ducts / exhaust systems | Waste water ducts / air ducts / exhaust systems |
| Dry Environments (Exhaust Systems, Air Ducts) | |||
| From Ø 5" |
● |
● |
● |
| Ø 4" to Ø 5" | ● | ● | ● |
| Ø 2.8" to Ø 4" | ● | ● | ● |
| Ø 1.5" to Ø 2.8" | — | — | ● |
| Wet Environments (Waste Water Pipes, Downpipes) | |||
| From Ø 5" | ● (1) |
● (1) |
● (1) |
| Ø 2.8" to Ø 5" | ● | ● | ● |
| Ø 1.5" to Ø 2.8" | — | — | ● |
| Intermediate ceilings, cavities, shafts | ● | ● | ● |

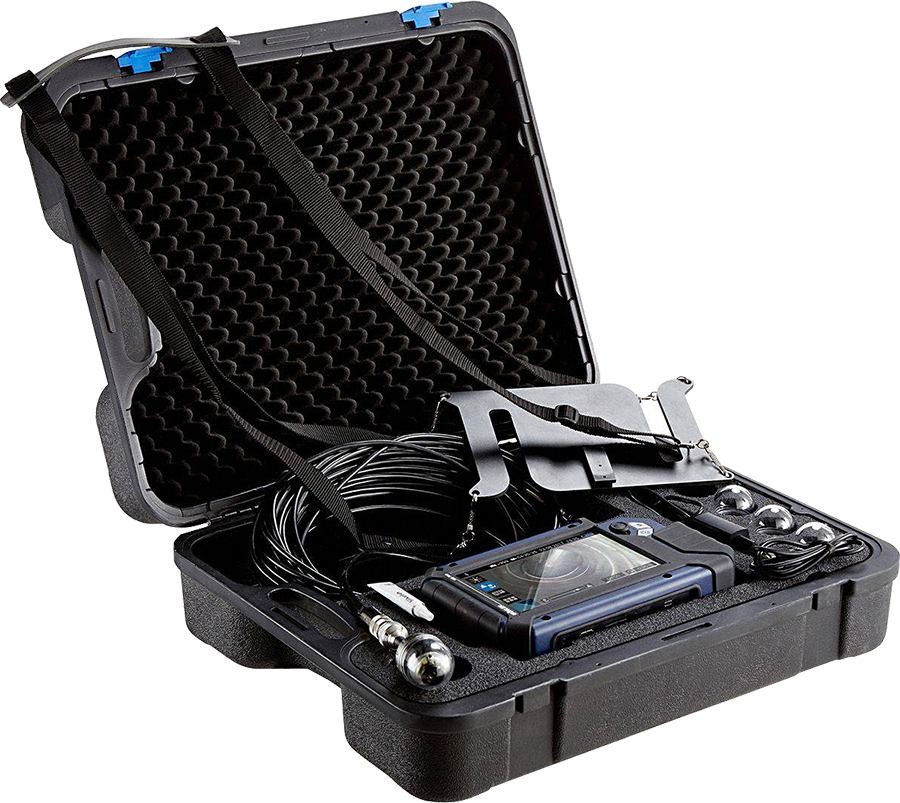

| Scope of Delivery | |||
| Wöhler VIS 700 monitor unit | ● | ● | ● |
| TFT widescreen color monitor + 6.5' cable (removable) | ● | ● | ● |
| Glare protection | ● | ● | ● |
| Lithium-ion battery | ● | ● | ● |
| Data storage: internal memory + USB stick | ● | ● | ● |
| Wöhler HD Miniature Camera Head Ø 1", detachable | — | — | ● |
| Wöhler Pan & Tilt HD Camera Head Ø 1.5", detachable | ● | ● | ● |
| Camera rod 0.34" x 0.22" — 100' | — | ● | ● |
| Camera cable 66' with metric marking | ● | — | — |
| Replacement plastic domes (3 pieces) | ● | ● | ● |
| USB mains charger with USB-C cable | ● | ● | ● |
| Carrying strap | ● | — | — |
| Plastic case | ● | — | ● |
| Double sided suitcase | — | ● | — |
| Guidance sleeve | — | — | ● |
| Guidance sleeve with protection cage | — | — | ● |
| Camera holder | ● | — | — |
(1) Accessories required to guide the camera head centrally in the pipe. (2) Accessories required to slide the camera head vertically or horizontally.

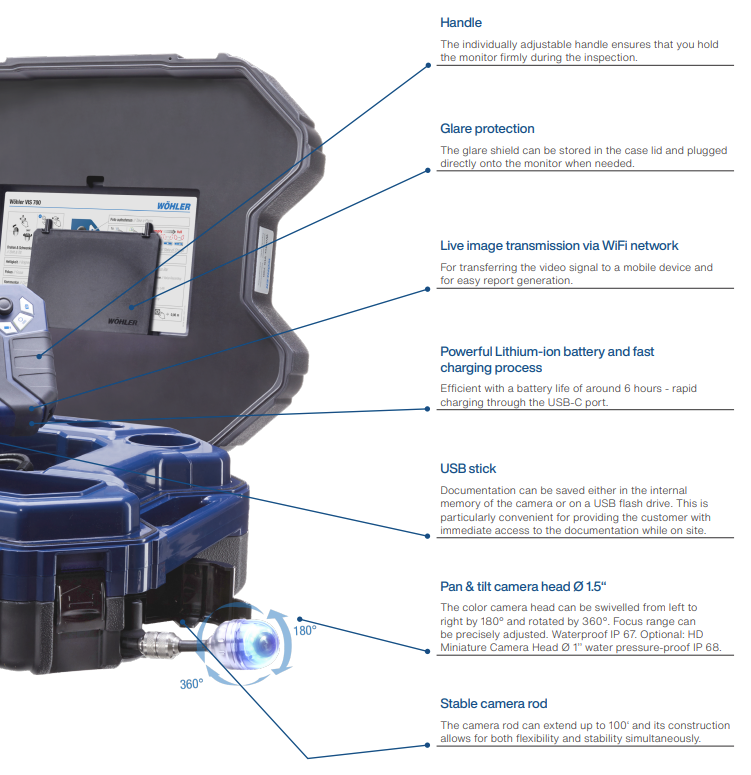

With the Wöhler VIS 700 HD inspection camera, you won't miss a single detail. Powerful LEDs allow you to see even the darkest pipe sections and reveal deep-seated damage — with additional lighting available on request for absolute clarity down to the last inch. Thanks to the self-leveling function, the camera image always remains horizontally aligned. With the flexible interchangeable head system, you can choose between the 1.5" camera head, which pans 360° and tilts 180° for an all-round view inside the pipe, or the 1" miniature camera head for narrow areas. And with the integrated transmitter in the camera head paired with the Wöhler L 200 Locator, you can quickly and accurately locate any weak points before they become an expensive problem.

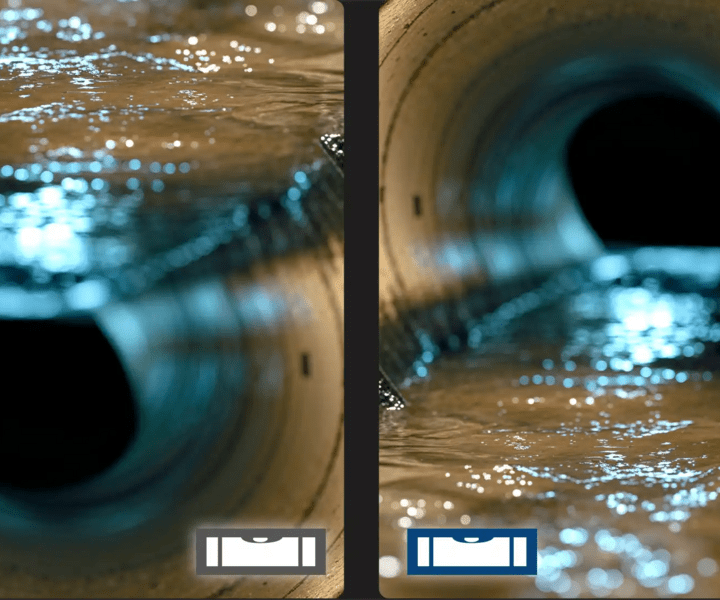

Both HD camera heads are equipped with self-leveling, so the camera image is automatically aligned horizontally with every movement.

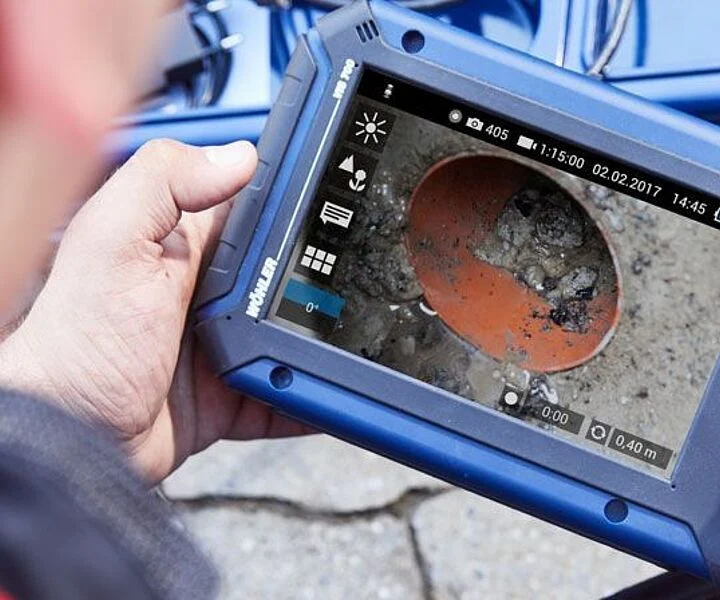

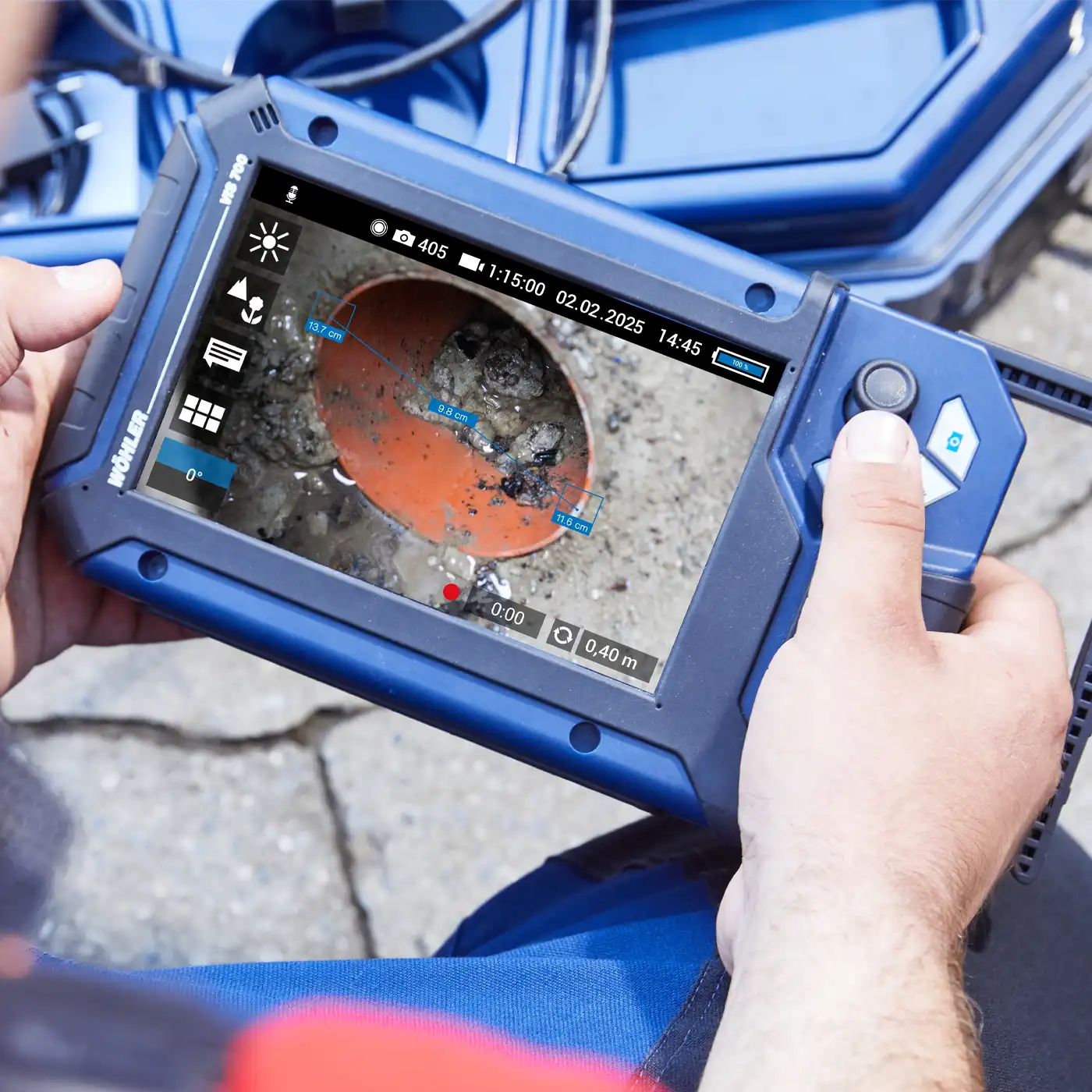

The focus function via touchscreen or joystick makes it possible to precisely control the depth of focus. A simple tap on the joystick ensures a precise, crystal-clear image on the screen. Additional settings and extras, such as the touchscreen keyboard, are accessible by tapping the touchscreen monitor. Choose a second point on the image and easily determine the distance between two points — for example, the pipe diameter.

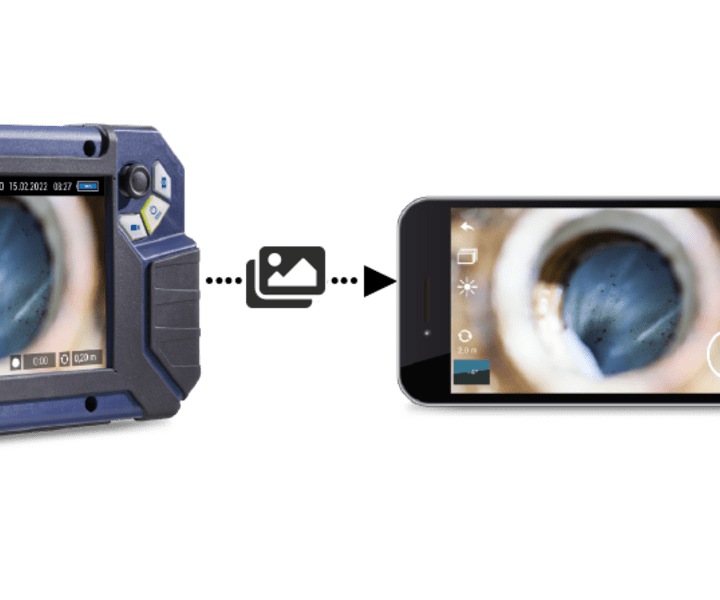

The Wöhler Video Inspection App turns any smartphone or tablet into a secondary display. Over Wi-Fi, the camera transmits all image and video data to the mobile device, so a colleague or customer can follow the entire inspection remotely — even from the opposite end of the pipe or duct being inspected. The app is available for iOS and Android.
| App Functionality | |
| Live Image Streaming: | Display live camera images in the app in real time |
| Remote Camera Control: | Adjust camera image settings (e.g., brightness) directly from the app |
| File Sharing: | Easily send images and video files to your office, customer, insurance company, or third party |
| Automated Reporting: | Automatically generated inspection reports for documentation and proof of damage |
| Technical Specifications | |
| Monitor: | 7" HD TFT broadband color touchscreen |
| Operation: | Joystick and touchscreen |
| Camera Head — 1.5" (38.1 mm): | Pan 360° / Tilt 180°, self-leveling, motorized focus, integrated LED illumination and locating transmitter, IP67 |
| Camera Head — 1" (25.4 mm) (PLUS only): | Miniature HD with self-leveling, IP67, for narrow passages |
| Focus: | Motorized, adjustable via touchscreen or joystick |
| Distance Measurement: | Electronic distance counter on monitor; two-point distance/diameter measurement (1.5" head) |
| Image Transmission: | Wi-Fi (Wireless LAN) live streaming to Wöhler VIS 700 app (iOS / Android) |
| Storage: | 32 GB SD memory card |
| Voice / Text Notes: | Voice recording and written comments on photos and videos |
| Camera Locating: | Integrated transmitter in camera head; compatible with Wöhler L 200 Locator |
| Battery: | Rechargeable Li-Ion; ~4 hours operating time; USB-C charging |
| Push Rod (Pushrod models): | 0.34" x 0.22" (8.6 x 5.6 mm) cross-section, 100' (30.5 m) length |
| Camera Cable (Cable model): | 66' (20.1 m) length with metric marking |
| Ingress Protection (Camera Head): | IP67 |
| Case: | Rugged twinwall hard case with removable top shell for cleaning |
| Monitor Connection Cable: | 6.5' (2.0 m) |
| Accessory | Description | Item No. | |
 |
Wöhler HD-Camera Head Ø 1" | Detachable, with leather protection bag | 7613 |
 |
Wöhler L 200 Locator | For camera heads 1" / 1.5". Includes locator, plastic case, USB power supply with Micro-USB cable, chalk (12 pcs. box, yellow), telescopic rod, and headphones | 7430 |
 |
Wöhler VIS Camera Trolley | For camera heads. Includes trolley, camera head holder, and storage bag | 4705 |
 |
Camera Holder | For camera head Ø 1.5" | 7068 |
 |
VIS Centering Brush Ø 7.9" | For all camera rods; fixed directly behind the camera head | 3850 |
 |
VIS Centering Star Ø 7.9" | For all camera rods; fixed at any position along the rod | 3854 |
 |
Centering Brush Extension Ø 7.9" | For all camera rods; fixed at any position along the rod | 3853 |
 |
Spare Brushes (24 pcs.) | For VIS Centering Brush (Item No. 3850) | 3858 |
 |
Stabilization Tube | For all camera heads | 21736 |
 |
Glass Dome | For camera head Ø 1.5" | 13674 |
 |
Replacement Plastic Dome (10 pcs.) | For camera head Ø 1.5" | 3675 |
 |
Protection Sleeve | For camera head Ø 1.5" | 2641 |
 |
Camera Roller Guide | For camera heads and push rods | 3681 |
 |
Guidance Ball | For camera heads and push rods | 3634 |
| Accessory Sets | |||
 |
Wöhler VIS Guidance Set 70 | For camera head 1". Includes guidance sleeve with protection cage and centering star | 3883 |
 |
Wöhler Guidance Set 100 | For camera head 1.5". Includes protection sleeve with cut-out, roller guide, and centering star | 4240 |
