Small Diameter Pipe Inspection Camera System

Small Diameter Pipe Inspection Camera System

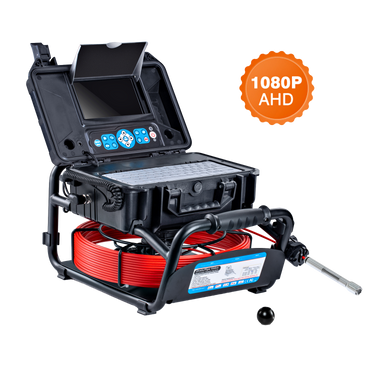

1080P AHD 18mm ⌀ camera head, 20-60m fiberglass cable and 7'' or 10'' LCD monitor

Overview

The Small Diameter Pipe Inspection Camera System inspection of sewer, pipe, air ducts, underground cable pipes, etc.. Equipped with a 1080P AHD 18mm camera head, 20-60m fiberglass cable and 7'' or 10'' LCD monitor with SD card recording capabilities, it's a great choice for pipe diameters of 22MM - 100MM.

Features

  • 20/30/40m fiberglass cable and 7" or 10" monitor with CMOS camera, 130° wide vision angle, 1080P AHD
  • Stainless steel camera head, IP68 waterproof level
  • Sapphire glass lens cover, 15 high light white LEDs
  • Diameter of camera: 23 mm
  • Two plastic guides for camera head, F46mm & 80mm
  • SD Card slot to store still pictures or videos
  • One-push record button
  • LED brightness control buttons
  • With microphone for local audio recording
  • Video-Out to connect to TV
  • Rechargeable battery lasts up to 7 hours
  • On-Screen date and time
  • 20, 30 or 40m fiberglass f5.2mm push rod
  • Rotatable cable reel mounted in case for convenient operation
  • Ability to go through 90°bends in F45mm pipes
  • Waterproof ABS suitcase with all parts included
  • Standard with meter counter

Applications

  • Machinery & Building Inspection
  • Inspection of small pipes - capable of passing through 4 - 90° bends in 1.6" ID (40mm) pipes.

Optional Built In 512Hz Transmitter Feature

Operated with the 512Hz Wireless Locator (sold separately), this feature allows you to use your Locator to find the position of the camera head from within a pipe. Useful for finding the leakage or blockage location in a pipe accurately so you can dig in the right place. Can be used at a distance of 4 meters.



Wireless Locator

  • Support Frequencies: 512Hz, 640Hz, 33Khz, Power-50Hz & 60Hz, Radio (6KHz-22KHz)
  • Power supply: built-in Li-ion Battery for 10 hours continuous working after fully charged
  • Signal Output: Speaker or headphone
  • Sensitivity setting (0~100)
  • Percentage signal level displayed on screen
  • Transmission distance: 5 meters
  • 1 year warranty

Specifications

Camera Specifications

Camera Size: Φ18mm×29mm
Camera Total Length: 135mm
Sensor: 1/3" CMOS
Resolution: AHD 1920*1080
View Angle: 130°
Focus Distance: 6cm (approx)
Depth-of-Field: 10cm(approx)
Front Lens: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 9×LED(White)
Operating Temperature: 14 ~ 122℉ (-10~50℃)
Storage Temperature: 4 ~ 140℉ (-20~60℃)
Cable Wheel

Available Cable Lengths: 20/30/40/60M
Dia. of push cable: 4.8mm/5.2mm
Material of cable: Fiberglass covered by PP
Display Specifications

Screen: 7-inch or 10-inch 16
Resolution: 1024x600 pixels
Mirror and Flip: support image mirror, and flip
Video Resolution: AHD 1080P / CVBS D1
Video Encoding: H.264
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time: Yes
On-screen meter/ft. distance display: Optional
External memory: support SD memory card up to 64GB
Languages: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish
Power Supply

Power Supply: DC 12V input
Battery Capacity: 7.2V 6400mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 6/8 hours

Kit Includes

  • One (1) 14mm camera head
  • One (1) 20m - 40m cable wheel
  • One (1) battery pack
  • One (1) remote control
  • One (1) screw driver
  • One (1) power adapter
  • One (1) car charger
  • One (1) waterproof case with monitor mounted
  • One (1) year warranty on manufacturer defects

Optional Accessories

  • 14mm Camera Head with 20m Spool With Counter
  • 14mm Camera Head, 55° F.O.V
  • Long 20cm Spring Camera Head
  • Self Levelling Feature
  • 20m Push Cable Only, Without Cage Holder, With Connectors on Both Ends
  • 30m Push Cable Only, Without Cage Holder, With Connector on Both Ends
  • 40m Push Cable Only, Without Cage Holder, With Connector on Both Ends
  • 7.4V, 6600mAh Replacement Battery Box
  • DC 12V 1.5A Adaptor

Product Literature

Description Part # Saved Price Select Option Add to
Pipe Inspection System, 14mm Camera Head w/Cable (select length), 4.8mm cable wheel, battery pack, remote control, power adapter, car charger, screw driver and waterproof case with 7" monitor mounted
Model #
RV-TV-MINI-PIPE-14x4.8-7-20-M
$2,340.00
Pipe Inspection System, 14mm Camera Head w/Cable (select length), 4.8mm cable wheel, battery pack, remote control, power adapter, car charger, screw driver and waterproof case with 10" monitor mounted
Model #
RV-TV-MINI-PIPE-14x4.8-10-20-M
$2,380.00
Pipe Inspection System, 18mm Camera Head w/Cable (select length), 4.8mm cable wheel, battery pack, remote control, power adapter, car charger, screw driver and waterproof case with 7" monitor mounted
Model #
RV-TV-MINI-PIPE-7-20-M
$2,295.00
Pipe Inspection System, 18mm Camera Head w/Cable (select length), 4.8mm cable wheel, battery pack, remote control, power adapter, car charger, screw driver and waterproof case with 10" monitor mounted
Model #
RV-TV-MINI-PIPE-18x4.8-10-20-M
$2,380.00
Pipe Inspection System, 23mm Camera Head w/Cable (select length), 5.2mm Cable Wheel, 2 plastic guides, remote control, power adapter, car charger, screw driver and waterproof case with 7" monitor mounted
Model #
RV-TV-MINI-PIPE-23x5.2-7-20-M
$2,215.00
Pipe Inspection System, 23mm Camera Head w/Cable (select length), 5.2mm Cable Wheel, 2 plastic guides, remote control, power adapter, car charger, screw driver and waterproof case with 10" monitor mounted
Model #
RV-TV-MINI-PIPE-23x5.2-10-20-M
$2,355.00
Optional Built-in 512Hz Transmitter RV-TV-MINI-PIPE-TR
$335.00
512Hz Wireless Locator for Pipe Inspection System RV-TV-MINI-PIPE-Locator
$2,075.00
Ball Guide (Φ30mm) for 14mm Camera Head RV-TV-MINI-Guide
$25.00
Push Cable Only, φ 0.19" (4.8mm) fiberglass Cable, without wheel, with connectors on both ends; Red color. For 0.55" (14mm) camera, 65.6 ft. (20m) RV-TV-F5120N
$460.00
Push Cable Only, φ 0.19" (4.8mm) fiberglass Cable, without wheel, with connectors on both ends; Red color. For 0.55" (14mm) camera, 98.4 ft. (30m) RV-TV-F5130N
$550.00
Push Cable Only, φ 0.19" (4.8mm) fiberglass Cable, without wheel, with connectors on both ends; Red color. For 0.55" (14mm) camera, 131.2 ft. (40m) RV-TV-F5140N
$665.00
Rotatable Cable Wheel With φ 0.19" (4.8mm) fiberglass Cable, Built-in Meter Counter. For 0.55" (14mm) camera, 65.6 ft. (20m) RV-TV-4-523-20
$495.00
Rotatable Cable Wheel With φ 0.19" (4.8mm) fiberglass Cable, Built-in Meter Counter. For 0.55" (14mm) camera, 98.4 ft. (30m) RV-TV-4-523-30
$610.00
Rotatable Cable Wheel With φ 0.19" (4.8mm) fiberglass Cable, Built-in Meter Counter. For 0.55" (14mm) camera, 131.2 ft. (40m) RV-TV-4-523-40
$720.00
