Borescope Accessories

Borescope Accessories

Hawkeye & Luxxor Accessories

At Gradient Lens Corporation, you’ll always find top-quality borescope accessories and other inspection camera accessories that fit a wide range of applications. When you can’t get close enough to the eyecup, try our Hawkeye Angled Eyepiece that clamps onto the borescope eyecup and reflects the image, which makes it easier for you to get the visuals you need for an effective and thorough inspection.

Our Luxxor Video Coupler Lenses are standard video couplers that connect your borescope to video cameras for live video inspection and documentation. From carrying cases to cleaning swabs and car adapter charging cords that keep your borescope equipment running at optimal levels, we have you covered.

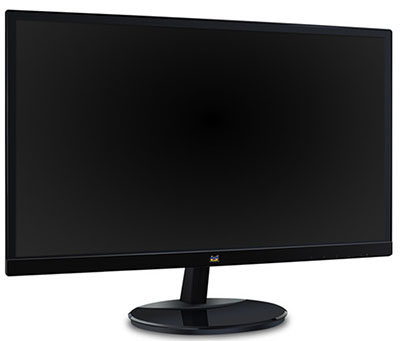

22" Hawkeye Video Monitor

The 22-inch, Hawkeye Video Monitor, manufactured by ViewSonic, is a Full HD LED Monitor (21.5″), with Super Clear IPS Panel and 250 cd/m² brightness rating, thereby offering vivid visuals with real world colors.

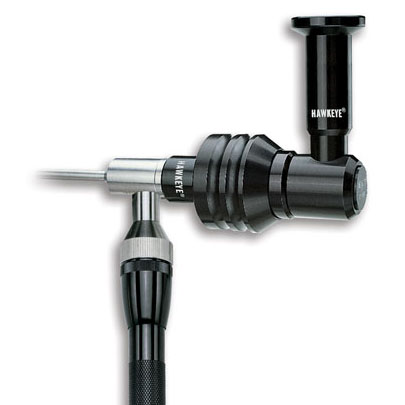

Hawkeye Angled Eyepiece

When you can’t get close to the eyecup, the Hawkeye Angled Eyepiece clamps onto the borescope eyecup and reflects the image 90º through its own focusing eyepiece. It also inverts the image, correcting the image inversion of a mirror tube.

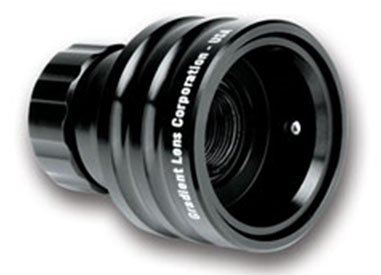

Luxxor Video Coupler Lenses

Our Standard Video Couplers connect your borescope to video cameras for live video inspection and documentation. One end is fitted with a C-mount thread to attach to your video camera and the other end has a fitting to attach to the eyepiece of your rigid or flexible borescope. Video Couplers deliver a full field-of-view and are available in 25mm, 35mm focal lengths. The focal length you need depends upon the image size of your borescope and the chip size in your video camera.

Hawkeye Carrying Cases

This rugged, lockable, aluminum case protects its contents and looks good. Blue foam is die-cut to fit and cushion components. HCC fits up to 17″ scopes.

Car Adapter Cord for Nova Charger

Charge your Nova Light Source while you are on the road. This car adapter will work with either the SuperNOVA Charger or the NOVA Piggyback charger.

Cleaning Swabs



The swabs have one rounded end for cleaning the eyepiece window and a pointed end which is perfect for cleaning the distal window and the mirror of the mirror tube. Package of 10 special swabs.

Hawkeye Cleaning Kit

The Hawkeye Cleaning Kit contains everything you need to keep your Hawkeye borescope optics clean. Included is a bottle of lens cleaning solution and 3 packages of 10 special cotton swabs. The swabs have one rounded end for cleaning the eyepiece window and a pointed end which is perfect for cleaning the distal window and the mirror of the mirror tube.

Lamp for Luxxor 50



Replacement lamp for luxxor 50 light source.

Lamps for SuperNOVA

Package of 12 replacement lamps for SuperNOVA

SuperNOVA Charger

Replacement charger for SuperNOVA

SuperNOVA Battery Kit

Replacement rechargeable batteries for SuperNOVA

Description Part # Saved Price Select Option Add to
Hawkeye Gradient 22" Video Monitor RV-HG-HVM-22 $295.00
Hawkeye Gradient Angled Eyepiece RV-HG-AE-9003 $275.00
Hawkeye Gradient Luxxor 1" (25mm) Video Coupler Lens RV-HG-VC-25 $395.00
Hawkeye Gradient Luxxor 1.4" (35mm) Video Coupler Lens RV-HG-VC-35 $395.00
Hawkeye Gradient Luxxor 3.0" (75mm) Video Coupler Lens RV-HG-VC-75 $595.00
Hawkeye Gradient Carrying Case for up to 17" Borescopes RV-HG-HCC $145.00
Hawkeye Gradient Aluminum Carrying Case ( w/ die cut foam insert) fits up to 22" Borescopes RV-HG-PCC $195.00
Hawkeye Gradient Flexible Carrying Case ( w/die cut foam insert), fits up to 17" Scopes. RV-HG-HFC2 $195.00
Hawkeye Gradient SuperKit Carrying Case RV-HG-HSC $250.00
Hawkeye Gradient Car Adapter Cord for Nova Charger RV-HG-NV-CORD $18.00
Hawkeye Gradient Cleaning Swabs RV-HG-SWABS $0.65
Hawkeye Gradient Cleaning Kit RV-HG-CLEANING-KIT-DL $8.90
Hawkeye Gradient Luxxor 50 Replacement Lamp RV-HG-LXX-LAMP-50 $595.00
Hawkeye Gradient SuperNOVA Replacement Lamps (Pack of 12) RV-HG-SN-BULB-KIT $78.00
Hawkeye Gradient SuperNOVA Replacement Charger RV-HG-SN-CHARGER $45.00
Hawkeye Gradient SuperNOVA Replacement Batteries (Pack of 2) RV-HG-SN-BATT-KIT $65.00
