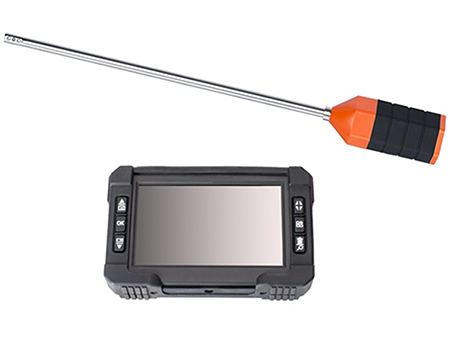

Wireless Side View Rigid Inspection Camera System

Wireless Side View Rigid Inspection Camera System

Portable, Efficient & Cost Effective

Side View Rigid Inspection Camera:

The Side View Rigid Inspection scope is used for many applications where a rigid side view endoscope is required. The insertion probe is made of stainless steel, which adds extra robustness and durability even in the most challenging conditions. The wireless transmission between camera and monitor offers great convenience for users in all kinds of inspections. It is usable at temperatures between 14° and 140°F (-10°C and 60°C) and IP67 waterproof.

Applications include Automotive, Engine Inspection, Aviation / Aircraft Repair, Military and more.



Features

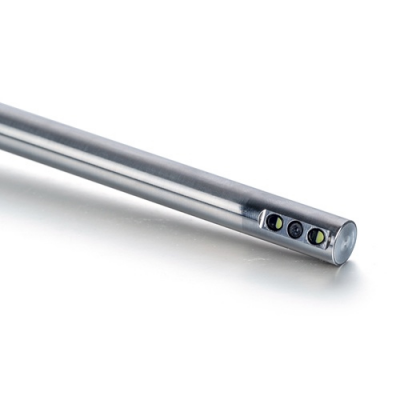

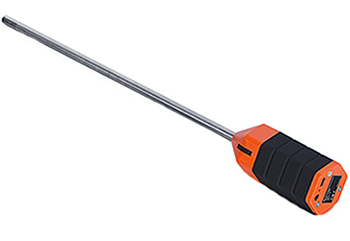

Camera Head:

  • 9mm (0.35") stainless steel insertion probe
  • 300mm (~12") probe length
  • Side view camera head
  • 2 High Brightness LEDs, providing light up to 1.5m (~ 5 ft.)
  • Video out port
  • Built-in rechargeable battery
  • 2.4 GHz wireless transmission
  • 1P67 - Waterproof (Probe only)

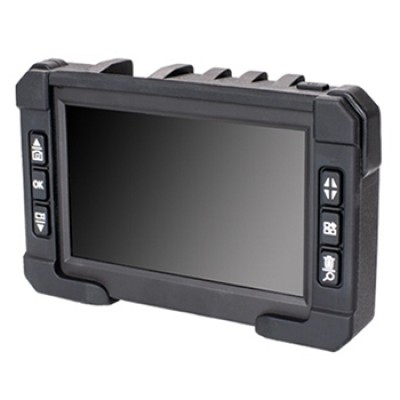

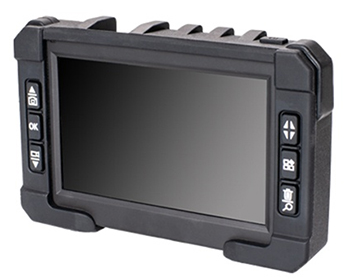

Monitor:

  • 5" TFT LCD wireless monitor
  • SD card recording, Max. 32 GB MicroSD card
  • Multi-language menu
  • Built-in rechargeable battery





Technical Specifications

Camera Specifications

Diameter of Insertion Tube 9mm (0.35")
Insertion Tube Length 300mm (~12")
Overall Length 390mm (15.35")
Tube Material Stainless Steel
Light Source 2 high intensity LEDs for 1.5m (~5 ft.) lighting distance
Pixels 768 x 494 (NTSC)
752 x 582 (PAL)
Battery Charger Yes
DOF 6cm (2.4") - Infinite
FOV 55°
Operating Temperature -10° - 60°C (14° - 140°F)
Battery Capacity 1500mAh
Work Time 4 hours
Charge Time 5 hours
Monitor Specifications

Screen Size 5" TFT LCD
Display Resolution 320 x 240
Video Format NTSC / PAL
Modulation Mode FM
Receive Sensitivity -85dB (module)
Built-in Li-Ion Battery Capacity 1100mAh / 3.7V
Charge Time 3 hours
Work Time 3 hours
Consumption Current 500mA (Max)
Memory Micro SD Card
Picture Format .JPG
Video Format .AVI
Picture / Video Resolution 640 x 480 pixels
Frame Rate 30 Frames / S
Operating Temperature 0° - 45°C (32° - 113°F)
Storing Temperature -20° - 60°C (-4° - 140°F)

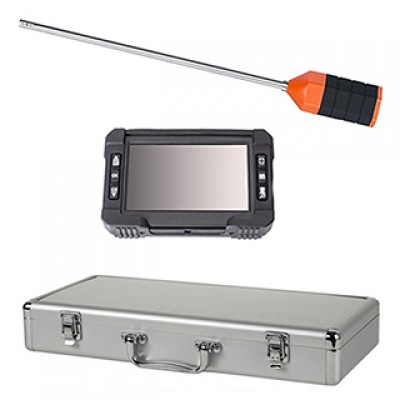

Kit Includes:

  • Camera Probe
  • Monitor
  • USB Cable
  • Video Out Cable
  • Magnet Stand for Monitor
  • Power Adapter for Monitor
  • Power Adapter for Camera
  • Manual
  • Case
Description Part # Saved Price Select Option Add to
Portable Wireless Side View Rigid Inspection Camera Kit including Side View Camera head, insertion tube, 5" Monitor, USB Cable, Video out Cable, Magnet for monitor, power adapters for monitor & camera, manual and case RV-TV-WSVR $495.00
