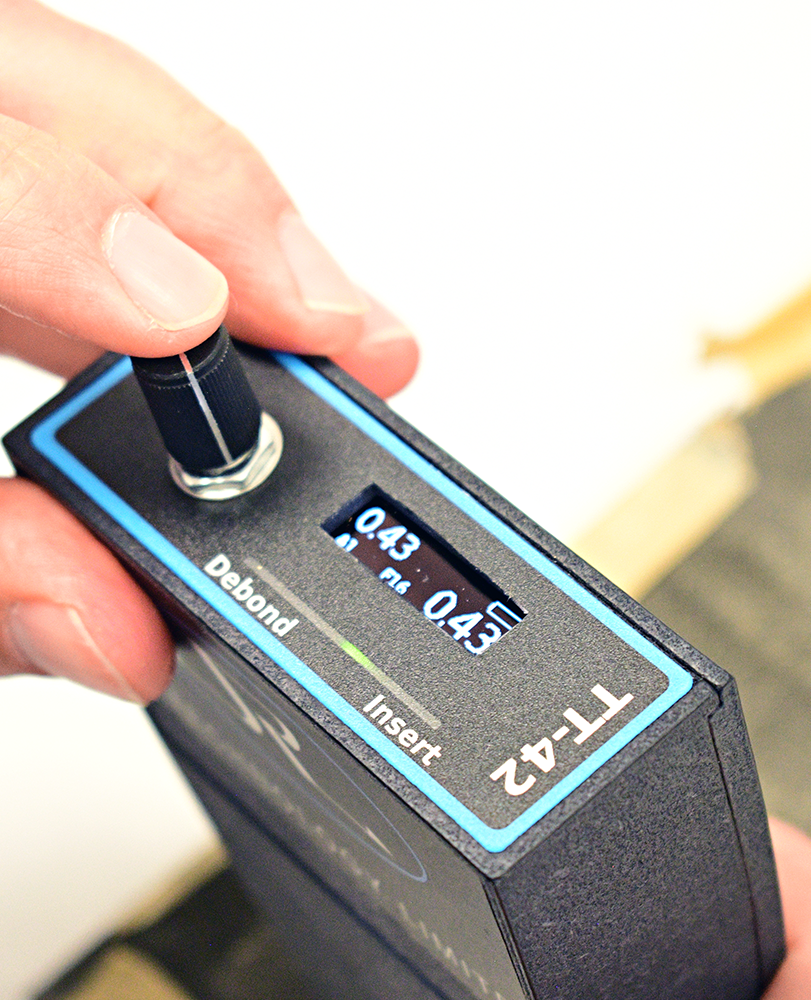

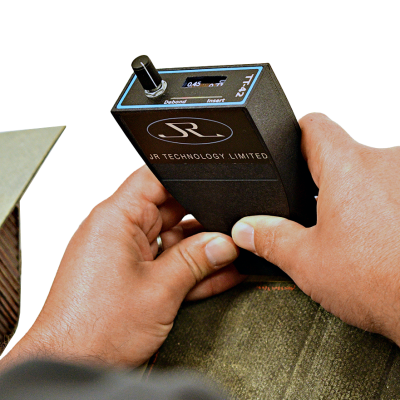

The AccuTAP TT-42 automated tap tester replaces traditional tap hammers used for inspecting structural bonded parts, which rely on the operator’s ear and years of experience. By using a force sensor to deliver quantified results—shown through LEDs, an alarm, and OLED readout—the TT-42 eliminates subjectivity and ensures consistent accuracy even in noisy environments.
The AccuTAP TT-42 is a great lower cost alternative to the WP-632AM-R Woodpecker Automatic Tap Tester.
Quantitative inspection via force sensor input, replacing subjective “tap hammer” methods
Results displayed with LEDs (green/amber/red)
User-definable comparative standard value—no need for expensive calibration specimens
Compact (30 × 80 × 125 mm) and lightweight (~170 g including battery) for one-handed operation
Tap rate selectable among 1, 2, 4, 8 or 16 Hz
Audible alarm triggers on ±25 % variation; LED thresholds: green (0–14 %), amber (15–24 %), red (25 %+)

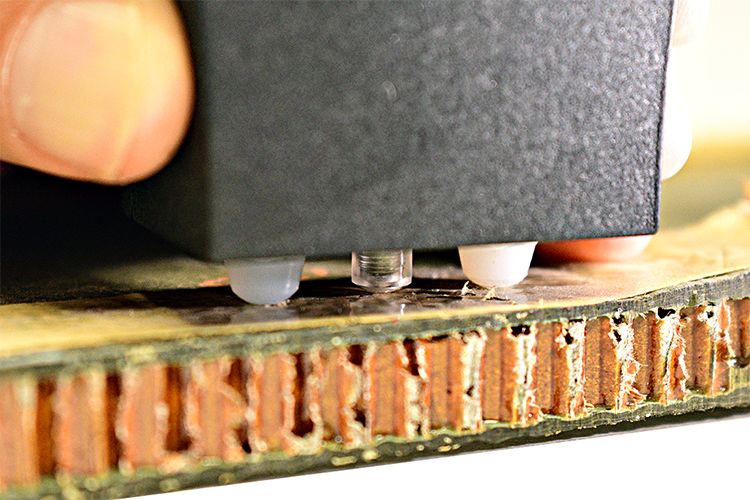

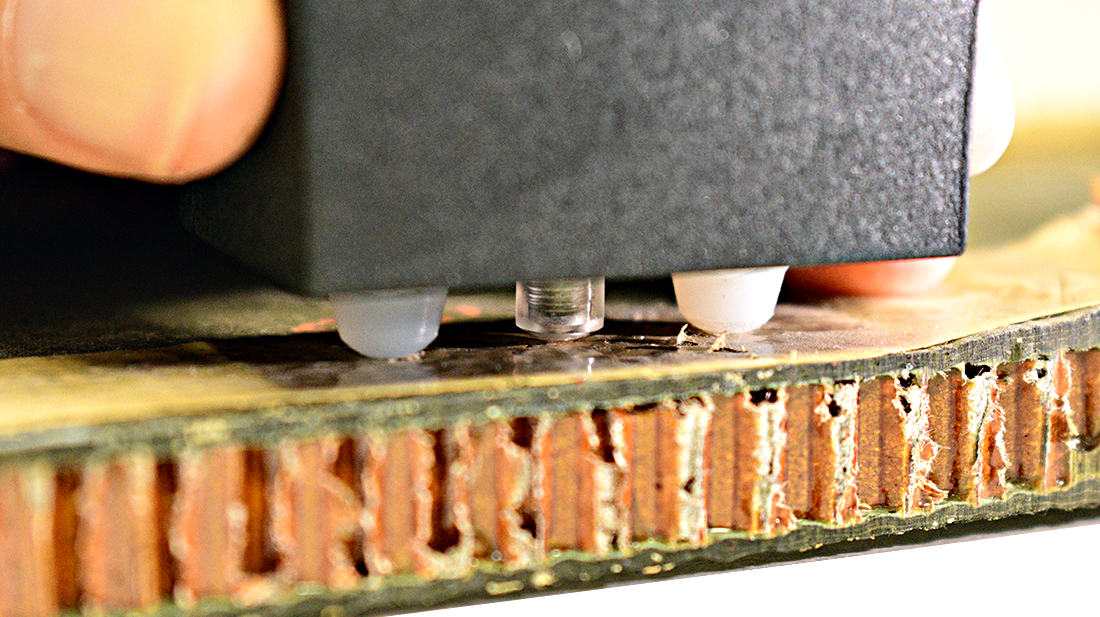

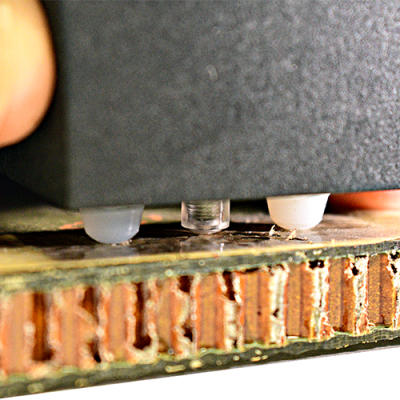

Detection of disbonds, damage, or moisture ingress in honeycomb sandwich structures
Identification of disbonds in composite materials and bonded assemblies up to 3–5 mm depth
Evaluation of bonded joint integrity and surface hardness
Locating internal components such as beams, ribs, and spars
Detecting boundaries between differing materials
Assessing dryness, aging, or hardening of adhesives
Identifying unfilled areas within foamed sandwich panels
| AccuTAP Model TT-42 Technical Specifications | |
|---|---|
| Dimensions (H × W × L): | 1.2″ × 3.2″ × 4.9″ (30 mm × 80 mm × 125 mm) |
| Weight: | 0.37 lb (170 g) including battery |
| Power Source: | 1 × PP3 battery (9 V) |
| Battery Life: | Approx. 10 hours continuous use (600 mAh battery) |
| Frequency / Tap Rate: | 1, 2, 4, 8 or 16 Hz |
| Averaging Interval: | 1, 2, 4, 8 or 16 taps |
| Audible Alarm: | Triggers at ≥ 25 % variation (with first red LED) |
| LED Thresholds: | Green (0–14 %), Amber (15–24 %), Red (25 % +) variation from setpoint |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| AccuTAP TT-42 automated tap tester, complete with: Carry Case, Test Block, Manual, Warranty, Test Certificate, 1 x pair of Feet, 1 x Aluminum, 1 x Stainless Steel & 1 x Acrylic Hammer Head | BT-JR-AccuTAP |
|
Request Pricing | ||
| Traceable Calibration of AccuTAP TT-42 Handpiece to national standards in accordance with ISO9001:2015, including: Certificate of Conformance and Calibration Certificate | BT-JR-AccuTAP-CAL |
|
Request Pricing | ||
