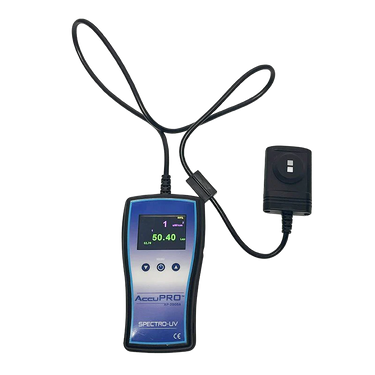

Spectro-UV AccuPro Series XP-2000 / XP-4000

Spectro-UV AccuPro Series XP-2000 / XP-4000

Advanced Microprocessor-Controlled Readout Unit Calibrated to Accurately Measure and Display UV-A, Blue and Visible Light Readings

Previously a Spectroline / Spectronics Product

 Made in the USA

Overview

AccuPro Series meters feature an advanced, microprocessor-controlled readout unit calibrated to accurately measure and display UV-A, Blue and Visible Light readings.

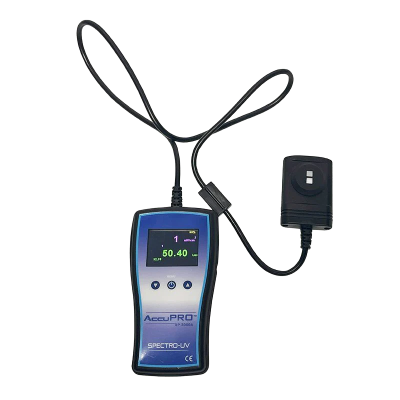

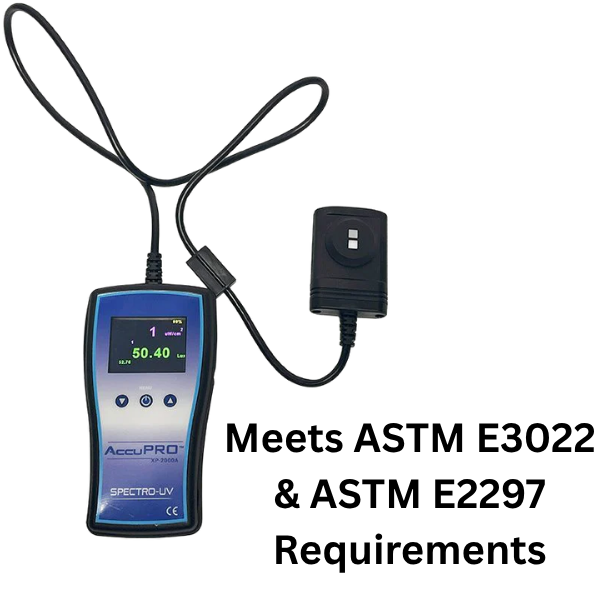

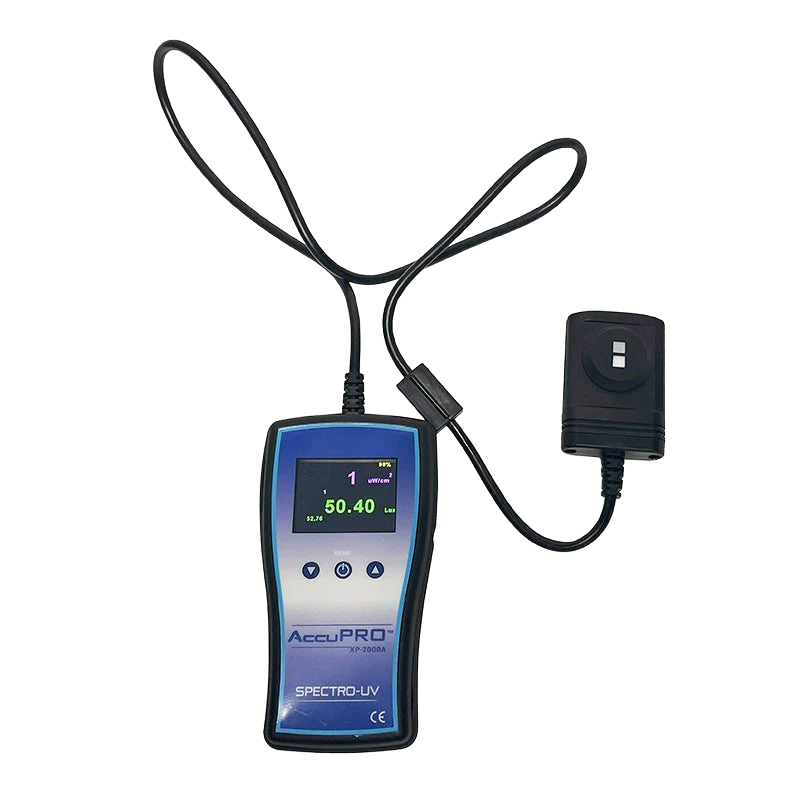

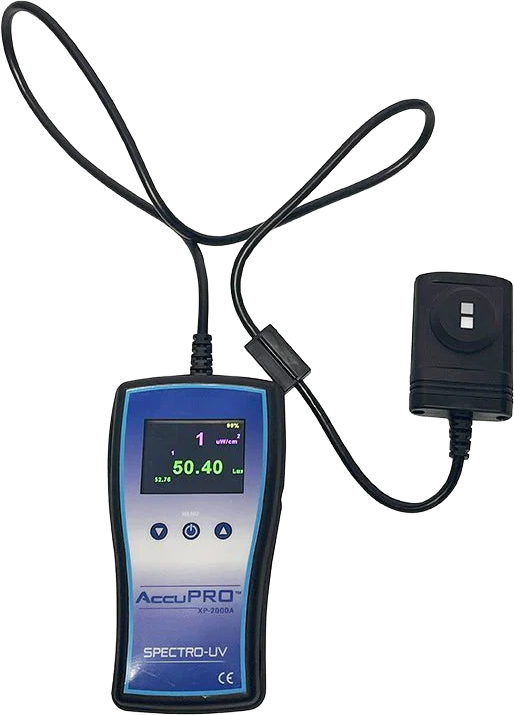

The AccuPro XP-2000A features a smaller Sensor Window to maintain ASTM E3022 & E2297 Compliances; it is the only model in the series with the compliance.

These compact, lightweight, battery-operated units are ideal for use in the field, the factory or anywhere accurate light measurements are needed!

Available Models

Find the Right Radiometer for Your Application

SPECTRO-UV™ AccuPRO™ radiometers deliver NIST traceable UV-A and visible light measurement for aerospace, NDT, inspection, and lab environments. All AccuPRO™ models are rechargeable and offer multilingual support with a ±5% accuracy guarantee.

  XP-2000 XP-2000A XP-4000

Sensor Type: Dual Sensor — Sensitive to UV and Visible Light Dual Sensor — Sensitive to UV and Visible Light 3-in-1 Sensor — Sensitive to UV, Visible, and Blue Light
Wavelength / Measurement Range: UV-A (365 nm) Irradiance, 0–100 mW/cm²
Visible (555 nm) Illuminance, 0–5,382 Lux (0–500 fc)		 UV-A (365 nm) Irradiance, 0–100 mW/cm²
Visible (555 nm) Illuminance, 0–5,382 Lux (0–500 fc)		 UV-A (365 nm) Irradiance, 0–100 mW/cm²
Visible (555 nm) Illuminance, 0–5,382 Lux (0–500 fc)
Blue (450 nm), 0–100 mW/cm²
Blue Light Sensor Range: — — 410–475 nm
ASTM E3022* Compliant: No Yes No
ASTM E2297 Compliant: No Yes No
Sensor Window Size: Large Small Large
Power Source: 4 – rechargeable “AAA” batteries 4 – rechargeable “AAA” batteries 4 – rechargeable “AAA” batteries
Overall Accuracy: < ±5% with reference to NIST standards < ±5% with reference to NIST standards < ±5% with reference to NIST standards
Applications: Aerospace, NDT, Inspection, Lab Aerospace, NDT, Inspection, Lab Aerospace, NDT, Inspection, Lab

*Designed to withstand ASTM E3022 lamp testing by incorporating a 0.5" sensor aperture.

Key Selling Points (AccuPRO™): NIST traceable calibration • Rechargeable • Multilingual support • ±5% accuracy guarantee



Features

  • Large, easy to read LCD screen with 4-digit auto-ranging display
  • Simple to use three-button interface. Toggle between light measurement modes
  • Both units provide accurate readouts for UV-A irradiance and visible illuminance
  • Overall accuracy greater than ± 5% per NIST standards
  • Superior band-pass interference filter provides excellent cosine response
  • One-touch PEAK with reset functions
  • User-defined power save and automatic shutoff
  • Rugged meter features protective rubber housing for better grip and to help prevent accidental breakage
  • Sealed sensor with water-resistant housing
  • Multi-wavelength sensor directly attached to meter by 3 ft (0.9 m) cord
  • Complies with ASTM specifications for MPI and FPI
  • Convenient on-board recharging
  • Powered by four rechargeable “AAA” nickel-metal hydride batteries (included)
  • Approximately 6 hours of operation with an 8 hour charge time.

Note: All meters are calibrated to NON-ISO 17025 calibration standards. ISO 17025 calibration is available upon request.

Technical Specifications

AccuPro Series XP-2000 / XP-4000 Specifications

Readout Unit
Resolution 4-digit auto-ranging display 128 x 64 dot pixel chip on glass STN transmissive LCD 2.25 in (5.7cm) diagonal illuminated (backlit)
Read Update 2Hz
Overall Accuracy Better than ± 5% with reference to NIST standards
Temperature Coefficient ± 0.025%/˚C (0 to 50˚C)
Power Requirement

Four “AAA” nickel-metal hydride batteries (rechargeable). AC charger included. Available in 120V, 230V, 240V or 100V versions

Approximately 6 hours of operation with an 8 hour charge time
Spectral Range
UV-A Sensor 320-400 nm
Visible Sensor 460-675 nm
Blue Light Sensor 410-475 nm

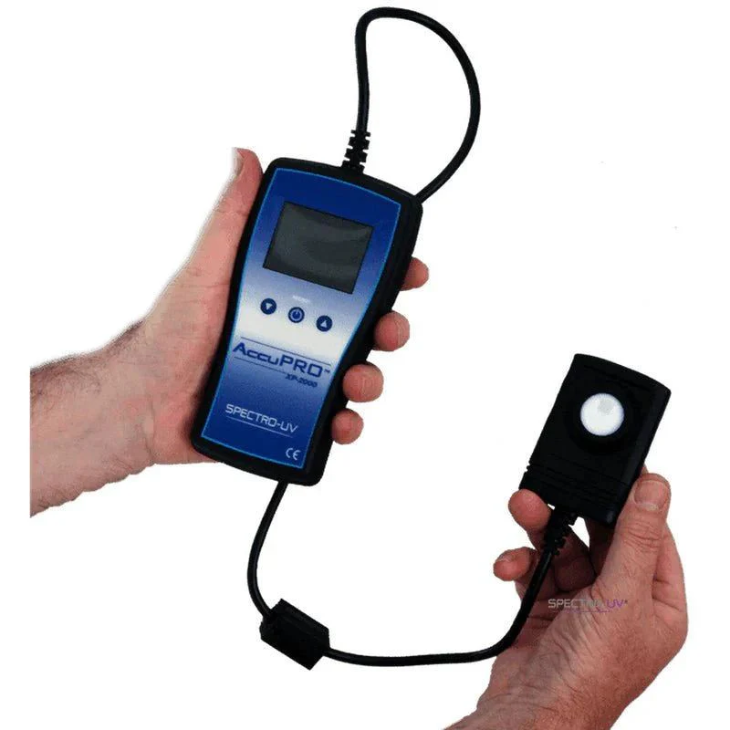

XP-2000 AccuPro
Dual Sensor Sensitive to UV and Visible Light
Wavelength/Measurement Range

UV-A (365 nm) Irradiance, 0-100 mW/cm²

Visible (555 nm) Illuminance, 0-5,382 Lux (0-500 fc)

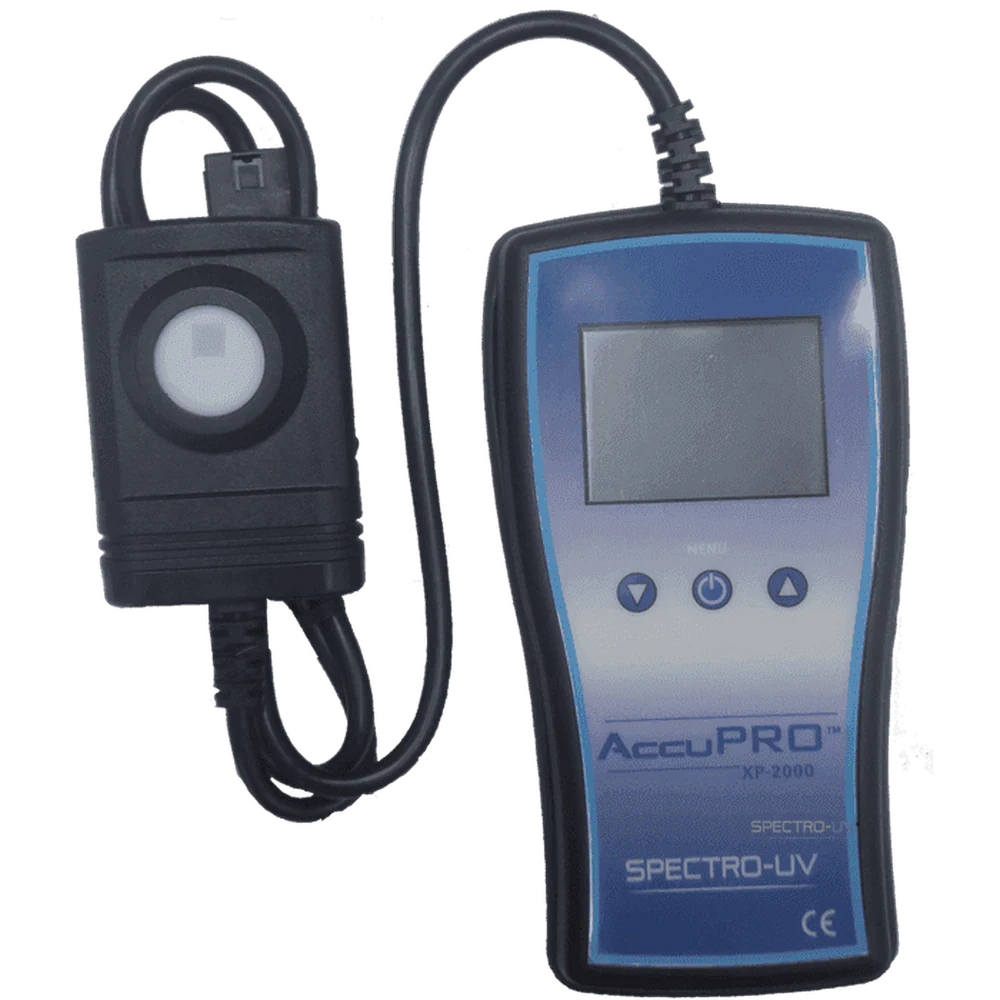

XP-4000 AccuPro Plus
3-in-1 Sensor  Sensitive to UV, Visible and Blue Light
Wavelength/Measurement Range

UV-A (365 nm) Irradiance, 0-100 mW/cm²

Visible (555 nm) Illuminance, 0-5,382 Lux (0-500 fc)

Blue (450 nm), 0-100 mW/cm²
Dimensions

Readout Unit
Length 6.0 in (15.2 cm)
Width 3.0 in (7.6 cm)
Thickness 1.0 in (2.5 cm)
Weight 8 oz (227 g)
Sensor Detector
Length 3.0 in (7.6 cm)
Width 2.0 in (5.1 cm)
Thickness 0.5 in (1.3 cm)
Weight 5.6 oz (159 g)

Note

  1. Standard Calibration Validity is 6 months. If 12 months validity is required, it must be specified on your purchase order.
  2. All meters are calibrated to NON-ISO 17025 calibration standards. ISO 17025 calibration is available upon request.

Product Literature

Description Part # Saved Price Select Option Add to

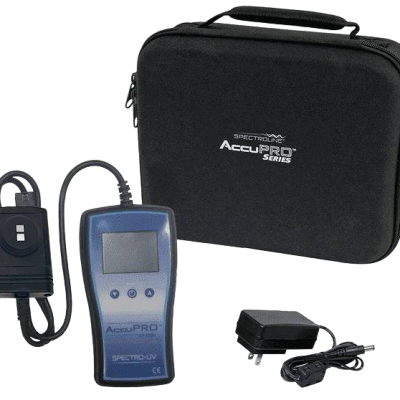

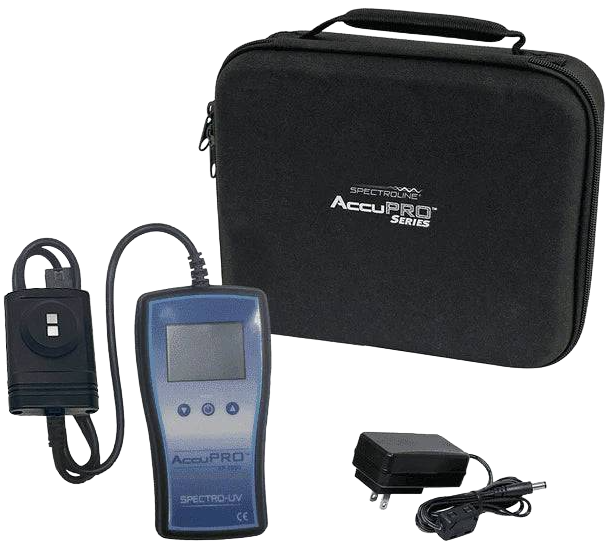

Spectro-UV AccuPro XP-2000 Dual Sensor (UV-A/VIS), Multilingual Display Meter Digital UV / White Light Meter, complete with 4 rechargeable "AAA" Nickel-Metal Hydride Batteries, AC Charger, Carrying Case and Calibration Certificate UV-SP-XP2000
Request Pricing
Spectro-UV AccuPRO XP-2000A Dual Sensor Radiometer / Photometer, ASTM / USA (Type A/B) Includes: Readout Unit, Dual wavelength UV/visible sensor, AC charger, and padded protective carrying case. UV-SP-XP2000A
$965.00
Spectro-UV AccuPro Plus XP-4000 3-in-1 Sensor (UV-A/VIS/Blue), Multilingual Display Meter Digital UV / White Light Meter, Complete with (4) Rechargeable "AAA" Nickel-Metal-Hydride Batteries, AC Charger, Carrying Case and Calibration Certificate UV-SP-XP4000
$1,015.00
Spectro-UV ISO:17025 Calibration (Spectro-UV UV Light Meters Only) UV-SP-17025-CERT
$300.00
