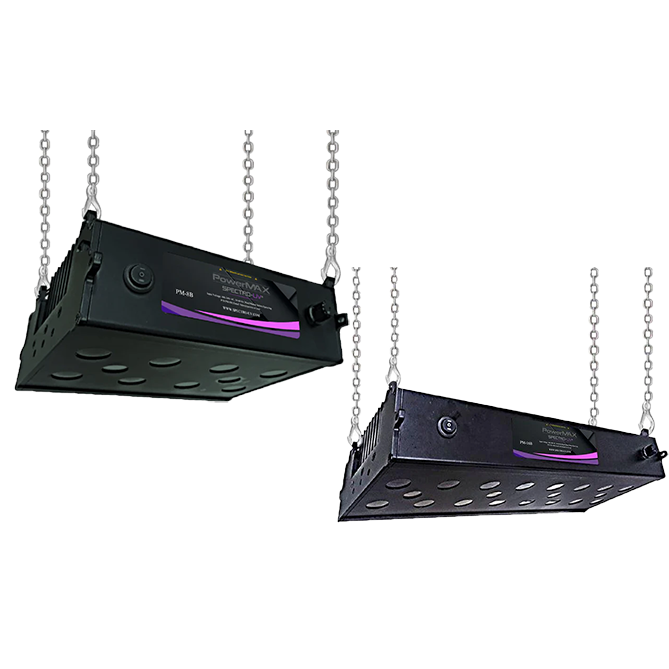

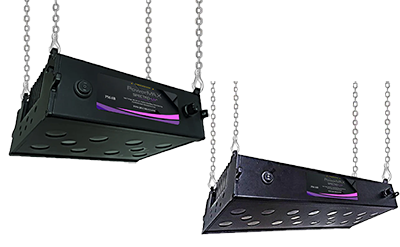

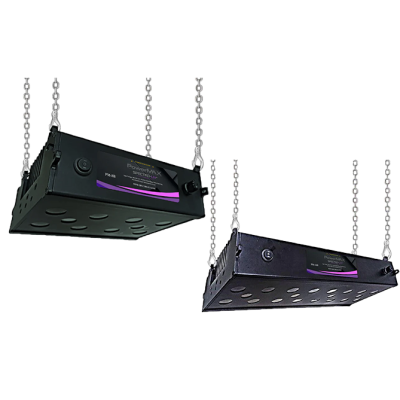

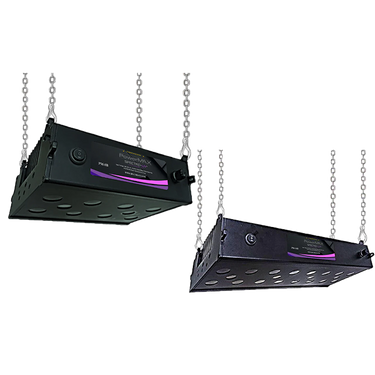

Spectro-UV PowerMAX 365 Series Flood Lamps

Spectro-UV PowerMAX 365 Series Flood Lamps

LED UV-A Panel Flood Lights; ASTM E3022-18, EN ISO 3059, and AIRBUS AITM6-1001 Compliant.

Overview

PowerMAX™365 Series flood lamps feature a panel of powerful UV-A(365nm) and Visible Light LED’s specifically engineered for Nondestructive testing applications. These versatile, stationary light sources can be installed overhead, in line or ganged together to provide an even wider range of coverage area. Available in two models to meet your specific inspection needs: 8 or 16 UV-A (365nm) LED models. Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.

Features

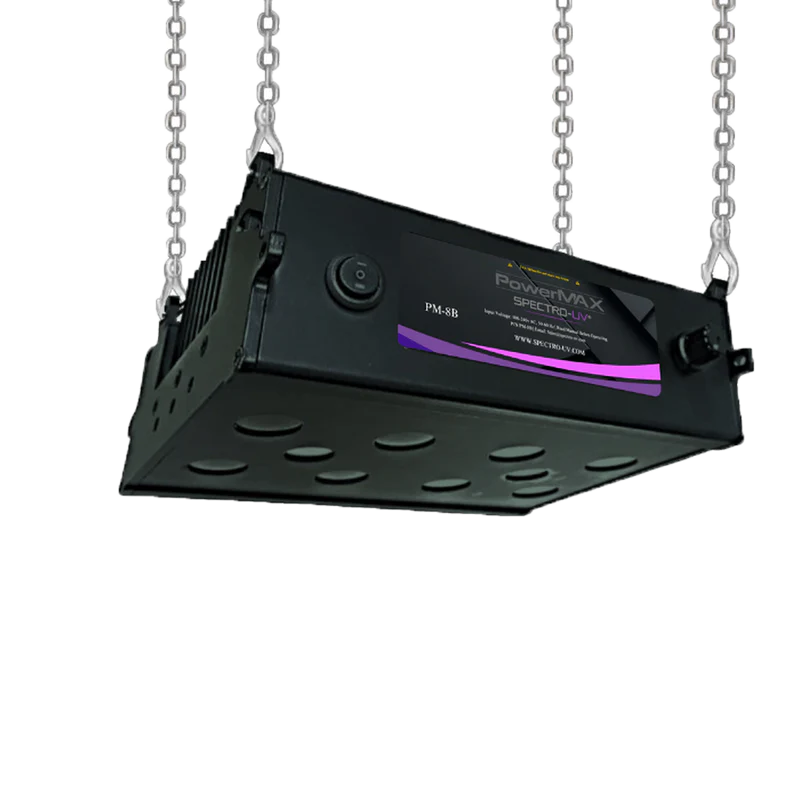

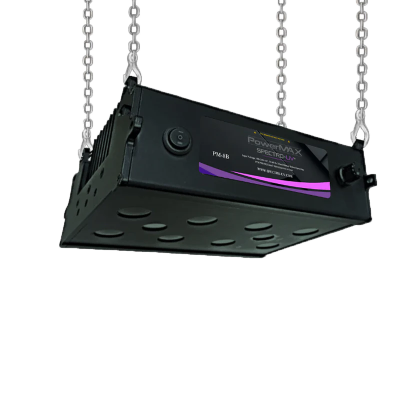

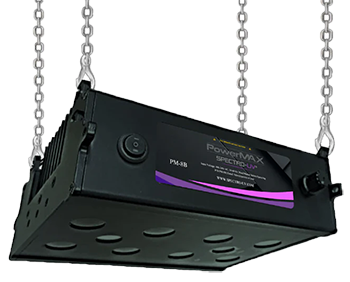

PM-8B

  • 8 UV-A LEDs & 2 White Light LEDs
  • Nominal Steady State UV-A Intensity: 6,500 μW/cm² @ 15 inches (38 cm)
  • UV-A Coverage Area: 10" x 16" (25.4 x 40.6 cm) @ minimum 1,000 μW/cm²
  • Very low visible light: Less than 0.5 foot-candle (2.2 lux)
  • Rocker switch easily switches between UV and white light modes
  • Electronic intensity control capable of adjusting light output from 15% to 100%
  • Adjustable intensity: Can be reduced to precise levels as low as 1,000 μW/cm²
  • Mountable
  • ASTM E3022-18 compliant

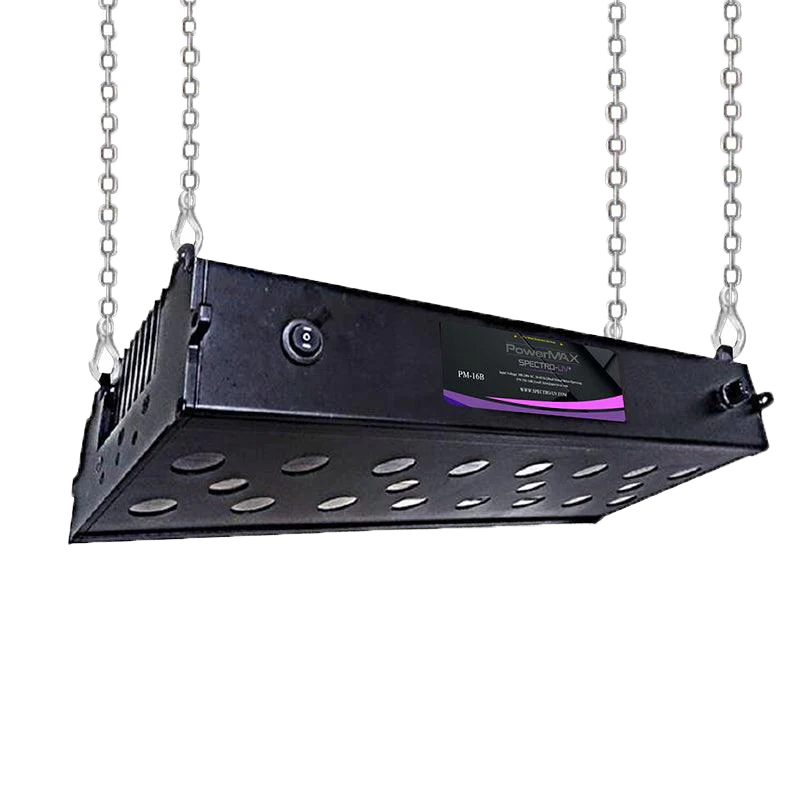

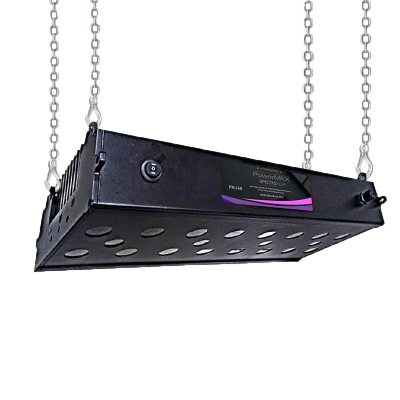

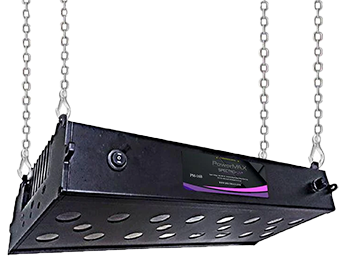

PM-16B

  • 16 UV-A (365nm) LEDs & 4 White LEDs
  • UV-A Coverage Area of 10" x 24" (25.4 x 61 cm) @ minimum 1,000 μW/cm2
  • Nominal Steady State UV-A Intensity: 6,500 μW/cm2 @ 15" (38 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Precision Control: Integrated electronic intensity control knob for flexible operation
  • Dual-Light Capability: Allows for easy switching between UV & White Light
  • Mountable and connectable units can be added for extended coverage of larger inspections areas.
  • Thermal Management: Active cooling system with fans for enhanced performance during extended use.
  • ASTM E3022 compliant and meets ISO 3059 specifications

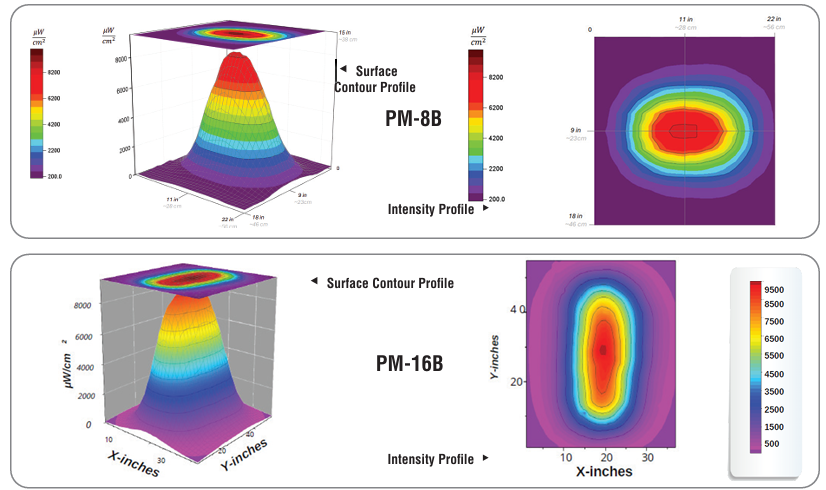

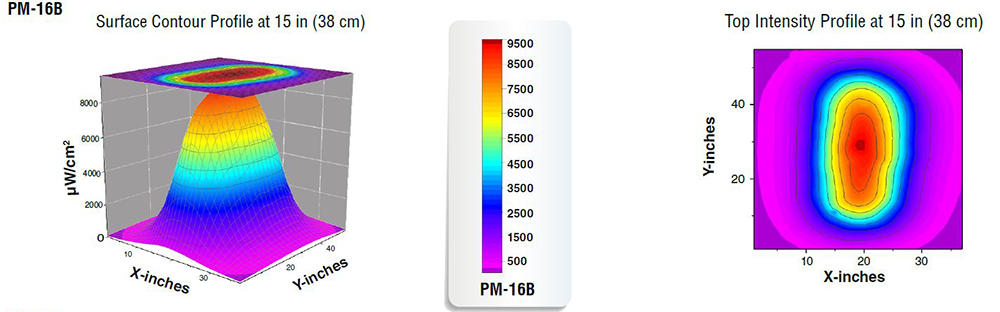

UV-A Beam Profiles

Technical Specifications

PowerMax 365 Series Specifications

  PM-8B PM-16B
Lamp Style: Panel Flood Lamp Panel Flood Lamp
Light Source: 8 UV-A LEDs & 2 White LEDs 16 UV-A LEDs & 4 White LEDs
Nominal Steady-State UV-A Intensity: 6500 μW/cm2 @ 15" (38 cm) 6500 μW/cm2 @ 15" (38 cm)
UV-A Coverage Area @ 15" (38 cm): 10" x 16" (25.6 x 40.6 cm) @ minimum 1,000 µW/cm² 10" x 24" (25.4 x 61 cm) at minimum 1,000 μW/cm2
Visible Light Measurement: <1 foot-candle (<10 lux) <1 foot-candle (<10 lux)
White Light Intensity:  >325 foot-candle (>3500 Lux) >325 foot-candle (>3500 Lux)
Dimensions: 10" x 8" x 5" (25.4 x 20.3 x 12.7 cm) 19.1" x 6.7" x 3.94" (48.5 x 17 x 10 cm)
Weight: 8.9 lbs. (4 kg) 16.5 lbs. (7.5 kg)
Intensity Control: From 15% - 100% From 15% - 100%
Power Requirements: 100V - 264V, 50/60 Hz 100V - 264V, 50/60 Hz

PowerMax 365 Series UV-A LED Panel Flood Lamp Kits Include

  • PowerMax 365 PM-8B or PM-16B UV-A LED Flood Panel Lamps
  • Power Cord
  • Chain
  • Hooks

Product Literature

Description Part # Saved Price Select Option Add to

PM-16B
Spectro-UV PowerMax 365 PM-16B Panel Flood Lamp Kit Includes: PM-16B Lamp w/16 UV-A LEDs, 4 White Light LEDs with UV-A Filter, Power Cord, Chain & Hooks (100-120V/50-60Hz) UV-SP-PM-16B
$2,500.00
Spectro-UV PowerMax 365 PM-16B/F - 230V/50Hz with European Plug (Plug Type C/F) (CE Approved) UV-SP-PM-16B/F
Request Pricing
Spectro-UV PowerMax 365 PM-16B/FA - 220 - 240V/50Hz with Australia/China Plug (Plug Type I) UV-SP-PM-16B/FA
Request Pricing
Spectro-UV PowerMAX 365 PM-16B/FB - 230V/50Hz with UK Plug (Plug Type G) (CE Approved) UV-SP-PM-16B/FB
Request Pricing
Spectro-UV PowerMax 365 PM-16B/FC - 220 - 240V/50Hz with CCC Configuration (Australia/China Plug Type I) UV-SP-PM-16B/FC
Request Pricing
Spectro-UV PowerMax 365 PM-16B/FBR - 220V/60Hz with Brazil Plug (Plug Type N) UV-SP-PM-16B/FBR
Request Pricing

PM-8B
Spectro-UV PowerMax 365 PM-8B Panel Flood Lamp Kit Includes: PM-8B Lamp w/8 UV-A LEDs, 2 White Light LEDs with UV-A Filter, Power Cord, Chain & Hooks (100-120V/50-60Hz) UV-SP-PM-8B
$1,750.00
Spectro-UV PowerMax 365 PM-8B/FA - 220 - 240V/50Hz with Australia/China Plug (Plug Type I) UV-SP-PM-8B/FA
Request Pricing
Spectro-UV PowerMAX 365 PM-8B/FB - 230V/50Hz with UK Plug (Plug Type G) (CE Approved) UV-SP-PM-8B/FB
Request Pricing
Spectro-UV PowerMax 365 PM-8B/FC - 220 - 240V/50Hz with CCC Configuration (Australia/China Plug Type I) UV-SP-PM-8B/FC
Request Pricing
Spectro-UV PowerMax 365 PM-8B/FBR - 220V/60Hz with Brazil Plug (Plug Type N) UV-SP-PM-8B/FBR
Request Pricing
