Spectro-UV PowerMAX 365 LED UV-A Flood Lamps

Spectro-UV PowerMAX 365 LED UV-A Flood Lamps

★ Select Models on Sale Now Through Dec. 31st ★

Overview

PowerMAX™365 Series flood lamps feature a panel of powerful UV-A(365nm) and Visible Light LED’s specifically engineered for Nondestructive testing applications. These versatile, stationary light sources can be installed overhead, in line or ganged together to provide an even wider range of coverage area. Available in two models to meet your specific inspection needs: 16 or 32 UV-A (365nm) LED models. Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.

Features





PM-16B

  • 16 UV-A (365nm) LEDs
  • 4 White LEDs
  • UV-A Coverage Area of 23.6" x 10.63" (60 x 27 cm) @ 15" (38 cm)
  • Nominal Steady State UV-A Intensity: 6500 μW/cm2 @ 15" (38 cm)
  • Rocker Switch allows for easy switching between UV & White Light
  • Mountable
  • Electronic Intensity Control - Capable of adjusting light output

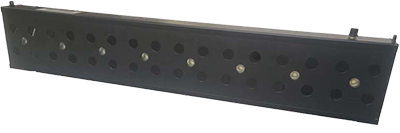

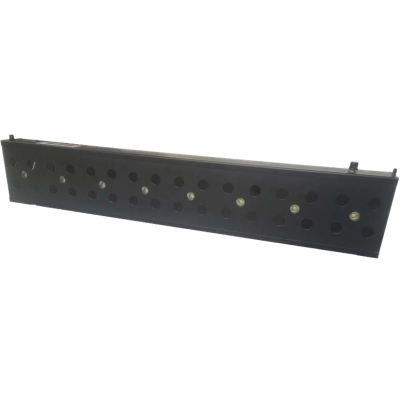

PM-32B

  • 32 UV-A (365nm) LEDs
  • 8 White LEDs
  • UV-A Coverage Area of 43.3" x 10.63" (110 x 27 cm) @ 15" (38 cm)
  • Nominal Steady State UV-A Intensity: 6500 μW/cm2 @ 15" (38 cm)
  • Visible Light Measurement: <foot-candle (<10 lux)
  • Rocker Switch allows easy switching between UV & White Light
  • Mountable
  • Electronic Intensity Control - Capable of adjusting light output

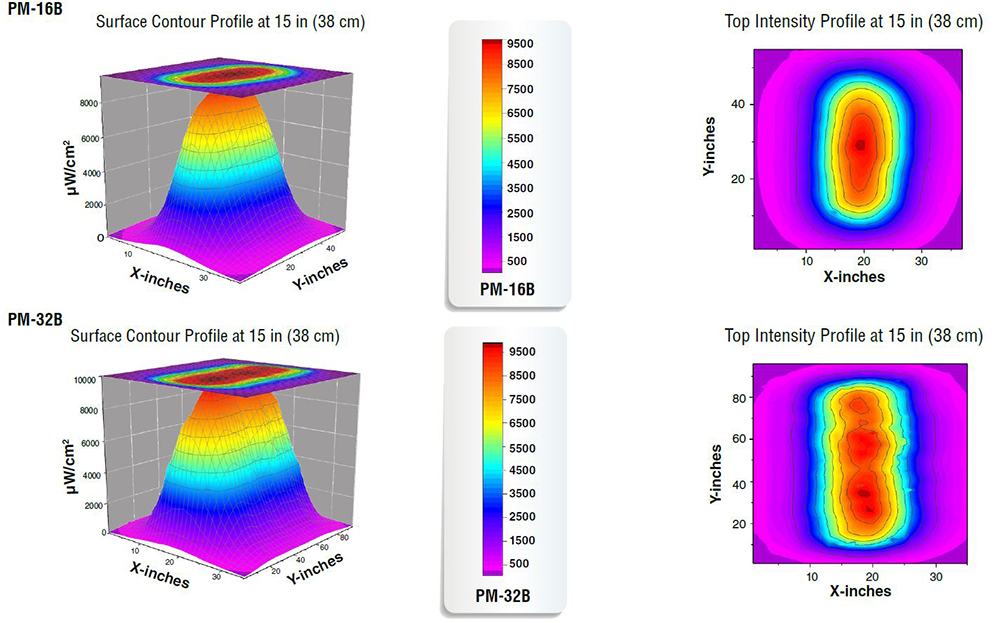

UV-A Beam Profiles

Technical Specifications

PowerMax 365 Series Specifications

  PM-16B PM-32B
Lamp Style: Panel Flood Lamp Panel Flood Lamp
Light Source: 16 UV-A LEDs & 4 White LEDs 32 UV-A LEDs & 8 White LEDs
Nominal Steady-State UV-A Intensity: 6500 μW/cm2 @ 15" (38 cm) 6500 μW/cm2 @ 15" (38 cm)
UV-A Coverage Area @ 15" (38 cm): 23.6" x 10.63" (60 x 27 cm) at minimum 1200 μW/cm2 43.3" x 10.63" (110 x 27 cm) at minimum 1200 μW/cm2
Visible Light Measurement: <1 foot-candle (<10 lux) <1 foot-candle (<10 lux)
Dimensions: 19.1" x 6.7" x 3.94" (48.5 x 17 x 10 cm) 37.8" x 6.7" x 3.94" (96 x 17 x 10 cm)
Weight: 16.5 lbs. (7.5 kg) 34.1 lbs. (15.5 kg)
Intensity Control: From 10% - 100% From 10% - 100%
Power Requirements: 100V - 264V, 50/60 Hz 100V - 264V, 50/60 Hz



PowerMax 365 Series UV-A LED Panel Flood Lamp Kits Include

  • PowerMax 365 PM-16B or PM-32B UV-A LED Flood Panel Lamps
  • Power Cord
  • Chain
  • Hooks
Description Part # Saved Price Select Option Add to
Spectro-UV PowerMax 365 PM-16B Panel Flood Lamp Kit Includes: PM-16B Lamp w/16 UV-A LEDs, 4 White Light LEDs with UV-A Filter, Power Cord, Chain & Hooks (100-120V/50-60Hz) UV-SP-PM-16B $2,750.00 $2,475.00
Spectro-UV PowerMAX 365 PM-32B Panel Flood Lamp Kit Includes: PM-132B Lamp w/32 UV-A LEDs, 8 White Light LEDs with UV-A Filter, Power Cord, Chain & Hooks (100-120V/50-60Hz) UV-SP-PM-32B $3,975.00 $3,557.00
