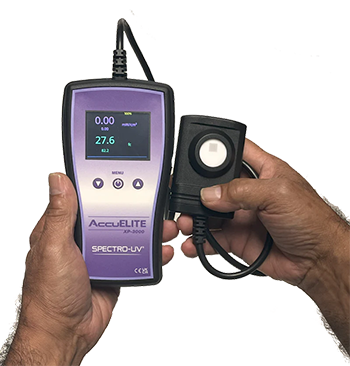

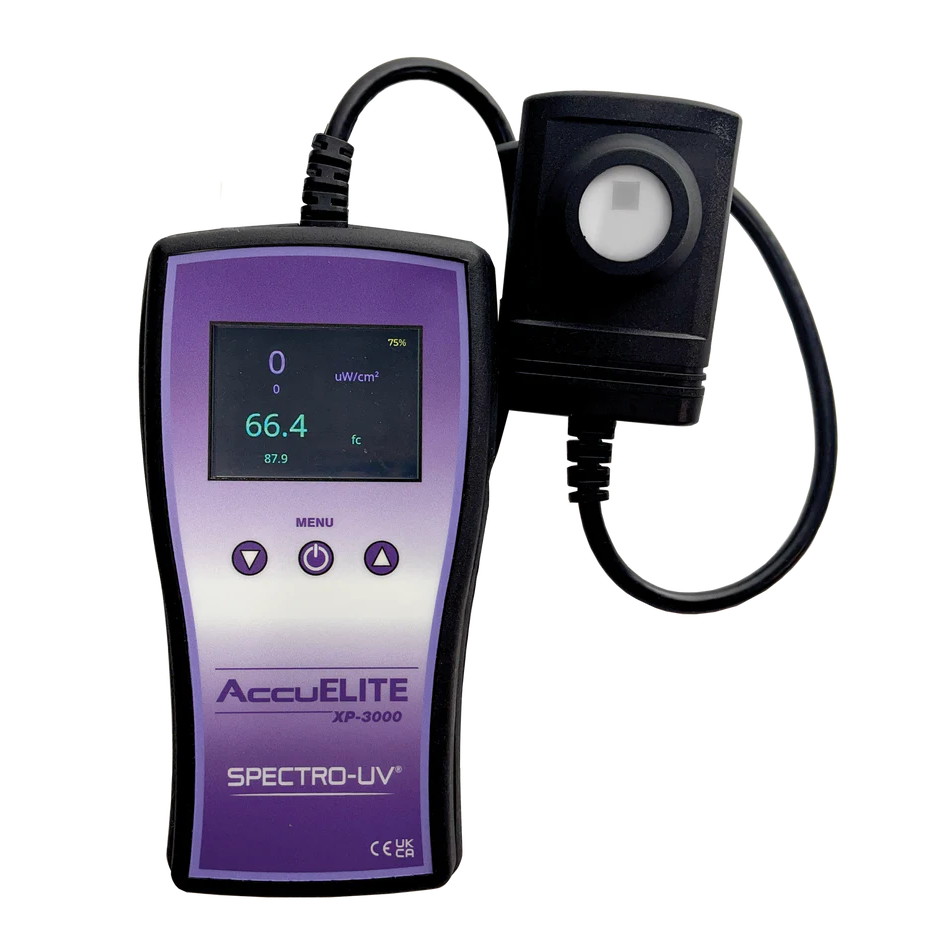

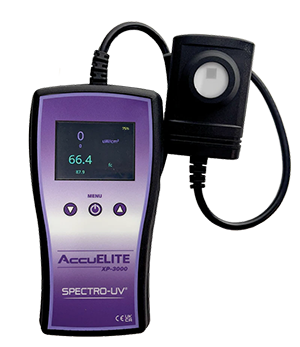

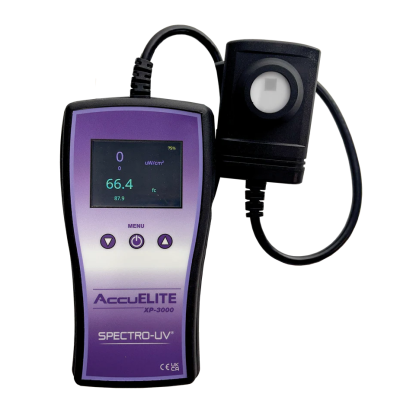

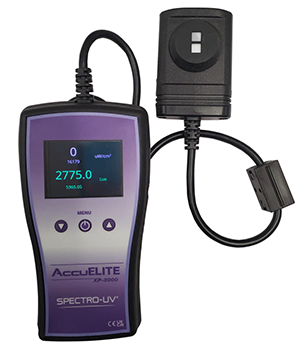

Spectro-UV AccuELITE XP-3000

Spectro-UV AccuELITE XP-3000

Revolutionary 24+ hours continuous operation eliminates costly downtime and missed critical readings.

 Made in the USA

Rugged, Precise, Continuous Operation

Engineered to set new standards in precision and reliability, the XP-3000 is designed for the most demanding industrial measurement environments.

Key Features
  • Extended 24-hour battery life with onboard charging
  • Replaceable rechargeable batteries
  • Rapid 5-10 Hz measurement updates
  • Compliant with ASTM E2297 standard
  • Measures UV-A (0-100 mW/cm²) and Visible light (0-5,382 lux)
  • User-selectable languages: English, French, German, and Spanish

Features & Benefits

  • Extended Operation
    • Industry-leading 24-hour continuous battery life
    • Rechargeable battery system with onboard charging
    • Never miss critical measurements due to power loss
  • Superior Real-Time Response
    • Rapid 5-10 Hz measurement updates
    • Instant readings for dynamic applications
    • Perfect for fast-moving production environments
  • Professional-Grade Accuracy
    • Better than ±5% accuracy (NIST traceable)
    • Superior band-pass interference filter
    • Excellent cosine response for reliable measurements
    • 40-watt models: Enameled sheet metal housing
  • User-Focused Design
    • 4-digit auto-ranging display with backlit LCD
    • One-touch PEAK function with reset
    • User-defined power saving settings
    • Intuitive operation for all skill levels
  • Multilingual - now includes more languages. User-selectable, multilingual display settings at any operational level. Choose from English, French, German and Spanish
  • Compliances and Certifications
    • ASTM E3022 Compliant - (XP-3000A)
    • ASTM E2297 Compliant
    • MIL Standard Certified
    • NIST-Compliant ±5% Accuracy



XP-3000A: We now offer AccuPro with a sensor front end aperture of 0.5” in diameter to address those customers who require this specification for their internal UV-A light measurements. The new part number is XP-3000A and it is functionally the same as XP-3000.

Note: All meters are calibrated to NON-ISO 17025 calibration standards. ISO 17025 calibration is available upon request.

Technical Specifications

XP-3000 & XP-3000A Specifications

Readout Unit
Resolution 4-digit auto-ranging display 128 x 64 dot pixel chip on glass STN transmissive LCD 2.8" (7.1cm) diagonal
Sampling Rate 7.5 Hz (Single Sensor); 15 Hz (Dual Sensor)
Read Update 5 to 10 Hz
Overall Accuracy Better than ±5% with reference to NIST standards
Temperature Coefficient ±0.025%/°C (0 to 50°C)
Power Requirement 4-Rechargeable Batteries

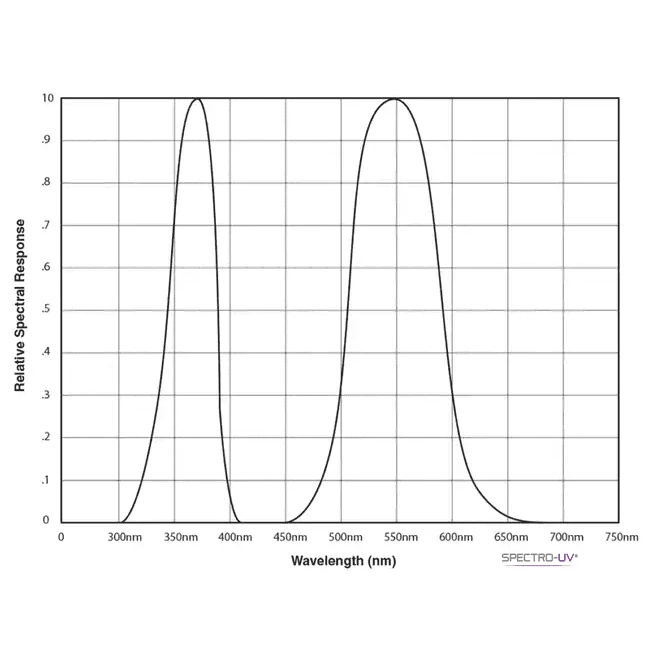

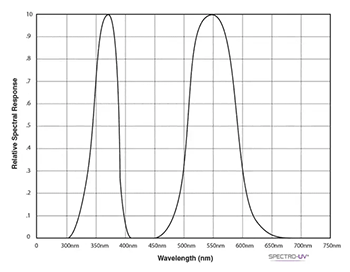

Spectral Range
UV-A Sensor 320-420 nm
Visible Sensor 460-675 nm
XP-3000 & XP-3000A
Dual Sensor Sensitive to UV and Visible Light
Wavelength Measurement Range

UV-A (365 nm) Irradiance, 0-100 mW/cm²

Visible (555 nm) Illuminance, 0-5,382 Lux (0-500 fc)
Dimensions

Readout Unit
Length 6.0" (15.2 cm)
Width 3.0" (7.6 cm)
Depth 1.0" (2.5 cm)
Weight 8 oz. (227 g)
Sensor
Length 3.0" (7.6 cm)
Width 2.0" (5.1 cm)
Depth 0.5" (1.25 cm)
Weight 5.6 oz. (159 g)

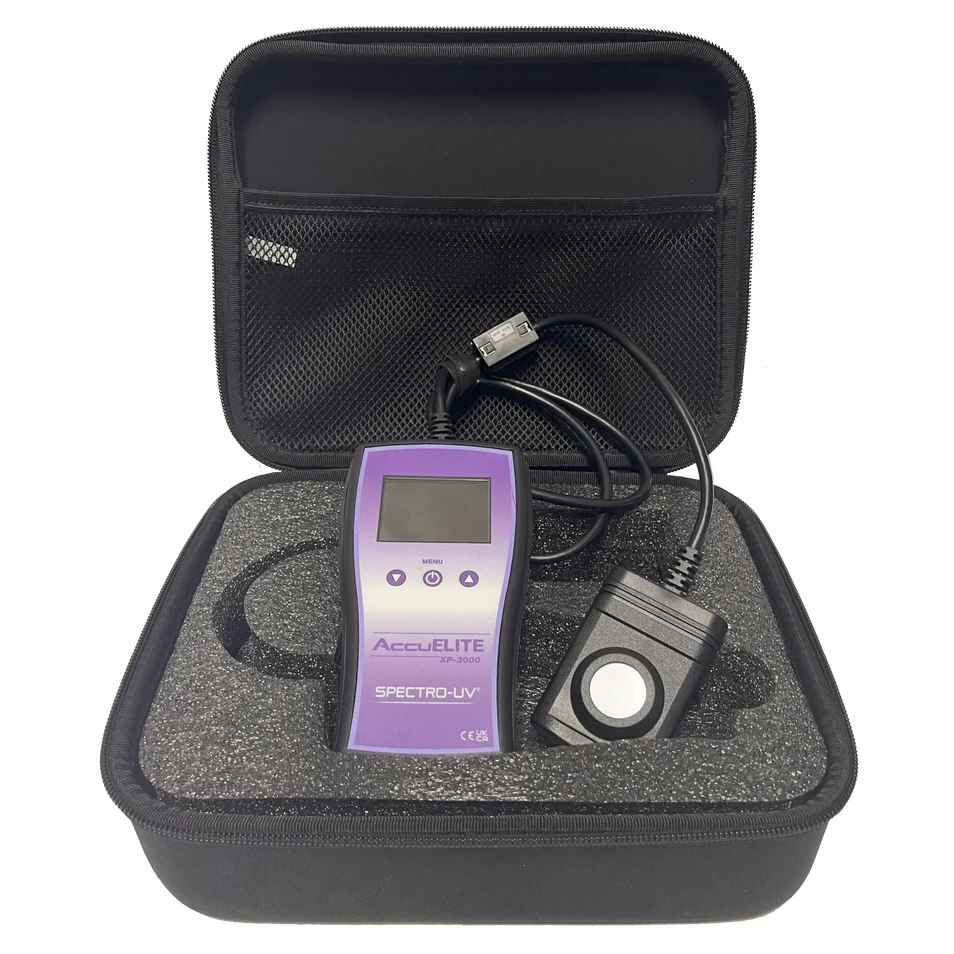

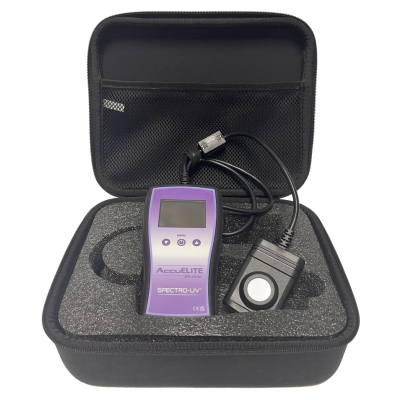

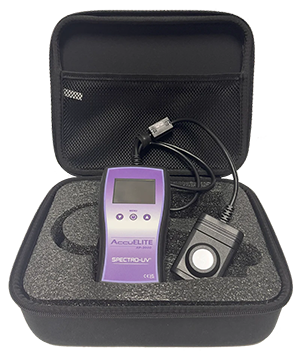

Kit Includes

  • XP-3000 Meter with Dual UV/Visible Light Sensor on Fixed Cable
  • Water-resistant USB cable with adapter
  • Rubber boot
  • Carrying case
  • Calibration Certificate

Note

  1. Standard Calibration Validity is 6 months. If 12 months validity is required, it must be specified on your purchase order.
  2. All meters are calibrated to NON-ISO 17025 calibration standards. ISO 17025 calibration is available upon request.

Product Literature

Description Part # Saved Price Select Option Add to
Spectro-UV AccuELITE XP-3000 Kit Includes: Readout Unit with UW/Visible Sensor, Water-resistant USB cable with adapter, Rubber boot, Carrying Case, Calibration Certificate. UV-SP-XP-3000
$1,250.00
Spectro-UV ISO:17025 Calibration (Spectro-UV UV Light Meters Only) UV-SP-17025-CERT
$300.00
